AIR INTAKE of Lamborghini Lamborghini Aventador LP720 Roadster

View All

Lamborghini Aventador LP720 Roadster - AIR INTAKE

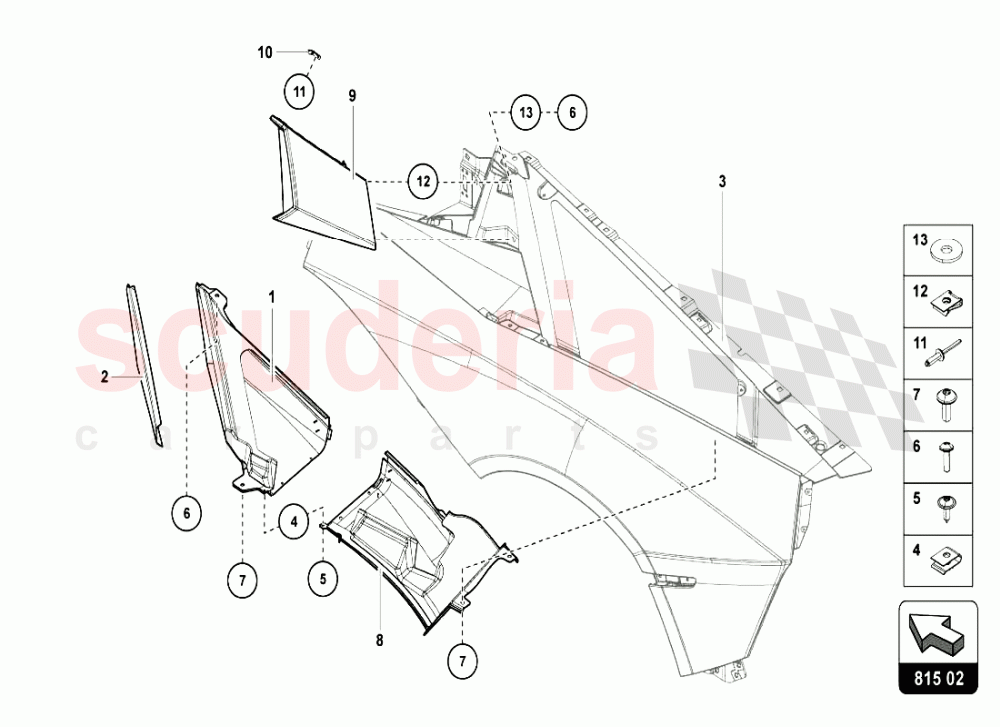

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	470119363C	LH CONVEYOR (UNTIL THE VIN ELA02259)	470119363C LH CONVEYOR (UNTIL THE VIN ELA02259)	-	1	Enquire
001	470119363E	AIR GUIDE	470119363E AIR GUIDE	-	1	Enquire
001	470119364C	RH CONVEYOR (UNTIL THE VIN ELA02259)	470119364C RH CONVEYOR (UNTIL THE VIN ELA02259)	-	1	Enquire
001	470119364D	RH CONVEYOR	470119364D RH CONVEYOR	-	1	Enquire
002	470827282A	RIGHT GRID (FROM VIN ELA02260)	470827282A RIGHT GRID (FROM VIN ELA02260)	-	1	Enquire
002	470827281A	LEFT GRID (FROM VIN ELA02260)	470827281A LEFT GRID (FROM VIN ELA02260)	-	1	Enquire
004	N0154487	SPEED NUT	N0154487 SPEED NUT	-	6	Enquire
005	N90986803	HEXAGON SOCKET HEAD PANEL BOLT	N90986803 HEXAGON SOCKET HEAD PANEL BOLT	-	6	Enquire
006	N10661002	HEX SOCKET OVAL HEAD COLLARED M6 X 20	N10661002 HEX SOCKET OVAL HEAD COLLARED M6 X 20	-	8	Enquire
007	N90780903	OVAL HEXAGON SOCKET HEAD BOLT	N90780903 OVAL HEXAGON SOCKET HEAD BOLT	-	6	Enquire
008	470117331A	LH CONVEYOR (FROM VIN DLA01300)	470117331A LH CONVEYOR (FROM VIN DLA01300)	-	1	Enquire
008	470117332A	RH CONVEYOR (FROM VIN DLA0130)	470117332A RH CONVEYOR (FROM VIN DLA0130)	-	1	Enquire
009	470122193D	AIR DUCT CARDBOARD	470122193D AIR DUCT CARDBOARD	-	1	Enquire
009	470122194D	AIR DUCT CARDBOARD	470122194D AIR DUCT CARDBOARD	-	1	Enquire
010	470117086B	ARM	470117086B ARM	-	1	Enquire
010	470117085B	ARM	470117085B ARM	-	1	Enquire
011	N91083301	POP RIVET	N91083301 POP RIVET	-	4	Enquire
012	N90688703	SPEED NUT	N90688703 SPEED NUT	-	4	Enquire
013	N01166623	WASHER	N01166623 WASHER	-	4	Enquire
