INTAKE MANIFOLD of Lamborghini Lamborghini Aventador LP720 Roadster

View All

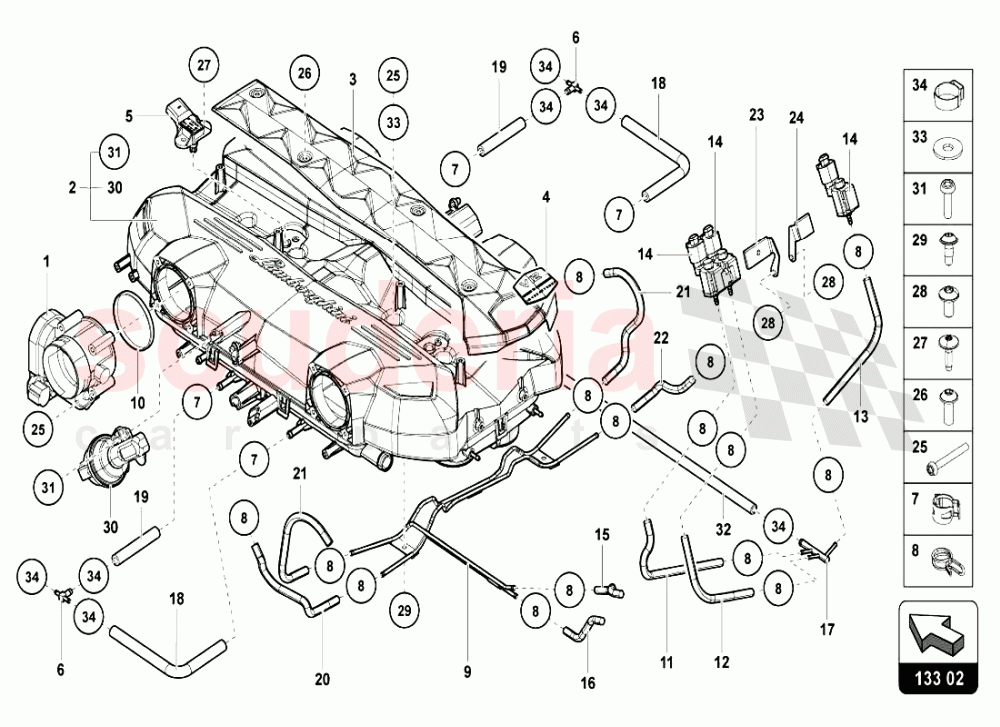

Lamborghini Aventador LP720 Roadster - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7C133062C	THROTTLE VALVE	7C133062C THROTTLE VALVE	-	4	Enquire
002	7M133433M	INTAKE MANIFOLD UPPER PART	7M133433M INTAKE MANIFOLD UPPER PART	-	1	Enquire
003	7M103927K	COVER	7M103927K COVER	-	1	Enquire
003	7M103927L	COVER	7M103927L COVER	-	1	Enquire
004	7M103115K	ORNAMENT	7M103115K ORNAMENT	-	1	Enquire
005	6B906051	PRESSURE SENSOR	6B906051 PRESSURE SENSOR	-	2	Enquire
006	470133794A	T-PIECE	470133794A T-PIECE	-	2	Enquire
007	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	-	10	Enquire
008	400127217	CLAMP	400127217 CLAMP	-	18	Enquire
009	7M133085C	VACUUM PIPE	7M133085C VACUUM PIPE	-	1	Enquire
010	7M129268	Gasket	7M129268 Gasket	-	4	Enquire
011	7M133727B	VACUUM HOSE	7M133727B VACUUM HOSE	-	1	Enquire
012	470131209	PRESSURE PIPE	470131209 PRESSURE PIPE	-	1	Enquire
013	470131201	CONNECTING HOSE	470131201 CONNECTING HOSE	-	1	Enquire
014	37906283C	SOLENOID VALVE	37906283C SOLENOID VALVE	-	3	Enquire
015	7M131846C	INTAKE HOSE	7M131846C INTAKE HOSE	-	1	Enquire
016	7M131847C	INTAKE HOSE	7M131847C INTAKE HOSE	-	1	Enquire
017	470131585	CONNECTION PIECE	470131585 CONNECTION PIECE	-	1	Enquire
018	7M131850B	VACUUM HOSE	7M131850B VACUUM HOSE	-	2	Enquire
019	7M131208A	VACUUM HOSE	7M131208A VACUUM HOSE	-	2	Enquire
020	7M133605A	PIPE (BLUE)	7M133605A PIPE (BLUE)	-	1	Enquire
021	7M133727B	VACUUM HOSE	7M133727B VACUUM HOSE	-	2	Enquire
022	7M133605B	VACUUM HOSE	7M133605B VACUUM HOSE	-	1	Enquire
023	7M906287E	BRACKET	7M906287E BRACKET	-	1	Enquire
024	7M906303	SUPPORT	7M906303 SUPPORT	-	1	Enquire
025	N10470705	ROUND HD. SCREW	N10470705 ROUND HD. SCREW	-	16	Enquire
026	N10721401	OVAL HD. SELF-TAPP FITT. SCREW	N10721401 OVAL HD. SELF-TAPP FITT. SCREW	-	4	Enquire
027	N91136801	HEXAGON SOCKET HEAD PANEL BOLT	N91136801 HEXAGON SOCKET HEAD PANEL BOLT	-	4	Enquire
028	N90638102	ROUND HD. SCREW	N90638102 ROUND HD. SCREW	-	2	Enquire
029	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	-	2	Enquire
032	470131175	PIPE	470131175 PIPE	-	1	Enquire
033	N01166623	WASHER	N01166623 WASHER	-	4	Enquire
034	N10196901	CLAMP	N10196901 CLAMP	-	7	Enquire
