CENTRE TUNNEL AND CONSOLE of Ferrari Ferrari SF90 XX Stradale Europe RH

View All

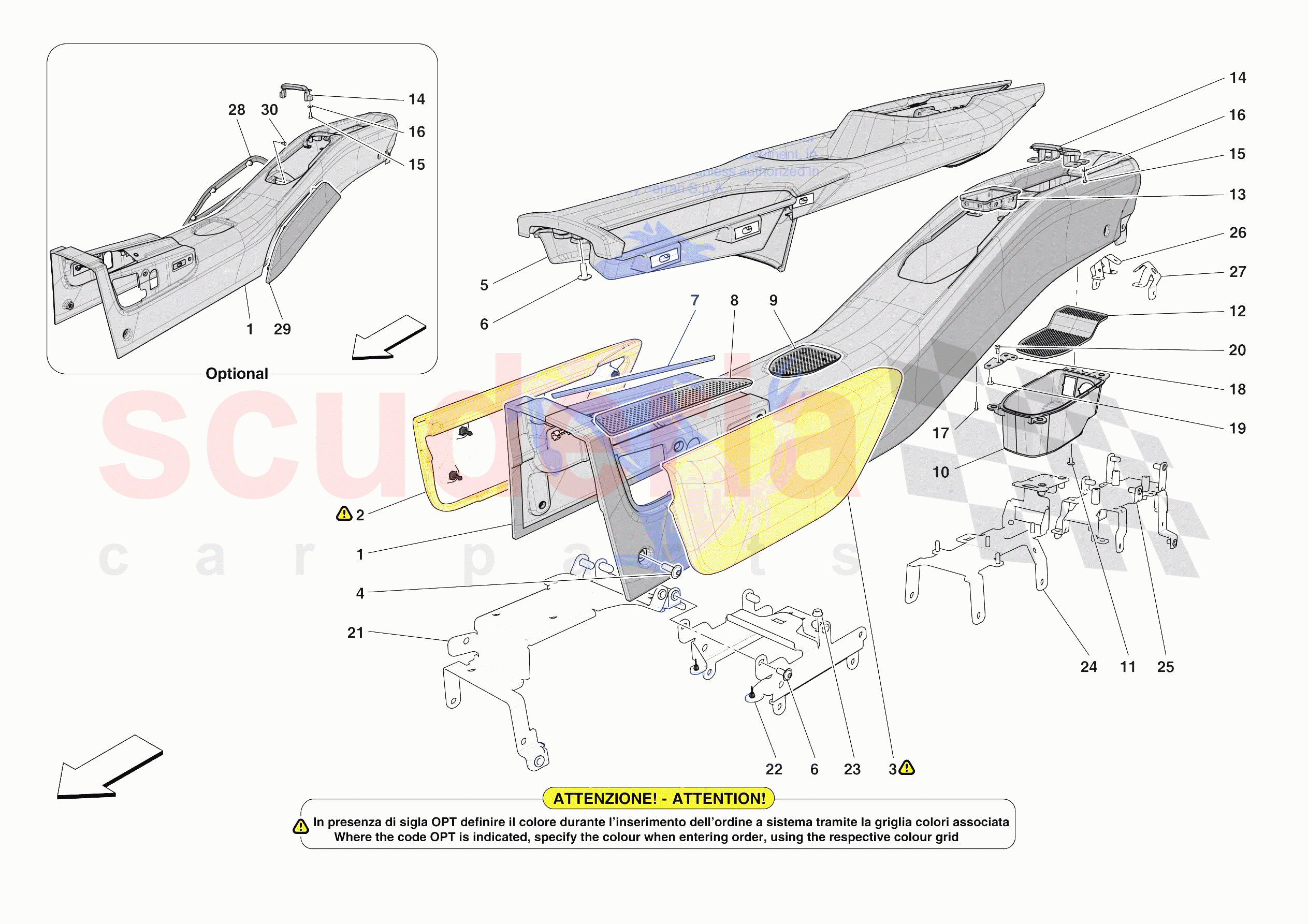

Ferrari SF90 XX Stradale Europe RH - CENTRE TUNNEL AND CONSOLE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	944635	COMPL. TUNNEL SUBSTRUCTURE	Enquire	To Order
	941898	COMPL. TUNNEL SUBSTRUCTURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	944648	COMPL. RH PAD	Enquire	To Order
	941878	COMPL. RH PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	944651	COMPL. LH PAD	Enquire	To Order
	941984	COMPL. LH PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941873	COMPL. FRONT TUNNEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941895	RH MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941894	LH MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	949044	CUP HOLDER MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941869	ODDMENTS STORAGE TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941896	POCKET CHANGE TRAY MAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	791875	KEY HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	952485	PLATE	Enquire	To Order
	941870	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343526	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12639901	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82464100	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	949587	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84056300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941888	COMPL. AIRBAG ECU GUARD BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941891	COMPL. FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941890	COMPL. BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941893	COMPL. CABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	938527	RH FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	925196	LH FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941906	COMPL. RH CENTRE PAD	Enquire	To Order
	748781	COMPL. RH CENTRE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941905	COMPL. LH CENTRE PAD	Enquire	To Order
	748773	COMPL. LH CENTRE PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15902601	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	944635	COMPL. TUNNEL SUBSTRUCTURE	944635 COMPL. TUNNEL SUBSTRUCTURE Black technical fabric	-	1	Enquire
0001	941898	COMPL. TUNNEL SUBSTRUCTURE	941898 COMPL. TUNNEL SUBSTRUCTURE Matte finish carbon version	-	1	Enquire
0002	944648	COMPL. RH PAD	944648 COMPL. RH PAD Black technical fabric	-	1	Enquire
0002	941878	COMPL. RH PAD	941878 COMPL. RH PAD Alcantara - Alcantara is always black if option CRP5 is selected; INTA	-	1	Enquire
0003	944651	COMPL. LH PAD	944651 COMPL. LH PAD Black technical fabric	-	1	Enquire
0003	941984	COMPL. LH PAD	941984 COMPL. LH PAD Alcantara - Alcantara is always black if option CRP5 is selected; INTA	-	1	Enquire
0004	85833700	SCREW	85833700 SCREW M5 X 16	-	28	Enquire
0005	941873	COMPL. FRONT TUNNEL	941873 COMPL. FRONT TUNNEL Gloss carbon	-	1	Enquire
0006	85833700	SCREW	85833700 SCREW M5 X 12	-	6	Enquire
0007	941895	RH MAT	941895 RH MAT Not for lightweight version	-	1	Enquire
0008	941894	LH MAT	941894 LH MAT Not for lightweight version	-	1	Enquire
0009	949044	CUP HOLDER MAT	949044 CUP HOLDER MAT Not for lightweight version	-	1	Enquire
0010	941869	ODDMENTS STORAGE TRAY	941869 ODDMENTS STORAGE TRAY	-	1	Enquire
0011	85833700	SCREW	85833700 SCREW M5 X 10	-	9	Enquire
0012	941896	POCKET CHANGE TRAY MAT	941896 POCKET CHANGE TRAY MAT Not for lightweight version	-	1	Enquire
0013	791875	KEY HOLDER	791875 KEY HOLDER	-	1	Enquire
0014	952485	PLATE	952485 PLATE	-	1	Enquire
0014	941870	PLATE	941870 PLATE Applicable for E-CALL system	-	1	Enquire
0015	343526	SCREW	343526 SCREW M3 X 8	-	2	Enquire
0016	12639901	WASHER	12639901 WASHER	-	2	Enquire
0017	82464100	SCREW	82464100 SCREW M3 X 12	-	2	Enquire
0018	949587	RH BRACKET	949587 RH BRACKET	-	1	Enquire
0019	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	4	Enquire
0020	84056300	SCREW	84056300 SCREW	-	4	Enquire
0021	941888	COMPL. AIRBAG ECU GUARD BRACKET	941888 COMPL. AIRBAG ECU GUARD BRACKET	-	1	Enquire
0022	941891	COMPL. FRONT BRACKET	941891 COMPL. FRONT BRACKET	-	1	Enquire
0023	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5	-	1	Enquire
0024	941890	COMPL. BRACKET	941890 COMPL. BRACKET	-	1	Enquire
0025	941893	COMPL. CABLE BRACKET	941893 COMPL. CABLE BRACKET	-	1	Enquire
0026	938527	RH FASTENER BRACKET	938527 RH FASTENER BRACKET	-	1	Enquire
0027	925196	LH FASTENER BRACKET	925196 LH FASTENER BRACKET	-	1	Enquire
0028	941906	COMPL. RH CENTRE PAD	941906 COMPL. RH CENTRE PAD Black Alcantara	-	1	Enquire
0028	748781	COMPL. RH CENTRE PAD	748781 COMPL. RH CENTRE PAD Black technical fabric	-	1	Enquire
0029	941905	COMPL. LH CENTRE PAD	941905 COMPL. LH CENTRE PAD Black Alcantara	-	1	Enquire
0029	748773	COMPL. LH CENTRE PAD	748773 COMPL. LH CENTRE PAD Black technical fabric	-	1	Enquire
0030	15902601	SCREW	15902601 SCREW 3.5 X 9.5	-	8	Enquire
