Ferrari SF90 XX Stradale Europe RH - REAR SUBFRAME

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985868160 COMPL. CENTRE REAR TRELLIS $673.92 To Order
Photo Part No Description Price (each) Stock
985886117 COMPL. PYLON BRACKET CONNECTOR CROSS PIECE $770.19 To Order
Photo Part No Description Price (each) Stock
830363 VERTICLE TRELLIS BRACKET $11.38 To Order
Photo Part No Description Price (each) Stock
876403 COMPL. LH BASE MOUNTING BRACKET $109.10 To Order
876616 COMPL. RH BASE MOUNTING BRACKET $109.10 To Order
Photo Part No Description Price (each) Stock
902823 COMPL. LH PYLON MOUNTING BRACKET $67.38 To Order
902841 COMPL. RH PYLON MOUNTING BRACKET $67.38 To Order
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
16286121 SCREW $0.70 IN STOCK
Photo Part No Description Price (each) Stock
905706 ADJUSTMENT SHIM $10.57 To Order
Photo Part No Description Price (each) Stock
905667 ADJUSTMENT SHIM $10.57 To Order
Photo Part No Description Price (each) Stock
900885 ADJUSTMENT SHIM $6.73 To Order
Photo Part No Description Price (each) Stock
16287524 SCREW $1.38 IN STOCK
Photo Part No Description Price (each) Stock
946823 ADJUSTMENT SHIM $6.05 To Order
Photo Part No Description Price (each) Stock
985877493 COMPL. RH REAR TRELLIS $272.77 To Order
Photo Part No Description Price (each) Stock
985877492 COMPL. LH REAR TRELLIS $272.77 To Order
Photo Part No Description Price (each) Stock
830381 EXTERNAL VERTICLE TRELLIS BRACKET $10.73 To Order
Photo Part No Description Price (each) Stock
985877477 RH REAR FLANK TRELLIS $882.51 To Order
Photo Part No Description Price (each) Stock
985877476 LH REAR FLANK TRELLIS $882.51 To Order
Photo Part No Description Price (each) Stock
830370 UPPER BRACKET FOR REAR RH NODE $11.38 To Order
Photo Part No Description Price (each) Stock
877549 UPPER BRACKET FOR REAR LH NODE $20.29 To Order
Photo Part No Description Price (each) Stock
925914 COMPL. RH BRACKET $64.17 To Order
Photo Part No Description Price (each) Stock
925913 COMPL. LH BRACKET $64.17 To Order
Photo Part No Description Price (each) Stock
985877497 COMPL. RH AIR FILTER MOUNT $401.13 To Order
Photo Part No Description Price (each) Stock
985877494 COMPL. LH AIR FILTER MOUNT $401.13 To Order
Photo Part No Description Price (each) Stock
985830424 RH WHEELHOUSE BRACKET $134.77 To Order
Photo Part No Description Price (each) Stock
985830415 LH WHEELHOUSE BRACKET $134.77 To Order
Photo Part No Description Price (each) Stock
985830341 COMPL. RH BOX ELEMENT REINFORCEMENT TUBE $272.77 To Order
Photo Part No Description Price (each) Stock
985925466 COMPL. LH BOX ELEMENT REINFORCEMENT TUBE $272.77 To Order
Photo Part No Description Price (each) Stock
985830380 FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT $134.77 To Order
Photo Part No Description Price (each) Stock
985865666 FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT $134.77 To Order
Photo Part No Description Price (each) Stock
803290 RH FRONT CORNER BRACKET $64.17 To Order
865531 LH FRONT CORNER BRACKET $70.59 To Order
Photo Part No Description Price (each) Stock
985877489 COMPL. RH INTERCOOLER MOUNTING TUBE $290.06 To Order
Photo Part No Description Price (each) Stock
985877488 COMPL. LH INTERCOOLER MOUNTING TUBE $290.06 To Order
Photo Part No Description Price (each) Stock
877491 COMPL. RH ADJUSTER CUP $17.63 To Order
Photo Part No Description Price (each) Stock
877490 COMPL. LH ADJUSTER CUP $17.63 To Order
Photo Part No Description Price (each) Stock
830360 RH FLANK ADJUSTMENT BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
830359 LH FLANK ADJUSTMENT BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
910807 RH COMPARTMENT BLANKING PLATE $14.75 To Order
910805 LH COMPARTMENT BLANKING PLATE $14.75 To Order
Photo Part No Description Price (each) Stock
985877500 COMPL. ENGINE COMPARTMENT LID LOCK MOUNT $754.15 To Order
Photo Part No Description Price (each) Stock
14304824 SCREW $0.28 To Order
Photo Part No Description Price (each) Stock
12640624 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
830401 LOCK BRACKET THICKNESS $10.73 To Order
Photo Part No Description Price (each) Stock
909590 COMPL. STRUT MOUNTING BRACKET $150.82 To Order
Photo Part No Description Price (each) Stock
877504 COMPL. MOUNTING BRACKET FOR LH REAR COVER $38.49 To Order
View All

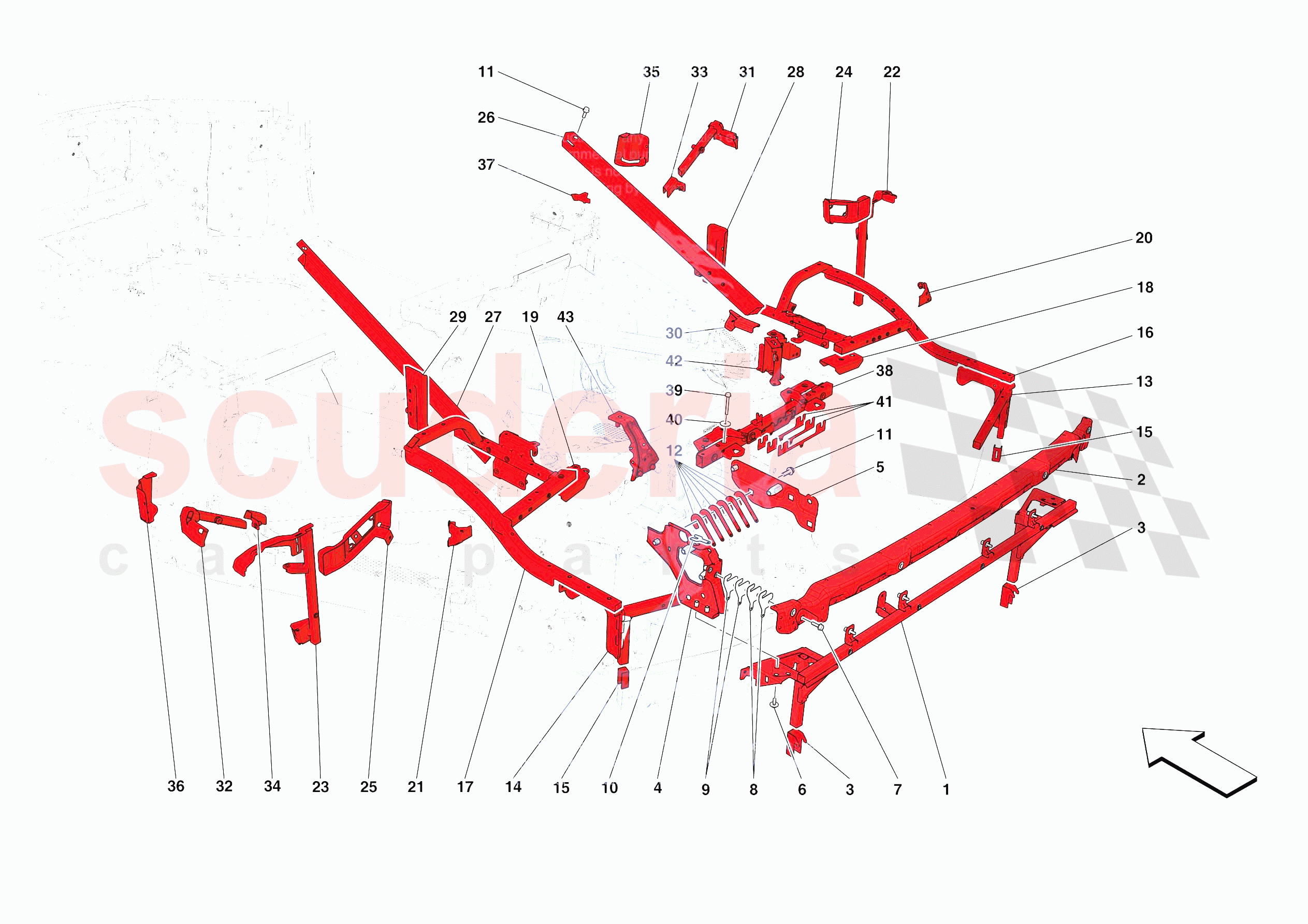

REAR SUBFRAME of Ferrari Ferrari SF90 XX Stradale Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985868160
COMPL. CENTRE REAR TRELLIS 		$673.92 1
0002 985886117
COMPL. PYLON BRACKET CONNECTOR CROSS PIECE 		$770.19 1
0003 830363
VERTICLE TRELLIS BRACKET 		$11.38 2
0004 876403
COMPL. LH BASE MOUNTING BRACKET 		$109.10 1
0004 876616
COMPL. RH BASE MOUNTING BRACKET 		$109.10 1
0005 902823
COMPL. LH PYLON MOUNTING BRACKET 		$67.38 1
0005 902841
COMPL. RH PYLON MOUNTING BRACKET 		$67.38 1
0006 16286121
SCREW
M6 X 20
IN STOCK 		$0.70 (48.1% off) 7
0007 16286121
SCREW
M6 X 20
IN STOCK 		$0.70 (48.1% off) 7
0008 905706
ADJUSTMENT SHIM
Th. 1 mm 		$10.57 4
0009 905667
ADJUSTMENT SHIM
Th. 1.5 mm 		$10.57 4
0010 900885
ADJUSTMENT SHIM
Th. 1 mm 		$6.73 16
0011 16287524
SCREW
M8 X 25
IN STOCK 		$1.38 2
0012 946823
ADJUSTMENT SHIM
Th. 1 mm 		$6.05 18
0013 985877493
COMPL. RH REAR TRELLIS 		$272.77 1
0014 985877492
COMPL. LH REAR TRELLIS 		$272.77 1
0015 830381
EXTERNAL VERTICLE TRELLIS BRACKET 		$10.73 2
0016 985877477
RH REAR FLANK TRELLIS 		$882.51 1
0017 985877476
LH REAR FLANK TRELLIS 		$882.51 1
0018 830370
UPPER BRACKET FOR REAR RH NODE 		$11.38 1
0019 877549
UPPER BRACKET FOR REAR LH NODE 		$20.29 1
0020 925914
COMPL. RH BRACKET 		$64.17 1
0021 925913
COMPL. LH BRACKET 		$64.17 1
0022 985877497
COMPL. RH AIR FILTER MOUNT 		$401.13 1
0023 985877494
COMPL. LH AIR FILTER MOUNT 		$401.13 1
0024 985830424
RH WHEELHOUSE BRACKET 		$134.77 1
0025 985830415
LH WHEELHOUSE BRACKET 		$134.77 1
0026 985830341
COMPL. RH BOX ELEMENT REINFORCEMENT TUBE
Request ASM authorisation 		$272.77 1
0027 985925466
COMPL. LH BOX ELEMENT REINFORCEMENT TUBE
Request ASM authorisation 		$272.77 1
0028 985830380
FASTENER BRACKET FOR RH FRONT FLANK REINFORCEMENT 		$134.77 1
0029 985865666
FASTENER BRACKET FOR LH FRONT FLANK REINFORCEMENT 		$134.77 1
0030 803290
RH FRONT CORNER BRACKET 		$64.17 1
0030 865531
LH FRONT CORNER BRACKET 		$70.59 1
0031 985877489
COMPL. RH INTERCOOLER MOUNTING TUBE 		$290.06 1
0032 985877488
COMPL. LH INTERCOOLER MOUNTING TUBE 		$290.06 1
0033 877491
COMPL. RH ADJUSTER CUP 		$17.63 1
0034 877490
COMPL. LH ADJUSTER CUP 		$17.63 1
0035 830360
RH FLANK ADJUSTMENT BRACKET 		$33.68 1
0036 830359
LH FLANK ADJUSTMENT BRACKET 		$33.68 1
0037 910807
RH COMPARTMENT BLANKING PLATE 		$14.75 1
0037 910805
LH COMPARTMENT BLANKING PLATE 		$14.75 1
0038 985877500
COMPL. ENGINE COMPARTMENT LID LOCK MOUNT 		$754.15 1
0039 14304824
SCREW
M6 X 50 		$0.28 2
0040 12640624
WASHER
IN STOCK 		$0.15 (48.3% off) 2
0041 830401
LOCK BRACKET THICKNESS
1 mm 		$10.73 3
0042 909590
COMPL. STRUT MOUNTING BRACKET 		$150.82 1
0043 877504
COMPL. MOUNTING BRACKET FOR LH REAR COVER 		$38.49 1
