REAR SUSPENSION - CALLIPERS AND DISCS of Ferrari Ferrari SF90 Spider USA

View All

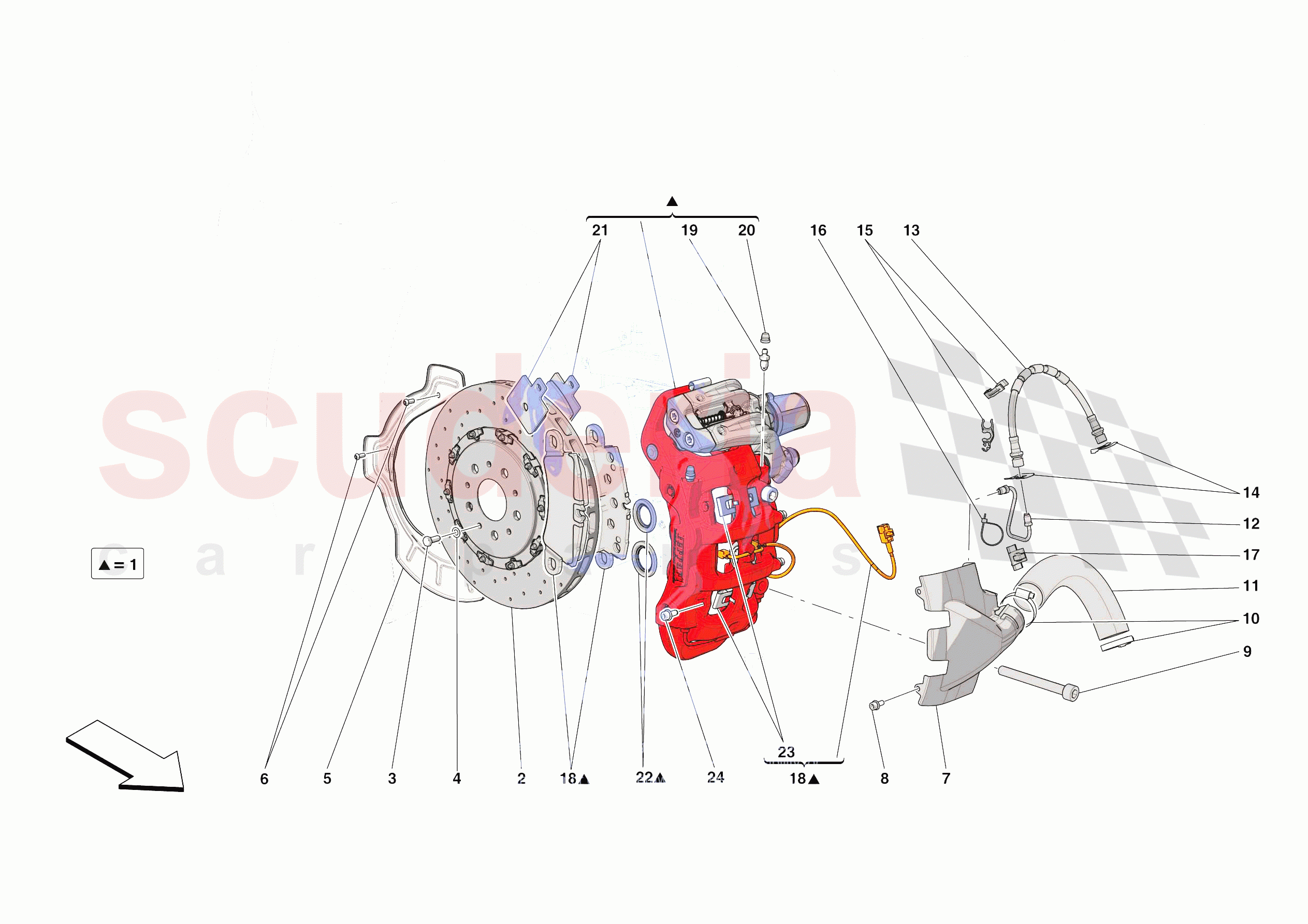

Ferrari SF90 Spider USA - REAR SUSPENSION - CALLIPERS AND DISCS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	776946	COMPL. RH REAR CALIPER	Enquire	To Order
	859618	COMPL. RH REAR CALIPER	Enquire	To Order
	776931	COMPL. RH REAR CALIPER	Enquire	To Order

...and 33 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	319166	REAR BRAKE DISC	Enquire	To Order
	319166	REAR BRAKE DISC	Enquire	To Order
	859613	REAR BRAKE DISC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228131	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228132	SPRING WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257424	RH REAR DISC SHIELD	Enquire	To Order
	257423	LH REAR DISC SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	883174	RH REAR CALIPER HOUSING COVER	Enquire	To Order
	883173	LH REAR CALIPER HOUSING COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	195167	SCREW M12 X 1.5 X 95	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	281349	COILED AIR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299562	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	Enquire	To Order
	299560	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	977797	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	116374	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310942	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70005268	Rear Brake Pad, Wear Sensor and Spring Kit	Enquire	To Order
	70005268	Rear Brake Pad, Wear Sensor and Spring Kit	Enquire	To Order
	851791	REAR PAD SET WITH SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215665	BLEED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	215666	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003667	SET OF EPB PADS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70003493	DUST GAITER KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	70005108	SPRING KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	776946	COMPL. RH REAR CALIPER	776946 COMPL. RH REAR CALIPER Anodised black- -With bedded-in pads	-	1	Enquire
0001	859618	COMPL. RH REAR CALIPER	859618 COMPL. RH REAR CALIPER Anodised black- -With bedded-in pads	-	1	Enquire
0001	776931	COMPL. RH REAR CALIPER	776931 COMPL. RH REAR CALIPER Gold- -With bedded-in pads	-	1	Enquire
0001	860177	COMPL. RH REAR CALIPER	860177 COMPL. RH REAR CALIPER Gold- -With bedded-in pads	-	1	Enquire
0001	776937	COMPL. RH REAR CALIPER	776937 COMPL. RH REAR CALIPER Silver- -With bedded-in pads	-	1	Enquire
0001	860173	COMPL. RH REAR CALIPER	860173 COMPL. RH REAR CALIPER Silver- -With bedded-in pads	-	1	Enquire
0001	776940	COMPL. RH REAR CALIPER	776940 COMPL. RH REAR CALIPER Yellow- -With bedded-in pads	-	1	Enquire
0001	860182	COMPL. RH REAR CALIPER	860182 COMPL. RH REAR CALIPER Yellow- -With bedded-in pads	-	1	Enquire
0001	776942	COMPL. RH REAR CALIPER	776942 COMPL. RH REAR CALIPER Scuderia red- -With bedded-in pads	-	1	Enquire
0001	860184	COMPL. RH REAR CALIPER	860184 COMPL. RH REAR CALIPER Scuderia red- -With bedded-in pads	-	1	Enquire
0001	776944	COMPL. RH REAR CALIPER	776944 COMPL. RH REAR CALIPER Blue- -With bedded-in pads	-	1	Enquire
0001	860175	COMPL. RH REAR CALIPER	860175 COMPL. RH REAR CALIPER Blue- -With bedded-in pads	-	1	Enquire
0001	776926	COMPL. RH REAR CALIPER	776926 COMPL. RH REAR CALIPER Black- -With bedded-in pads	-	1	Enquire
0001	860188	COMPL. RH REAR CALIPER	860188 COMPL. RH REAR CALIPER Black- -With bedded-in pads	-	1	Enquire
0001	776948	COMPL. RH REAR CALIPER	776948 COMPL. RH REAR CALIPER Dark grey- -With bedded-in pads	-	1	Enquire
0001	860180	COMPL. RH REAR CALIPER	860180 COMPL. RH REAR CALIPER Dark grey- -With bedded-in pads	-	1	Enquire
0001	776928	COMPL. RH REAR CALIPER	776928 COMPL. RH REAR CALIPER Red- -With bedded-in pads	-	1	Enquire
0001	860186	COMPL. RH REAR CALIPER	860186 COMPL. RH REAR CALIPER Red- -With bedded-in pads	-	1	Enquire
0001	776945	COMPL. LH REAR CALIPER	776945 COMPL. LH REAR CALIPER Anodised black- -With bedded-in pads	-	1	Enquire
0001	859615	COMPL. LH REAR CALIPER	859615 COMPL. LH REAR CALIPER Anodised black- -With bedded-in pads	-	1	Enquire
0001	776929	COMPL. LH REAR CALIPER	776929 COMPL. LH REAR CALIPER Gold- -With bedded-in pads	-	1	Enquire
0001	860110	COMPL. LH REAR CALIPER	860110 COMPL. LH REAR CALIPER Gold- -With bedded-in pads	-	1	Enquire
0001	776933	COMPL. LH REAR CALIPER	776933 COMPL. LH REAR CALIPER Silver- -With bedded-in pads	-	1	Enquire
0001	860103	COMPL. LH REAR CALIPER	860103 COMPL. LH REAR CALIPER Silver- -With bedded-in pads	-	1	Enquire
0001	776939	COMPL. LH REAR CALIPER	776939 COMPL. LH REAR CALIPER Yellow- -With bedded-in pads	-	1	Enquire
0001	860161	COMPL. LH REAR CALIPER	860161 COMPL. LH REAR CALIPER Yellow- -With bedded-in pads	-	1	Enquire
0001	776941	COMPL. LH REAR CALIPER	776941 COMPL. LH REAR CALIPER Scuderia red- -With bedded-in pads	-	1	Enquire
0001	860164	COMPL. LH REAR CALIPER	860164 COMPL. LH REAR CALIPER Scuderia red- -With bedded-in pads	-	1	Enquire
0001	776943	COMPL. LH REAR CALIPER	776943 COMPL. LH REAR CALIPER Blue- -With bedded-in pads	-	1	Enquire
0001	860105	COMPL. LH REAR CALIPER	860105 COMPL. LH REAR CALIPER Blue- -With bedded-in pads	-	1	Enquire
0001	776924	COMPL. LH REAR CALIPER	776924 COMPL. LH REAR CALIPER Black- -With bedded-in pads	-	1	Enquire
0001	860169	COMPL. LH REAR CALIPER	860169 COMPL. LH REAR CALIPER Black- -With bedded-in pads	-	1	Enquire
0001	776947	COMPL. LH REAR CALIPER	776947 COMPL. LH REAR CALIPER Dark grey- -With bedded-in pads	-	1	Enquire
0001	860159	COMPL. LH REAR CALIPER	860159 COMPL. LH REAR CALIPER Dark grey- -With bedded-in pads	-	1	Enquire
0001	776927	COMPL. LH REAR CALIPER	776927 COMPL. LH REAR CALIPER Red- -With bedded-in pads	-	1	Enquire
0001	860167	COMPL. LH REAR CALIPER	860167 COMPL. LH REAR CALIPER Red- -With bedded-in pads	-	1	Enquire
0002	319166	REAR BRAKE DISC	319166 REAR BRAKE DISC Applies until depletion; Bedded-in	-	2	Enquire
0002	319166	REAR BRAKE DISC	319166 REAR BRAKE DISC Not bedded-in	-	2	Enquire
0002	859613	REAR BRAKE DISC	859613 REAR BRAKE DISC Bedded-in	-	2	Enquire
0003	228131	SCREW	228131 SCREW M8 X 20	-	4	Enquire
0004	228132	SPRING WASHER	228132 SPRING WASHER	-	4	Enquire
0005	257424	RH REAR DISC SHIELD	257424 RH REAR DISC SHIELD	-	1	Enquire
0005	257423	LH REAR DISC SHIELD	257423 LH REAR DISC SHIELD	-	1	Enquire
0006	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	6	Enquire
0007	883174	RH REAR CALIPER HOUSING COVER	883174 RH REAR CALIPER HOUSING COVER	-	1	Enquire
0007	883173	LH REAR CALIPER HOUSING COVER	883173 LH REAR CALIPER HOUSING COVER	-	1	Enquire
0008	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
0009	195167	SCREW M12 X 1.5 X 95	195167 SCREW M12 X 1.5 X 95 M12 X 1.5 X 95	-	4	Enquire
0010	296781	COLLAR 30-45MM ARRIVING SOON	296781 COLLAR 30-45MM ARRIVING SOON	-	4	Enquire
0011	281349	COILED AIR DELIVERY PIPE	281349 COILED AIR DELIVERY PIPE	-	2	Enquire
0012	299562	COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	299562 COMPL. BRAKE PIPE FROM CALLIPER TO RH HOSE	-	1	Enquire
0012	299560	COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	299560 COMPL. BRAKE PIPE FROM CALLIPER TO LH HOSE	-	1	Enquire
0013	977797	HOSE	977797 HOSE Replace as a pair	-	2	Enquire
0014	116374	CLIP	116374 CLIP	-	4	Enquire
0015	310942	CLIP	310942 CLIP 3 compartments	-	4	Enquire
0016	10815787	CLAMP	10815787 CLAMP	-	2	Enquire
0017	303385	CLIP	303385 CLIP	-	2	Enquire
0018	70005268	Rear Brake Pad, Wear Sensor and Spring Kit	70005268 Rear Brake Pad, Wear Sensor and Spring Kit Applies until depletion; With bedded-in pads	-	1	Enquire
0018	70005268	Rear Brake Pad, Wear Sensor and Spring Kit	70005268 Rear Brake Pad, Wear Sensor and Spring Kit With non-bedded-in pads	-	1	Enquire
0018	851791	REAR PAD SET WITH SPRING	851791 REAR PAD SET WITH SPRING With bedded-in pads	-	1	Enquire
0019	215665	BLEED SCREW	215665 BLEED SCREW	-	4	Enquire
0020	215666	PROTECTIVE CAP	215666 PROTECTIVE CAP	-	4	Enquire
0021	70003667	SET OF EPB PADS	70003667 SET OF EPB PADS	-	1	Enquire
0022	70003493	DUST GAITER KIT	70003493 DUST GAITER KIT	-	1	Enquire
0023	70005108	SPRING KIT	70005108 SPRING KIT	-	1	Enquire
0024	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	4	Enquire
