Exhaust System - Front Section

Ferrari SF90 Spider USA

Find Your Part

Ferrari SF90 Spider USA - EXHAUST SYSTEM - FRONT SECTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
958639 SILENCER $4,310.28 To Order
958641 SILENCER $12,871.81 To Order
Photo Part No Description Price (each) Stock
867548 COMPL. RH GPF $10,436.29 To Order
832344 COMPL. RH GPF $26,315.40 To Order
Photo Part No Description Price (each) Stock
867549 COMPL. LH GPF $10,436.29 To Order
832347 COMPL. LH GPF $26,315.40 To Order
Photo Part No Description Price (each) Stock
806375 V-CLAMP $48.56 To Order
Photo Part No Description Price (each) Stock
939966 RH- PRE-CAT $11,853.15 To Order
939970 RH- PRE-CAT $16,055.59 To Order
Photo Part No Description Price (each) Stock
939968 LH- PRE-CAT $11,891.66 To Order
939972 LH- PRE-CAT $16,041.15 To Order
Photo Part No Description Price (each) Stock
290743 V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD $107.49 IN STOCK
Photo Part No Description Price (each) Stock
292946 SPACER $8.02 To Order
Photo Part No Description Price (each) Stock
292945 NUT $13.86 To Order
Photo Part No Description Price (each) Stock
10298460 GASKET $0.15 IN STOCK
Photo Part No Description Price (each) Stock
110860 THREADED PLUG $15.48 IN STOCK
Photo Part No Description Price (each) Stock
826110 RH CATALYTIC CONVERTER SHIELD $109.10 To Order
Photo Part No Description Price (each) Stock
826111 LH CATALYTIC CONVERTER SHIELD $109.10 To Order
Photo Part No Description Price (each) Stock
981836 COMPL. RH BRACKET $272.77 To Order
Photo Part No Description Price (each) Stock
981838 COMPL. LH BRACKET $272.77 To Order
Photo Part No Description Price (each) Stock

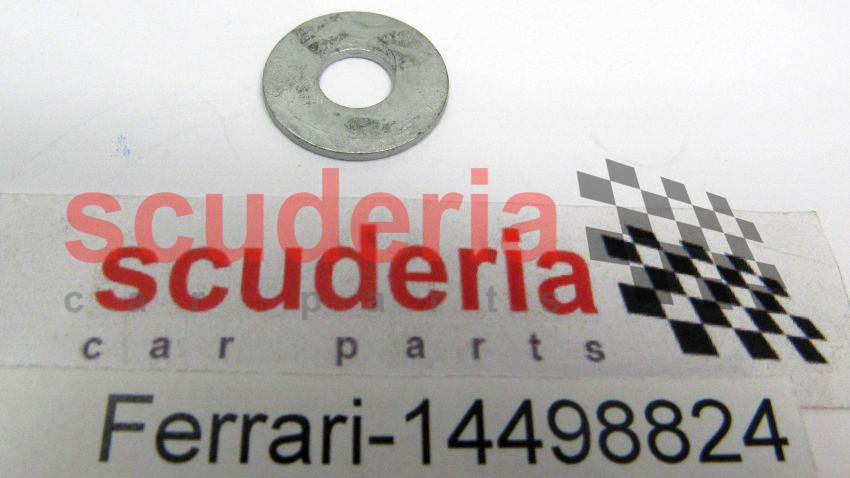

14498824 WASHER $0.15 IN STOCK
Photo Part No Description Price (each) Stock
216565 SCREW $0.45 To Order
Photo Part No Description Price (each) Stock
12625224 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
16044234 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock

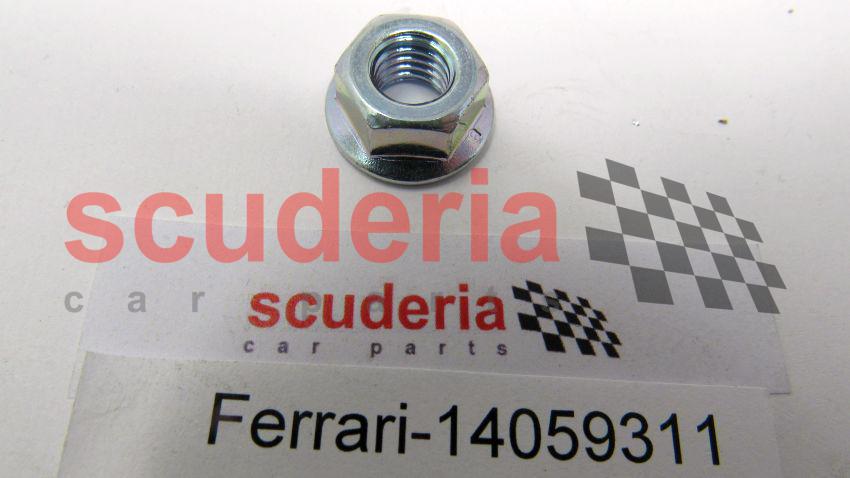

14059311 FLANGED NUT M8 X 1.25 $0.29 IN STOCK
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 IN STOCK
Photo Part No Description Price (each) Stock
917049 SILENCE FASTENER BRACKET $48.12 To Order
Photo Part No Description Price (each) Stock
827919 BRACKET FOR RH GPF $41.70 To Order
Photo Part No Description Price (each) Stock
919089 BRACKET FOR LH GPF $56.14 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
12648978 WASHER $0.55 IN STOCK
Photo Part No Description Price (each) Stock
240598 BRACKET PLATE $14.10 IN STOCK
240598 BRACKET PLATE $14.10 IN STOCK
Photo Part No Description Price (each) Stock
283425 SQUARE HEADED SCREW M6 X 18.5MM $2.54 IN STOCK
Photo Part No Description Price (each) Stock
239798 FLEXIBLE SILENCER MOUNTING BUSH $73.80 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
855141 V-CLAMP $43.50 To Order
Photo Part No Description Price (each) Stock
898288 GASKET $20.08 To Order
Photo Part No Description Price (each) Stock
968310 RH RIGID PIPE $1,123.20 To Order
Photo Part No Description Price (each) Stock
968311 LH RIGID PIPE $1,123.20 To Order
Photo Part No Description Price (each) Stock
842654 BRACKET FOR RIGID PIPE $27.26 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
231624 SCREW $0.44 IN STOCK
Photo Part No Description Price (each) Stock
239829 VIBRATION DAMPER Enquire To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.11 IN STOCK
Photo Part No Description Price (each) Stock
965165 RH COILED PIPE $152.42 To Order
Photo Part No Description Price (each) Stock
965166 LH COILED PIPE $155.63 To Order
Photo Part No Description Price (each) Stock
895925 RH TEMPERATURE SENSOR MOUNT $56.14 To Order
Photo Part No Description Price (each) Stock
895926 LH TEMPERATURE SENSOR MOUNT $52.94 To Order
Photo Part No Description Price (each) Stock
880303 BRACKET $27.26 To Order
Photo Part No Description Price (each) Stock
786536 COMPL. MEMBRANE HOLDER PIPE $89.84 To Order
Photo Part No Description Price (each) Stock
961969 RH HOSE $56.14 To Order
Photo Part No Description Price (each) Stock
830179 LH HOSE $56.14 To Order
Photo Part No Description Price (each) Stock
961967 R.H. TRUMPET $18.83 To Order
Photo Part No Description Price (each) Stock
961968 L.H. TRUMPET $18.83 To Order
Photo Part No Description Price (each) Stock
901095 GASKET $5.75 To Order
Photo Part No Description Price (each) Stock
980026 TRUMPET MESH $48.12 To Order
Photo Part No Description Price (each) Stock
12638170 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10725017 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
12604178 Washer Enquire To Order
Photo Part No Description Price (each) Stock
962005 HIGH PRESSURE HOSE $62.56 To Order
Photo Part No Description Price (each) Stock
826617 REDUCER FOR RESONATOR $10.10 To Order
Photo Part No Description Price (each) Stock
310096 SOUND GENERATOR $256.72 To Order
Photo Part No Description Price (each) Stock
314100 RIVET $0.47 To Order
Photo Part No Description Price (each) Stock
296783 SCREW COLLAR $10.23 IN STOCK
Photo Part No Description Price (each) Stock
964683 LOW PRESSURE HOSE $150.82 To Order
Photo Part No Description Price (each) Stock
967492 GASKET $6.27 To Order
Photo Part No Description Price (each) Stock
14040511 NUT $0.57 To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.11 IN STOCK
Photo Part No Description Price (each) Stock
890950 TEMPERATURE SENSOR $108.24 To Order
Photo Part No Description Price (each) Stock
969054 LATERAL MESH $32.08 To Order
View All

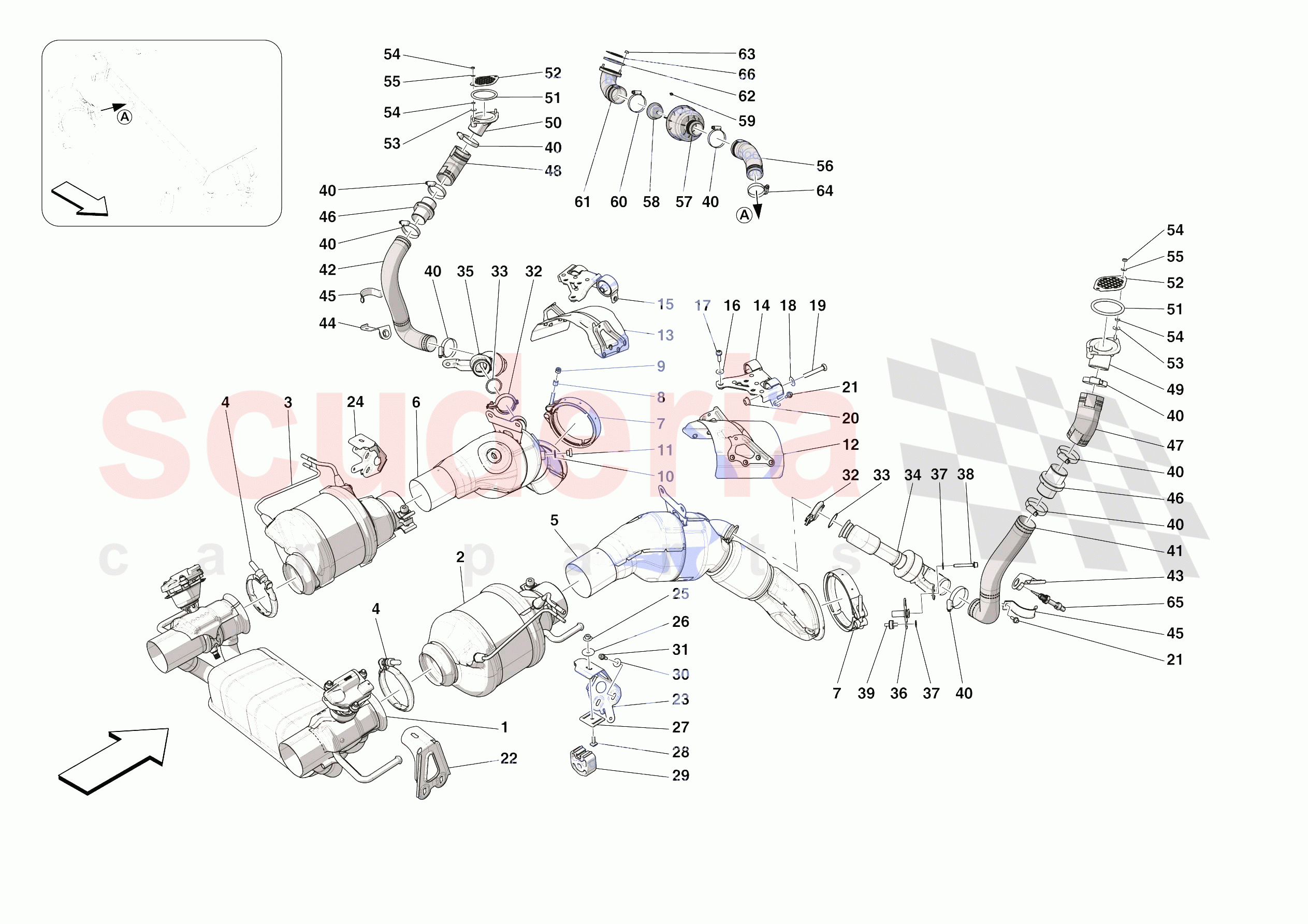

EXHAUST SYSTEM - FRONT SECTION of Ferrari Ferrari SF90 Spider USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 958639
SILENCER 		$4,310.28 1
0001 958641
SILENCER
Version with lightened exhaust system - Applicable for Assetto Fiorano FIO1/FIO2 		$12,871.81 1
0002 867548
COMPL. RH GPF
In case of replacement, also order LH GPF 867549 		$10,436.29 1
0002 832344
COMPL. RH GPF
In case of replacement, also order LH GPF 832347 		$26,315.40 1
0003 867549
COMPL. LH GPF
In case of replacement, also order RH GPF 867548 		$10,436.29 1
0003 832347
COMPL. LH GPF
In case of replacement, also order RH GPF 832344 		$26,315.40 1
0004 806375
V-CLAMP 		$48.56 2
0005 939966
RH- PRE-CAT 		$11,853.15 1
0005 939970
RH- PRE-CAT
Version with lightened exhaust system - Applicable for Assetto Fiorano FIO1/FIO2 		$16,055.59 1
0006 939968
LH- PRE-CAT 		$11,891.66 1
0006 939972
LH- PRE-CAT
Version with lightened exhaust system - Applicable for Assetto Fiorano FIO1/FIO2 		$16,041.15 1
0007 290743
V-CLAMP FOR FASTENING CATALYTIC CONVERTER TO MANIFOLD
IN STOCK 		$107.49 2
0008 292946
SPACER 		$8.02 2
0009 292945
NUT
M8 X1.25 X 11 		$13.86 2
0010 10298460
GASKET
IN STOCK 		$0.15 (88% off) 2
0011 110860
THREADED PLUG
IN STOCK 		$15.48 (14% off) 2
0012 826110
RH CATALYTIC CONVERTER SHIELD 		$109.10 1
0013 826111
LH CATALYTIC CONVERTER SHIELD 		$109.10 1
0014 981836
COMPL. RH BRACKET 		$272.77 1
0015 981838
COMPL. LH BRACKET 		$272.77 1
0016 14498824
WASHER
IN STOCK 		$0.15 6
0017 216565
SCREW
M6 X 20 		$0.45 6
0018 12625224
WASHER 		$0.06 (76% off) 8
0019 16044234
SCREW
M8 X 50
IN STOCK 		$0.29 (65.9% off) 4
0020 14059311
FLANGED NUT M8 X 1.25
IN STOCK 		$0.29 (42% off) 4
0021 85833900
SCREW
M5 X 16
IN STOCK 		$0.36 8
0022 917049
SILENCE FASTENER BRACKET 		$48.12 2
0023 827919
BRACKET FOR RH GPF 		$41.70 1
0024 919089
BRACKET FOR LH GPF 		$56.14 1
0025 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
0026 12648978
WASHER
IN STOCK 		$0.55 4
0027 240598
BRACKET PLATE
Applicable after depletion of 799014
IN STOCK 		$14.10 (28.1% off) 4
0027 240598
BRACKET PLATE
IN STOCK 		$14.10 (28.1% off) 4
0028 283425
SQUARE HEADED SCREW M6 X 18.5MM
M6 X 18.5
IN STOCK 		$2.54 4
0029 239798
FLEXIBLE SILENCER MOUNTING BUSH
IN STOCK 		$73.80 (19% off) 4
0030 12643724
WASHER
IN STOCK 		$0.06 (88% off) 4
0031 231619
SCREW
M6 X 20
IN STOCK 		$0.31 8
0032 855141
V-CLAMP 		$43.50 2
0033 898288
GASKET 		$20.08 2
0034 968310
RH RIGID PIPE 		$1,123.20 1
0035 968311
LH RIGID PIPE 		$1,123.20 1
0036 842654
BRACKET FOR RIGID PIPE 		$27.26 2
0037 12644424
WASHER
IN STOCK 		$0.06 (85% off) 6
0038 231624
SCREW
M6 X 45
IN STOCK 		$0.44 2
0039 239829
VIBRATION DAMPER 		- 4 Enquire
0040 296781
COLLAR 30-45MM
IN STOCK 		$9.11 1
0041 965165
RH COILED PIPE 		$152.42 1
0042 965166
LH COILED PIPE 		$155.63 1
0043 895925
RH TEMPERATURE SENSOR MOUNT 		$56.14 1
0044 895926
LH TEMPERATURE SENSOR MOUNT 		$52.94 1
0045 880303
BRACKET 		$27.26 2
0046 786536
COMPL. MEMBRANE HOLDER PIPE 		$89.84 2
0047 961969
RH HOSE 		$56.14 1
0048 830179
LH HOSE 		$56.14 1
0049 961967
R.H. TRUMPET 		$18.83 1
0050 961968
L.H. TRUMPET 		$18.83 1
0051 901095
GASKET 		$5.75 2
0052 980026
TRUMPET MESH 		$48.12 2
0053 12638170
WASHER 		- 4 Enquire
0054 10725017
NUT 		$0.39 8
0055 12604178
Washer 		- 4 Enquire
0056 962005
HIGH PRESSURE HOSE 		$62.56 1
0057 826617
REDUCER FOR RESONATOR 		$10.10 1
0058 310096
SOUND GENERATOR 		$256.72 1
0059 314100
RIVET 		$0.47 2
0060 296783
SCREW COLLAR
IN STOCK 		$10.23 1
0061 964683
LOW PRESSURE HOSE 		$150.82 1
0062 967492
GASKET 		$6.27 1
0063 14040511
NUT 		$0.57 4
0064 296781
COLLAR 30-45MM
IN STOCK 		$9.11 1
0065 890950
TEMPERATURE SENSOR 		$108.24 2
0066 969054
LATERAL MESH 		$32.08 1
