Forced Induction System Pipes

Ferrari SF90 Spider USA

Find Your Part

Ferrari SF90 Spider USA - FORCED INDUCTION SYSTEM PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
802274 OIL RETURN PIPE FROM RH TURBO $368.90 To Order
968447 OIL RETURN PIPE FROM RH TURBO $481.36 To Order
968447 OIL RETURN PIPE FROM RH TURBO $481.36 To Order
Photo Part No Description Price (each) Stock
802275 OIL RETURN PIPE FROM LH TURBO $393.05 To Order
968448 OIL RETURN PIPE FROM LH TURBO $513.46 To Order
968448 OIL RETURN PIPE FROM LH TURBO $513.46 To Order
Photo Part No Description Price (each) Stock
342213 OIL RECOVERY PIPE SEAL $46.89 To Order
Photo Part No Description Price (each) Stock
308203 OIL RECOVERY PIPE SEAL $29.06 ARRIVING SOON
Photo Part No Description Price (each) Stock
231620 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
287722 O-RING $7.05 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
865067 WATER DELIVERY PIPE TO RH TURBO $256.72 To Order
Photo Part No Description Price (each) Stock
796496 LH TURBO WATER DELIVERY PIPE $240.67 To Order
835088 LH TURBO WATER DELIVERY PIPE $333.58 To Order
Photo Part No Description Price (each) Stock
14457281 GASKET $14.28 To Order
Photo Part No Description Price (each) Stock
290216 THREADED CONNECTOR WITH SEAL RING $28.87 To Order
Photo Part No Description Price (each) Stock
10261060 GASKET COPPER 12 - 16 X 1.5 $0.18 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
923390 OIL DELIVERY PIPE TO RH TURBO $417.18 To Order
Photo Part No Description Price (each) Stock
925718 OIL DELIVERY PIPE TO LH TURBO $449.27 To Order
Photo Part No Description Price (each) Stock
14456981 GASKET $0.99 IN STOCK
Photo Part No Description Price (each) Stock
923014 THREADED CONNECTOR WITH SEAL RING $15.24 To Order
Photo Part No Description Price (each) Stock
10260160 Copper Washer D. 10 - 14 x 1 $0.84 IN STOCK
Photo Part No Description Price (each) Stock
901164 WATER RETURN PIPE FROM RH TURBO $290.06 To Order
Photo Part No Description Price (each) Stock
865444 WATER RETURN PIPE FROM LH TURBO $288.81 To Order
Photo Part No Description Price (each) Stock
262107 SCREW COLLAR $1.67 To Order
Photo Part No Description Price (each) Stock
308429 HOSE CONNECTOR $13.14 To Order
Photo Part No Description Price (each) Stock
14094010 NUT $11.88 To Order
View All

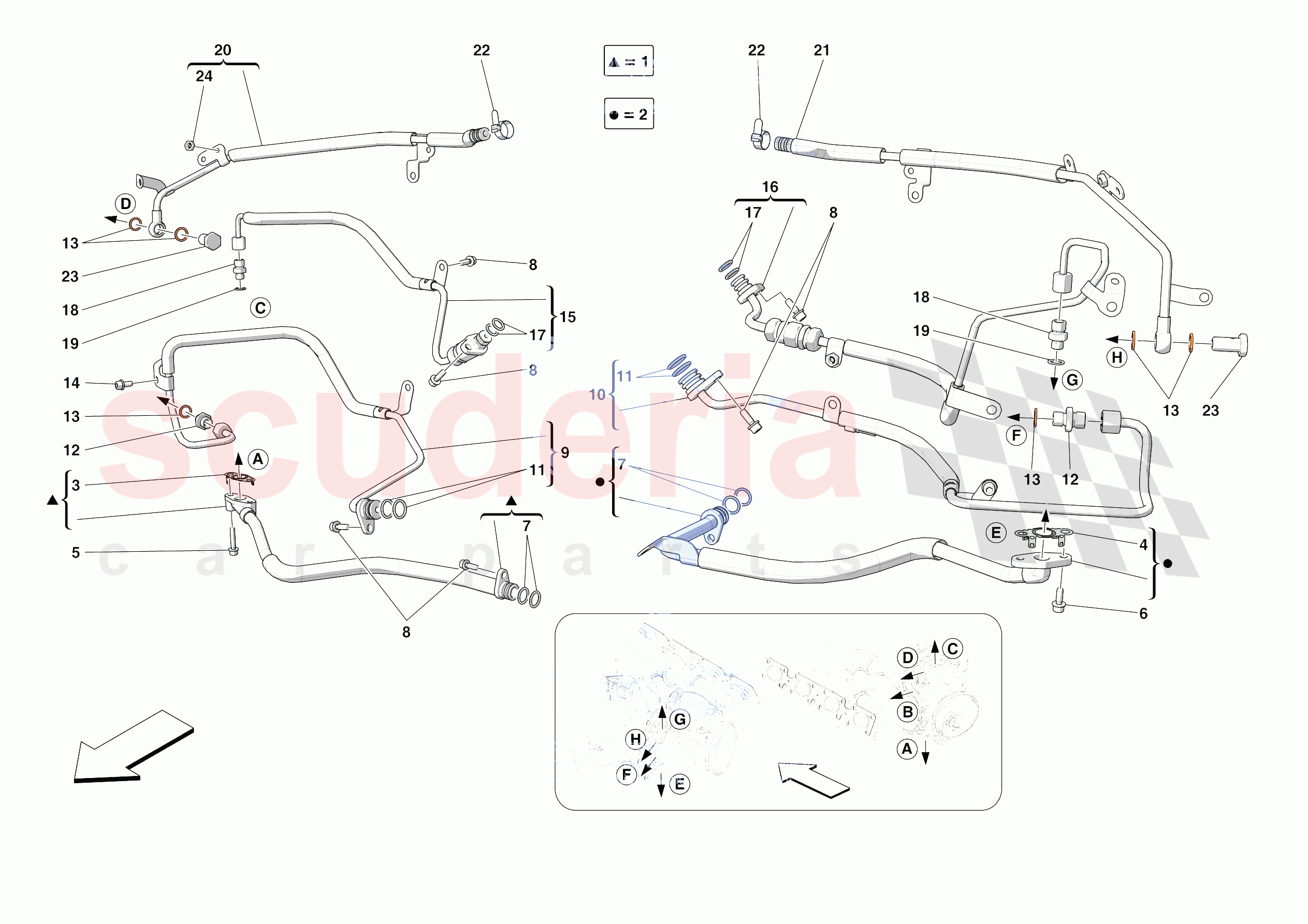

FORCED INDUCTION SYSTEM PIPES of Ferrari Ferrari SF90 Spider USA Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 802274
OIL RETURN PIPE FROM RH TURBO
No longer supplied - Replaced by 788105 		$368.90 1
0001 968447
OIL RETURN PIPE FROM RH TURBO 		$481.36 1
0001 968447
OIL RETURN PIPE FROM RH TURBO 		$481.36 1
0002 802275
OIL RETURN PIPE FROM LH TURBO
No longer supplied - Replaced by 788106 		$393.05 1
0002 968448
OIL RETURN PIPE FROM LH TURBO 		$513.46 1
0002 968448
OIL RETURN PIPE FROM LH TURBO 		$513.46 1
0003 342213
OIL RECOVERY PIPE SEAL
Also included in Short block gasket series - Also included in engine gasket set 		$46.89 1
0004 308203
OIL RECOVERY PIPE SEAL
Also included in Short block gasket series - Also included in engine gasket set
ARRIVING SOON 		$29.06 1
0005 231620
SCREW
M6 X 30
IN STOCK 		$0.32 (8.6% off) 2
0006 248334
SCREW
M6 X 16 		$0.68 2
0007 287722
O-RING
Also included in Short block gasket series - Also included in engine gasket set
IN STOCK 		$7.05 4
0008 231619
SCREW
M6 X 18
IN STOCK 		$0.31 7
0009 865067
WATER DELIVERY PIPE TO RH TURBO 		$256.72 1
0010 796496
LH TURBO WATER DELIVERY PIPE
Applies until depletion 		$240.67 1
0010 835088
LH TURBO WATER DELIVERY PIPE
Applicable after depletion of 796496 		$333.58 1
0011 14457281
GASKET
Also included in Short block gasket series - Also included in engine gasket set 		$14.28 4
0012 290216
THREADED CONNECTOR WITH SEAL RING 		$28.87 2
0013 10261060
GASKET COPPER 12 - 16 X 1.5
Also included in engine gasket set
IN STOCK 		$0.18 (63.3% off) 6
0014 248334
SCREW
M6 X 14 		$0.68 10
0015 923390
OIL DELIVERY PIPE TO RH TURBO 		$417.18 1
0016 925718
OIL DELIVERY PIPE TO LH TURBO 		$449.27 1
0017 14456981
GASKET
Also included in Short block gasket series - Also included in engine gasket set
IN STOCK 		$0.99 (20.8% off) 4
0018 923014
THREADED CONNECTOR WITH SEAL RING 		$15.24 2
0019 10260160
Copper Washer D. 10 - 14 x 1
Also included in engine gasket set
IN STOCK 		$0.84 (6.7% off) 2
0020 901164
WATER RETURN PIPE FROM RH TURBO 		$290.06 1
0021 865444
WATER RETURN PIPE FROM LH TURBO 		$288.81 1
0022 262107
SCREW COLLAR 		$1.67 2
0023 308429
HOSE CONNECTOR 		$13.14 2
0024 14094010
NUT 		$11.88 1
