Name: CYLINDER HEADS - RH HEAD
Rating: 4.3 (1 reviews)

CYLINDER HEADS - RH HEAD of Ferrari Ferrari SF90 Spider USA

View All

Ferrari SF90 Spider USA - CYLINDER HEADS - RH HEAD

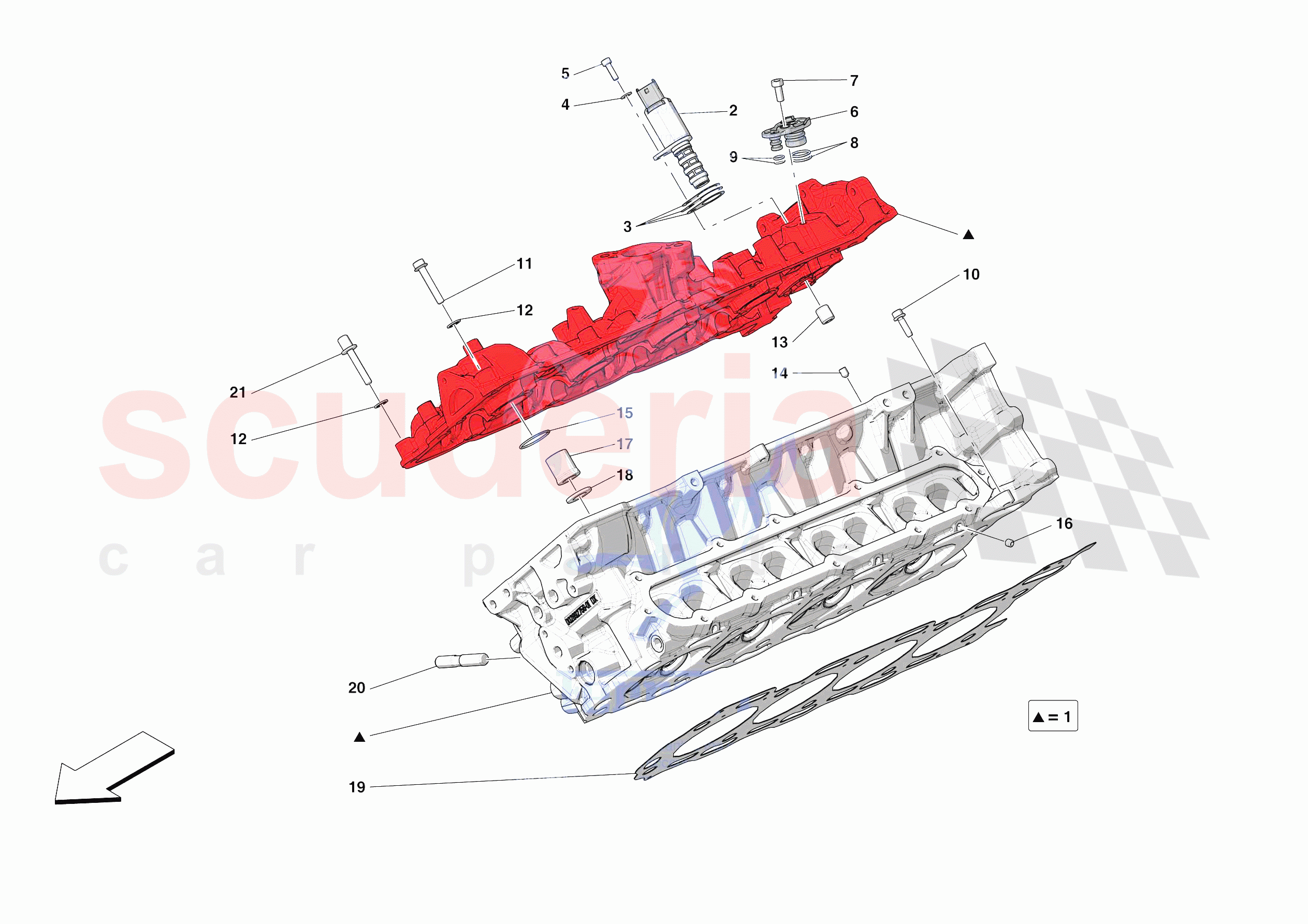

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	808852	RH CYLINDER/RH HEAD COVER ASSEMBLY	$3,584.80	To Order
	858711	RH CYLINDER/RH HEAD COVER ASSEMBLY	$4,147.56	To Order
	975627	RH CYLINDER/RH HEAD COVER ASSEMBLY	$3,494.60	To Order

Photo	Part No	Description	Price (each)	Stock
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order
	801187	OIL PRESSURE REGULATOR VALVE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	861452	DAMPER PLATE	$8.87	To Order

Photo	Part No	Description	Price (each)	Stock
	11181574	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	$0.16	To Order

Photo	Part No	Description	Price (each)	Stock
	806089	PLUG	$7.73	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14453281	O-RING	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	14452781	GASKET	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	868188	SCREW	$0.52	To Order
	868188	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	296075	WASHER 13 X 5.8	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	342272	CHECK VALVE	$13.31	To Order

Photo	Part No	Description	Price (each)	Stock
	256827	GRUB SCREW	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	166657	O-Ring D.29.87	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	199760	THREADED PLUG	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	271125	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	271129	WASHER	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	854426	RH HEAD-CRANKCASE GASKET	$200.67	To Order

Photo	Part No	Description	Price (each)	Stock
	937628	STUD BOLT	$2.43	To Order

Photo	Part No	Description	Price (each)	Stock
	981908	STUD BOLT	$27.21	To Order
	981908	STUD BOLT	$27.21	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	808852	RH CYLINDER/RH HEAD COVER ASSEMBLY	808852 RH CYLINDER/RH HEAD COVER ASSEMBLY No longer supplied - Replaced by 858711	$3,584.80	1
0001	858711	RH CYLINDER/RH HEAD COVER ASSEMBLY	858711 RH CYLINDER/RH HEAD COVER ASSEMBLY Applies until depletion	$4,147.56	1
0001	975627	RH CYLINDER/RH HEAD COVER ASSEMBLY	975627 RH CYLINDER/RH HEAD COVER ASSEMBLY Applicable after depletion of 858711	$3,494.60	1
0002	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE Applicable after depletion of 296017	$240.67	2
0002	801187	OIL PRESSURE REGULATOR VALVE	801187 OIL PRESSURE REGULATOR VALVE	$240.67	2
0003	861452	DAMPER PLATE	861452 DAMPER PLATE	$8.87	2
0004	11181574	WASHER	11181574 WASHER	$0.02	2
0005	14304124	SCREW	14304124 SCREW M5 X 16	$0.16 MSRP: ~~0.75~~ (78.7% off)	2
0006	806089	PLUG	806089 PLUG	$7.73	2
0007	13026924	SCREW	13026924 SCREW M6 X 14	$0.31	2
0008	14453281	O-RING	14453281 O-RING Also included in engine gasket set	$1.41	4
0009	14452781	GASKET	14452781 GASKET Also included in engine gasket set	$0.21	4
0010	231619	SCREW	231619 SCREW M6 X 22	$0.31	2
0011	868188	SCREW	868188 SCREW	$0.52	30
0011	868188	SCREW	868188 SCREW	$0.52	30
0012	296075	WASHER 13 X 5.8	296075 WASHER 13 X 5.8	$1.31	31
0013	342272	CHECK VALVE	342272 CHECK VALVE	$13.31	2
0014	256827	GRUB SCREW	256827 GRUB SCREW	$5.58	2
0015	166657	O-Ring D.29.87	166657 O-Ring D.29.87 Also included in engine gasket set	$0.52	4
0016	199760	THREADED PLUG	199760 THREADED PLUG D. 6 X 1	$0.31	1
0017	271125	NUT	271125 NUT	$7.33	10
0018	271129	WASHER	271129 WASHER	$1.26	10
0019	854426	RH HEAD-CRANKCASE GASKET	854426 RH HEAD-CRANKCASE GASKET Also included in engine gasket set	$200.67	1
0020	937628	STUD BOLT	937628 STUD BOLT	$2.43	8
0021	981908	STUD BOLT	981908 STUD BOLT	$27.21	1
0021	981908	STUD BOLT	981908 STUD BOLT	$27.21	1
