Name: HYDRAULIC BRAKE CONTROL PIPES -APPLICABLE FOR RHD-
Rating: 5.0 (1 reviews)

View All

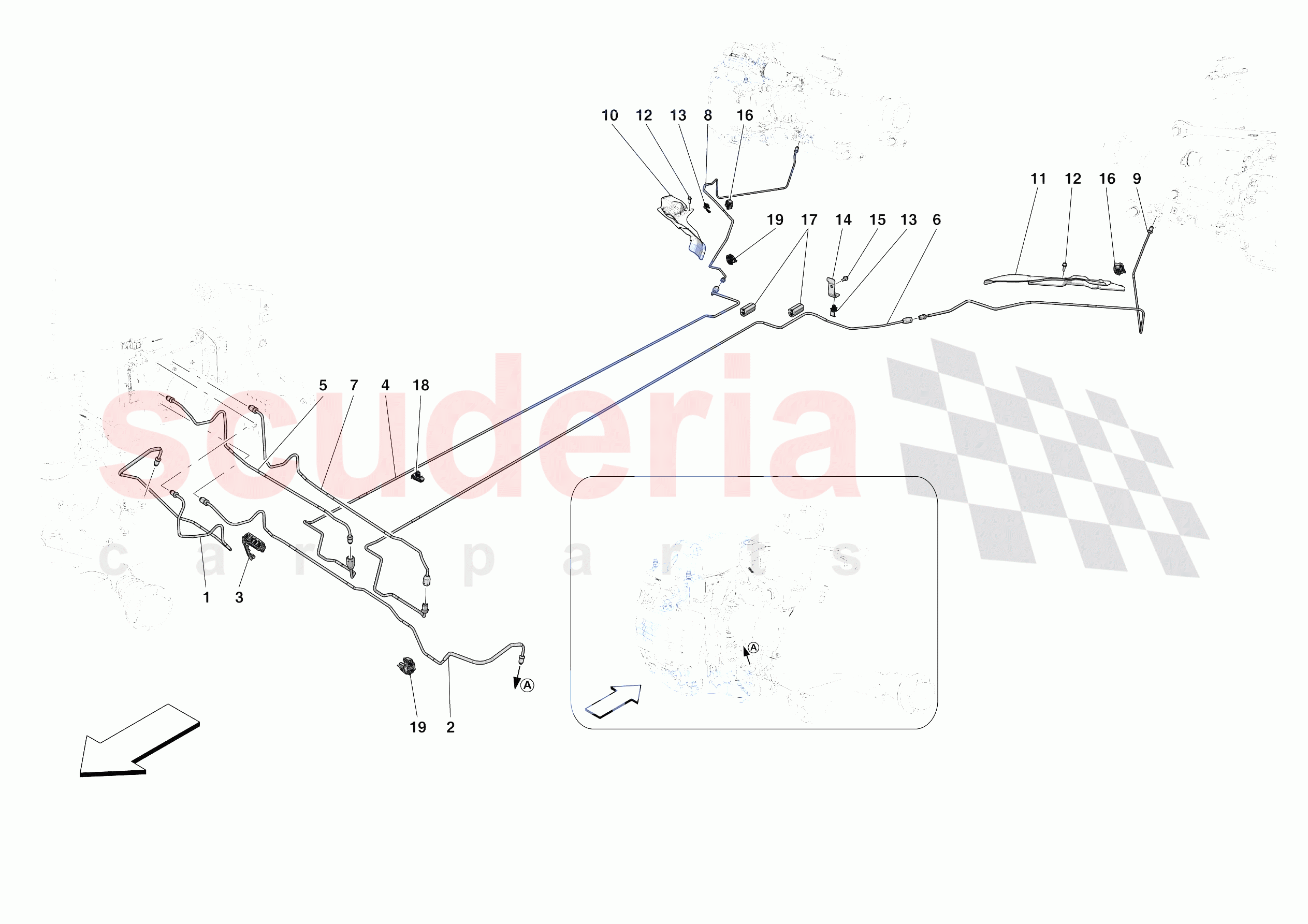

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	808247	FRONT RH BRAKE PIPE	$80.26	To Order

Photo	Part No	Description	Price (each)	Stock
	895623	FRONT LH BRAKE PIPE	$97.46	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	861783	UNDERBODY REAR RH BRAKE PIPE	$83.11	To Order

Photo	Part No	Description	Price (each)	Stock
	895627	REAR RH BRAKE PIPE TO DISCONNECTOR	$61.62	To Order

Photo	Part No	Description	Price (each)	Stock
	861782	UNDERBODY REAR LH BRAKE PIPE	$87.43	To Order

Photo	Part No	Description	Price (each)	Stock
	895626	REAR LH BRAKE PIPE TO DISCONNECTOR	$68.79	To Order

Photo	Part No	Description	Price (each)	Stock
	916735	REAR RH BRAKE PIPE	$87.43	To Order

Photo	Part No	Description	Price (each)	Stock
	899289	REAR LH BRAKE PIPE	$71.66	To Order

Photo	Part No	Description	Price (each)	Stock
	916553	RH HEAT SHIELD	$74.52	To Order

Photo	Part No	Description	Price (each)	Stock
	916554	LH HEAT SHIELD	$71.66	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	291408	CLIP	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	872669	BRACKET	$11.88	To Order

Photo	Part No	Description	Price (each)	Stock
	16285127	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	262737	RUBBER RETAINER	$6.56	To Order

Photo	Part No	Description	Price (each)	Stock
	872949	CLIP	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.70	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	808247	FRONT RH BRAKE PIPE	808247 FRONT RH BRAKE PIPE	$80.26	1
0002	895623	FRONT LH BRAKE PIPE	895623 FRONT LH BRAKE PIPE	$97.46	1
0003	234286	CLIP	234286 CLIP 4 compartments	$1.56	1
0004	861783	UNDERBODY REAR RH BRAKE PIPE	861783 UNDERBODY REAR RH BRAKE PIPE	$83.11	1
0005	895627	REAR RH BRAKE PIPE TO DISCONNECTOR	895627 REAR RH BRAKE PIPE TO DISCONNECTOR	$61.62	1
0006	861782	UNDERBODY REAR LH BRAKE PIPE	861782 UNDERBODY REAR LH BRAKE PIPE	$87.43	1
0007	895626	REAR LH BRAKE PIPE TO DISCONNECTOR	895626 REAR LH BRAKE PIPE TO DISCONNECTOR	$68.79	1
0008	916735	REAR RH BRAKE PIPE	916735 REAR RH BRAKE PIPE	$87.43	1
0009	899289	REAR LH BRAKE PIPE	899289 REAR LH BRAKE PIPE	$71.66	1
0010	916553	RH HEAT SHIELD	916553 RH HEAT SHIELD	$74.52	1
0011	916554	LH HEAT SHIELD	916554 LH HEAT SHIELD	$71.66	1
0012	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	4
0013	291408	CLIP	291408 CLIP	$0.18	4
0014	872669	BRACKET	872669 BRACKET	$11.88	1
0015	16285127	SCREW	16285127 SCREW M5 X 16	$0.58	1
0016	234284	CLIP	234284 CLIP 1 compartment-	$0.63	7
0017	262737	RUBBER RETAINER	262737 RUBBER RETAINER	$6.56	2
0018	872949	CLIP	872949 CLIP	$0.78	8
0019	234285	CLIP	234285 CLIP 2 compartments	$0.70	3
