Name: HYDRAULIC BRAKE CONTROL PIPES -APPLICABLE FOR RHD-
Rating: 5.0 (1 reviews)

View All

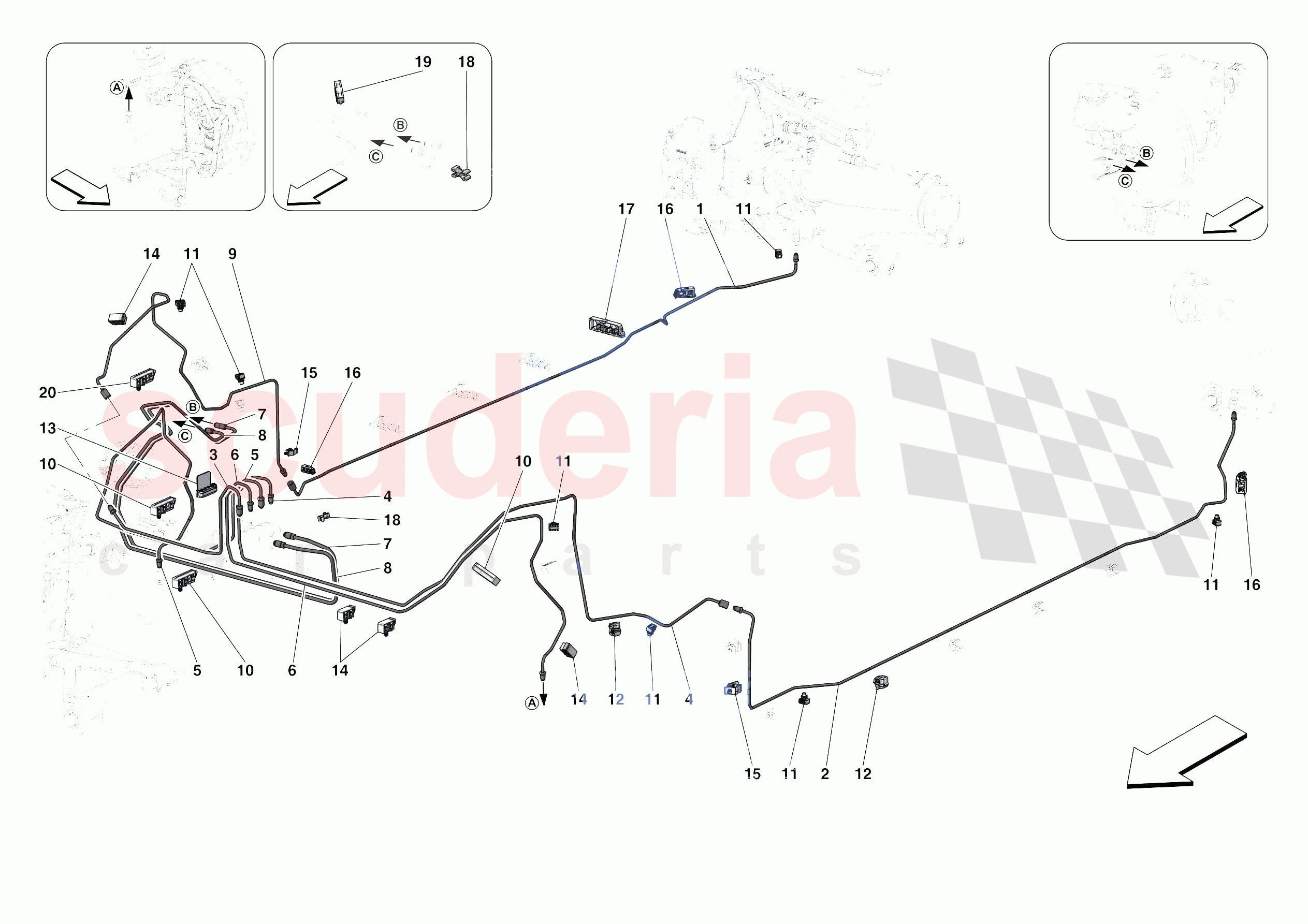

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	332727	UNDERBODY BRAKE PIPE FROM JUNCTION TO RH REAR	$73.08	To Order

Photo	Part No	Description	Price (each)	Stock
	770223	UNDERBODY BRAKE PIPE FROM JUNCTION TO LH REAR	$85.98	To Order

Photo	Part No	Description	Price (each)	Stock
	763430	BRAKE PIPE TO RH REAR JUNCTION	$44.43	To Order

Photo	Part No	Description	Price (each)	Stock
	756981	BRAKE PIPE TO LH REAR JUNCTION	$71.66	To Order

Photo	Part No	Description	Price (each)	Stock
	758789	BRAKE PIPE TO FRONT RH	$68.79	To Order

Photo	Part No	Description	Price (each)	Stock
	758820	BRAKE PIPE TO LH FRONT	$73.08	To Order

Photo	Part No	Description	Price (each)	Stock
	809855	BRAKE PIPE TO MC1	$84.56	To Order

Photo	Part No	Description	Price (each)	Stock
	809856	BRAKE PIPE TO MC2	$68.79	To Order

Photo	Part No	Description	Price (each)	Stock
	758788	BRAKE PIPE FROM JUNCTION TO RH UNDERBODY	$63.05	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	256962	CLIP	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	254195	CLIP	$1.56	To Order

Photo	Part No	Description	Price (each)	Stock
	312163	CLIP	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	301063	CLIP	$0.86	To Order

Photo	Part No	Description	Price (each)	Stock
	280281	CLIP	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	299493	CLIP	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	255286	CLIP	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	$1.56	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	332727	UNDERBODY BRAKE PIPE FROM JUNCTION TO RH REAR	332727 UNDERBODY BRAKE PIPE FROM JUNCTION TO RH REAR	$73.08	1
0002	770223	UNDERBODY BRAKE PIPE FROM JUNCTION TO LH REAR	770223 UNDERBODY BRAKE PIPE FROM JUNCTION TO LH REAR	$85.98	1
0003	763430	BRAKE PIPE TO RH REAR JUNCTION	763430 BRAKE PIPE TO RH REAR JUNCTION	$44.43	1
0004	756981	BRAKE PIPE TO LH REAR JUNCTION	756981 BRAKE PIPE TO LH REAR JUNCTION	$71.66	1
0005	758789	BRAKE PIPE TO FRONT RH	758789 BRAKE PIPE TO FRONT RH	$68.79	1
0006	758820	BRAKE PIPE TO LH FRONT	758820 BRAKE PIPE TO LH FRONT	$73.08	1
0007	809855	BRAKE PIPE TO MC1	809855 BRAKE PIPE TO MC1	$84.56	1
0008	809856	BRAKE PIPE TO MC2	809856 BRAKE PIPE TO MC2	$68.79	1
0009	758788	BRAKE PIPE FROM JUNCTION TO RH UNDERBODY	758788 BRAKE PIPE FROM JUNCTION TO RH UNDERBODY	$63.05	1
0010	234286	CLIP	234286 CLIP 4 compartments	$1.56	1
0011	256962	CLIP	256962 CLIP D. 4.7 X 1	$0.66	9
0012	234284	CLIP	234284 CLIP 1 compartment-	$0.63	5
0013	254195	CLIP	254195 CLIP	$1.56	1
0014	312163	CLIP	312163 CLIP	$1.07	8
0015	301063	CLIP	301063 CLIP 1 compartment-	$0.86	3
0016	280281	CLIP	280281 CLIP 2 compartments	$1.46	3
0017	299493	CLIP	299493 CLIP	$1.17	4
0018	255286	CLIP	255286 CLIP	$0.92	3
0019	234285	CLIP	234285 CLIP 2 compartments	$0.70	1
0020	234286	CLIP	234286 CLIP 4 compartments	$1.56	1
