Find Your Part

FRONT BUMPER of Ferrari Ferrari Roma Europe

View All

Ferrari Roma Europe - FRONT BUMPER

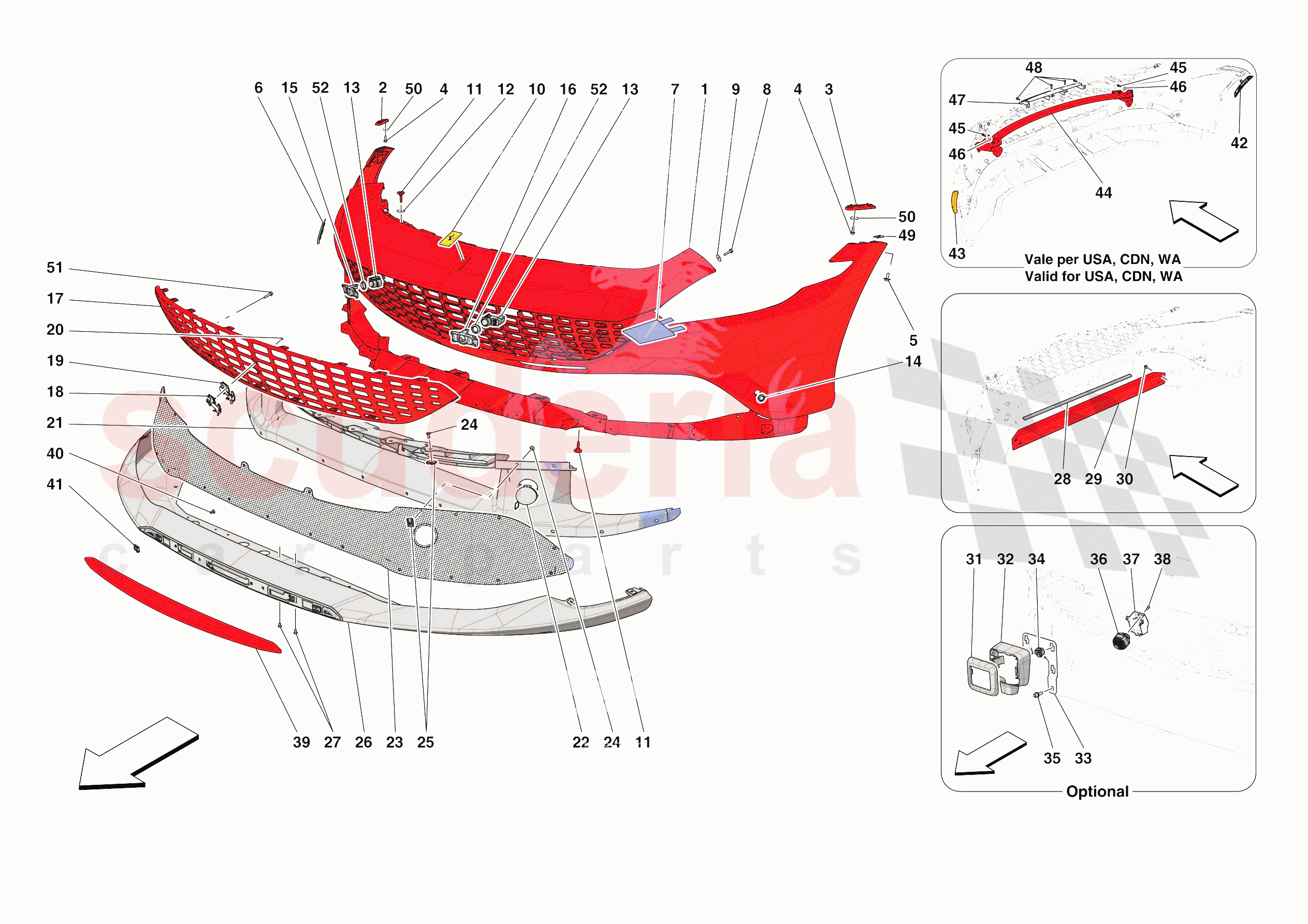

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985809470	COMPL. FRONT BUMPER	Enquire	To Order
	985832263	COMPL. FRONT BUMPER	Enquire	To Order
	985809470	COMPL. FRONT BUMPER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	898566	RH BUMPER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898583	LH BUMPER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285014	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286121	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898558	RH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898579	LH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16285224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	973053	FRONT BADGE	Enquire	To Order
	973053	FRONT BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105864	SPACER WASHER D.6.5-24X1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295361	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769354	RH PARKING SENSOR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	769344	LH PARKING SENSOR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985898557	FRONT GRILLE	Enquire	To Order
	934744	FRONT GRILLE	Enquire	To Order
	934775	FRONT GRILLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	938809	CAVALLINO RAMPANTE BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898562	PRANCING HORSE BADGE MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101711	NUT M3 X 2.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910665	CENTRAL DUCT LINER	Enquire	To Order
	898570	CENTRAL DUCT LINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	953245	TOW HOOK COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	972912	CENTRAL MESH	Enquire	To Order
	972913	CENTRAL MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	964944	SPOILER	Enquire	To Order
	964944	SPOILER	Enquire	To Order
	749496	SPOILER	Enquire	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	898559	DUCT LINER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	939883	LOWER FRONT BUMPER CROSS MEMBER	Enquire	To Order
	898584	COMPL. LOWER FRONT BUMPER CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	956964	FRONT ADAS COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	956965	REAR ADAS COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	781833	COMPL. RADAR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	848849	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	818615	CAMERA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	898576	CAMERA BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15842504	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985812518	FRONT PART OF SPOILER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87329600	RH FRONT SIDE MARKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87329500	LH FRONT SIDE MARKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	905027	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	979167	UPPER IMPACT ABSORBER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86276300	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87327900	SINGLE FASTENER SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	840504	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order
	770452	SILICONE RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	985809470	COMPL. FRONT BUMPER	985809470 COMPL. FRONT BUMPER Primered - Not for surround view	-	1	Enquire
0001	985832263	COMPL. FRONT BUMPER	985832263 COMPL. FRONT BUMPER Primered - Not for surround view	-	1	Enquire
0001	985809470	COMPL. FRONT BUMPER	985809470 COMPL. FRONT BUMPER	-	1	Enquire
0001	985749492	COMPL. FRONT BUMPER	985749492 COMPL. FRONT BUMPER Primered - Not for surround view	-	1	Enquire
0001	985809471	FRONT BUMPER	985809471 FRONT BUMPER Primered - Version with surround view	-	1	Enquire
0001	985832264	COMPL. FRONT BUMPER	985832264 COMPL. FRONT BUMPER Primered - Version with surround view	-	1	Enquire
0001	985809471	FRONT BUMPER	985809471 FRONT BUMPER	-	1	Enquire
0001	985749494	COMPL. FRONT BUMPER	985749494 COMPL. FRONT BUMPER Primered - Version with surround view	-	1	Enquire
0002	898566	RH BUMPER FASTENER BRACKET	898566 RH BUMPER FASTENER BRACKET	-	1	Enquire
0003	898583	LH BUMPER FASTENER BRACKET	898583 LH BUMPER FASTENER BRACKET	-	1	Enquire
0004	16285014	SCREW	16285014 SCREW M5 X 16	-	4	Enquire
0005	16286121	SCREW	16286121 SCREW M6 X 18	-	2	Enquire
0006	898558	RH COVER	898558 RH COVER Gloss black	-	1	Enquire
0007	898579	LH COVER	898579 LH COVER Gloss black	-	1	Enquire
0008	16285224	SCREW	16285224 SCREW M5 X 20	-	4	Enquire
0009	12643724	WASHER	12643724 WASHER	-	1	Enquire
0009	12643724	WASHER	12643724 WASHER	-	4	Enquire
0010	973053	FRONT BADGE	973053 FRONT BADGE Applicable after depletion of 65394800	-	1	Enquire
0010	973053	FRONT BADGE	973053 FRONT BADGE	-	1	Enquire
0011	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26	-	11	Enquire
0012	105864	SPACER WASHER D.6.5-24X1.5	105864 SPACER WASHER D.6.5-24X1.5 D. 6.5-24 X 1.5	-	14	Enquire
0013	295361	PARKING SENSOR	295361 PARKING SENSOR	-	4	Enquire
0014	770452	SILICONE RING	770452 SILICONE RING Black	-	2	Enquire
0015	769354	RH PARKING SENSOR COVER	769354 RH PARKING SENSOR COVER	-	1	Enquire
0016	769344	LH PARKING SENSOR COVER	769344 LH PARKING SENSOR COVER	-	1	Enquire
0017	985898557	FRONT GRILLE	985898557 FRONT GRILLE Primered - Not for surround view	-	1	Enquire
0017	934744	FRONT GRILLE	934744 FRONT GRILLE Light satin chrome - Not for surround view	-	1	Enquire
0017	934775	FRONT GRILLE	934775 FRONT GRILLE Dark satin chrome - Not for surround view	-	1	Enquire
0017	985906460	FRONT GRILLE	985906460 FRONT GRILLE Primered - Version with surround view	-	1	Enquire
0017	934821	FRONT GRILLE	934821 FRONT GRILLE Light satin chrome - Version with surround view	-	1	Enquire
0017	935052	FRONT GRILLE	935052 FRONT GRILLE Dark satin chrome - Version with surround view	-	1	Enquire
0018	938809	CAVALLINO RAMPANTE BADGE	938809 CAVALLINO RAMPANTE BADGE	-	1	Enquire
0019	898562	PRANCING HORSE BADGE MOUNT	898562 PRANCING HORSE BADGE MOUNT	-	1	Enquire
0020	16101711	NUT M3 X 2.4	16101711 NUT M3 X 2.4	-	2	Enquire
0021	910665	CENTRAL DUCT LINER	910665 CENTRAL DUCT LINER Not for version with adaptive cruise control	-	1	Enquire
0021	898570	CENTRAL DUCT LINER	898570 CENTRAL DUCT LINER Version with adaptive cruise control	-	1	Enquire
0022	953245	TOW HOOK COVER	953245 TOW HOOK COVER	-	1	Enquire
0023	972912	CENTRAL MESH	972912 CENTRAL MESH Matte black - Not for version with adaptive cruise control	-	1	Enquire
0023	972913	CENTRAL MESH	972913 CENTRAL MESH Matte black - Version with adaptive cruise control	-	1	Enquire
0024	85833700	SCREW	85833700 SCREW M5 X 12	-	40	Enquire
0025	68700800	CLIP	68700800 CLIP	-	28	Enquire
0026	964944	SPOILER	964944 SPOILER Matte black	-	1	Enquire
0026	964944	SPOILER	964944 SPOILER Matte black	-	1	Enquire
0026	749496	SPOILER	749496 SPOILER Matte black	-	1	Enquire
0026	928254	SPOILER	928254 SPOILER Gloss carbon	-	1	Enquire
0026	928254	SPOILER	928254 SPOILER Gloss carbon	-	1	Enquire
0026	855855	SPOILER	855855 SPOILER Gloss carbon	-	1	Enquire
0026	70007114	SPOILER	70007114 SPOILER Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0026	70007114	SPOILER	70007114 SPOILER Off-catalogue version	-	1	Enquire
0026	70007115	SPOILER	70007115 SPOILER Version in coloured naked weave carbon - CECM - CECM for carbon colour selection - For better colour match, also order adjacent off-catalogue components; Off-catalogue version	-	1	Enquire
0028	898559	DUCT LINER SEAL	898559 DUCT LINER SEAL	-	1	Enquire
0029	939883	LOWER FRONT BUMPER CROSS MEMBER	939883 LOWER FRONT BUMPER CROSS MEMBER Not for version with adaptive cruise control	-	1	Enquire
0029	898584	COMPL. LOWER FRONT BUMPER CROSS MEMBER	898584 COMPL. LOWER FRONT BUMPER CROSS MEMBER Version with adaptive cruise control	-	1	Enquire
0030	16287524	SCREW	16287524 SCREW M8 X 20	-	4	Enquire
0031	956964	FRONT ADAS COVER	956964 FRONT ADAS COVER Version with adaptive cruise control	-	1	Enquire
0032	956965	REAR ADAS COVER	956965 REAR ADAS COVER Version with adaptive cruise control	-	1	Enquire
0033	781833	COMPL. RADAR MOUNTING BRACKET	781833 COMPL. RADAR MOUNTING BRACKET Version with adaptive cruise control	-	1	Enquire
0034	848849	CLIP	848849 CLIP Version with adaptive cruise control	-	3	Enquire
0035	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0036	818615	CAMERA	818615 CAMERA Version with surround view	-	1	Enquire
0037	898576	CAMERA BRACKET	898576 CAMERA BRACKET Version with surround view	-	1	Enquire
0038	15842504	SCREW	15842504 SCREW M3 X 6	-	2	Enquire
0039	985812518	FRONT PART OF SPOILER	985812518 FRONT PART OF SPOILER	-	1	Enquire
0040	85833700	SCREW	85833700 SCREW M5 X 12	-	4	Enquire
0041	68700800	CLIP	68700800 CLIP	-	16	Enquire
0042	87329600	RH FRONT SIDE MARKER	87329600 RH FRONT SIDE MARKER	-	1	Enquire
0043	87329500	LH FRONT SIDE MARKER	87329500 LH FRONT SIDE MARKER	-	1	Enquire
0044	905027	CROSS MEMBER	905027 CROSS MEMBER	-	1	Enquire
0045	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	4	Enquire
0046	12643724	WASHER	12643724 WASHER	-	1	Enquire
0047	979167	UPPER IMPACT ABSORBER BRACKET	979167 UPPER IMPACT ABSORBER BRACKET	-	1	Enquire
0048	86276300	SCREW	86276300 SCREW M6 X 22	-	1	Enquire
0049	87327900	SINGLE FASTENER SPACER	87327900 SINGLE FASTENER SPACER	-	2	Enquire
0050	12643778	WASHER	12643778 WASHER 18 X 1.5	-	4	Enquire
0051	840504	SCREW	840504 SCREW M25 X 6	-	1	Enquire
0052	770452	SILICONE RING	770452 SILICONE RING	-	2	Enquire
0052	770452	SILICONE RING	770452 SILICONE RING	-	2	Enquire
