Ferrari Roma Europe - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985927826 COMPL. FIREWALL Enquire To Order
985780570 COMPL. FIREWALL $2,801.61 To Order
985904101 COMPL. FIREWALL $2,626.71 To Order
Photo Part No Description Price (each) Stock
985786456 VALENCE PANEL Enquire To Order
985800431 VALENCE PANEL $2,398.86 To Order
985800438 VALENCE PANEL $2,398.86 To Order
Photo Part No Description Price (each) Stock
985321969 UPPER CENTRE TUNNEL EXTRUDED ELEMENT $401.13 To Order
Photo Part No Description Price (each) Stock
985921460 COMPL. TUNNEL $5,348.11 To Order
985913395 COMPL. TUNNEL $5,367.37 To Order
Photo Part No Description Price (each) Stock
985334170 COMPL. REAR TUNNEL CASTING $3,445.06 To Order
985803904 COMPL. REAR TUNNEL CASTING $4,508.91 To Order
Photo Part No Description Price (each) Stock
985333738 COMPL. LH FRONT TUNNEL CASTING $4,508.91 To Order
985806128 COMPL. LH FRONT TUNNEL CASTING $5,810.23 To Order
985333739 COMPL. RH FRONT TUNNEL CASTING $4,574.69 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985335193 COMPL. LH LOWER TUNNEL BEAM $978.79 To Order
985335218 COMPL. RH LOWER TUNNEL BEAM $930.65 To Order
Photo Part No Description Price (each) Stock
985890308 COMPL. LH A PILLAR CASTING $16,293.08 To Order
985913387 COMPL. LH A PILLAR CASTING Enquire To Order
985890309 COMPL. RH A PILLAR CASTING $16,293.08 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
252199 THREADED INSERT $20.84 To Order
Photo Part No Description Price (each) Stock
985337356 LH A-PILLAR EXTRUSION $513.46 To Order
985339596 RH A-PILLAR EXTRUSION $545.55 To Order
Photo Part No Description Price (each) Stock
985778209 COMPL. LH PILLAR CASTING $11,639.74 To Order
985778210 COMPL. RH PILLAR CASTING $11,639.74 To Order
Photo Part No Description Price (each) Stock
985807641 COMPL. LH STRIKER REINFORCEMENT EXTRUSION $1,379.94 To Order
985814547 COMPL. LH STRIKER REINFORCEMENT EXTRUSION $1,251.57 To Order
985808787 COMPL. RH STRIKER REINFORCEMENT EXTRUSION $1,379.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
219344 WASHER $0.29 IN STOCK
Photo Part No Description Price (each) Stock
903295 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
985896452 LH SEMI-FLOOR Enquire To Order
985772460 LH SEMI-FLOOR $2,276.91 To Order
985337797 RH SEMI-FLOOR $2,116.45 To Order
Photo Part No Description Price (each) Stock
985340712 COMPL. LH FRONT FLOOR CROSS MEMBER $545.55 To Order
985806342 COMPL. LH FRONT FLOOR CROSS MEMBER $850.42 To Order
985339817 COMPL. RH FRONT FLOOR CROSS MEMBER $545.55 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
85633900 SCREW $8.12 IN STOCK
Photo Part No Description Price (each) Stock
985337788 COMPL. LH REAR FLOOR CROSS MEMBER $706.01 To Order
985337789 COMPL. RH REAR FLOOR CROSS MEMBER $706.01 To Order
Photo Part No Description Price (each) Stock
985921506 LH SILL Enquire To Order
985792137 LH SILL $3,130.56 To Order
985921513 RH SILL Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
985338947 LH REAR SILL REINFORCEMENT $336.95 To Order
985944938 LH REAR SILL REINFORCEMENT Enquire To Order
985338948 RH REAR SILL REINFORCEMENT $336.95 To Order
Photo Part No Description Price (each) Stock
985339312 LH FRONT SILL REINFORCEMENT $336.95 To Order
985339313 RH FRONT SILL REINFORCEMENT $336.95 To Order
Photo Part No Description Price (each) Stock
335352 COMPL. CLUTCH HOUSING MOUNTING CROSS PIECE $481.36 To Order
View All

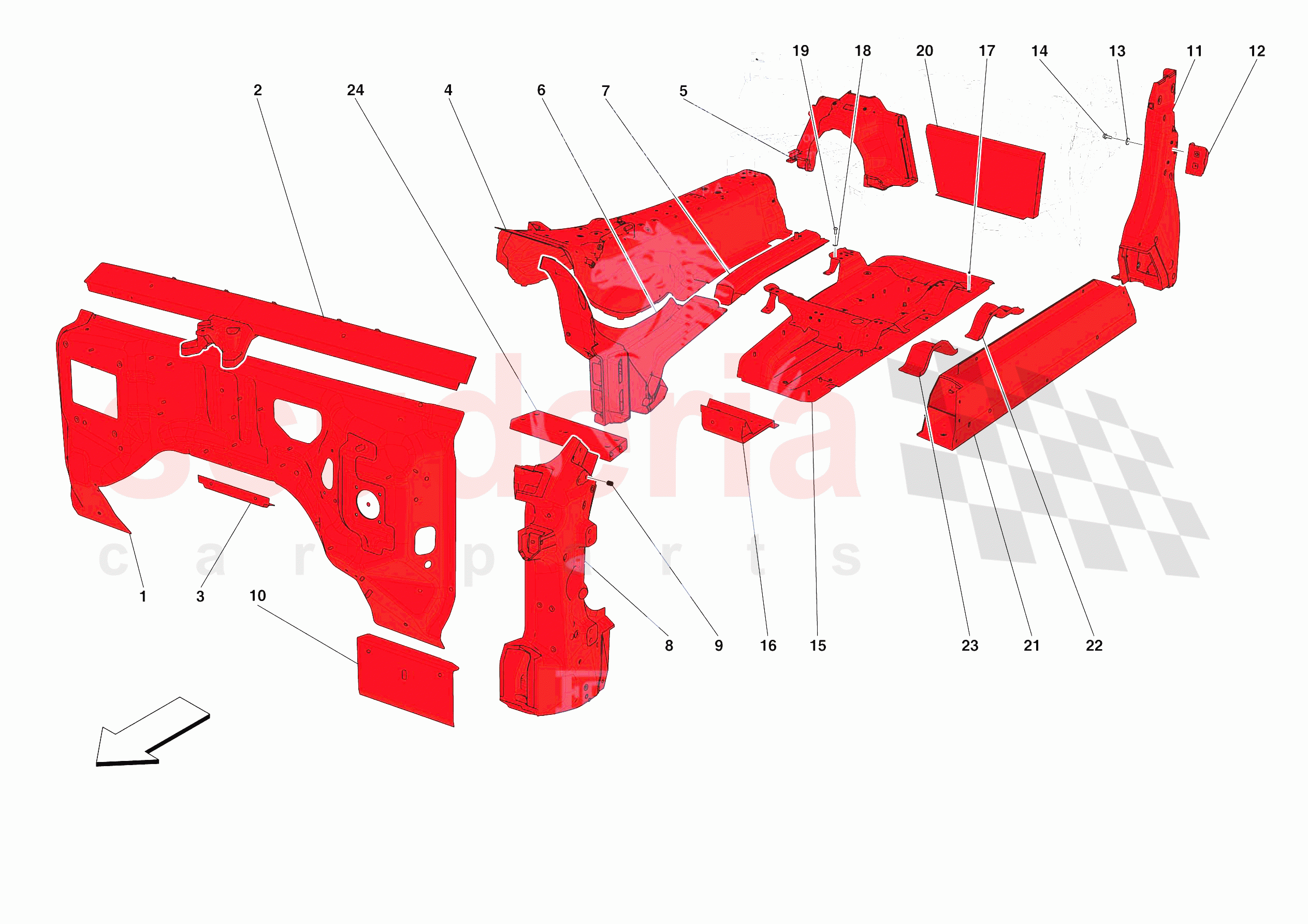

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari Roma Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985927826
COMPL. FIREWALL
Request ASM authorisation; No longer supplied - Replaced by 985780570 		- 1 Enquire
0001 985780570
COMPL. FIREWALL
Request ASM authorisation 		$2,801.61 1
0001 985904101
COMPL. FIREWALL
Request ASM authorisation 		$2,626.71 1
0002 985786456
VALENCE PANEL
Request ASM authorisation; No longer supplied - Replaced by 985800431 		- 1 Enquire
0002 985800431
VALENCE PANEL
Request ASM authorisation 		$2,398.86 1
0002 985800438
VALENCE PANEL
Request ASM authorisation 		$2,398.86 1
0003 985321969
UPPER CENTRE TUNNEL EXTRUDED ELEMENT
Request ASM authorisation 		$401.13 1
0004 985921460
COMPL. TUNNEL
Request ASM authorisation 		$5,348.11 1
0004 985913395
COMPL. TUNNEL
Request ASM authorisation 		$5,367.37 1
0005 985334170
COMPL. REAR TUNNEL CASTING
Request ASM authorisation 		$3,445.06 1
0005 985803904
COMPL. REAR TUNNEL CASTING
Request ASM authorisation 		$4,508.91 1
0006 985333738
COMPL. LH FRONT TUNNEL CASTING
Request ASM authorisation 		$4,508.91 1
0006 985806128
COMPL. LH FRONT TUNNEL CASTING
Request ASM authorisation 		$5,810.23 1
0006 985333739
COMPL. RH FRONT TUNNEL CASTING
Request ASM authorisation 		$4,574.69 1
0006 985803907
COMPL. RH FRONT TUNNEL CASTING
Request ASM authorisation 		$6,209.78 1
0007 985335193
COMPL. LH LOWER TUNNEL BEAM
Request ASM authorisation 		$978.79 1
0007 985335218
COMPL. RH LOWER TUNNEL BEAM
Request ASM authorisation 		$930.65 1
0008 985890308
COMPL. LH A PILLAR CASTING
Request ASM authorisation 		$16,293.08 1
0008 985913387
COMPL. LH A PILLAR CASTING
Request ASM authorisation 		- 1 Enquire
0008 985890309
COMPL. RH A PILLAR CASTING
Request ASM authorisation 		$16,293.08 1
0008 985913385
COMPL. RH A PILLAR CASTING
Request ASM authorisation 		- 1 Enquire
0009 252199
THREADED INSERT 		$20.84 6
0010 985337356
LH A-PILLAR EXTRUSION
Request ASM authorisation 		$513.46 1
0010 985339596
RH A-PILLAR EXTRUSION
Request ASM authorisation 		$545.55 1
0011 985778209
COMPL. LH PILLAR CASTING
Request ASM authorisation 		$11,639.74 1
0011 985778210
COMPL. RH PILLAR CASTING
Request ASM authorisation 		$11,639.74 1
0012 985807641
COMPL. LH STRIKER REINFORCEMENT EXTRUSION
Applies until depletion 		$1,379.94 1
0012 985814547
COMPL. LH STRIKER REINFORCEMENT EXTRUSION
Applicable after depletion of 985807641 		$1,251.57 1
0012 985808787
COMPL. RH STRIKER REINFORCEMENT EXTRUSION
Applies until depletion 		$1,379.94 1
0012 985814549
COMPL. RH STRIKER REINFORCEMENT EXTRUSION
Applicable after depletion of 985808787 		$1,251.57 1
0013 219344
WASHER
D. 8.5 X 24 X 3
IN STOCK 		$0.29 6
0014 903295
SCREW
M8 X 1.25 X 25 		$0.68 6
0015 985896452
LH SEMI-FLOOR
Request ASM authorisation; No longer supplied - Replaced by 985772460 		- 1 Enquire
0015 985772460
LH SEMI-FLOOR
Request ASM authorisation 		$2,276.91 1
0015 985337797
RH SEMI-FLOOR
Request ASM authorisation 		$2,116.45 1
0016 985340712
COMPL. LH FRONT FLOOR CROSS MEMBER
Request ASM authorisation 		$545.55 1
0016 985806342
COMPL. LH FRONT FLOOR CROSS MEMBER
Request ASM authorisation 		$850.42 1
0016 985339817
COMPL. RH FRONT FLOOR CROSS MEMBER
Request ASM authorisation 		$545.55 1
0016 985803915
COMPL. RH FRONT FLOOR CROSS MEMBER
Request ASM authorisation 		$882.51 1
0019 85633900
SCREW
M8 X 20
IN STOCK 		$8.12 2
0020 985337788
COMPL. LH REAR FLOOR CROSS MEMBER
Request ASM authorisation 		$706.01 1
0020 985337789
COMPL. RH REAR FLOOR CROSS MEMBER
Request ASM authorisation 		$706.01 1
0021 985921506
LH SILL
Request ASM authorisation; No longer supplied - Replaced by 985792137 		- 1 Enquire
0021 985792137
LH SILL
Request ASM authorisation 		$3,130.56 1
0021 985921513
RH SILL
Request ASM authorisation; No longer supplied - Replaced by 985792143 		- 1 Enquire
0021 985792143
RH SILL
Request ASM authorisation 		$3,210.79 1
0022 985338947
LH REAR SILL REINFORCEMENT
Applies until depletion 		$336.95 1
0022 985944938
LH REAR SILL REINFORCEMENT
Applicable after depletion of 985338947 		- 1 Enquire
0022 985338948
RH REAR SILL REINFORCEMENT 		$336.95 1
0023 985339312
LH FRONT SILL REINFORCEMENT 		$336.95 1
0023 985339313
RH FRONT SILL REINFORCEMENT 		$336.95 1
0024 335352
COMPL. CLUTCH HOUSING MOUNTING CROSS PIECE
Request ASM authorisation 		$481.36 1
