Find Your Part

View All

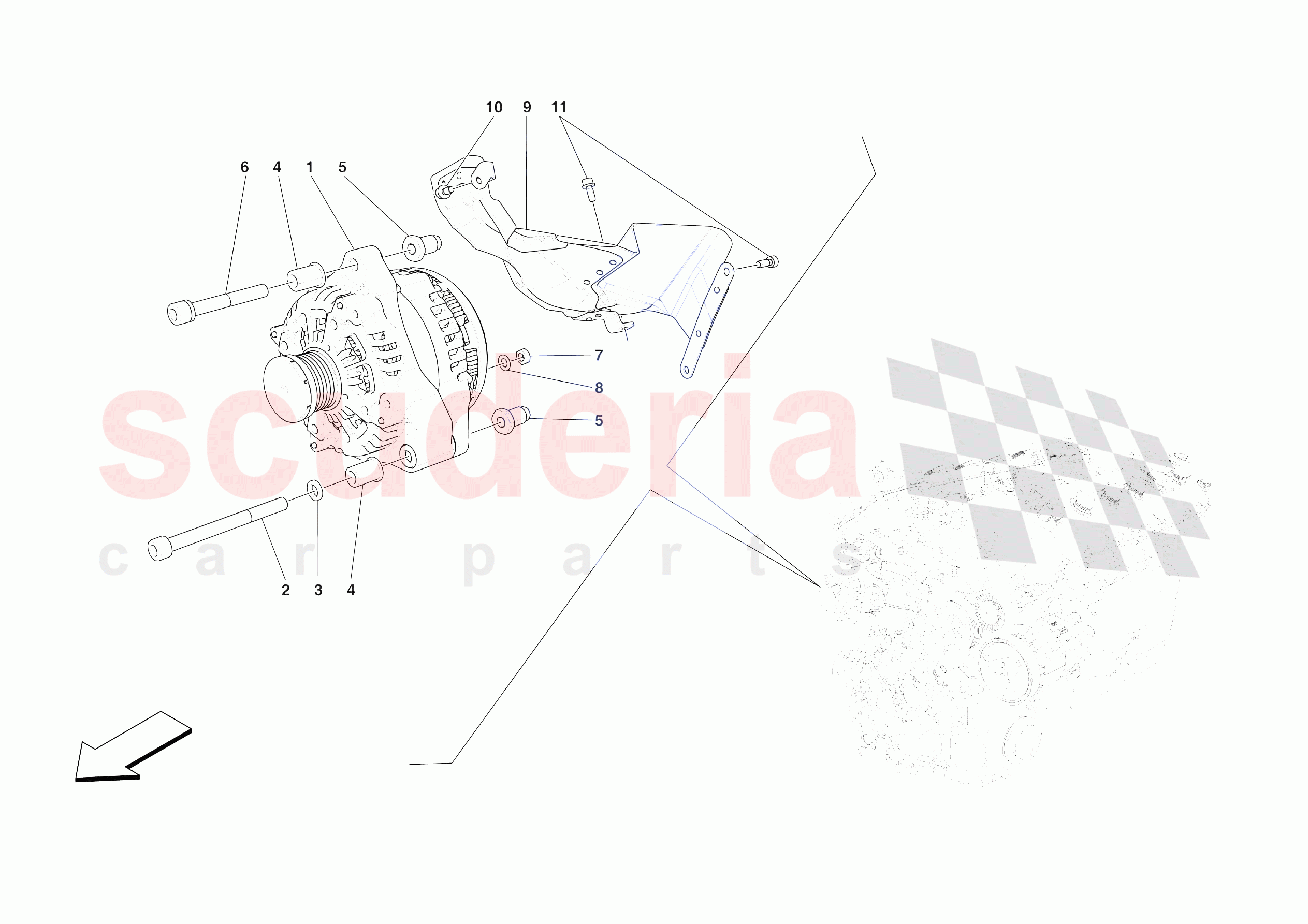

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	829167	ALTERNATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308724	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10569474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	258137	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	970786	THREADED BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	777608	COMPL. ALTERNATOR HEAT SHIELD	Enquire	To Order
	978115	COMPL. ALTERNATOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	829167	ALTERNATOR	829167 ALTERNATOR	-	1	Enquire
0002	14308724	SCREW	14308724 SCREW M10 X 1.25 X 100	-	1	Enquire
0003	10569474	WASHER	10569474 WASHER	-	2	Enquire
0004	258137	BUSH	258137 BUSH	-	2	Enquire
0005	970786	THREADED BUSHING	970786 THREADED BUSHING	-	2	Enquire
0006	14308224	SCREW	14308224 SCREW M10 X 1.25 X 65	-	1	Enquire
0007	16102314	NUT	16102314 NUT	-	1	Enquire
0008	12601374	WASHER	12601374 WASHER	-	1	Enquire
0009	777608	COMPL. ALTERNATOR HEAT SHIELD	777608 COMPL. ALTERNATOR HEAT SHIELD No longer supplied - Replaced by 978115	-	1	Enquire
0009	978115	COMPL. ALTERNATOR HEAT SHIELD	978115 COMPL. ALTERNATOR HEAT SHIELD	-	1	Enquire
0010	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	3	Enquire
0010	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	1	Enquire
0011	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 16	-	3	Enquire
