Name: PISTONS AND CONNECTING RODS
Rating: 5.0 (1 reviews)

View All

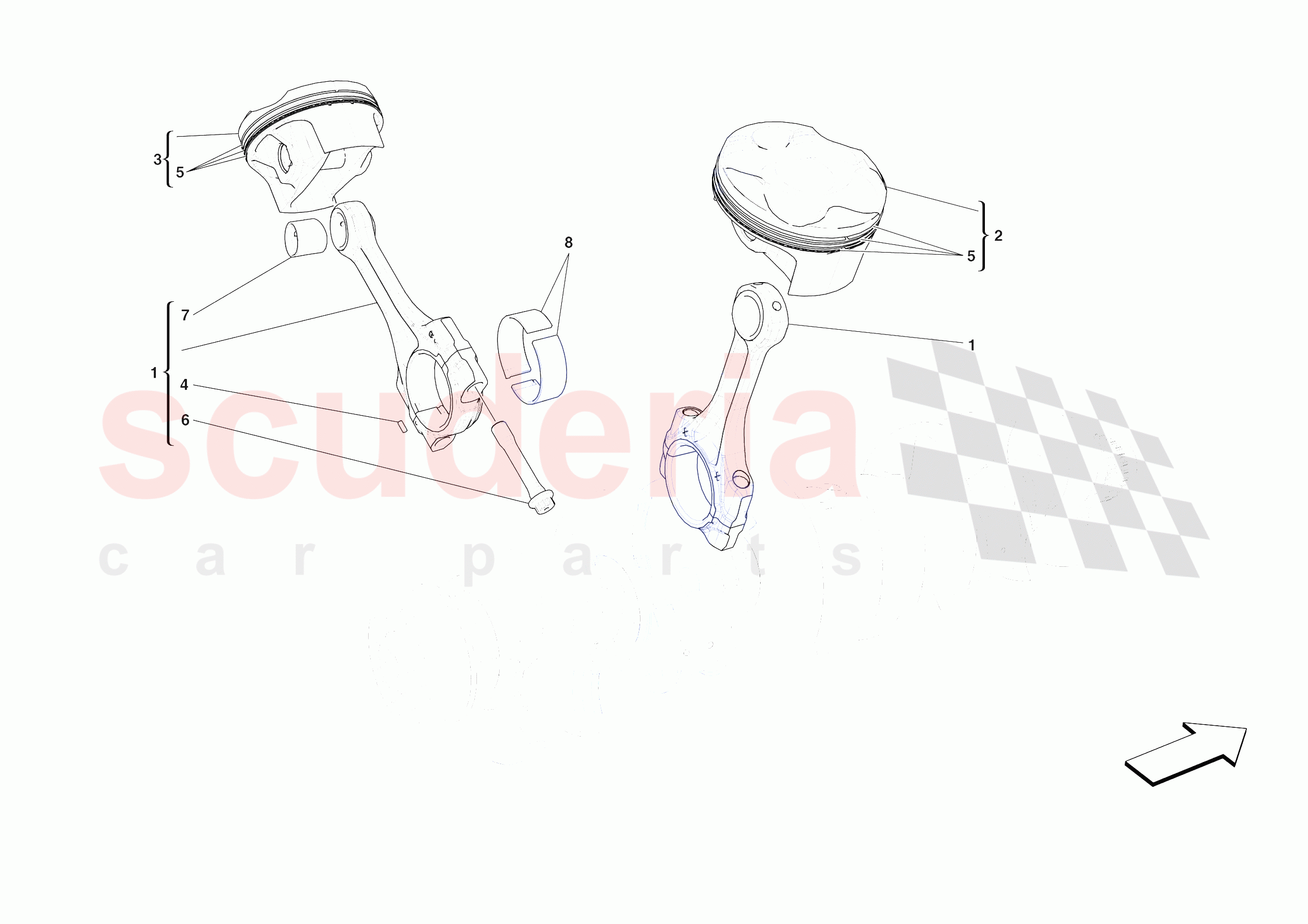

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	824391	COMPL. CONNECTING ROD AND CAP	$308.00	To Order

Photo	Part No	Description	Price (each)	Stock
	857188	COMPL. RH PISTON	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	857189	COMPL. LH PISTON	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	292751	ALIGNMENT PIN	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	966897	COMPL. PISTON RING SET	$673.92	To Order

Photo	Part No	Description	Price (each)	Stock
	281320	SCREW	$188.53	To Order

Photo	Part No	Description	Price (each)	Stock
	300758	BUSH	$40.10	To Order

...and 2 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	824391	COMPL. CONNECTING ROD AND CAP	824391 COMPL. CONNECTING ROD AND CAP	$308.00	12
0002	857188	COMPL. RH PISTON	857188 COMPL. RH PISTON	$641.82	6
0003	857189	COMPL. LH PISTON	857189 COMPL. LH PISTON	$641.82	6
0004	292751	ALIGNMENT PIN	292751 ALIGNMENT PIN	$27.26	24
0005	966897	COMPL. PISTON RING SET	966897 COMPL. PISTON RING SET	$673.92	12
0006	281320	SCREW	281320 SCREW	$188.53	24
0007	300758	BUSH	300758 BUSH	$40.10	12
0008	304680	CONNECTING ROD HALF-BEARING	304680 CONNECTING ROD HALF-BEARING Black	$19.24	24
0008	910542	CONNECTING ROD HALF-BEARING	910542 CONNECTING ROD HALF-BEARING White	$20.84	24
0008	304681	CONNECTING ROD HALF-BEARING	304681 CONNECTING ROD HALF-BEARING Blue	$20.29	24
0008	910540	CONNECTING ROD HALF-BEARING	910540 CONNECTING ROD HALF-BEARING Brown	$20.84	24
0008	823846	CONNECTING ROD HALF-BEARING	823846 CONNECTING ROD HALF-BEARING Green	$19.24	24

Pistons And Connecting Rods

Ferrari Purosangue USA
