CLUTCH HOUSING of Ferrari Ferrari Purosangue Europe RH

View All

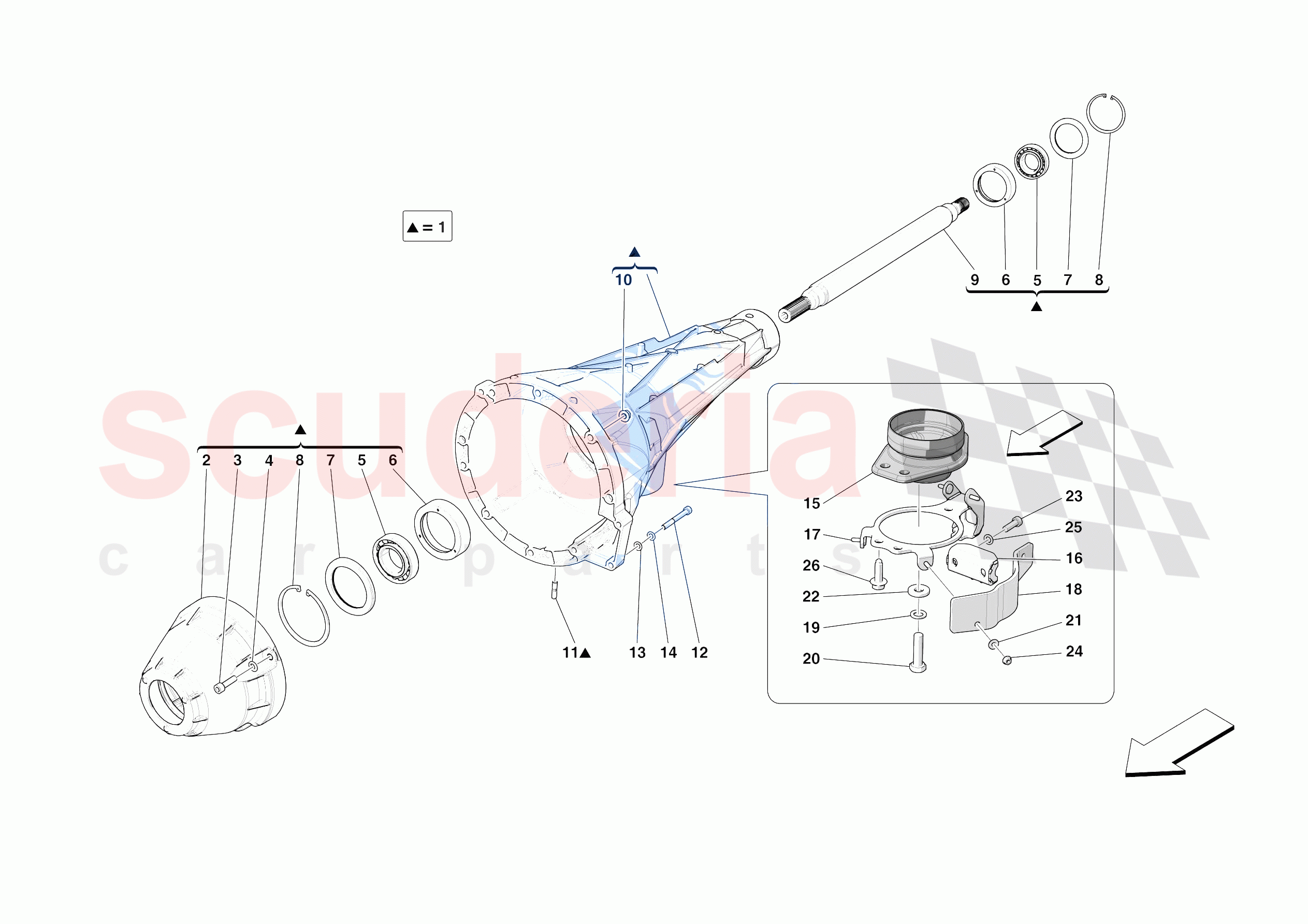

Ferrari Purosangue Europe RH - CLUTCH HOUSING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	777569	COMPL. TRANSMISSION HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	868810	HOUSING BEARING MOUNTING FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	252524	COMPL. BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318975	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	253627	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11062474	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	777115	GKN TRANSMISSION HOUSING SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14309024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247141	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	269246	RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915290	BUSH TRAVEL LIMITER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	746950	LH TRANSMISSION HOUSING BUSHING SHIELD	Enquire	To Order
	747430	RH TRANSMISSION HOUSING BUSHING SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11599534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13028734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18754324	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	777569	COMPL. TRANSMISSION HOUSING	777569 COMPL. TRANSMISSION HOUSING	-	1	Enquire
0002	868810	HOUSING BEARING MOUNTING FLANGE	868810 HOUSING BEARING MOUNTING FLANGE	-	1	Enquire
0003	14306424	SCREW	14306424 SCREW M8 X 25	-	3	Enquire
0004	12638524	WASHER	12638524 WASHER D. 8.15 -15 X 1.5	-	3	Enquire
0005	252524	COMPL. BEARING	252524 COMPL. BEARING	-	2	Enquire
0006	318975	SNAP RING	318975 SNAP RING	-	2	Enquire
0007	253627	RING	253627 RING	-	2	Enquire
0008	11062474	SNAP RING	11062474 SNAP RING	-	2	Enquire
0009	777115	GKN TRANSMISSION HOUSING SHAFT	777115 GKN TRANSMISSION HOUSING SHAFT	-	1	Enquire
0010	14059421	NUT	14059421 NUT	-	7	Enquire
0011	13543124	STUD BOLT	13543124 STUD BOLT M8 X 16	-	2	Enquire
0012	14309024	SCREW	14309024 SCREW M8 X 70	-	3	Enquire
0013	12638524	WASHER	12638524 WASHER D. 8.15 -15 X 1.5	-	3	Enquire
0014	12601374	WASHER	12601374 WASHER	-	3	Enquire
0015	247141	RUBBER BUSHING	247141 RUBBER BUSHING	-	1	Enquire
0016	269246	RETAINER BRACKET	269246 RETAINER BRACKET	-	1	Enquire
0017	915290	BUSH TRAVEL LIMITER BRACKET	915290 BUSH TRAVEL LIMITER BRACKET	-	1	Enquire
0018	746950	LH TRANSMISSION HOUSING BUSHING SHIELD	746950 LH TRANSMISSION HOUSING BUSHING SHIELD	-	1	Enquire
0018	747430	RH TRANSMISSION HOUSING BUSHING SHIELD	747430 RH TRANSMISSION HOUSING BUSHING SHIELD	-	1	Enquire
0019	127498	WASHER	127498 WASHER	-	1	Enquire
0020	11599534	SCREW	11599534 SCREW M12 X 1.75 X 45	-	1	Enquire
0021	12638124	WASHER	12638124 WASHER	-	4	Enquire
0022	12648524	WASHER	12648524 WASHER	-	1	Enquire
0023	13028734	SCREW	13028734 SCREW M8 X 25	-	2	Enquire
0024	14084111	NUT	14084111 NUT	-	4	Enquire
0025	14499421	WASHER	14499421 WASHER	-	2	Enquire
0026	18754324	SCREW	18754324 SCREW M10 X 1.25 X 32	-	3	Enquire
