Name: GEARBOX AND FASTENERS
Rating: 4.1 (1 reviews)

View All

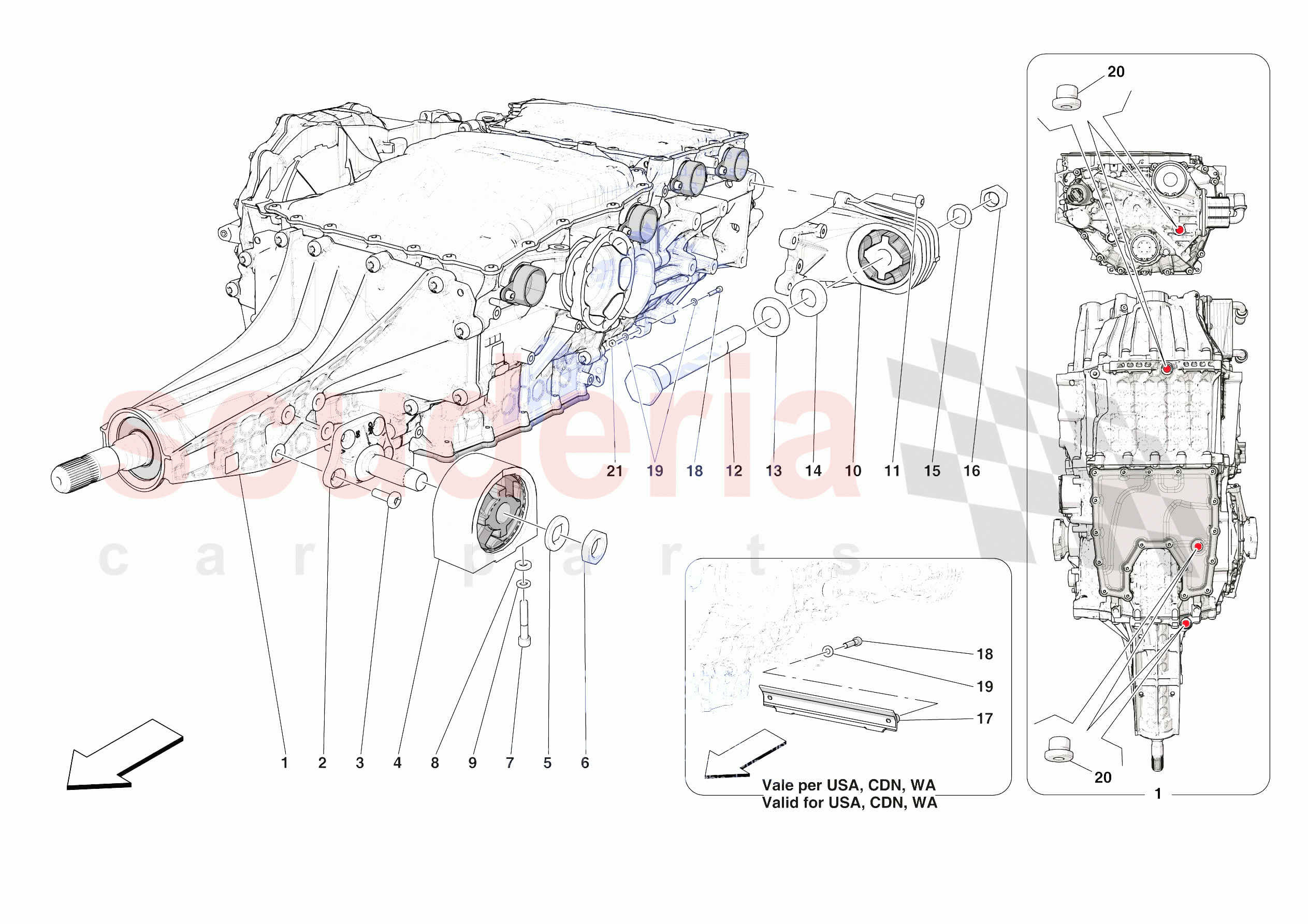

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	954089	COMPL. DCT GEARBOX	$48,536.62	To Order

Photo	Part No	Description	Price (each)	Stock
	893453	GEARBOX FRONT STRUT	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	811605	COMPL. BUSHING FRONT MOUNTING	$369.04	To Order

Photo	Part No	Description	Price (each)	Stock
	331171	WASHER	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	16102624	NUT	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14306834	SCREW	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	12654424	WASHER	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	$6.34	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	938726	GEARBOX MOUNTING BUSH PIN	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	10731314	WASHER	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	$5.93	To Order

Photo	Part No	Description	Price (each)	Stock
	331997	WASHER	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	12164424	NUT	$5.06	To Order

Photo	Part No	Description	Price (each)	Stock
	769219	REAR IMPACT RETAINER BRACKET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	14306734	SCREW	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	913205	OIL PLUG COMPL. WITH WASHER	$75.40	To Order

Photo	Part No	Description	Price (each)	Stock
	16100824	NUT	$0.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	954089	COMPL. DCT GEARBOX	954089 COMPL. DCT GEARBOX Request ASM authorisation	$48,536.62	1
0002	893453	GEARBOX FRONT STRUT	893453 GEARBOX FRONT STRUT	$192.54	2
0003	247856	SCREW	247856 SCREW M8 X 1.25 X 25	$1.88	8
0004	811605	COMPL. BUSHING FRONT MOUNTING	811605 COMPL. BUSHING FRONT MOUNTING	$369.04	2
0005	331171	WASHER	331171 WASHER	$6.74	2
0006	16102624	NUT	16102624 NUT	$9.51	2
0007	14306834	SCREW	14306834 SCREW M8 X 45	$0.92	8
0008	12654424	WASHER	12654424 WASHER	$0.47	8
0009	986899	WASHER	986899 WASHER	$6.34	8
0010	893003	LH REAR GEARBOX STRUT	893003 LH REAR GEARBOX STRUT	$417.18	1
0010	893004	RH REAR GEARBOX STRUT	893004 RH REAR GEARBOX STRUT	$401.13	1
0011	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	$0.41	8
0012	938726	GEARBOX MOUNTING BUSH PIN	938726 GEARBOX MOUNTING BUSH PIN	$133.17	2
0013	10731314	WASHER	10731314 WASHER	$1.47	2
0014	243122	SPACER	243122 SPACER	$5.93	2
0015	331997	WASHER	331997 WASHER	$2.27	2
0016	12164424	NUT	12164424 NUT	$5.06	2
0017	769219	REAR IMPACT RETAINER BRACKET	769219 REAR IMPACT RETAINER BRACKET	$192.54	1
0018	14306734	SCREW	14306734 SCREW M8 X 40	$1.09	2
0019	13578324	WASHER IN STOCK	13578324 WASHER IN STOCK	$0.23	4
0019	13578324	WASHER IN STOCK	13578324 WASHER IN STOCK	$0.23	2
0020	913205	OIL PLUG COMPL. WITH WASHER	913205 OIL PLUG COMPL. WITH WASHER	$75.40	4
0021	16100824	NUT	16100824 NUT	$0.15 MSRP: ~~0.19~~ (21.1% off)	2

Gearbox And Fasteners

Ferrari Purosangue Europe RH
