WINDSCREEN of Ferrari Ferrari Portofino USA

View All

Ferrari Portofino USA - WINDSCREEN

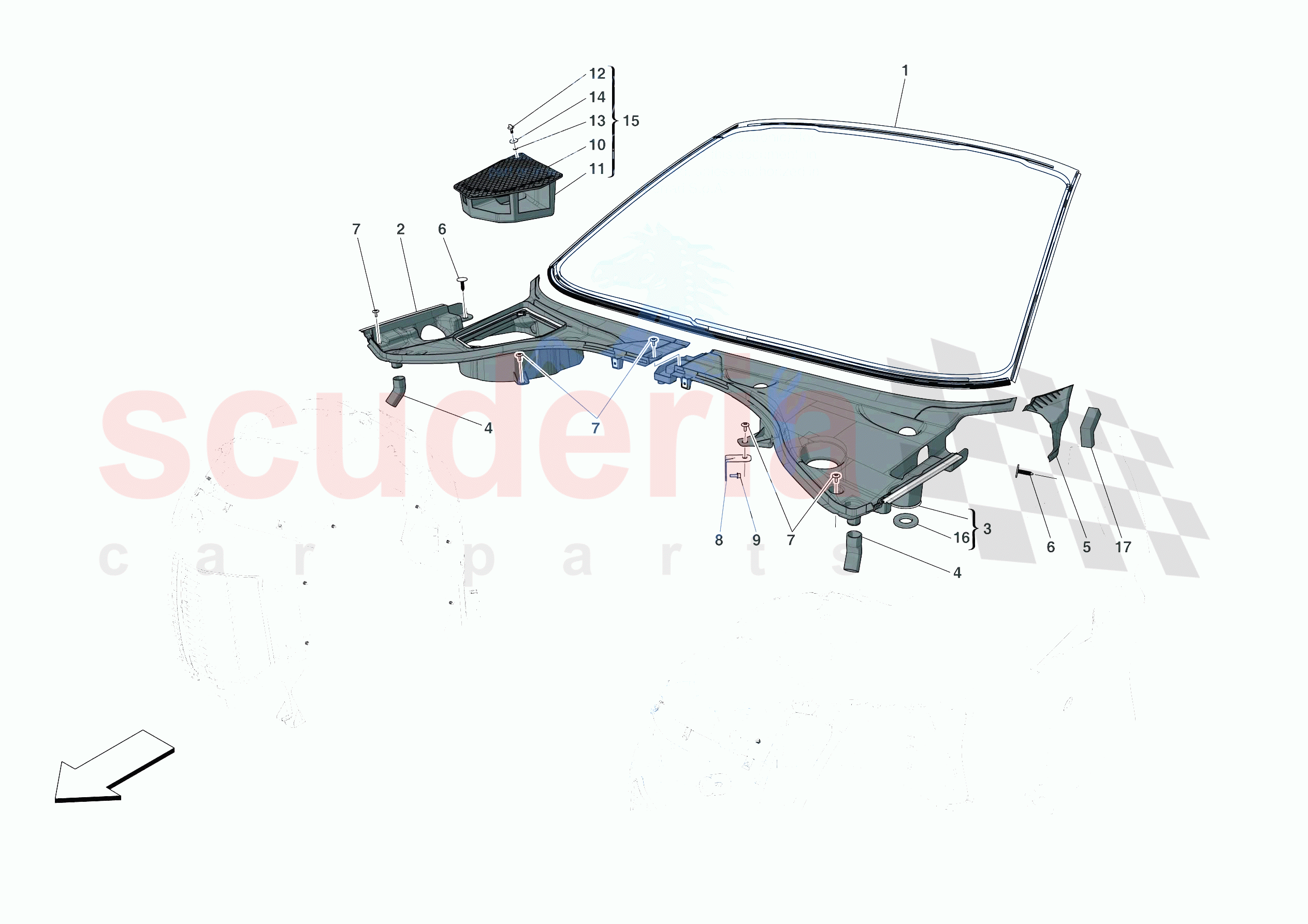

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	809205	WINDSCREEN	Enquire	To Order
	862293	WINDSCREEN	Enquire	To Order
	809206	WINDSCREEN	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	785316	COMPL. RH UNDERWINDSCREEN TRAY	Enquire	To Order
	88959900	COMPL. RH UNDERWINDSCREEN TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785314	COMPL. LH UNDERWINDSCREEN TRAY	Enquire	To Order
	88959400	COMPL. LH UNDERWINDSCREEN TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88271700	UNDERWINDSCREEN TRAY WATER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	781275	LH FRONT PILLAR SEAL	Enquire	To Order
	781276	RH FRONT PILLAR SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86232500	BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88765700	COMPL. LH UNDERWINDSCREEN TRAY FASTENER BRACKET	Enquire	To Order
	768078	COMPL. RH UNDERWINDSCREEN TRAY FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768977	BATTERY COVER	Enquire	To Order
	88960700	BATTERY COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768978	WATER BASKET	Enquire	To Order
	88960800	WATER BASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

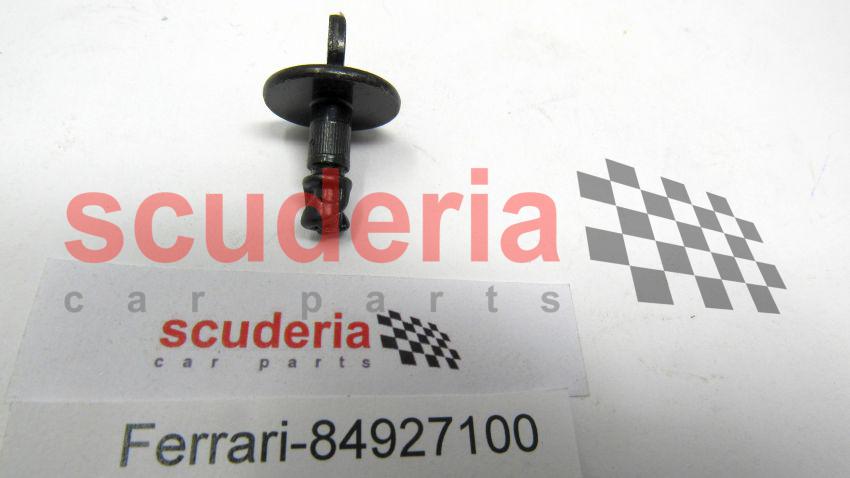

	84927100	QUARTER TURN SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12640624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	768976	COMPL. BATTERY COVER	Enquire	To Order
	88960600	COMPL. BATTERY COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82742000	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	836165	LH C PILLAR SOUNDPROOFING NITTO	Enquire	To Order
	836167	RH C PILLAR SOUNDPROOFING NITTO	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	809205	WINDSCREEN	809205 WINDSCREEN Not for ADAS version	-	1	Enquire
0001	862293	WINDSCREEN	862293 WINDSCREEN Applicable for ADAS version	-	1	Enquire
0001	809206	WINDSCREEN	809206 WINDSCREEN Heat insulating windscreen - Not for ADAS version	-	1	Enquire
0001	862250	WINDSCREEN	862250 WINDSCREEN Heat insulating windscreen - Applicable for ADAS version	-	1	Enquire
0002	785316	COMPL. RH UNDERWINDSCREEN TRAY	785316 COMPL. RH UNDERWINDSCREEN TRAY	-	1	Enquire
0002	88959900	COMPL. RH UNDERWINDSCREEN TRAY	88959900 COMPL. RH UNDERWINDSCREEN TRAY	-	1	Enquire
0003	785314	COMPL. LH UNDERWINDSCREEN TRAY	785314 COMPL. LH UNDERWINDSCREEN TRAY	-	1	Enquire
0003	88959400	COMPL. LH UNDERWINDSCREEN TRAY	88959400 COMPL. LH UNDERWINDSCREEN TRAY	-	1	Enquire
0004	88271700	UNDERWINDSCREEN TRAY WATER PIPE	88271700 UNDERWINDSCREEN TRAY WATER PIPE	-	2	Enquire
0005	781275	LH FRONT PILLAR SEAL	781275 LH FRONT PILLAR SEAL	-	1	Enquire
0005	781276	RH FRONT PILLAR SEAL	781276 RH FRONT PILLAR SEAL	-	1	Enquire
0006	86232500	BUTTON	86232500 BUTTON	-	4	Enquire
0007	85824800	SCREW M5 X 16	85824800 SCREW M5 X 16 M5 X 16	-	7	Enquire
0008	88765700	COMPL. LH UNDERWINDSCREEN TRAY FASTENER BRACKET	88765700 COMPL. LH UNDERWINDSCREEN TRAY FASTENER BRACKET	-	1	Enquire
0008	768078	COMPL. RH UNDERWINDSCREEN TRAY FASTENER BRACKET	768078 COMPL. RH UNDERWINDSCREEN TRAY FASTENER BRACKET	-	1	Enquire
0009	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0010	768977	BATTERY COVER	768977 BATTERY COVER Replaced by 768976 ref. 15; No longer supplied	-	1	Enquire
0010	88960700	BATTERY COVER	88960700 BATTERY COVER Replaced by 88960600 ref. 15; No longer supplied	-	1	Enquire
0011	768978	WATER BASKET	768978 WATER BASKET Replaced by 768976 ref. 15; No longer supplied	-	1	Enquire
0011	88960800	WATER BASKET	88960800 WATER BASKET Replaced by 88960600 ref. 15; No longer supplied	-	1	Enquire
0012	84927100	QUARTER TURN SCREW	84927100 QUARTER TURN SCREW	-	3	Enquire
0013	62769800	WASHER	62769800 WASHER	-	3	Enquire
0014	12640624	WASHER	12640624 WASHER 6.5 X 22 X 2.5	-	3	Enquire
0015	768976	COMPL. BATTERY COVER	768976 COMPL. BATTERY COVER	-	1	Enquire
0015	88960600	COMPL. BATTERY COVER	88960600 COMPL. BATTERY COVER	-	1	Enquire
0016	82742000	RING	82742000 RING	-	1	Enquire
0017	836165	LH C PILLAR SOUNDPROOFING NITTO	836165 LH C PILLAR SOUNDPROOFING NITTO	-	1	Enquire
0017	836167	RH C PILLAR SOUNDPROOFING NITTO	836167 RH C PILLAR SOUNDPROOFING NITTO	-	1	Enquire
