Name: ROOF - HYDRAULICS
Rating: 4.5 (1 reviews)

View All

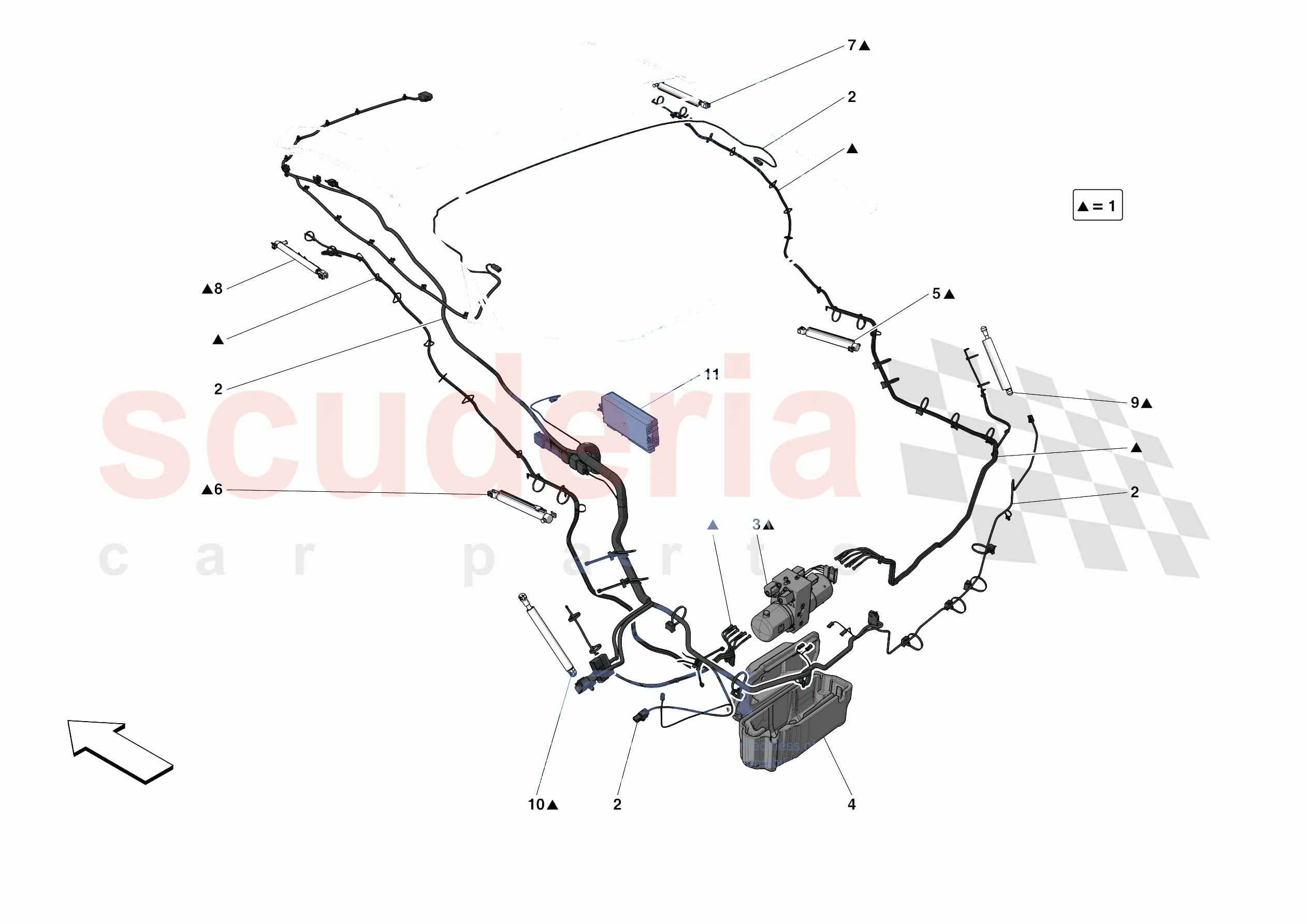

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	762708	COMPL. HYDRAULIC UNIT	$13,502.68	To Order

Photo	Part No	Description	Price (each)	Stock
	762707	ROOF WIRING HARNESS	$1,089.41	To Order

Photo	Part No	Description	Price (each)	Stock
	762709	PUMP WITH VALVE BLOCK	$3,912.01	To Order

Photo	Part No	Description	Price (each)	Stock
	89320800	COMPL. UPPER PUMP COVERING	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	762711	RH FRONT ROOF PISTON KIT	$3,871.88	To Order

Photo	Part No	Description	Price (each)	Stock
	762710	LH FRONT ROOF PISTON KIT	$3,871.88	To Order

Photo	Part No	Description	Price (each)	Stock
	762713	RH REAR ROOF PISTON KIT	$3,745.60	To Order

Photo	Part No	Description	Price (each)	Stock
	762712	LH REAR ROOF PISTON KIT	$3,745.60	To Order

Photo	Part No	Description	Price (each)	Stock
	762716	RH TONNEAU COVER PISTON KIT	$3,871.88	To Order

Photo	Part No	Description	Price (each)	Stock
	762714	LH TONNEAU COVER PISTON KIT	$3,871.88	To Order

Photo	Part No	Description	Price (each)	Stock
	762717	COMPL. REAR SCREEN ECU	$1,622.65	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	762708	COMPL. HYDRAULIC UNIT	762708 COMPL. HYDRAULIC UNIT	$13,502.68	1
0002	762707	ROOF WIRING HARNESS	762707 ROOF WIRING HARNESS	$1,089.41	1
0003	762709	PUMP WITH VALVE BLOCK	762709 PUMP WITH VALVE BLOCK Order complete p/n 762708 ref. 1; No longer supplied	$3,912.01	1
0004	89320800	COMPL. UPPER PUMP COVERING	89320800 COMPL. UPPER PUMP COVERING	$172.00	1
0005	762711	RH FRONT ROOF PISTON KIT	762711 RH FRONT ROOF PISTON KIT	$3,871.88	1
0006	762710	LH FRONT ROOF PISTON KIT	762710 LH FRONT ROOF PISTON KIT	$3,871.88	1
0007	762713	RH REAR ROOF PISTON KIT	762713 RH REAR ROOF PISTON KIT	$3,745.60	1
0008	762712	LH REAR ROOF PISTON KIT	762712 LH REAR ROOF PISTON KIT	$3,745.60	1
0009	762716	RH TONNEAU COVER PISTON KIT	762716 RH TONNEAU COVER PISTON KIT	$3,871.88	1
0010	762714	LH TONNEAU COVER PISTON KIT	762714 LH TONNEAU COVER PISTON KIT	$3,871.88	1
0011	762717	COMPL. REAR SCREEN ECU	762717 COMPL. REAR SCREEN ECU	$1,622.65	1
