AIR FILTER, AIR INTAKE AND DUCTS of Ferrari Ferrari Portofino USA

View All

Ferrari Portofino USA - AIR FILTER, AIR INTAKE AND DUCTS

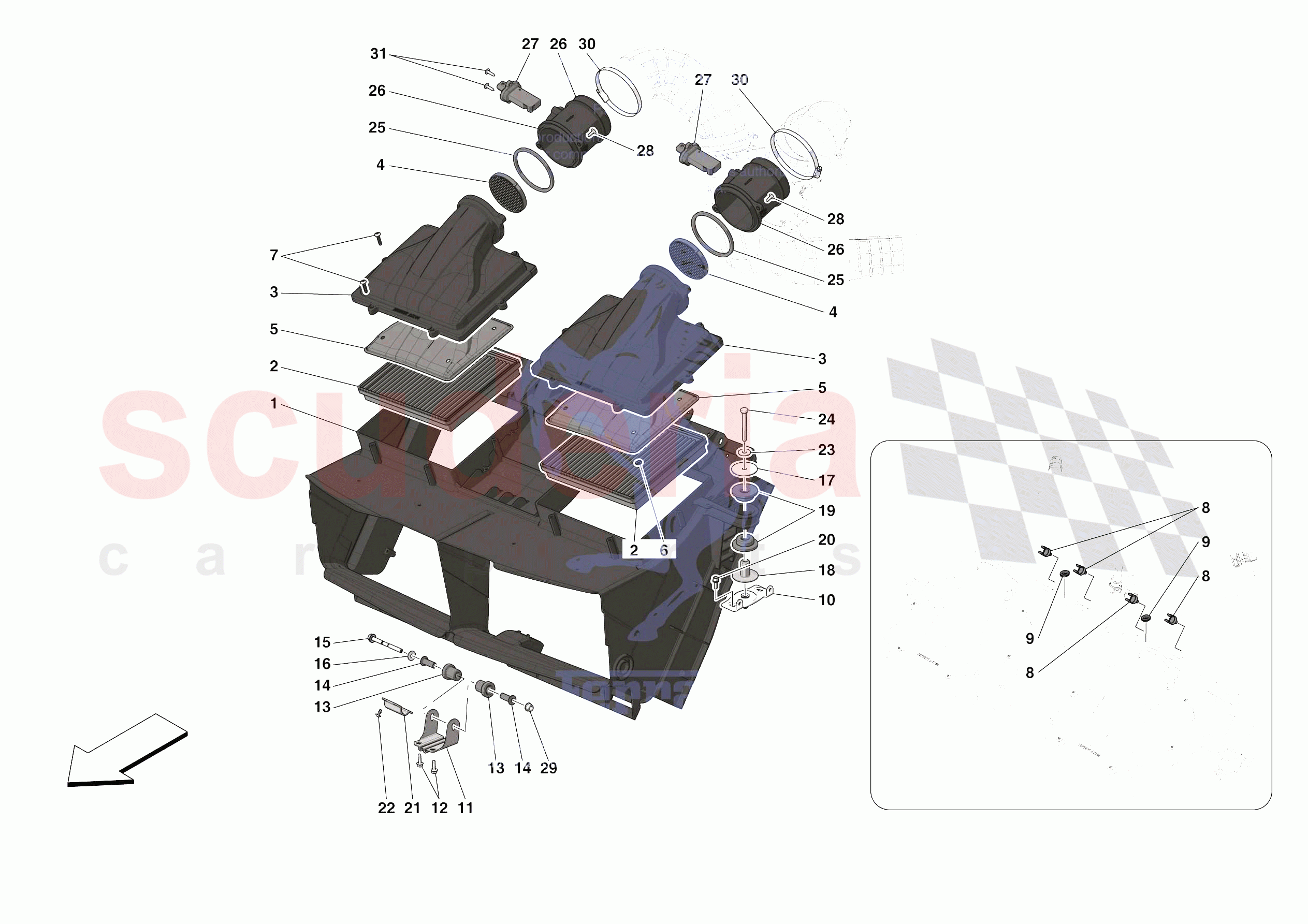

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	328191	ENGINE INTAKE DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	338255	AIR FILTER	Enquire	ARRIVING SOON
	338255	AIR FILTER	Enquire	ARRIVING SOON
	771373	AIR FILTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	328192	FILTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339069	FILTER BOX GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	764941	FILTER BOX SOUNDPROOFING CLOTH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770814	RING NUT FOR PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308398	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85663600	RUBBER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340839	DUCT ADJUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	824299	DUCT LOWER BRACKET MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16286124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197584	RUBBER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197585	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81267000	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227430	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343007	BUSH FOR UPPER DUCT BRACKETS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307674	RADIATOR MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	333233	LOWER DUCT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	332833	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044534	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	193113	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311496	LH AIR FLOW SENSOR MOUNTING HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297280	AIR FLOW SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054511	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	900284	SCREW COLLAR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	16084477	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	328191	ENGINE INTAKE DUCT	328191 ENGINE INTAKE DUCT	-	1	Enquire
0002	338255	AIR FILTER ARRIVING SOON	338255 AIR FILTER ARRIVING SOON	-	2	Enquire
0002	338255	AIR FILTER ARRIVING SOON	338255 AIR FILTER ARRIVING SOON	-	2	Enquire
0002	771373	AIR FILTER	771373 AIR FILTER	-	2	Enquire
0002	771373	AIR FILTER	771373 AIR FILTER	-	2	Enquire
0003	328192	FILTER COVER	328192 FILTER COVER	-	2	Enquire
0004	339069	FILTER BOX GRILLE	339069 FILTER BOX GRILLE	-	2	Enquire
0005	764941	FILTER BOX SOUNDPROOFING CLOTH	764941 FILTER BOX SOUNDPROOFING CLOTH	-	2	Enquire
0006	770814	RING NUT FOR PIN	770814 RING NUT FOR PIN	-	10	Enquire
0007	308398	SCREW	308398 SCREW	-	12	Enquire
0008	257273	CLIP	257273 CLIP	-	4	Enquire
0009	85663600	RUBBER SEAL	85663600 RUBBER SEAL	-	2	Enquire
0010	340839	DUCT ADJUSTER	340839 DUCT ADJUSTER	-	1	Enquire
0011	824299	DUCT LOWER BRACKET MOUNT	824299 DUCT LOWER BRACKET MOUNT	-	1	Enquire
0012	16286124	SCREW	16286124 SCREW M6 X 20	-	2	Enquire
0013	197584	RUBBER BUSHING	197584 RUBBER BUSHING	-	2	Enquire
0014	197585	BUSHING	197585 BUSHING	-	2	Enquire
0015	81267000	SCREW	81267000 SCREW M8 X 90	-	1	Enquire
0016	13578324	WASHER	13578324 WASHER	-	1	Enquire
0017	227430	WASHER	227430 WASHER	-	2	Enquire
0018	343007	BUSH FOR UPPER DUCT BRACKETS	343007 BUSH FOR UPPER DUCT BRACKETS	-	2	Enquire
0019	307674	RADIATOR MOUNTING BUSH	307674 RADIATOR MOUNTING BUSH	-	4	Enquire
0020	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
0021	333233	LOWER DUCT FASTENER BRACKET	333233 LOWER DUCT FASTENER BRACKET	-	1	Enquire
0022	332833	SCREW	332833 SCREW 6 X 12	-	4	Enquire
0023	13578321	WASHER	13578321 WASHER	-	2	Enquire
0024	16044534	SCREW	16044534 SCREW M8 X 65	-	2	Enquire
0025	193113	GASKET	193113 GASKET	-	2	Enquire
0026	311496	LH AIR FLOW SENSOR MOUNTING HOUSING	311496 LH AIR FLOW SENSOR MOUNTING HOUSING	-	2	Enquire
0027	297280	AIR FLOW SENSOR	297280 AIR FLOW SENSOR	-	2	Enquire
0028	85833700	SCREW	85833700 SCREW M5 X 14	-	4	Enquire
0029	14054511	NUT	14054511 NUT	-	1	Enquire
0030	900284	SCREW COLLAR ARRIVING SOON	900284 SCREW COLLAR ARRIVING SOON	-	2	Enquire
0031	16084477	SCREW	16084477 SCREW M5 X 20	-	4	Enquire
