FRONT SUSPENSION - ARMS

Find Your Part

Ferrari Portofino Europe RH - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
338367 COMPL. LH FRONT HUB CARRIER $2,567.34 To Order
338368 COMPL. RH FRONT HUB CARRIER $2,567.34 To Order
Photo Part No Description Price (each) Stock
268896 LH FRONT LOWER ARM $1,331.80 To Order
268897 RH FRONT LOWER ARM $1,412.03 To Order
Photo Part No Description Price (each) Stock
241689 WASHER $7.68 To Order
Photo Part No Description Price (each) Stock
203795 NUT $2.58 To Order
Photo Part No Description Price (each) Stock
331628 UPPER LH FRONT ARM $834.37 To Order
331629 UPPER RH FRONT ARM $882.51 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.18 To Order
Photo Part No Description Price (each) Stock
259615 ABS SENSOR $218.81 To Order
Photo Part No Description Price (each) Stock
289163 COMPL. FRONT LH JOINT BRACKET $38.69 To Order
289164 COMPL. FRONT RH JOINT BRACKET $38.69 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.60 To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.94 To Order
Photo Part No Description Price (each) Stock
14496624 WASHER D.10.5-21 X 2 $0.06 To Order
Photo Part No Description Price (each) Stock

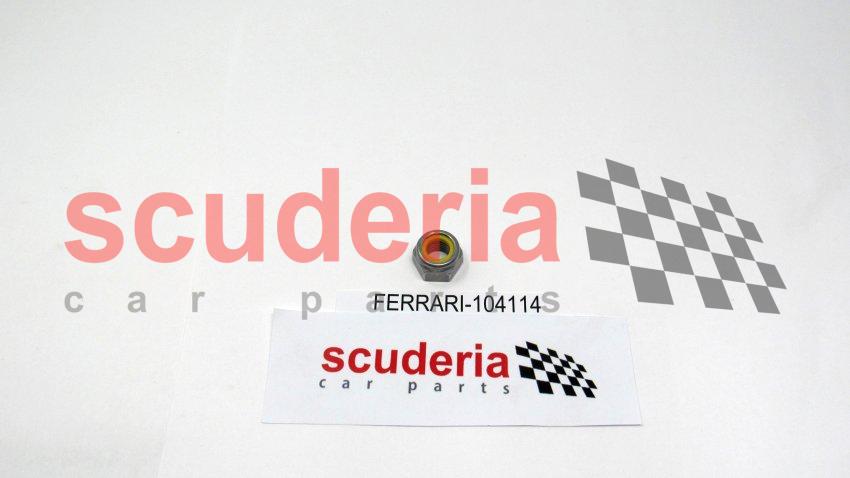

104114 NUT $0.41 To Order
Photo Part No Description Price (each) Stock
262544 ADJUSTER SHIM $9.50 To Order
238693 ADJUSTMENT SHIM $5.77 To Order
238881 CAMBER SPACER 1.5MM $5.77 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
333338 ADJUSTMENT SHIM $3.23 To Order
333339 ADJUSTMENT SHIM $3.61 To Order
333340 CAMBER ADJUSTMENT SHIM $4.75 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
162606 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
216973 BALL JOINT $3.55 To Order
Photo Part No Description Price (each) Stock
340274 COMPL. TRAVEL SENSOR $176.57 To Order
984045 COMPL. TRAVEL SENSOR $206.65 To Order
Photo Part No Description Price (each) Stock
340267 FRONT LH BRACKET FOR TRAVEL SENSOR $14.10 To Order
340268 FRONT RH BRACKET FOR TRAVEL SENSOR $14.10 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.81 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.31 To Order
Photo Part No Description Price (each) Stock
275791 ABS CABLE AND GROUND CABLE GUIDE BRACKET $28.66 To Order
Photo Part No Description Price (each) Stock
261214 CLIP $1.36 To Order
View All
FRONT SUSPENSION - ARMS of Ferrari Ferrari Portofino Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 338367
COMPL. LH FRONT HUB CARRIER 		$2,567.34 1
0001 338368
COMPL. RH FRONT HUB CARRIER 		$2,567.34 1
0002 268896
LH FRONT LOWER ARM 		$1,331.80 1
0002 268897
RH FRONT LOWER ARM 		$1,412.03 1
0003 241689
WASHER 		$7.68 2
0004 203795
NUT 		$2.58 2
0005 331628
UPPER LH FRONT ARM 		$834.37 1
0005 331629
UPPER RH FRONT ARM 		$882.51 1
0006 12646921
WASHER 		$0.53 2
0007 149807
NUT 		$1.18 (41% off) 2
0008 259615
ABS SENSOR 		$218.81 (9.4% off) 2
0010 289163
COMPL. FRONT LH JOINT BRACKET 		$38.69 1
0010 289164
COMPL. FRONT RH JOINT BRACKET 		$38.69 1
0011 250657
SCREW
M6 X 14 		$7.60 4
0012 264528
THREADED ROD 		$3.94 16
0013 14496624
WASHER D.10.5-21 X 2
D. 10.5-21 X 2 		$0.06 16
0014 104114
NUT 		$0.41 (18% off) 16
0015 262544
ADJUSTER SHIM
Th. 0.5 mm 		$9.50 4
0015 238693
ADJUSTMENT SHIM
Th. 1 mm 		$5.77 (7.7% off) 4
0015 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm 		$5.77 (6.2% off) 4
0015 238694
ADJUSTMENT SHIM
Th. 2 mm 		$5.59 (9.1% off) 4
0015 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.59 (10.6% off) 4
0015 238883
ADJUSTMENT SHIM
Th. 3 mm 		$5.59 (10.6% off) 4
0015 238884
ADJUSTMENT SHIM
Th. 3.5 mm 		$5.59 (10.6% off) 4
0015 238885
CAMBER SPACER 4MM
Th. 4 mm 		$5.77 (7.7% off) 4
0016 333338
ADJUSTMENT SHIM
Th. 0.5 mm 		$3.23 2
0016 333339
ADJUSTMENT SHIM
Th. 1 mm 		$3.61 2
0016 333340
CAMBER ADJUSTMENT SHIM
Th. 1.5 mm 		$4.75 2
0016 333341
ADJUSTMENT SHIM
Th. 2 mm 		$5.67 2
0016 333342
ADJUSTMENT SHIM
Th. 2.5 mm 		$6.84 2
0016 333343
ADJUSTMENT SHIM
Th. 3 mm 		$7.83 2
0016 333344
ADJUSTMENT SHIM
Th. 3.5 mm 		$9.11 2
0016 333345
ADJUSTMENT SHIM
Th. 4 mm 		$10.76 2
0017 162606
CLIP 		$1.36 (7.5% off) 2
0018 13046011
NUT 		$0.39 4
0019 216973
BALL JOINT
Dual Mode Magneride 		$3.55 (21.1% off) 2
0020 340274
COMPL. TRAVEL SENSOR
Dual Mode Magneride; Applies until depletion 		$176.57 2
0020 984045
COMPL. TRAVEL SENSOR
Dual Mode Magneride; Applicable after depletion of 340274 		$206.65 2
0021 340267
FRONT LH BRACKET FOR TRAVEL SENSOR
Dual Mode Magneride 		$14.10 1
0021 340268
FRONT RH BRACKET FOR TRAVEL SENSOR
Dual Mode Magneride 		$14.10 1
0022 16284934
FLANGED SCREW
M5 X 10 		$0.81 4
0023 231619
SCREW
M6 X 18 		$0.31 4
0024 275791
ABS CABLE AND GROUND CABLE GUIDE BRACKET 		$28.66 2
0025 261214
CLIP 		$1.36 2
