Name: TANK MOUNTS
Rating: 4.5 (1 reviews)

View All

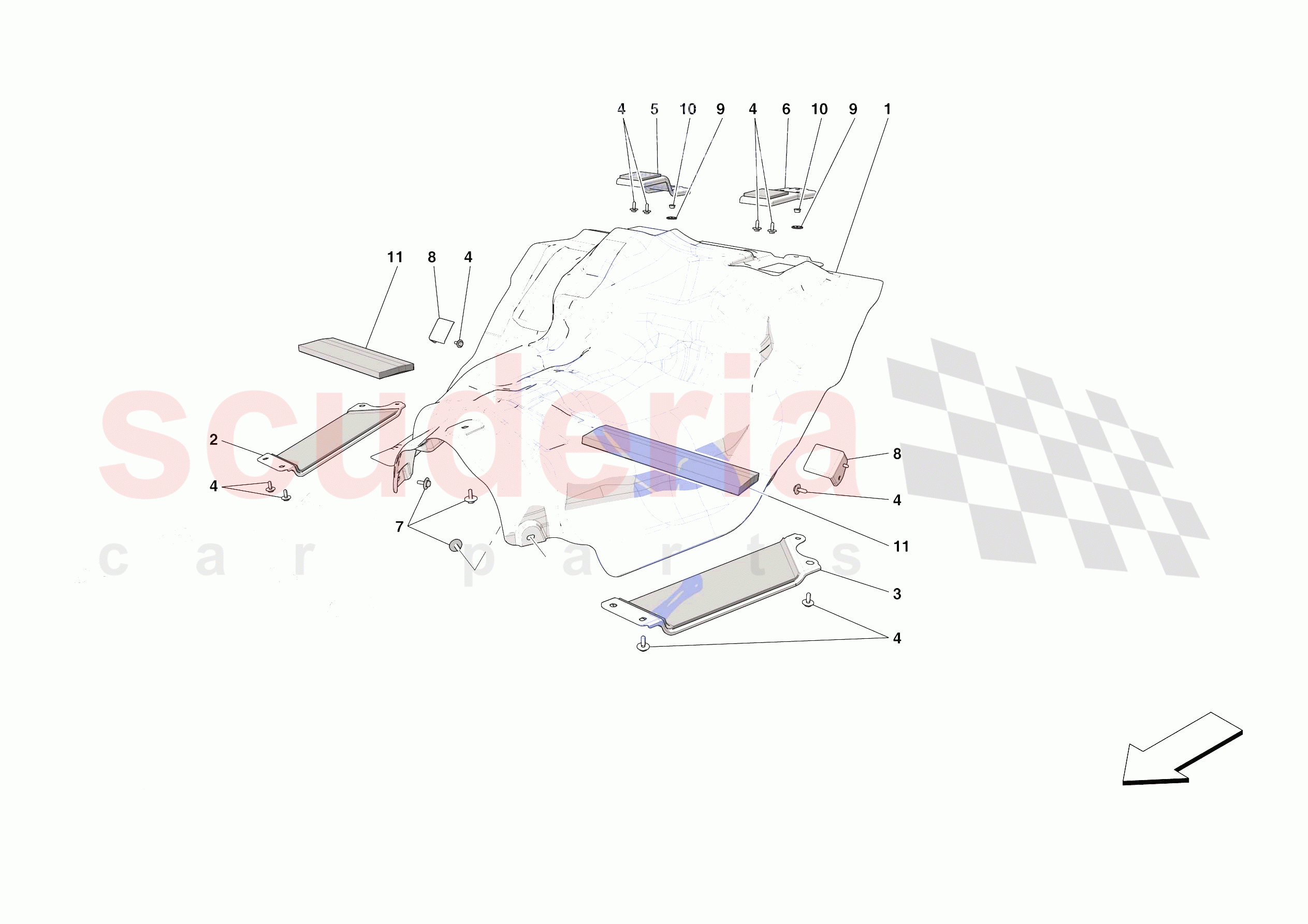

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	342231	RH LOWER RETAINER	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	342229	LH LOWER RETAINER	$38.69	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	753100	RH UPPER RETAINER	$24.34	To Order

Photo	Part No	Description	Price (each)	Stock
	753098	LH UPPER RETAINER	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	794712	RANK INSULATION BRACKET	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	250645	RING NUT	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	781443	BUSH	$12.17	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	338349	TANK HEAT INSULATION	338349 TANK HEAT INSULATION Applies until depletion	$344.02	1
0001	836325	TANK HEAT INSULATION	836325 TANK HEAT INSULATION Applicable after depletion of 338349	$344.02	1
0002	342231	RH LOWER RETAINER	342231 RH LOWER RETAINER	$38.69	1
0003	342229	LH LOWER RETAINER	342229 LH LOWER RETAINER	$38.69	1
0004	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 18	$6.18	14
0005	753100	RH UPPER RETAINER	753100 RH UPPER RETAINER	$24.34	1
0006	753098	LH UPPER RETAINER	753098 LH UPPER RETAINER	$25.79	1
0007	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20	$6.18	3
0008	794712	RANK INSULATION BRACKET	794712 RANK INSULATION BRACKET	$22.92	2
0009	250645	RING NUT	250645 RING NUT	$0.75	2
0010	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M6 X 6	$1.51	2
0011	781443	BUSH	781443 BUSH	$12.17	2
