Name: PEDAL BOARD
Rating: 4.6 (1 reviews)

PEDAL BOARD of Ferrari Ferrari Portofino Europe

View All

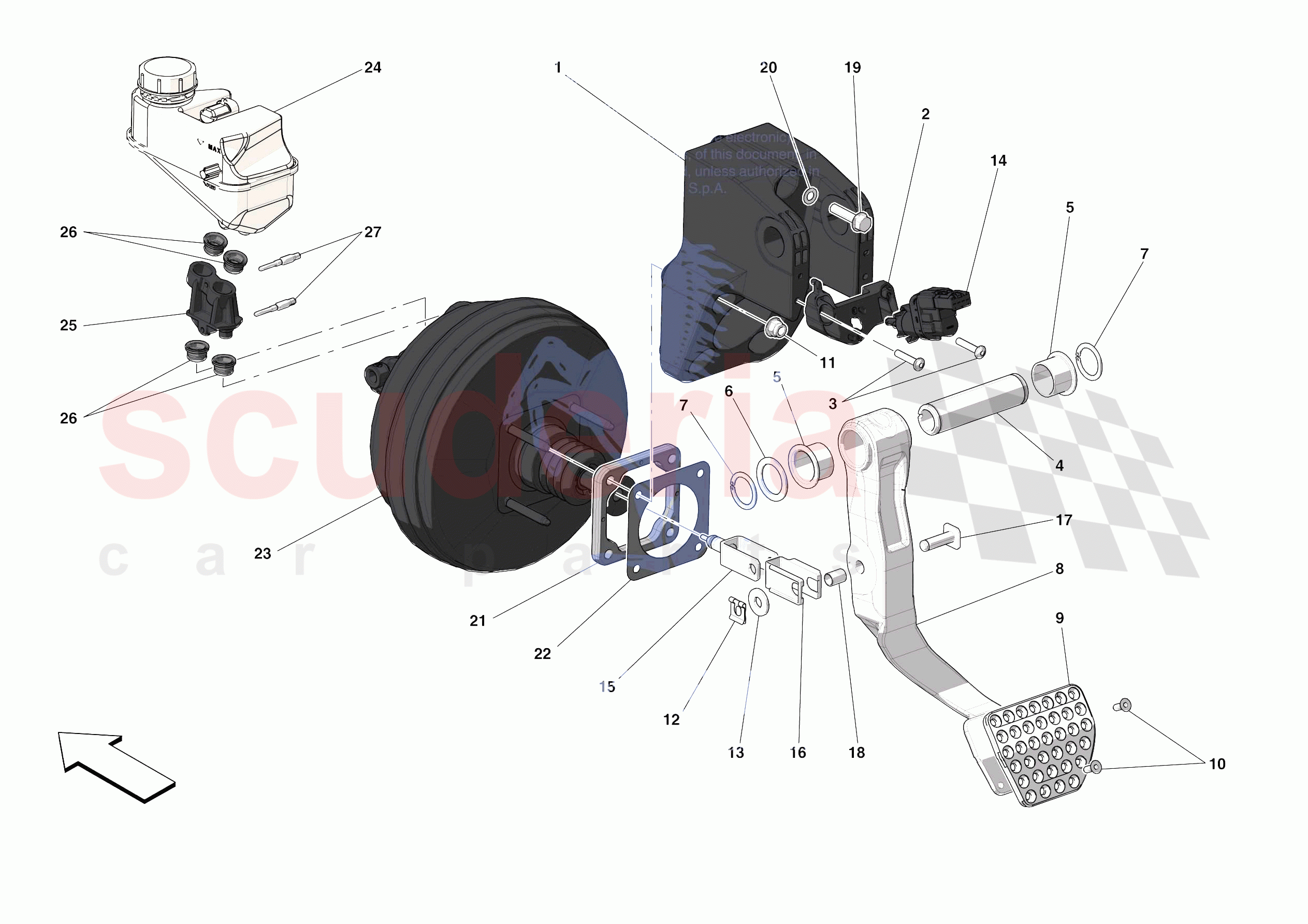

Ferrari Portofino Europe - PEDAL BOARD

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	261612	PEDAL BOARD MOUNT	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	317720	F1 SWITCH BRACKET	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	240931	SCREW	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	240930	PIN	$80.21	To Order

Photo	Part No	Description	Price (each)	Stock
	147640	GASKET	$6.82	To Order

Photo	Part No	Description	Price (each)	Stock
	240929	RUBBER WASHER	$9.81	To Order

Photo	Part No	Description	Price (each)	Stock
	12700076	SEEGER RING FOR SHAFT	$9.81	To Order

Photo	Part No	Description	Price (each)	Stock
	261832	BRAKE PEDAL	$1,331.80	To Order
	261846	BRAKE PEDAL	$1,331.80	To Order

Photo	Part No	Description	Price (each)	Stock
	240987	DRILLED PLATE	$256.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	11064176	SAFETY CLIP	$2.66	To Order

Photo	Part No	Description	Price (each)	Stock
	245181	RUBBER WASHER	$7.52	To Order

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	$32.08	IN STOCK
	958694	PUSH-BUTTON SWITCH	$32.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	245178	BRAKE SERVO LINKAGE YOKE	$73.80	To Order

Photo	Part No	Description	Price (each)	Stock
	245179	CAGE	$18.82	To Order

Photo	Part No	Description	Price (each)	Stock
	245180	PIN	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	260639	BUSH	$13.86	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196080	SPACER	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	190378	GASKET	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	261826	BRAKE SERVO	$534.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	956187	BRAKE OIL RESERVOIR	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	241549	ADAPTER UNION	$15.38	To Order

Photo	Part No	Description	Price (each)	Stock
	241550	GASKET	$0.75	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	241537	SCREW	$0.45	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	261612	PEDAL BOARD MOUNT	261612 PEDAL BOARD MOUNT	$481.36	1
0002	317720	F1 SWITCH BRACKET	317720 F1 SWITCH BRACKET	$67.38	1
0003	240931	SCREW	240931 SCREW	$4.55	2
0004	240930	PIN	240930 PIN	$80.21	1
0005	147640	GASKET	147640 GASKET	$6.82 MSRP: ~~6.93~~ (1.6% off)	2
0006	240929	RUBBER WASHER	240929 RUBBER WASHER	$9.81	1
0007	12700076	SEEGER RING FOR SHAFT	12700076 SEEGER RING FOR SHAFT	$9.81	2
0008	261832	BRAKE PEDAL	261832 BRAKE PEDAL	$1,331.80	1
0008	261846	BRAKE PEDAL	261846 BRAKE PEDAL	$1,331.80	1
0009	240987	DRILLED PLATE IN STOCK	240987 DRILLED PLATE IN STOCK	$256.72	1
0010	62797600	Allen Bolt Countersunk M6 x 20 IN STOCK	62797600 Allen Bolt Countersunk M6 x 20 M6 X 16 IN STOCK	$1.02 MSRP: ~~1.45~~ (29.7% off)	2
0011	12578211	NUT	12578211 NUT	$0.31 MSRP: ~~1.25~~ (75.2% off)	4
0012	11064176	SAFETY CLIP	11064176 SAFETY CLIP	$2.66	1
0013	245181	RUBBER WASHER	245181 RUBBER WASHER	$7.52	1
0014	958694	PUSH-BUTTON SWITCH IN STOCK	958694 PUSH-BUTTON SWITCH Applicable after depletion of 318205 IN STOCK	$32.08	1
0014	958694	PUSH-BUTTON SWITCH IN STOCK	958694 PUSH-BUTTON SWITCH IN STOCK	$32.08	1
0015	245178	BRAKE SERVO LINKAGE YOKE	245178 BRAKE SERVO LINKAGE YOKE	$73.80	1
0016	245179	CAGE	245179 CAGE	$18.82	1
0017	245180	PIN	245180 PIN	$78.61	1
0018	260639	BUSH	260639 BUSH	$13.86	1
0019	16287524	SCREW IN STOCK	16287524 SCREW M8 X 35 IN STOCK	$1.38	1
0020	12601374	WASHER IN STOCK	12601374 WASHER IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	1
0021	196080	SPACER	196080 SPACER	$38.49	1
0022	190378	GASKET IN STOCK	190378 GASKET IN STOCK	$1.12	1
0023	261826	BRAKE SERVO IN STOCK	261826 BRAKE SERVO IN STOCK	$534.23	1
0024	956187	BRAKE OIL RESERVOIR	956187 BRAKE OIL RESERVOIR	$85.03	1
0025	241549	ADAPTER UNION	241549 ADAPTER UNION	$15.38	1
0026	241550	GASKET IN STOCK	241550 GASKET IN STOCK	$0.75	4
0027	241537	SCREW	241537 SCREW	$0.45	2

Pedal Board

Ferrari Portofino Europe

Ferrari Portofino Europe - PEDAL BOARD
