GEARBOX AND FASTENERS of Ferrari Ferrari Portofino M USA

View All

Ferrari Portofino M USA - GEARBOX AND FASTENERS

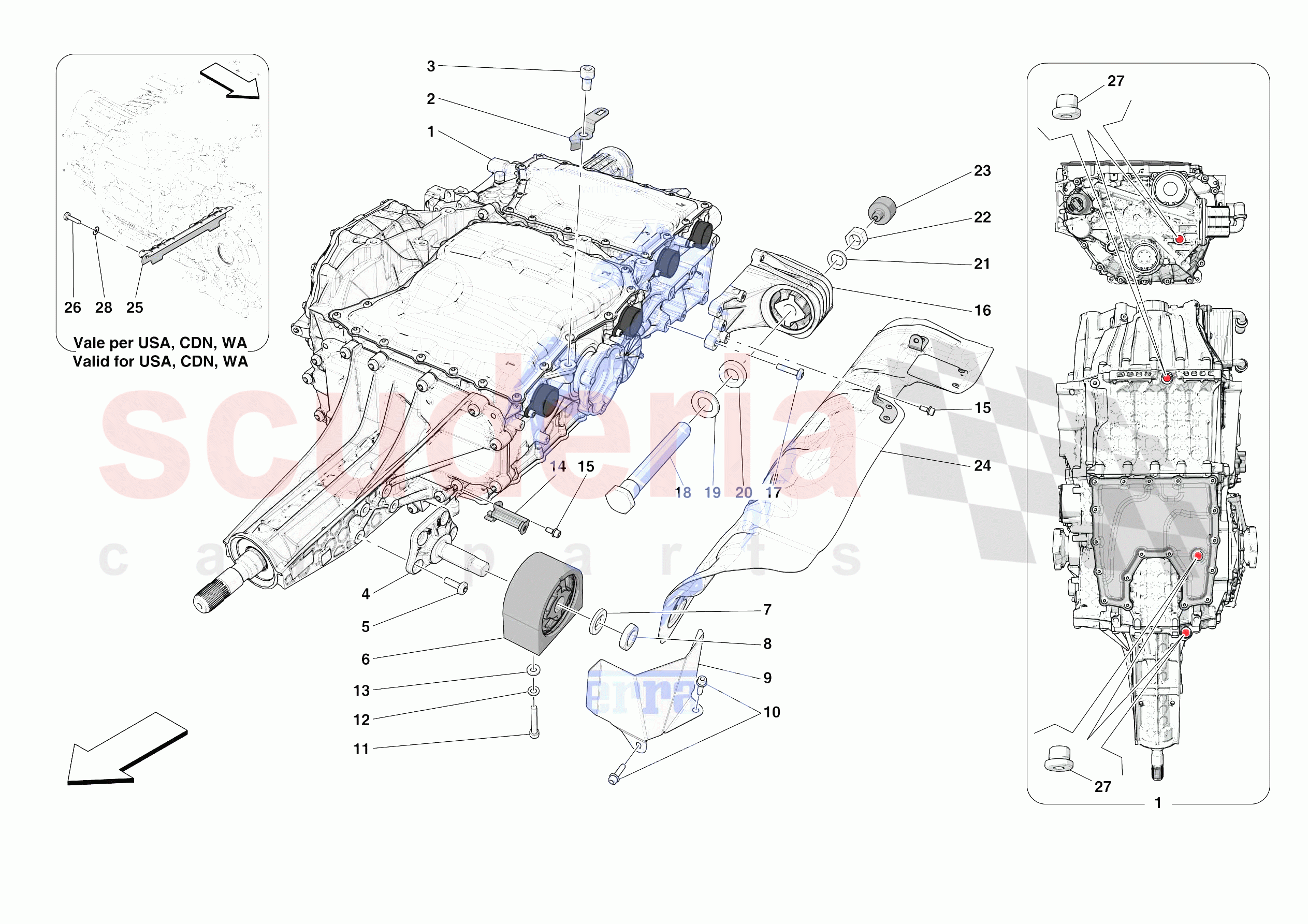

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	763129	COMPL. DCT GEARBOX	Enquire	To Order
	985352	COMPL. DCT GEARBOX	Enquire	To Order
	847403	COMPL. DCT GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910977	WIRING HARNESS MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14359924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893453	GEARBOX FRONT STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	777385	COMPL. BUSHING FRONT MOUNTING	Enquire	To Order
	917933	COMPL. BUSHING FRONT MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331171	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102624	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	828871	LH GEARBOX FRONT MOUNT HEAT SHIELD	Enquire	To Order
	958368	RH GEARBOX FRONT MOUNT HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12654424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	918728	FRONT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893004	RH REAR GEARBOX STRUT	Enquire	To Order
	893003	LH REAR GEARBOX STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	938726	GEARBOX MOUNTING BUSH PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10731314	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331997	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12164424	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	938712	ADDITIONAL GROUND MALE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	918722	COMPL. RH GEARBOX HEAT SHIELD	Enquire	To Order
	918724	COMPL. LH GEARBOX HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342315	REAR IMPACT RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	913205	OIL PLUG COMPL. WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	763129	COMPL. DCT GEARBOX	763129 COMPL. DCT GEARBOX Applicable after depletion of 847403; Request ASM authorisation	-	1	Enquire
0001	985352	COMPL. DCT GEARBOX	985352 COMPL. DCT GEARBOX Applies until depletion; Request ASM authorisation	-	1	Enquire
0001	847403	COMPL. DCT GEARBOX	847403 COMPL. DCT GEARBOX Applies until depletion - Applicable after depletion of 985352; Request ASM authorisation	-	1	Enquire
0002	910977	WIRING HARNESS MOUNTING BRACKET	910977 WIRING HARNESS MOUNTING BRACKET	-	1	Enquire
0003	14359924	SCREW	14359924 SCREW M10 X 1.25 X 16	-	1	Enquire
0004	893453	GEARBOX FRONT STRUT	893453 GEARBOX FRONT STRUT	-	2	Enquire
0005	247856	SCREW	247856 SCREW M8 X 1.25 X 25	-	8	Enquire
0006	777385	COMPL. BUSHING FRONT MOUNTING	777385 COMPL. BUSHING FRONT MOUNTING Applicable after depletion of 917933	-	2	Enquire
0006	917933	COMPL. BUSHING FRONT MOUNTING	917933 COMPL. BUSHING FRONT MOUNTING Applies until depletion	-	2	Enquire
0007	331171	WASHER	331171 WASHER	-	2	Enquire
0008	16102624	NUT	16102624 NUT	-	2	Enquire
0009	828871	LH GEARBOX FRONT MOUNT HEAT SHIELD	828871 LH GEARBOX FRONT MOUNT HEAT SHIELD	-	1	Enquire
0009	958368	RH GEARBOX FRONT MOUNT HEAT SHIELD	958368 RH GEARBOX FRONT MOUNT HEAT SHIELD	-	1	Enquire
0010	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	4	Enquire
0011	14302234	SCREW	14302234 SCREW M8 X 55	-	8	Enquire
0012	986899	WASHER	986899 WASHER	-	8	Enquire
0013	12654424	WASHER	12654424 WASHER	-	8	Enquire
0014	918728	FRONT BRACKET	918728 FRONT BRACKET	-	2	Enquire
0015	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14	-	12	Enquire
0016	893004	RH REAR GEARBOX STRUT	893004 RH REAR GEARBOX STRUT	-	1	Enquire
0016	893003	LH REAR GEARBOX STRUT	893003 LH REAR GEARBOX STRUT	-	1	Enquire
0017	14306634	SCREW	14306634 SCREW No longer supplied - Replaced by 14306634; M8 X 1.25 X 35	-	2	Enquire
0018	938726	GEARBOX MOUNTING BUSH PIN	938726 GEARBOX MOUNTING BUSH PIN	-	2	Enquire
0019	10731314	WASHER	10731314 WASHER	-	2	Enquire
0020	243122	SPACER	243122 SPACER	-	2	Enquire
0021	331997	WASHER	331997 WASHER	-	2	Enquire
0022	12164424	NUT	12164424 NUT	-	2	Enquire
0023	938712	ADDITIONAL GROUND MALE	938712 ADDITIONAL GROUND MALE 370 g	-	2	Enquire
0024	918722	COMPL. RH GEARBOX HEAT SHIELD	918722 COMPL. RH GEARBOX HEAT SHIELD	-	1	Enquire
0024	918724	COMPL. LH GEARBOX HEAT SHIELD	918724 COMPL. LH GEARBOX HEAT SHIELD	-	1	Enquire
0025	342315	REAR IMPACT RETAINER BRACKET	342315 REAR IMPACT RETAINER BRACKET	-	1	Enquire
0026	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	-	2	Enquire
0027	913205	OIL PLUG COMPL. WITH WASHER	913205 OIL PLUG COMPL. WITH WASHER	-	4	Enquire
0028	13578324	WASHER	13578324 WASHER	-	2	Enquire
