VENTS of Ferrari Ferrari Portofino M USA

View All

Ferrari Portofino M USA - VENTS

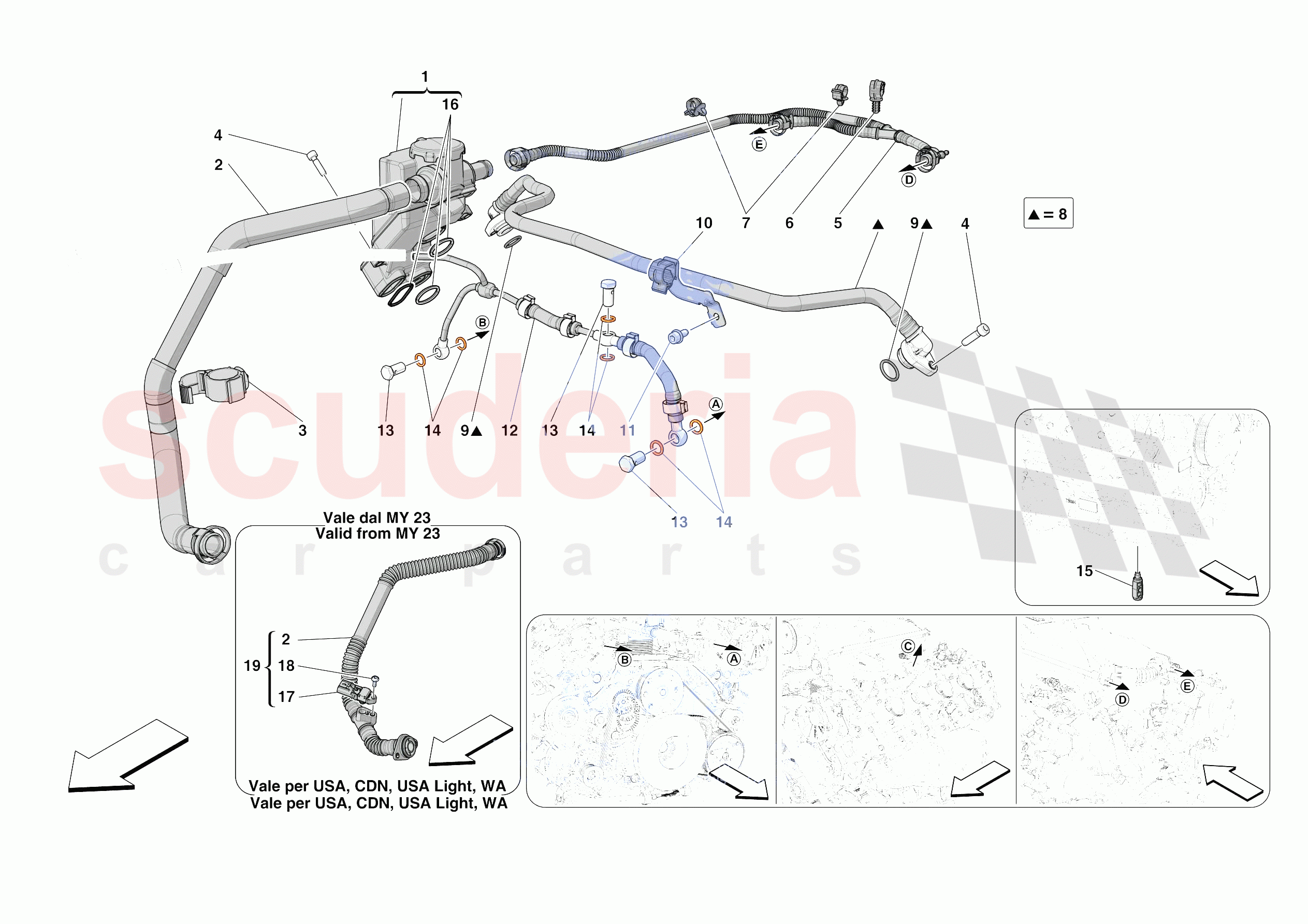

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	948335	OIL VAPOUR SEPARATOR WITH PERFORATED MEMBRANE	Enquire	To Order
	299742	OIL VAPOUR SEPARATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	859844	BLOW-BY PIPE WITH SENSOR	Enquire	To Order
	327976	BLOW-BY PIPE	Enquire	To Order
	786968	BLOW-BY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	910904	PIPE FROM SEPARATOR TO INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291552	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	198253	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	320055	COMPENSATION PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130295	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	309274	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307637	WATER VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11903811	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	285403	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	849688	OIL RETURN LINE GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	871810	VAPOUR PRESSURE SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85077900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	953167	BLOW-BY PIPE WITH SENSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	948335	OIL VAPOUR SEPARATOR WITH PERFORATED MEMBRANE	948335 OIL VAPOUR SEPARATOR WITH PERFORATED MEMBRANE Applicable from MY 23	-	1	Enquire
0001	299742	OIL VAPOUR SEPARATOR	299742 OIL VAPOUR SEPARATOR Applicable up to MY 22	-	1	Enquire
0002	859844	BLOW-BY PIPE WITH SENSOR	859844 BLOW-BY PIPE WITH SENSOR Applicable from MY 23; No longer supplied - Replaced by 953167	-	1	Enquire
0002	327976	BLOW-BY PIPE	327976 BLOW-BY PIPE Applicable up to MY 22	-	1	Enquire
0002	786968	BLOW-BY PIPE	786968 BLOW-BY PIPE	-	1	Enquire
0003	248061	CLIP	248061 CLIP	-	1	Enquire
0004	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	5	Enquire
0005	910904	PIPE FROM SEPARATOR TO INTAKE MANIFOLD	910904 PIPE FROM SEPARATOR TO INTAKE MANIFOLD	-	1	Enquire
0006	291552	CLIP	291552 CLIP	-	1	Enquire
0007	198253	CLIP	198253 CLIP D. 13	-	2	Enquire
0008	320055	COMPENSATION PIPE	320055 COMPENSATION PIPE	-	1	Enquire
0009	130295	O-RING	130295 O-RING Also included in Short block gasket series	-	2	Enquire
0010	309274	BRACKET	309274 BRACKET	-	1	Enquire
0011	282393	SCREW	282393 SCREW M6 X 14	-	1	Enquire
0012	307637	WATER VENT PIPE	307637 WATER VENT PIPE	-	1	Enquire
0013	11903811	HOSE CONNECTOR	11903811 HOSE CONNECTOR	-	3	Enquire
0014	10260960	GASKET	10260960 GASKET	-	6	Enquire
0015	285403	VALVE	285403 VALVE	-	1	Enquire
0016	849688	OIL RETURN LINE GASKET	849688 OIL RETURN LINE GASKET Also included in Short block gasket kit	-	1	Enquire
0017	871810	VAPOUR PRESSURE SENSOR	871810 VAPOUR PRESSURE SENSOR Applicable from MY 23	-	1	Enquire
0018	85077900	SCREW	85077900 SCREW Applicable from MY 23; M5 X 16	-	1	Enquire
0019	953167	BLOW-BY PIPE WITH SENSOR	953167 BLOW-BY PIPE WITH SENSOR Applicable from MY 23	-	1	Enquire
