Name: COOLING SYSTEM PIPES
Rating: 4.9 (1 reviews)

View All

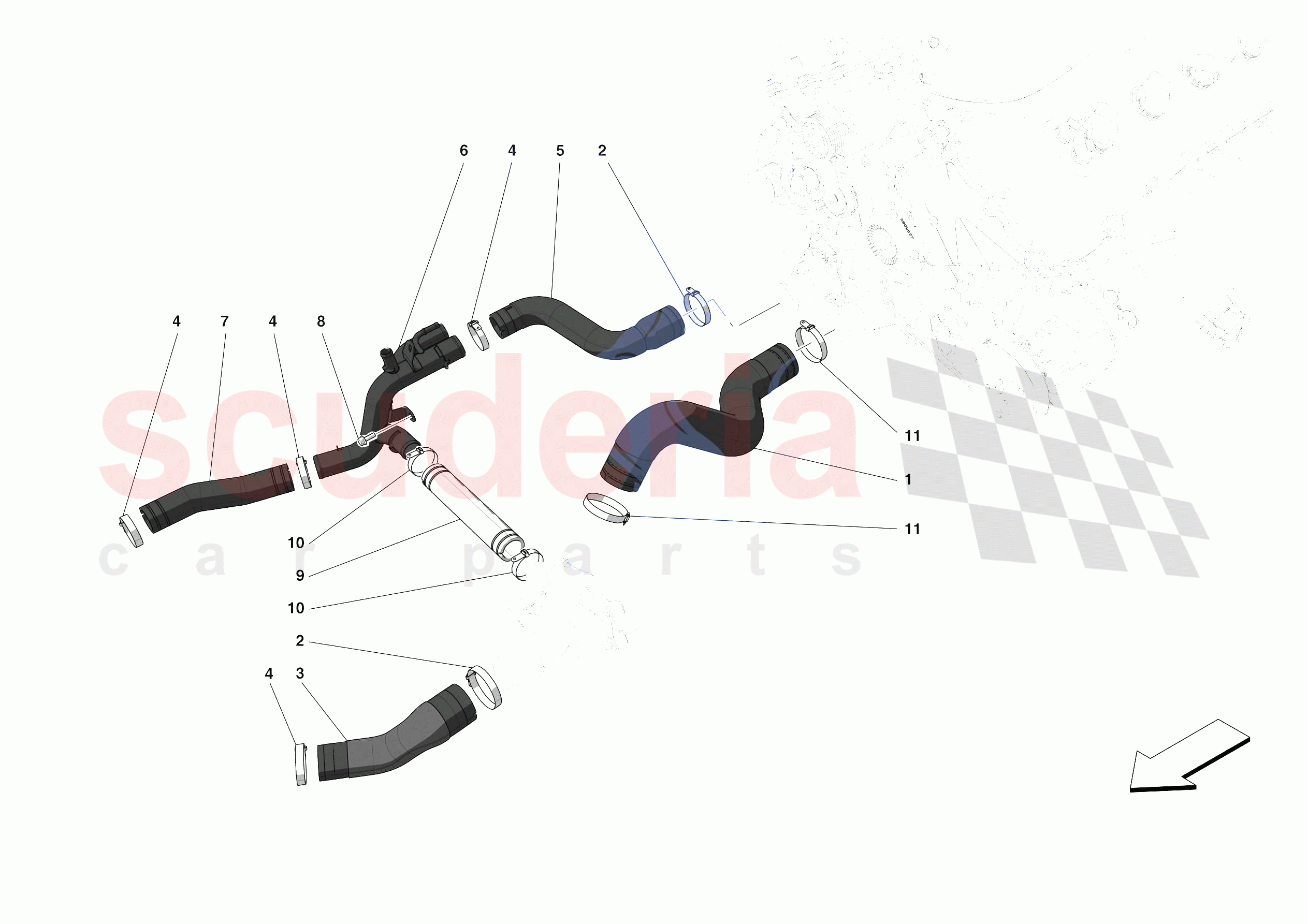

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	290951	WATER HOSE FROM ENGINE TO VALVE	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	333051	WATER HOSE FROM VALVE TO RADIATOR	$155.63	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	HOSE CLAMP	$1.20	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	321228	RETURN HOSE TO PUMP	$83.42	To Order

Photo	Part No	Description	Price (each)	Stock
	337213	METAL WATER RECIRCULATION CONNECTOR PIPE	$449.27	To Order

Photo	Part No	Description	Price (each)	Stock
	258630	RETURN HOSE FROM RADIATOR	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	270452	WATER HOSE FROM VALVE	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	262113	COLLAR	$1.85	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	290951	WATER HOSE FROM ENGINE TO VALVE	290951 WATER HOSE FROM ENGINE TO VALVE	$401.34	1
0002	13000790	SCREW COLLAR	13000790 SCREW COLLAR	$0.81 MSRP: ~~2.25~~ (64% off)	2
0003	333051	WATER HOSE FROM VALVE TO RADIATOR	333051 WATER HOSE FROM VALVE TO RADIATOR	$155.63	1
0004	262114	HOSE CLAMP ARRIVING SOON	262114 HOSE CLAMP ARRIVING SOON	$1.20	4
0005	321228	RETURN HOSE TO PUMP	321228 RETURN HOSE TO PUMP	$83.42	1
0006	337213	METAL WATER RECIRCULATION CONNECTOR PIPE	337213 METAL WATER RECIRCULATION CONNECTOR PIPE	$449.27	1
0007	258630	RETURN HOSE FROM RADIATOR	258630 RETURN HOSE FROM RADIATOR	$43.31	1
0008	86574700	SCREW	86574700 SCREW M6 X 16	$0.71	3
0009	270452	WATER HOSE FROM VALVE	270452 WATER HOSE FROM VALVE	$72.19	1
0010	262113	COLLAR	262113 COLLAR	$1.85	2
0011	13000790	SCREW COLLAR	13000790 SCREW COLLAR	$0.81 MSRP: ~~2.25~~ (64% off)	2
0011	272913	COLLAR	272913 COLLAR	$3.81	2
