ENGINE OIL RADIATOR AND TANK

Find Your Part

Ferrari Monza SPA2 Europe - ENGINE OIL RADIATOR AND TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
813291 COMPL. ENGINE OIL TANK $2,618.69 To Order
895881 COMPL. ENGINE OIL TANK $2,531.47 To Order
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $20.65 To Order
Photo Part No Description Price (each) Stock
125521 O-RING $11.20 To Order
Photo Part No Description Price (each) Stock
210914 OIL TANK PICKUP $561.59 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $30.23 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $23.50 To Order
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $90.10 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.36 To Order
Photo Part No Description Price (each) Stock
102948 NUT $0.24 To Order
Photo Part No Description Price (each) Stock
12601274 WASHER $0.58 To Order
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.39 To Order
Photo Part No Description Price (each) Stock
138149 THREADED CONNECTOR $59.35 To Order
Photo Part No Description Price (each) Stock
898271 GASKET $36.89 To Order
898271 GASKET $36.89 To Order
Photo Part No Description Price (each) Stock
180320 COPMLETE TANK PLUG $719.28 To Order
Photo Part No Description Price (each) Stock
290538 THREADED CONNECTOR $72.19 To Order
14326101 THREADED PLUG $1.26 To Order
Photo Part No Description Price (each) Stock
342579 COMPL. OIL DIPSTICK $215.00 To Order
Photo Part No Description Price (each) Stock
333853 OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION $78.82 To Order
333851 OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION $176.49 To Order
Photo Part No Description Price (each) Stock
333854 VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV $433.23 To Order
330592 VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV $516.03 To Order
Photo Part No Description Price (each) Stock
330910 CLIP $2.14 To Order
Photo Part No Description Price (each) Stock
269835 FASTENER BRACKET $33.68 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.65 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.17 To Order
Photo Part No Description Price (each) Stock
10902424 SCREW $0.15 To Order
View All

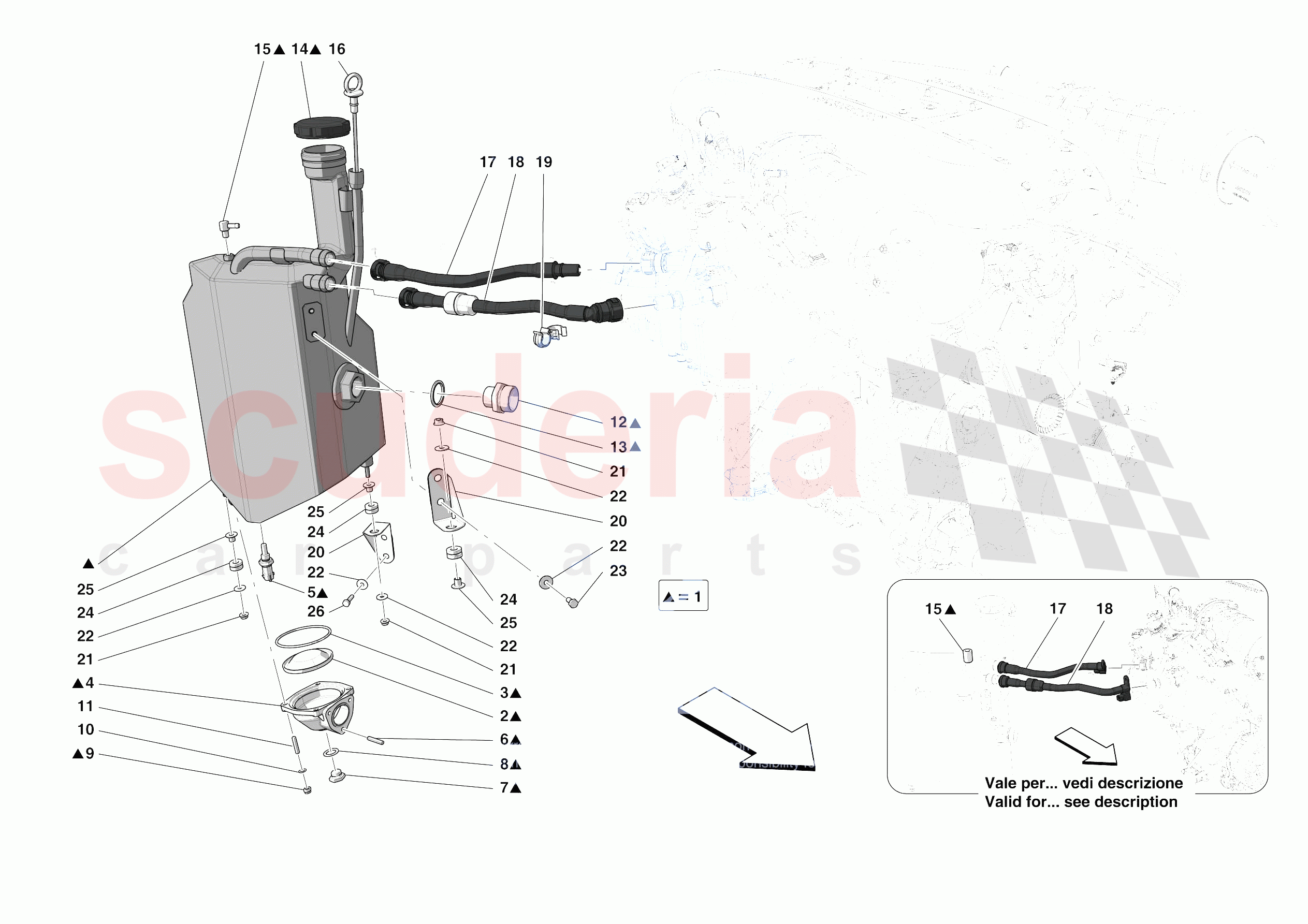

ENGINE OIL RADIATOR AND TANK of Ferrari Ferrari Monza SPA2 Europe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 813291
COMPL. ENGINE OIL TANK
Not for vehicles with USA type approval 		$2,618.69 1
0001 895881
COMPL. ENGINE OIL TANK
Applicable only for vehicles with USA type approval, see circular 2935 - Applicable for USA 		$2,531.47 1
0002 100332
OIL PICKUP FILTER 		$20.65 1
0003 125521
O-RING 		$11.20 1
0004 210914
OIL TANK PICKUP 		$561.59 (47.2% off) 1
0005 180137
TEMPERATURE SENSOR 		$30.23 (8.4% off) 1
0006 13541124
STUD BOLT 		$23.50 3
0007 293107
THREADED PLUG 		$90.10 1
0008 10261460
COPPER WASHER 16 X 24 X 1.5 		$0.36 (64% off) 1
0009 102948
NUT
M6 X 8 		$0.24 (93.7% off) 4
0010 12601274
WASHER
D. 6.40-12 X 0.5 		$0.58 (27.5% off) 4
0011 11500524
STUD BOLT 		$0.39 (61% off) 4
0012 138149
THREADED CONNECTOR 		$59.35 (15.6% off) 1
0013 898271
GASKET
Applicable after depletion of 891997 		$36.89 1
0013 898271
GASKET 		$36.89 1
0014 180320
COPMLETE TANK PLUG 		$719.28 (12.5% off) 1
0015 290538
THREADED CONNECTOR
Not for vehicles with USA type approval 		$72.19 1
0015 14326101
THREADED PLUG
Applicable only for vehicles with USA type approval, see circular 2935 - Applicable for USA 		$1.26 (23.6% off) 1
0016 342579
COMPL. OIL DIPSTICK 		$215.00 1
0017 333853
OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
Not for vehicles with USA type approval 		$78.82 1
0017 333851
OIL VAPOUR PIPE FROM RESERVOIR TO DISCONNECTOR UNION
Applicable only for vehicles with USA type approval, see circular 2935 - Applicable for USA 		$176.49 1
0018 333854
VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
Not for vehicles with USA type approval 		$433.23 1
0018 330592
VAPOUR PIPE FROM DISCONNECTOR UNION TO PCV
Applicable only for vehicles with USA type approval, see circular 2935 - Applicable for USA 		$516.03 1
0019 330910
CLIP 		$2.14 1
0020 269835
FASTENER BRACKET 		$33.68 2
0021 14059290
FLANGED NUT M6
M6 		$1.51 3
0022 12643724
WASHER 		$0.06 (88% off) 7
0023 81591700
SCREW
L. 14 mm 		$2.22 2
0024 812273
CABLE GROMMET 		$1.65 3
0025 149707
SPACER 		$1.17 (33.1% off) 3
0026 10902424
SCREW
M6 X 20 		$0.15 (78.6% off) 2
