Find Your Part

STARTER BATTERY of Ferrari Ferrari LaFerrari Aperta

View All

Ferrari LaFerrari Aperta - STARTER BATTERY

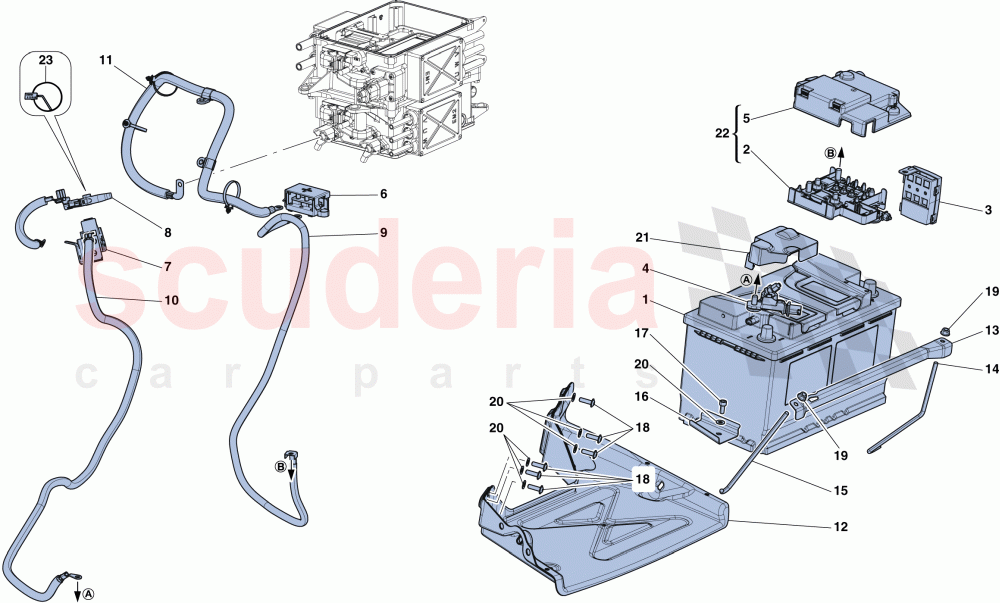

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	880763	12V BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292456	COMPL. BATTERY ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302147	CFO ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308719	BATTERY SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251161	COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170114	TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302277	COMPL. REMOTE NEGATIVE POLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308146	BATTERY MASTER SWITCH AND GROUND CABLE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	299891	BATTERY CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292784	GROUND CABLES FROM SENSOR TO FALSE POLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308145	CABLE FROM INVERTER TO TERMINAL BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85597700	BATTERY CARRIER TRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85598000	UPPER BATTERY RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85597900	REAR BATTERY FASTENER TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85597800	FRONT BATTERY FASTENER TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86204900	LOWER BATTERY RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	307021	BATTERY SENSOR PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292456	COMPL. BATTERY ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785079	ENGINE SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	880763	12V BATTERY	880763 12V BATTERY	-	1	Enquire
2	292456	COMPL. BATTERY ECU	292456 COMPL. BATTERY ECU After depletion, order compl. 292456 ref. 22; Applicable until depletion	-	1	Enquire
3	302147	CFO ECU	302147 CFO ECU	-	1	Enquire
4	308719	BATTERY SENSOR	308719 BATTERY SENSOR	-	1	Enquire
5	251161	COVER	251161 COVER After depletion, order compl. 292456 ref. 22; Applicable until depletion	-	1	Enquire
6	170114	TERMINAL BLOCK	170114 TERMINAL BLOCK	-	1	Enquire
7	302277	COMPL. REMOTE NEGATIVE POLE	302277 COMPL. REMOTE NEGATIVE POLE	-	1	Enquire
8	308146	BATTERY MASTER SWITCH AND GROUND CABLE ASSEMBLY	308146 BATTERY MASTER SWITCH AND GROUND CABLE ASSEMBLY	-	1	Enquire
9	299891	BATTERY CABLE	299891 BATTERY CABLE	-	1	Enquire
10	292784	GROUND CABLES FROM SENSOR TO FALSE POLE	292784 GROUND CABLES FROM SENSOR TO FALSE POLE	-	1	Enquire
11	308145	CABLE FROM INVERTER TO TERMINAL BLOCK	308145 CABLE FROM INVERTER TO TERMINAL BLOCK	-	1	Enquire
12	85597700	BATTERY CARRIER TRAY	85597700 BATTERY CARRIER TRAY	-	1	Enquire
13	85598000	UPPER BATTERY RETAINER BRACKET	85598000 UPPER BATTERY RETAINER BRACKET	-	1	Enquire
14	85597900	REAR BATTERY FASTENER TIE-ROD	85597900 REAR BATTERY FASTENER TIE-ROD	-	1	Enquire
15	85597800	FRONT BATTERY FASTENER TIE-ROD	85597800 FRONT BATTERY FASTENER TIE-ROD	-	1	Enquire
16	86204900	LOWER BATTERY RETAINER BRACKET	86204900 LOWER BATTERY RETAINER BRACKET	-	1	Enquire
17	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER	-	1	Enquire
18	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20	-	6	Enquire
19	14059211	NUT	14059211 NUT	-	2	Enquire
20	13550224	WASHER	13550224 WASHER	-	7	Enquire
21	307021	BATTERY SENSOR PROTECTION	307021 BATTERY SENSOR PROTECTION	-	1	Enquire
22	292456	COMPL. BATTERY ECU	292456 COMPL. BATTERY ECU	-	1	Enquire
23	785079	ENGINE SEAL	785079 ENGINE SEAL	-	1	Enquire
