COOLIN SYSTEM of Ferrari Ferrari LaFerrari

View All

Ferrari LaFerrari - COOLIN SYSTEM

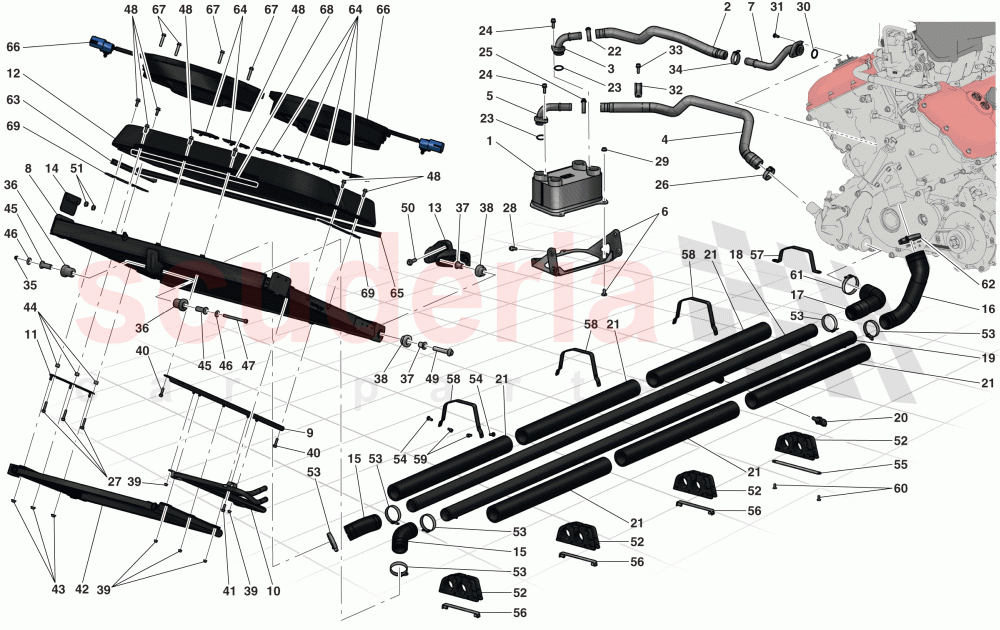

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	286140	OIL-WATER HEAT EXCHANGER	$1,155.29	To Order

Photo	Part No	Description	Price (each)	Stock
	290681	RUBBER PIPE FOR FRONT WATER DELIVERY CONNECTOR HOSE	$657.87	To Order

Photo	Part No	Description	Price (each)	Stock
	286124	WATER HEAT EXCHANGER DELIVERY RIGID PIPE	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	290544	FRONT WATER RETURN RUBBER PIPE	$387.02	To Order

Photo	Part No	Description	Price (each)	Stock
	286147	WATER HEAT EXCHANGER RETURN RIGID PIPE	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	286367	COMPL. BRACKET	$192.54	To Order

Photo	Part No	Description	Price (each)	Stock
	285869	RIGID PIPE FOR FRONT DELIVERY CONNECTOR HOSE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	301840	WATER RADIATOR	$5,612.87	To Order

Photo	Part No	Description	Price (each)	Stock
	303656	COIL MOUNT	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	303019	POWER STEERING FLUID COOLING COIL	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	295491	AC CONDENSER MOUNTING BRACKET	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	303020	ELECTRIC FAN COWL	$6,766.57	To Order

Photo	Part No	Description	Price (each)	Stock
	302115	LOWER RH RADIATOR FORK	$336.95	To Order
	302114	LOWER LH RADIATOR FORK	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	305747	SHIM	$26.44	To Order
	305746	SHIM	$24.47	To Order
	305745	SHIM	$17.62	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	282616	RUBBER HOSE BETWEEN RADIATOR AND UNDERFLOOR PIPE	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	288364	RUBBER WATER DELIVERY PIPE FROM THERMOSTAT	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	291670	WATER RETURN RUBBER PIPE ON PUMP	$387.02	To Order

Photo	Part No	Description	Price (each)	Stock
	310879	UNDERBODY WATER RETURN PIPE	$320.90	To Order
	310879	UNDERBODY WATER RETURN PIPE	$320.90	To Order
	291672	UNDERBODY WATER RETURN PIPE	$387.02	To Order

Photo	Part No	Description	Price (each)	Stock
	310880	UNDERBODY WATER DELIVERY PIPE	$387.02	To Order
	283850	UNDERBODY WATER DELIVERY PIPE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order
	180137	TEMPERATURE SENSOR	$30.23	To Order

Photo	Part No	Description	Price (each)	Stock
	293041	INSULATED PIPE	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	302725	ERGAL SCREW	$7.25	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	250888	GASKET	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	197584	RUBBER BUSHING	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	302296	BUSHING	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	282569	RADIATOR MOUNTING RUBBER BUSH	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	302574	ERGAL SCREW	$5.67	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	262836	CONDENSER	$904.47	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	303655	SPACER	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	282780	RADIATOR FASTENER BUSH	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	14300534	SCREW	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	298510	SCREW	$50.93	To Order

Photo	Part No	Description	Price (each)	Stock
	299688	TITANIUM SCREW	$33.29	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	293067	PILLORY BLOCK FOR UNDERBODY PIPES	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	HOSE CLAMP	$1.20	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	249161	SCREW	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	303491	BRACKET	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	296125	LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	303492	BRACKET	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	296126	UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14301424	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	14440834	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	296781	COLLAR 30-45MM	$9.00	To Order

Photo	Part No	Description	Price (each)	Stock
	262383	COLLAR	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	294872	ELECTRIC FAN COWL SEAL	$46.52	To Order

Photo	Part No	Description	Price (each)	Stock
	303405	FLAP	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	294870	ELECTRIC FAN COWL SEAL	$54.46	To Order

Photo	Part No	Description	Price (each)	Stock
	295420	BRUSHLESS MOTOR FAN	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	302657	ERGAL SCREW	$9.11	To Order

Photo	Part No	Description	Price (each)	Stock
	294866	FRONT FOAM	$5.72	To Order

Photo	Part No	Description	Price (each)	Stock
	302481	LATERAL FOAM	$3.36	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	286140	OIL-WATER HEAT EXCHANGER	286140 OIL-WATER HEAT EXCHANGER	$1,155.29	1
2	290681	RUBBER PIPE FOR FRONT WATER DELIVERY CONNECTOR HOSE	290681 RUBBER PIPE FOR FRONT WATER DELIVERY CONNECTOR HOSE	$657.87	1
3	286124	WATER HEAT EXCHANGER DELIVERY RIGID PIPE	286124 WATER HEAT EXCHANGER DELIVERY RIGID PIPE	$114.66	1
4	290544	FRONT WATER RETURN RUBBER PIPE	290544 FRONT WATER RETURN RUBBER PIPE	$387.02	1
5	286147	WATER HEAT EXCHANGER RETURN RIGID PIPE	286147 WATER HEAT EXCHANGER RETURN RIGID PIPE	$258.00	1
6	286367	COMPL. BRACKET	286367 COMPL. BRACKET	$192.54	1
7	285869	RIGID PIPE FOR FRONT DELIVERY CONNECTOR HOSE	285869 RIGID PIPE FOR FRONT DELIVERY CONNECTOR HOSE	$240.67	1
8	301840	WATER RADIATOR	301840 WATER RADIATOR	$5,612.87	1
9	303656	COIL MOUNT	303656 COIL MOUNT	$401.13	1
10	303019	POWER STEERING FLUID COOLING COIL	303019 POWER STEERING FLUID COOLING COIL	$401.13	1
11	295491	AC CONDENSER MOUNTING BRACKET	295491 AC CONDENSER MOUNTING BRACKET	$54.46	1
12	303020	ELECTRIC FAN COWL	303020 ELECTRIC FAN COWL	$6,766.57	1
13	302115	LOWER RH RADIATOR FORK	302115 LOWER RH RADIATOR FORK	$336.95	1
13	302114	LOWER LH RADIATOR FORK	302114 LOWER LH RADIATOR FORK	$336.95	1
14	305747	SHIM	305747 SHIM Th. 6 mm	$26.44	2
14	305746	SHIM	305746 SHIM Th. 5 mm	$24.47	2
14	305745	SHIM	305745 SHIM Th. 4 mm	$17.62	2
14	305744	SHIM	305744 SHIM Th. 3 mm	$16.65	2
14	305743	SHIM	305743 SHIM Th. 2 mm	$15.66	2
15	282616	RUBBER HOSE BETWEEN RADIATOR AND UNDERFLOOR PIPE	282616 RUBBER HOSE BETWEEN RADIATOR AND UNDERFLOOR PIPE	$288.81	2
16	288364	RUBBER WATER DELIVERY PIPE FROM THERMOSTAT	288364 RUBBER WATER DELIVERY PIPE FROM THERMOSTAT	$516.03	1
17	291670	WATER RETURN RUBBER PIPE ON PUMP	291670 WATER RETURN RUBBER PIPE ON PUMP	$387.02	1
18	310879	UNDERBODY WATER RETURN PIPE	310879 UNDERBODY WATER RETURN PIPE Applicable for USA, CDN, USA LIGHT	$320.90	1
18	310879	UNDERBODY WATER RETURN PIPE	310879 UNDERBODY WATER RETURN PIPE Not for USA, CDN, USA LIGHT; Applicable from Ass. No. 120936	$320.90	1
18	291672	UNDERBODY WATER RETURN PIPE	291672 UNDERBODY WATER RETURN PIPE Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 120935	$387.02	1
19	310880	UNDERBODY WATER DELIVERY PIPE	310880 UNDERBODY WATER DELIVERY PIPE Applicable for USA, CDN, USA LIGHT	$387.02	1
19	283850	UNDERBODY WATER DELIVERY PIPE	283850 UNDERBODY WATER DELIVERY PIPE Not for USA, CDN, USA LIGHT	$240.67	1
20	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Applicable for USA, CDN, USA LIGHT	$30.23 MSRP: ~~32.99~~ (8.4% off)	1
20	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 120935	$30.23 MSRP: ~~32.99~~ (8.4% off)	1
21	293041	INSULATED PIPE	293041 INSULATED PIPE	$19.24	6
22	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
23	122791	O-RING	122791 O-RING	$2.25	2
24	231619	SCREW	231619 SCREW M6 X 18	$0.31	2
25	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
26	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
27	302725	ERGAL SCREW	302725 ERGAL SCREW M5 X 25	$7.25	3
28	231619	SCREW	231619 SCREW M6 X 20	$0.31	4
29	14040614	NUT	14040614 NUT	$0.15	4
30	250888	GASKET	250888 GASKET	$0.75	1
31	231619	SCREW	231619 SCREW M6 X 22	$0.31	2
32	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	1
33	231619	SCREW	231619 SCREW M6 X 20	$0.31	1
34	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
35	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
36	197584	RUBBER BUSHING	197584 RUBBER BUSHING	$2.74	2
37	302296	BUSHING	302296 BUSHING	$20.84	4
38	282569	RADIATOR MOUNTING RUBBER BUSH	282569 RADIATOR MOUNTING RUBBER BUSH	$3.23	4
39	15896470	NUT	15896470 NUT	$7.33	5
40	302574	ERGAL SCREW	302574 ERGAL SCREW M6 X 15	$5.67	2
41	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 15 ARRIVING SOON	$0.36	1
42	262836	CONDENSER ARRIVING SOON	262836 CONDENSER ARRIVING SOON	$904.47 MSRP: ~~1,051.46~~ (14% off)	1
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
44	303655	SPACER	303655 SPACER	$7.33	3
45	282780	RADIATOR FASTENER BUSH	282780 RADIATOR FASTENER BUSH	$24.05	2
46	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
47	14300534	SCREW	14300534 SCREW	$2.74	1
48	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 16 ARRIVING SOON	$0.36	7
49	298510	SCREW	298510 SCREW	$50.93	2
50	299688	TITANIUM SCREW	299688 TITANIUM SCREW M8 X 25	$33.29	6
51	15896470	NUT	15896470 NUT	$7.33	4
52	293067	PILLORY BLOCK FOR UNDERBODY PIPES	293067 PILLORY BLOCK FOR UNDERBODY PIPES	$32.08	4
53	262114	HOSE CLAMP ARRIVING SOON	262114 HOSE CLAMP ARRIVING SOON	$1.20	6
54	249161	SCREW	249161 SCREW M5	$4.18	6
55	303491	BRACKET	303491 BRACKET	$20.84	1
56	296125	LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	296125 LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	$30.47	3
57	303492	BRACKET	303492 BRACKET	$52.94	1
58	296126	UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	296126 UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	$33.68	3
59	14301424	SCREW	14301424 SCREW	$0.42	6
60	14440834	SCREW	14440834 SCREW	$0.28 MSRP: ~~0.45~~ (37.8% off)	2
61	296781	COLLAR 30-45MM	296781 COLLAR 30-45MM	$9.00	1
62	262383	COLLAR	262383 COLLAR	$3.13	1
63	294872	ELECTRIC FAN COWL SEAL	294872 ELECTRIC FAN COWL SEAL	$46.52	2
64	303405	FLAP	303405 FLAP	$1.85	6
65	294870	ELECTRIC FAN COWL SEAL	294870 ELECTRIC FAN COWL SEAL	$54.46	1
66	295420	BRUSHLESS MOTOR FAN	295420 BRUSHLESS MOTOR FAN	$930.65	2
67	302657	ERGAL SCREW	302657 ERGAL SCREW M6 X 30	$9.11	8
68	294866	FRONT FOAM	294866 FRONT FOAM	$5.72	1
69	302481	LATERAL FOAM	302481 LATERAL FOAM	$3.36	2
