DOORS - POWER WINDOW AND REAR VIEW MIRROR of Ferrari Ferrari LaFerrari

View All

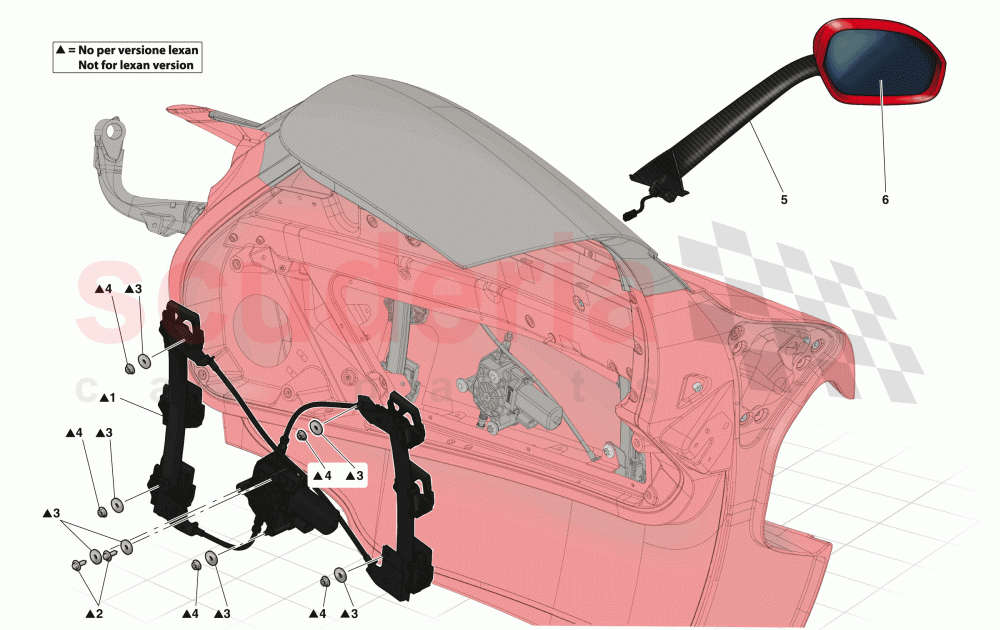

Ferrari LaFerrari - DOORS - POWER WINDOW AND REAR VIEW MIRROR

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85186700	LH WINDOW LIFT	Enquire	To Order
	85186600	RH WINDOW LIFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15699804	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046112	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86740800	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order
	86740500	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order
	86740910	LH EXTERNAL REAR VIEW MIRROR	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	86290400	COMPL. LH REFLECTOR	Enquire	To Order
	86290200	COMPL. LH REFLECTOR	Enquire	To Order
	86290000	COMPL. LH REFLECTOR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	85186700	LH WINDOW LIFT	85186700 LH WINDOW LIFT	-	1	Enquire
1	85186600	RH WINDOW LIFT	85186600 RH WINDOW LIFT	-	1	Enquire
2	15699804	SCREW	15699804 SCREW	-	4	Enquire
3	12648925	WASHER	12648925 WASHER	-	14	Enquire
4	13046112	NUT	13046112 NUT	-	10	Enquire
5	86740800	LH EXTERNAL REAR VIEW MIRROR	86740800 LH EXTERNAL REAR VIEW MIRROR Completely in matte carbon; Reflector ordered separately	-	1	Enquire
5	86740500	LH EXTERNAL REAR VIEW MIRROR	86740500 LH EXTERNAL REAR VIEW MIRROR Completely in gloss carbon; Reflector ordered separately	-	1	Enquire
5	86740910	LH EXTERNAL REAR VIEW MIRROR	86740910 LH EXTERNAL REAR VIEW MIRROR Mount in matte carbon and shell in body colour; Reflector ordered separately	-	1	Enquire
5	86741410	LH EXTERNAL REAR VIEW MIRROR	86741410 LH EXTERNAL REAR VIEW MIRROR Mount in gloss carbon and shell in body colour; Reflector ordered separately	-	1	Enquire
5	86741710	LH EXTERNAL REAR VIEW MIRROR	86741710 LH EXTERNAL REAR VIEW MIRROR Black mount and shell in body colour; Reflector ordered separately	-	1	Enquire
5	86740700	RH EXTERNAL REAR VIEW MIRROR	86740700 RH EXTERNAL REAR VIEW MIRROR Completely in matte carbon; Reflector ordered separately	-	1	Enquire
5	86740600	RH EXTERNAL REAR VIEW MIRROR	86740600 RH EXTERNAL REAR VIEW MIRROR Completely in gloss carbon; Reflector ordered separately	-	1	Enquire
5	86741210	RH EXTERNAL REAR VIEW MIRROR	86741210 RH EXTERNAL REAR VIEW MIRROR Mount in matte carbon and shell in body colour; Reflector ordered separately	-	1	Enquire
5	86741610	RH EXTERNAL REAR VIEW MIRROR	86741610 RH EXTERNAL REAR VIEW MIRROR Mount in gloss carbon and shell in body colour; Reflector ordered separately	-	1	Enquire
5	86741810	RH EXTERNAL REAR VIEW MIRROR	86741810 RH EXTERNAL REAR VIEW MIRROR Black mount and shell in body colour; Reflector ordered separately	-	1	Enquire
6	86290400	COMPL. LH REFLECTOR	86290400 COMPL. LH REFLECTOR Applicable for GOLFO	-	1	Enquire
6	86290200	COMPL. LH REFLECTOR	86290200 COMPL. LH REFLECTOR Applicable for USA, CDN, USA LIGHT	-	1	Enquire
6	86290000	COMPL. LH REFLECTOR	86290000 COMPL. LH REFLECTOR Not for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
6	86290500	COMPL. RH REFLECTOR	86290500 COMPL. RH REFLECTOR Applicable for GOLFO	-	1	Enquire
6	86290300	COMPL. RH REFLECTOR	86290300 COMPL. RH REFLECTOR Applicable for USA, CDN, USA LIGHT	-	1	Enquire
6	86290100	Complete RH Reflector	86290100 Complete RH Reflector Not for USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
