Name: ENGINE COMPARTMENT LID AND RELEASE MECHANISM
Rating: 5.0 (1 reviews)

ENGINE COMPARTMENT LID AND RELEASE MECHANISM of Ferrari Ferrari LaFerrari

View All

Ferrari LaFerrari - ENGINE COMPARTMENT LID AND RELEASE MECHANISM

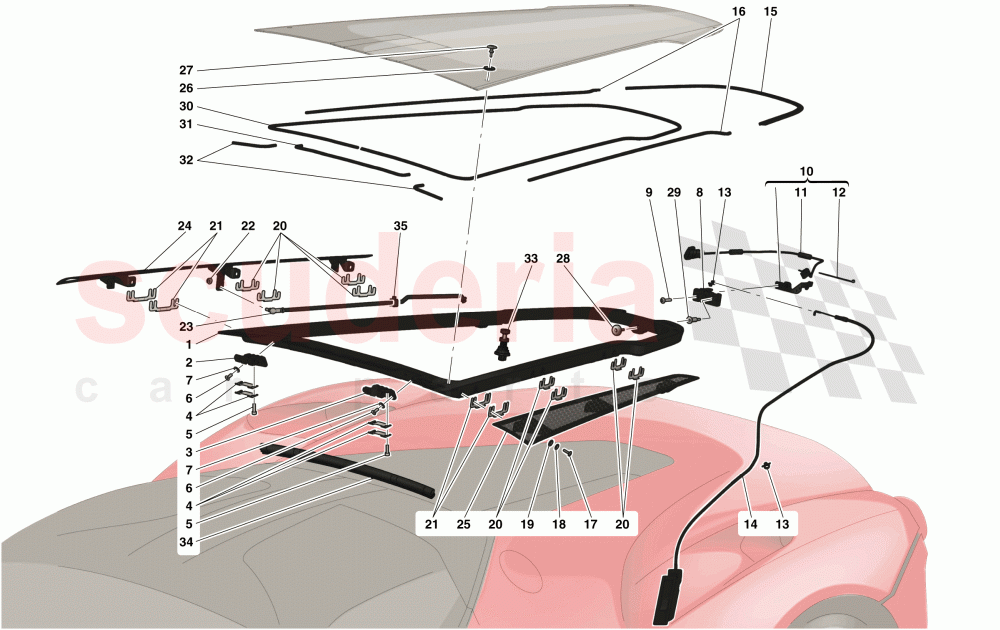

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85742300	REAR LID SUBSTRUCTURE	$12,908.98	To Order

Photo	Part No	Description	Price (each)	Stock
	85740700	RH HINGE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	85740600	LH HINGE	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	85478600	SHIM	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	86061200	SCREW	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	85164600	SCREW	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	12644425	WASHER	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	65925000	SCREW	$1.65	To Order
	85800500	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86067300	COMPLETE LOCK CONTROL BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	85876900	ENGINE COMPARTMENT LID SWITCH	$176.49	To Order

Photo	Part No	Description	Price (each)	Stock
	MC43254	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	$2.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85502100	BOWDEN CABLE FOR OPENING LEXAN WINDOW	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	85995700	LOWER EXTERNAL SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86264800	LATERAL EXTERNAL SEAL	$2.66	To Order

Photo	Part No	Description	Price (each)	Stock
	14304287	SCREW	$0.36	IN STOCK
	85833900	SCREW	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	$0.23	IN STOCK
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85993500	SHIM	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	85993600	SHIM	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85742500	LID SUPPORT ROD	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	85992200	REMOVABLE RH GRILLE	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	85992800	REMOVABLE LH GRILLE	$641.82	To Order

Photo	Part No	Description	Price (each)	Stock
	84879800	GASKET	$4.94	To Order

Photo	Part No	Description	Price (each)	Stock
	67509600	SCREW	$33.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	85755100	STRIKER FASTENER SCREW	$18.82	To Order

Photo	Part No	Description	Price (each)	Stock
	85755000	STRIKER	$41.70	To Order

Photo	Part No	Description	Price (each)	Stock
	86263300	GASKET	$254.63	To Order

Photo	Part No	Description	Price (each)	Stock
	86264700	UPPER INTERNAL SEAL	$3.57	To Order

Photo	Part No	Description	Price (each)	Stock
	85789500	UPPER EXTERNAL SEAL	$3.57	To Order

Photo	Part No	Description	Price (each)	Stock
	856582	BLOCK	$81.82	To Order

Photo	Part No	Description	Price (each)	Stock
	86114400	CHANNEL GASKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	14501087	CLIP	$0.57	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	85742300	REAR LID SUBSTRUCTURE	85742300 REAR LID SUBSTRUCTURE	$12,908.98	1
2	85740700	RH HINGE	85740700 RH HINGE	$336.95	1
3	85740600	LH HINGE	85740600 LH HINGE	$336.95	1
4	85478600	SHIM	85478600 SHIM	$20.29	4
5	86061200	SCREW	86061200 SCREW	$0.60	4
6	85164600	SCREW	85164600 SCREW	$0.91	4
7	12644425	WASHER	12644425 WASHER	$0.28	4
9	65925000	SCREW	65925000 SCREW	$1.65	2
9	85800500	SCREW	85800500 SCREW No longer supplied; Replaced by 65925000	-	2	Enquire
10	86067300	COMPLETE LOCK CONTROL BRACKET	86067300 COMPLETE LOCK CONTROL BRACKET	$208.58	1
11	85876900	ENGINE COMPARTMENT LID SWITCH	85876900 ENGINE COMPARTMENT LID SWITCH	$176.49	1
12	MC43254	CLAMP	MC43254 CLAMP	-	1	Enquire
13	248061	CLIP IN STOCK	248061 CLIP IN STOCK	$2.14	5
14	85502100	BOWDEN CABLE FOR OPENING LEXAN WINDOW	85502100 BOWDEN CABLE FOR OPENING LEXAN WINDOW	$240.67	1
15	85995700	LOWER EXTERNAL SEAL	85995700 LOWER EXTERNAL SEAL No longer supplied	-	1	Enquire
16	86264800	LATERAL EXTERNAL SEAL	86264800 LATERAL EXTERNAL SEAL	$2.66	2
17	14304287	SCREW IN STOCK	14304287 SCREW M5 X 16 IN STOCK	$0.36	12
17	85833900	SCREW IN STOCK	85833900 SCREW M5 X 18; No longer supplied; Replaced by 14304287 IN STOCK	$0.36	12
19	62769800	WASHER IN STOCK	62769800 WASHER IN STOCK	$0.23 MSRP: ~~0.30~~ (23.3% off)	12
19	860172	WASHER	860172 WASHER No longer supplied; Replaced by 12638178	-	12	Enquire
20	85993500	SHIM	85993500 SHIM Spacing 50 mm	$32.08	8
21	85993600	SHIM	85993600 SHIM Spacing 70 mm	$32.08	4
22	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.43	1
23	85742500	LID SUPPORT ROD	85742500 LID SUPPORT ROD	$401.13	1
24	85992200	REMOVABLE RH GRILLE	85992200 REMOVABLE RH GRILLE	$641.82	1
25	85992800	REMOVABLE LH GRILLE	85992800 REMOVABLE LH GRILLE	$641.82	1
26	84879800	GASKET	84879800 GASKET	$4.94	4
27	67509600	SCREW IN STOCK	67509600 SCREW IN STOCK	$33.68 MSRP: ~~39.44~~ (14.6% off)	4
28	85755100	STRIKER FASTENER SCREW	85755100 STRIKER FASTENER SCREW	$18.82	1
29	85755000	STRIKER	85755000 STRIKER	$41.70	1
30	86263300	GASKET	86263300 GASKET	$254.63	1
31	86264700	UPPER INTERNAL SEAL	86264700 UPPER INTERNAL SEAL	$3.57	1
32	85789500	UPPER EXTERNAL SEAL	85789500 UPPER EXTERNAL SEAL	$3.57	2
33	856582	BLOCK	856582 BLOCK	$81.82	2
34	86114400	CHANNEL GASKET	86114400 CHANNEL GASKET	$208.58	1
35	14501087	CLIP IN STOCK	14501087 CLIP IN STOCK	$0.57	1

Engine Compartment Lid And Release Mechanism

Ferrari LaFerrari

Ferrari LaFerrari - ENGINE COMPARTMENT LID AND RELEASE MECHANISM
