STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

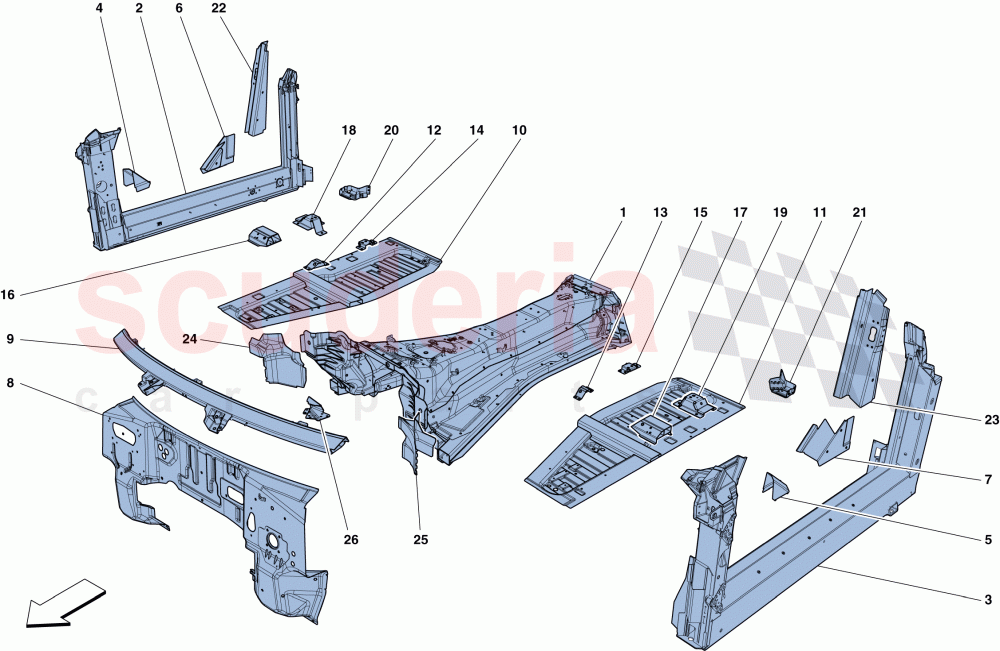

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	323650	COMPL. TUNNEL	$23,830.47	To Order
	328903	COMPL. TUNNEL	$23,830.47	To Order

Photo	Part No	Description	Price (each)	Stock
	338433	RH SILL BEAM PILLAR SECTION	$10,296.55	To Order
	338446	RH SILL BEAM PILLAR SECTION	$10,296.55	To Order

Photo	Part No	Description	Price (each)	Stock
	316953	LH SILL BEAM PILLAR SECTION	$9,792.04	To Order

Photo	Part No	Description	Price (each)	Stock
	265590	INTERNAL RH FRONT TRUSS	$13.63	To Order

Photo	Part No	Description	Price (each)	Stock
	265591	INTERNAL LH FRONT TRUSS	$13.63	To Order

Photo	Part No	Description	Price (each)	Stock
	265597	EXTERNAL RH PILLAR TRUSS	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	265598	EXTERNAL LH PILLAR TRUSS	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	272427	FRONT FIREWALL	$1,806.29	To Order
	265560	FRONT FIREWALL	$1,806.29	To Order

Photo	Part No	Description	Price (each)	Stock
	276976	WINDSCREEN VALENCE PANEL	$4,197.18	To Order
	265549	WINDSCREEN VALENCE PANEL	$2,499.67	To Order

Photo	Part No	Description	Price (each)	Stock
	266042	RH SEMI-FLOOR	$510.60	To Order

Photo	Part No	Description	Price (each)	Stock
	266043	LH SEMI-FLOOR	$510.60	To Order

Photo	Part No	Description	Price (each)	Stock
	257928	INNER FRONT BRACKET, RH SEAT	$35.28	To Order

Photo	Part No	Description	Price (each)	Stock
	257930	INNER FRONT BRACKET, LH SEAT	$67.38	To Order

Photo	Part No	Description	Price (each)	Stock
	259981	INNER REAR BRACKET, RH SEAT	$27.89	To Order

Photo	Part No	Description	Price (each)	Stock
	259980	INNER REAR BRACKET, LH SEAT	$94.66	To Order

Photo	Part No	Description	Price (each)	Stock
	265601	OUTER RH FRONT SEAT BRACKET	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	265602	OUTER LH FRONT SEAT BRACKET	$72.19	To Order

Photo	Part No	Description	Price (each)	Stock
	271343	OUTER RH REAR SEAT BRACKET	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	271342	OUTER LH REAR SEAT BRACKET	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	270166	RH BRACE	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	270165	LH BRACE	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	265595	INTERNAL RH PILLAR TRUSS	$456.84	To Order

Photo	Part No	Description	Price (each)	Stock
	265596	INTERNAL LH PILLAR TRUSS	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	327690	RH FIREWALL TUNNEL REINFORCEMENT	$179.89	To Order

Photo	Part No	Description	Price (each)	Stock
	327689	LH FIREWALL TUNNEL REINFORCEMENT	$179.89	To Order

Photo	Part No	Description	Price (each)	Stock
	327636	RH REINFORCEMENT BRACKET	$86.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	323650	COMPL. TUNNEL	323650 COMPL. TUNNEL Not for GD	$23,830.47	1
1	328903	COMPL. TUNNEL	328903 COMPL. TUNNEL Applicable for GD	$23,830.47	1
2	338433	RH SILL BEAM PILLAR SECTION	338433 RH SILL BEAM PILLAR SECTION Not for GD	$10,296.55	1
2	338446	RH SILL BEAM PILLAR SECTION	338446 RH SILL BEAM PILLAR SECTION Applicable for GD	$10,296.55	1
3	316953	LH SILL BEAM PILLAR SECTION	316953 LH SILL BEAM PILLAR SECTION	$9,792.04	1
4	265590	INTERNAL RH FRONT TRUSS	265590 INTERNAL RH FRONT TRUSS	$13.63	1
5	265591	INTERNAL LH FRONT TRUSS	265591 INTERNAL LH FRONT TRUSS	$13.63	1
6	265597	EXTERNAL RH PILLAR TRUSS	265597 EXTERNAL RH PILLAR TRUSS	$133.17	1
7	265598	EXTERNAL LH PILLAR TRUSS	265598 EXTERNAL LH PILLAR TRUSS	$62.56	1
8	272427	FRONT FIREWALL	272427 FRONT FIREWALL ; Applicable for GD	$1,806.29	1
8	265560	FRONT FIREWALL	265560 FRONT FIREWALL ; Not for GD	$1,806.29	1
9	276976	WINDSCREEN VALENCE PANEL	276976 WINDSCREEN VALENCE PANEL ; Applicable for GD	$4,197.18	1
9	265549	WINDSCREEN VALENCE PANEL	265549 WINDSCREEN VALENCE PANEL ; Not for GD	$2,499.67	1
10	266042	RH SEMI-FLOOR	266042 RH SEMI-FLOOR	$510.60	1
11	266043	LH SEMI-FLOOR	266043 LH SEMI-FLOOR	$510.60	1
12	257928	INNER FRONT BRACKET, RH SEAT	257928 INNER FRONT BRACKET, RH SEAT	$35.28	1
13	257930	INNER FRONT BRACKET, LH SEAT	257930 INNER FRONT BRACKET, LH SEAT	$67.38	1
14	259981	INNER REAR BRACKET, RH SEAT	259981 INNER REAR BRACKET, RH SEAT	$27.89	1
15	259980	INNER REAR BRACKET, LH SEAT	259980 INNER REAR BRACKET, LH SEAT	$94.66	1
16	265601	OUTER RH FRONT SEAT BRACKET	265601 OUTER RH FRONT SEAT BRACKET	$72.19	1
17	265602	OUTER LH FRONT SEAT BRACKET	265602 OUTER LH FRONT SEAT BRACKET	$72.19	1
18	271343	OUTER RH REAR SEAT BRACKET	271343 OUTER RH REAR SEAT BRACKET	$401.13	1
19	271342	OUTER LH REAR SEAT BRACKET	271342 OUTER LH REAR SEAT BRACKET	$401.13	1
20	270166	RH BRACE	270166 RH BRACE	$133.17	1
21	270165	LH BRACE	270165 LH BRACE	$56.14	1
22	265595	INTERNAL RH PILLAR TRUSS	265595 INTERNAL RH PILLAR TRUSS	$456.84	1
23	265596	INTERNAL LH PILLAR TRUSS	265596 INTERNAL LH PILLAR TRUSS	$545.55	1
24	327690	RH FIREWALL TUNNEL REINFORCEMENT	327690 RH FIREWALL TUNNEL REINFORCEMENT	$179.89	1
25	327689	LH FIREWALL TUNNEL REINFORCEMENT	327689 LH FIREWALL TUNNEL REINFORCEMENT	$179.89	1
26	327636	RH REINFORCEMENT BRACKET	327636 RH REINFORCEMENT BRACKET	$86.63	1

Structures And Elements, Centre Of Vehicle

Ferrari GTC4Lusso T

Ferrari GTC4Lusso T - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE
