CHASSIS COMPLETION of Ferrari Ferrari GTC4Lusso T

View All

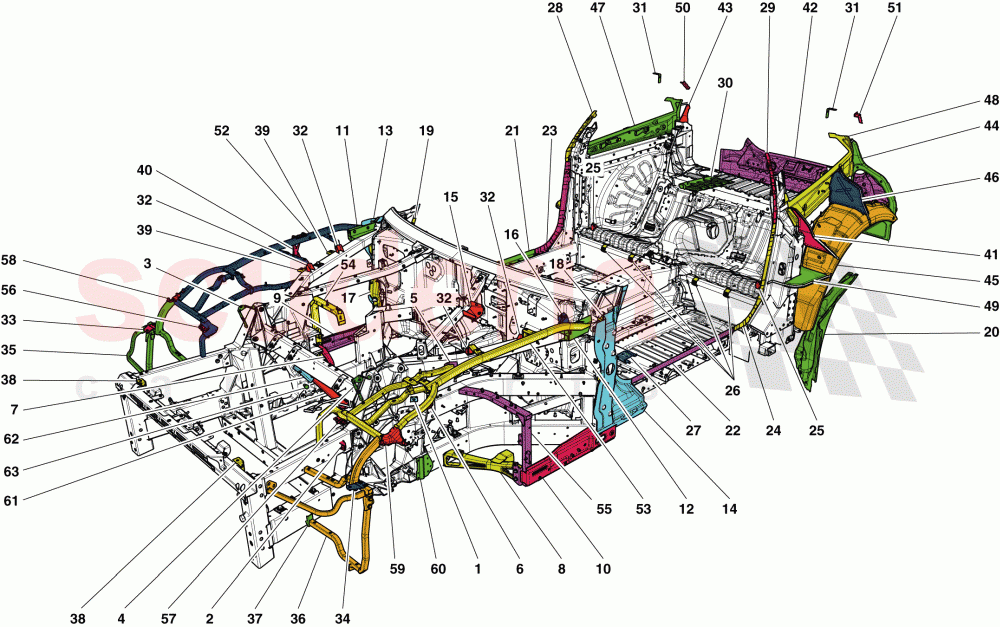

Ferrari GTC4Lusso T - CHASSIS COMPLETION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	272826	ACCELEROMETER MOUNTING BRACKET	$12.50	To Order

Photo	Part No	Description	Price (each)	Stock
	271344	COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	$11.70	To Order

Photo	Part No	Description	Price (each)	Stock
	272931	RH LATERAL ENGINE SHIELD FASTENER BRACKET	$17.39	To Order

Photo	Part No	Description	Price (each)	Stock
	272930	LH LATERAL ENGINE SHIELD FASTENER BRACKET	$17.39	To Order

Photo	Part No	Description	Price (each)	Stock
	83557200	MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	$80.21	To Order
	83557100	MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	$80.21	To Order

Photo	Part No	Description	Price (each)	Stock
	271346	COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.75	To Order
	271348	COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.75	To Order

Photo	Part No	Description	Price (each)	Stock
	83783200	COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	$76.60	To Order

Photo	Part No	Description	Price (each)	Stock
	83783400	LH REAR TRELLIS CROSS-MEMBER	$82.03	To Order

Photo	Part No	Description	Price (each)	Stock
	83033900	LOWER FASTENER BEAM FOR RH FENDER	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	83034000	LOWER FASTENER BEAM FOR LH FENDER	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	83440700	RH BRACE	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	83440800	LH BRACE	$133.17	To Order

Photo	Part No	Description	Price (each)	Stock
	86904600	EXTERNAL RH A-PILLAR TRUSS	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	86904500	EXTERNAL LH A-PILLAR TRUSS	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	84563600	CENTRAL WINDSCREEN WIPER FASTENER BRACKET	$33.68	To Order
	277953	CENTRAL WINDSCREEN WIPER FASTENER BRACKET	$18.83	To Order

Photo	Part No	Description	Price (each)	Stock
	277951	RH WINDSCREEN WIPER FASTENER BRACKET	$40.10	To Order
	269274	LH WINDSCREEN WIPER FASTENER BRACKET	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	268478	RH PILLAR MOUNTING LIP	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	268477	LH PILLAR MOUNTING LIP	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	81656800	PROFILE LINKING RH PILLAR WITH FLANK	$609.73	To Order
	81656700	PROFILE LINKING LH PILLAR WITH FLANK	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	321684	LH REAR SOUNDPROOFING PANEL	$695.54	To Order
	321686	RH REAR SOUNDPROOFING PANEL	$695.54	To Order

Photo	Part No	Description	Price (each)	Stock
	83251800	LOWER RH PROFILE	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	83251900	LOWER LH PROFILE	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	81668200	PROFILE LINKING RH PILLAR WITH FLANK	$110.33	To Order

Photo	Part No	Description	Price (each)	Stock
	81668100	PROFILE LINKING LH PILLAR WITH FLANK	$110.33	To Order

Photo	Part No	Description	Price (each)	Stock
	261658	REAR SEAT CUSHION BRACKET	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	272141	FASTENER BRACKET FOR LOWER REAR SEAT SUBSTRUCTURE	$12.66	To Order

Photo	Part No	Description	Price (each)	Stock
	253872	BRACKET	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	87460000	RH CONNECTION	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	87459900	LH CONNECTION	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	82677500	RH SPARE WHEEL TUB FILLER PANEL	$946.70	To Order
	86746600	LH SPARE WHEEL TUB FILLER PANEL	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	319131	UPPER REAR FLANK FASTENER BRACKET	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	88268400	INTERNAL FRONT CONNECTOR ELEMENT	$11.54	To Order

Photo	Part No	Description	Price (each)	Stock
	88092900	OUTER RH HEADLIGHT FASTENER BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	88092800	OUTER LH HEADLIGHT FASTENER BRACKET	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	88094300	FRONT TRELLIS FOR RH HEADLIGHT	$793.45	To Order

Photo	Part No	Description	Price (each)	Stock
	88094200	FRONT TRELLIS FOR LH HEADLIGHT	$793.45	To Order

Photo	Part No	Description	Price (each)	Stock
	88446300	LOWER FRONT CORNER TUBE CONNECTION	$17.39	To Order

Photo	Part No	Description	Price (each)	Stock
	87713000	FRONT HEADLIGHT FASTENER BRACKET	$60.96	To Order

Photo	Part No	Description	Price (each)	Stock
	87641800	BRACKET FASTENING HEADER TANK TO CHASSIS	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	87642100	HEADER TANK FASTENER BRACKET	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	86643600	RH CENTRE LATERAL PARTITION ON RH REAR WHEELHOUSE	$102.68	To Order
	86643700	RH CENTRE LATERAL PARTITION ON LH REAR WHEELHOUSE	$98.45	To Order

Photo	Part No	Description	Price (each)	Stock
	88065200	COMPL. BACK PANEL	$676.28	To Order
	88065700	COMPL. BACK PANEL	$719.51	To Order

Photo	Part No	Description	Price (each)	Stock
	86639300	CONNECTOR FOR JOINT BETWEEN C-PILLAR AND RH SUBSTRUCTURE	$163.20	To Order

Photo	Part No	Description	Price (each)	Stock
	86641300	CONNECTOR FOR JOINT BETWEEN C-PILLAR AND LH SUBSTRUCTURE	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	86641500	RH REAR WHEELHOUSE	$449.61	To Order
	86641700	LH REAR WHEELHOUSE	$365.41	To Order

Photo	Part No	Description	Price (each)	Stock
	86643300	LH EXTERNAL LATERAL SHIELD	$102.68	To Order
	86643000	RH EXTERNAL LATERAL SHIELD	$102.68	To Order

Photo	Part No	Description	Price (each)	Stock
	87357800	RH LATERAL SUBSTRUCTURE	$261.44	To Order

Photo	Part No	Description	Price (each)	Stock
	86643900	LH LATERAL SUBSTRUCTURE	$261.44	To Order

Photo	Part No	Description	Price (each)	Stock
	86643500	RH FRONT LATERAL PARTITION ON LH REAR WHEELHOUSE	$59.35	To Order
	86643400	RH FRONT LATERAL PARTITION ON RH REAR WHEELHOUSE	$59.35	To Order

Photo	Part No	Description	Price (each)	Stock
	88283300	RH WHEELHOUSE REAR LINER	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	88283200	LH WHEELHOUSE REAR LINER	$336.95	To Order

Photo	Part No	Description	Price (each)	Stock
	88093700	FRONT RH FENDER TRELLIS	$623.57	To Order

Photo	Part No	Description	Price (each)	Stock
	88093600	FRONT LH FENDER TRELLIS	$623.57	To Order

Photo	Part No	Description	Price (each)	Stock
	88702800	RH TRELLIS PILLAR	$240.85	To Order
	88703000	RH TRELLIS PILLAR	$263.82	To Order

Photo	Part No	Description	Price (each)	Stock
	88702900	LH TRELLIS PILLAR	$227.85	To Order
	88702400	LH TRELLIS PILLAR	$240.85	To Order

Photo	Part No	Description	Price (each)	Stock
	88093300	INNER FASTENER BRACKET FOR RH HEADLAMP	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	88093200	INNER FASTENER BRACKET FOR LH HEADLAMP	$208.58	To Order

Photo	Part No	Description	Price (each)	Stock
	86930900	FENDER MOUNTING BRACKET ON RH FRONT TRELLIS	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	86909900	FENDER MOUNTING BRACKET ON LH FRONT TRELLIS	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	327633	LH LOWER DIAGONAL BRACE REINFORCEMENT BRACKET	$54.54	To Order
	327634	RH LOWER DIAGONAL BRACE REINFORCEMENT BRACKET	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	331106	RH K-BRACE	$147.61	To Order
	331102	LH K-BRACE	$147.61	To Order

Photo	Part No	Description	Price (each)	Stock
	331157	RH K-BRACE MOUNTING BRACKET	$120.33	To Order
	331109	LH K-BRACE MOUNTING BRACKET	$120.33	To Order

Photo	Part No	Description	Price (each)	Stock
	16044124	SCREW	$0.50	To Order
	14306924	SCREW	$0.70	IN STOCK
	16044424	SCREW	$1.88	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	272826	ACCELEROMETER MOUNTING BRACKET	272826 ACCELEROMETER MOUNTING BRACKET	$12.50	2
2	271344	COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	271344 COMPL. FRONT WHEEL BAY SHIELD FASTENER BRACKET	$11.70	4
3	272931	RH LATERAL ENGINE SHIELD FASTENER BRACKET	272931 RH LATERAL ENGINE SHIELD FASTENER BRACKET	$17.39	1
4	272930	LH LATERAL ENGINE SHIELD FASTENER BRACKET	272930 LH LATERAL ENGINE SHIELD FASTENER BRACKET	$17.39	1
5	83557200	MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	83557200 MOUNTING FOR INTERNAL LH FRONT FENDER TUBE	$80.21	1
5	83557100	MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	83557100 MOUNTING FOR INTERNAL RH FRONT FENDER TUBE	$80.21	1
6	271346	COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	271346 COMPL. LH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.75	1
6	271348	COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	271348 COMPL. RH REAR WHEEL BAY SHIELD MOUNTING BRACKET	$14.75	1
7	83783200	COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	83783200 COMPL. REAR TRELLIS CROSS BEAM FOR RH FRONT FENDER	$76.60	1
8	83783400	LH REAR TRELLIS CROSS-MEMBER	83783400 LH REAR TRELLIS CROSS-MEMBER	$82.03	1
9	83033900	LOWER FASTENER BEAM FOR RH FENDER	83033900 LOWER FASTENER BEAM FOR RH FENDER	$224.63	1
10	83034000	LOWER FASTENER BEAM FOR LH FENDER	83034000 LOWER FASTENER BEAM FOR LH FENDER	$208.58	1
11	83440700	RH BRACE	83440700 RH BRACE	$133.17	1
12	83440800	LH BRACE	83440800 LH BRACE	$133.17	1
13	86904600	EXTERNAL RH A-PILLAR TRUSS	86904600 EXTERNAL RH A-PILLAR TRUSS	$208.58	1
14	86904500	EXTERNAL LH A-PILLAR TRUSS	86904500 EXTERNAL LH A-PILLAR TRUSS	$208.58	1
15	84563600	CENTRAL WINDSCREEN WIPER FASTENER BRACKET	84563600 CENTRAL WINDSCREEN WIPER FASTENER BRACKET Not for GD	$33.68	1
15	277953	CENTRAL WINDSCREEN WIPER FASTENER BRACKET	277953 CENTRAL WINDSCREEN WIPER FASTENER BRACKET Applicable for GD	$18.83	1
16	277951	RH WINDSCREEN WIPER FASTENER BRACKET	277951 RH WINDSCREEN WIPER FASTENER BRACKET Applicable for GD	$40.10	1
16	269274	LH WINDSCREEN WIPER FASTENER BRACKET	269274 LH WINDSCREEN WIPER FASTENER BRACKET Not for GD	$36.89	1
17	268478	RH PILLAR MOUNTING LIP	268478 RH PILLAR MOUNTING LIP	$91.45	1
18	268477	LH PILLAR MOUNTING LIP	268477 LH PILLAR MOUNTING LIP	$91.45	1
19	81656800	PROFILE LINKING RH PILLAR WITH FLANK	81656800 PROFILE LINKING RH PILLAR WITH FLANK	$609.73	1
19	81656700	PROFILE LINKING LH PILLAR WITH FLANK	81656700 PROFILE LINKING LH PILLAR WITH FLANK	$609.73	1
20	321684	LH REAR SOUNDPROOFING PANEL	321684 LH REAR SOUNDPROOFING PANEL	$695.54	1
20	321686	RH REAR SOUNDPROOFING PANEL	321686 RH REAR SOUNDPROOFING PANEL	$695.54	1
21	83251800	LOWER RH PROFILE	83251800 LOWER RH PROFILE	$54.54	1
22	83251900	LOWER LH PROFILE	83251900 LOWER LH PROFILE	$54.54	1
23	81668200	PROFILE LINKING RH PILLAR WITH FLANK	81668200 PROFILE LINKING RH PILLAR WITH FLANK	$110.33	1
24	81668100	PROFILE LINKING LH PILLAR WITH FLANK	81668100 PROFILE LINKING LH PILLAR WITH FLANK	$110.33	1
25	261658	REAR SEAT CUSHION BRACKET	261658 REAR SEAT CUSHION BRACKET	$30.47	2
26	272141	FASTENER BRACKET FOR LOWER REAR SEAT SUBSTRUCTURE	272141 FASTENER BRACKET FOR LOWER REAR SEAT SUBSTRUCTURE	$12.66	4
27	253872	BRACKET	253872 BRACKET	$32.08	1
28	87460000	RH CONNECTION	87460000 RH CONNECTION	$65.77	1
29	87459900	LH CONNECTION	87459900 LH CONNECTION	$65.77	1
30	82677500	RH SPARE WHEEL TUB FILLER PANEL	82677500 RH SPARE WHEEL TUB FILLER PANEL	$946.70	1
30	86746600	LH SPARE WHEEL TUB FILLER PANEL	86746600 LH SPARE WHEEL TUB FILLER PANEL	$240.67	1
31	319131	UPPER REAR FLANK FASTENER BRACKET	319131 UPPER REAR FLANK FASTENER BRACKET	$19.24	2
32	88268400	INTERNAL FRONT CONNECTOR ELEMENT	88268400 INTERNAL FRONT CONNECTOR ELEMENT	$11.54	6
33	88092900	OUTER RH HEADLIGHT FASTENER BRACKET	88092900 OUTER RH HEADLIGHT FASTENER BRACKET	$208.58	1
34	88092800	OUTER LH HEADLIGHT FASTENER BRACKET	88092800 OUTER LH HEADLIGHT FASTENER BRACKET	$208.58	1
35	88094300	FRONT TRELLIS FOR RH HEADLIGHT	88094300 FRONT TRELLIS FOR RH HEADLIGHT	$793.45	1
36	88094200	FRONT TRELLIS FOR LH HEADLIGHT	88094200 FRONT TRELLIS FOR LH HEADLIGHT	$793.45	1
37	88446300	LOWER FRONT CORNER TUBE CONNECTION	88446300 LOWER FRONT CORNER TUBE CONNECTION	$17.39	6
38	87713000	FRONT HEADLIGHT FASTENER BRACKET	87713000 FRONT HEADLIGHT FASTENER BRACKET	$60.96	2
39	87641800	BRACKET FASTENING HEADER TANK TO CHASSIS	87641800 BRACKET FASTENING HEADER TANK TO CHASSIS	$25.66	2
40	87642100	HEADER TANK FASTENER BRACKET	87642100 HEADER TANK FASTENER BRACKET	$336.95	1
41	86643600	RH CENTRE LATERAL PARTITION ON RH REAR WHEELHOUSE	86643600 RH CENTRE LATERAL PARTITION ON RH REAR WHEELHOUSE	$102.68	1
41	86643700	RH CENTRE LATERAL PARTITION ON LH REAR WHEELHOUSE	86643700 RH CENTRE LATERAL PARTITION ON LH REAR WHEELHOUSE	$98.45	1
42	88065200	COMPL. BACK PANEL	88065200 COMPL. BACK PANEL Not for CINA, USA, CDN, GOLFO, USA LIGHT	$676.28	1
42	88065700	COMPL. BACK PANEL	88065700 COMPL. BACK PANEL Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	$719.51	1
43	86639300	CONNECTOR FOR JOINT BETWEEN C-PILLAR AND RH SUBSTRUCTURE	86639300 CONNECTOR FOR JOINT BETWEEN C-PILLAR AND RH SUBSTRUCTURE	$163.20	1
44	86641300	CONNECTOR FOR JOINT BETWEEN C-PILLAR AND LH SUBSTRUCTURE	86641300 CONNECTOR FOR JOINT BETWEEN C-PILLAR AND LH SUBSTRUCTURE	$224.63	1
45	86641500	RH REAR WHEELHOUSE	86641500 RH REAR WHEELHOUSE	$449.61	1
45	86641700	LH REAR WHEELHOUSE	86641700 LH REAR WHEELHOUSE	$365.41	1
46	86643300	LH EXTERNAL LATERAL SHIELD	86643300 LH EXTERNAL LATERAL SHIELD	$102.68	1
46	86643000	RH EXTERNAL LATERAL SHIELD	86643000 RH EXTERNAL LATERAL SHIELD	$102.68	1
47	87357800	RH LATERAL SUBSTRUCTURE	87357800 RH LATERAL SUBSTRUCTURE	$261.44	1
48	86643900	LH LATERAL SUBSTRUCTURE	86643900 LH LATERAL SUBSTRUCTURE	$261.44	1
49	86643500	RH FRONT LATERAL PARTITION ON LH REAR WHEELHOUSE	86643500 RH FRONT LATERAL PARTITION ON LH REAR WHEELHOUSE	$59.35	1
49	86643400	RH FRONT LATERAL PARTITION ON RH REAR WHEELHOUSE	86643400 RH FRONT LATERAL PARTITION ON RH REAR WHEELHOUSE	$59.35	1
50	88283300	RH WHEELHOUSE REAR LINER	88283300 RH WHEELHOUSE REAR LINER	$336.95	1
51	88283200	LH WHEELHOUSE REAR LINER	88283200 LH WHEELHOUSE REAR LINER	$336.95	1
52	88093700	FRONT RH FENDER TRELLIS	88093700 FRONT RH FENDER TRELLIS	$623.57	1
53	88093600	FRONT LH FENDER TRELLIS	88093600 FRONT LH FENDER TRELLIS	$623.57	1
54	88702800	RH TRELLIS PILLAR	88702800 RH TRELLIS PILLAR Not for GD	$240.85	1
54	88703000	RH TRELLIS PILLAR	88703000 RH TRELLIS PILLAR Applicable for GD	$263.82	1
55	88702900	LH TRELLIS PILLAR	88702900 LH TRELLIS PILLAR Applicable for GD	$227.85	1
55	88702400	LH TRELLIS PILLAR	88702400 LH TRELLIS PILLAR Not for GD	$240.85	1
56	88093300	INNER FASTENER BRACKET FOR RH HEADLAMP	88093300 INNER FASTENER BRACKET FOR RH HEADLAMP	$208.58	1
57	88093200	INNER FASTENER BRACKET FOR LH HEADLAMP	88093200 INNER FASTENER BRACKET FOR LH HEADLAMP	$208.58	1
58	86930900	FENDER MOUNTING BRACKET ON RH FRONT TRELLIS	86930900 FENDER MOUNTING BRACKET ON RH FRONT TRELLIS	$481.36	1
59	86909900	FENDER MOUNTING BRACKET ON LH FRONT TRELLIS	86909900 FENDER MOUNTING BRACKET ON LH FRONT TRELLIS	$481.36	1
60	327633	LH LOWER DIAGONAL BRACE REINFORCEMENT BRACKET	327633 LH LOWER DIAGONAL BRACE REINFORCEMENT BRACKET	$54.54	1
60	327634	RH LOWER DIAGONAL BRACE REINFORCEMENT BRACKET	327634 RH LOWER DIAGONAL BRACE REINFORCEMENT BRACKET	$54.54	1
61	331106	RH K-BRACE	331106 RH K-BRACE	$147.61	1
61	331102	LH K-BRACE	331102 LH K-BRACE	$147.61	1
62	331157	RH K-BRACE MOUNTING BRACKET	331157 RH K-BRACE MOUNTING BRACKET	$120.33	1
62	331109	LH K-BRACE MOUNTING BRACKET	331109 LH K-BRACE MOUNTING BRACKET	$120.33	1
63	16044124	SCREW	16044124 SCREW M8 X 45	$0.50	2
63	14306924	SCREW IN STOCK	14306924 SCREW M8 X 20 IN STOCK	$0.70	2
63	16044424	SCREW	16044424 SCREW M8 X 60	$1.88 MSRP: ~~3.05~~ (38.4% off)	2
