REAR BUMPER of Ferrari Ferrari GTC4Lusso T

View All

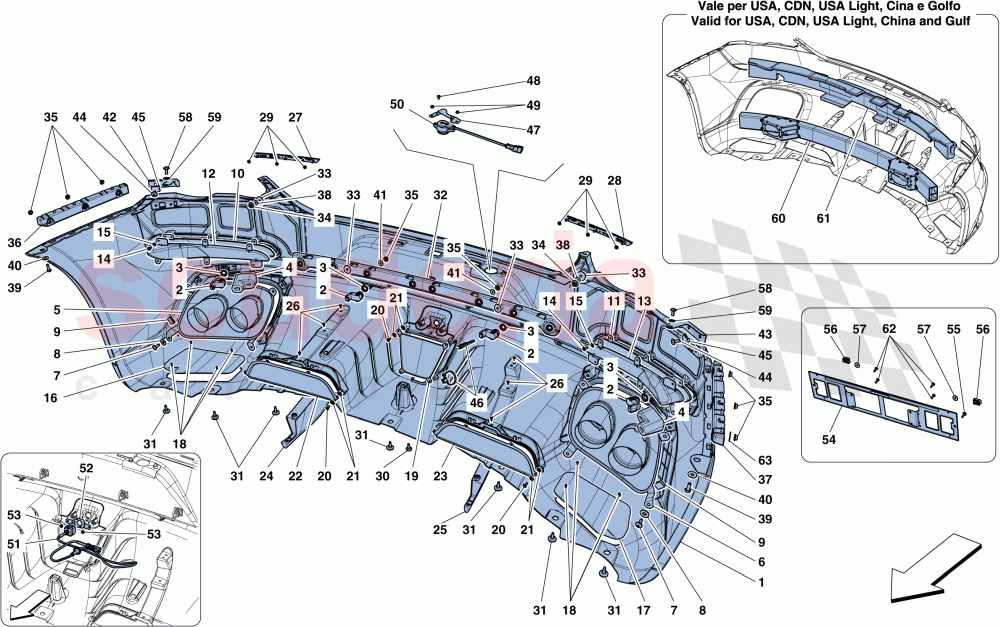

Ferrari GTC4Lusso T - REAR BUMPER

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89047210	REAR BUMPER	Enquire	To Order
	89294210	REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295361	PARKING SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	770452	SILICONE RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87879200	PARKING SENSOR HEAT SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	761930	RH EXHAUST TAILPIPE TIP	Enquire	To Order
	761932	RH EXHAUST TAILPIPE TIP	Enquire	To Order
	88168700	RH EXHAUST TAILPIPE TIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	761929	LH EXHAUST TAILPIPE TIP	Enquire	To Order
	761931	LH EXHAUST TAILPIPE TIP	Enquire	To Order
	88168600	LH EXHAUST TAILPIPE TIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87547900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87802400	RH LATERAL GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87802300	LH LATERAL GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87802600	RH LATERAL GRILLE DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87802500	LH LATERAL GRILLE DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14643293	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14497724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87220700	RH HEAT VENT GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87220800	LH HEAT VENT GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14641593	Rivet fixing grill	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87803200	CENTRE GRILLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14643293	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14497724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87803400	LATERAL GRILLE ON RH DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87803300	LATERAL GRILLE ON LH DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87809400	RH FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87809100	LH FIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84806800	RH REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84806900	LH REFLECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84784600	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874900	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87638400	CENTRE MOUNT FOR REAR BUMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86864700	RH REAR LATERAL BUMPER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86864600	LH REAR LATERAL BUMPER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84029200	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87398400	RH REAR BUMPER BRACKET UNDER TAILLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87398600	LH REAR BUMPER BRACKET UNDER TAILLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85629300	SCREW M6 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69850100	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	798987	BATTERY CONDITIONER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	795930	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940800	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314630	MAGNETIC BATTERY CONDITIONER SEALED SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326604	REAR PARKING CAMERA	Enquire	To Order
	319478	REAR PARKING CAMERA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87789200	PARKING CAMERA MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940800	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82289300	REAR LICENSE PLATE MOUNTING	Enquire	To Order
	82287200	REAR LICENSE PLATE MOUNTING	Enquire	To Order
	82679900	NUMBER PLATE HOLDER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	900472	FASTENER BUTTON	Enquire	To Order
	900472	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84071400	CRASH-BOX CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89050000	REAR BUMPER IMPACT ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	89047210	REAR BUMPER	89047210 REAR BUMPER Sensors ordered separately; Applicable for Korea and Brazil; Not for USA, CDN, USA LIGHT	-	1	Enquire
1	89294210	REAR BUMPER	89294210 REAR BUMPER Sensors ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
2	295361	PARKING SENSOR	295361 PARKING SENSOR	-	4	Enquire
3	770452	SILICONE RING	770452 SILICONE RING	-	4	Enquire
4	87879200	PARKING SENSOR HEAT SHIELD	87879200 PARKING SENSOR HEAT SHIELD	-	2	Enquire
5	761930	RH EXHAUST TAILPIPE TIP	761930 RH EXHAUST TAILPIPE TIP Version with black sports tailpipes	-	1	Enquire
5	761932	RH EXHAUST TAILPIPE TIP	761932 RH EXHAUST TAILPIPE TIP Version with sports tailpipes	-	1	Enquire
5	88168700	RH EXHAUST TAILPIPE TIP	88168700 RH EXHAUST TAILPIPE TIP	-	1	Enquire
6	761929	LH EXHAUST TAILPIPE TIP	761929 LH EXHAUST TAILPIPE TIP Version with black sports tailpipes	-	1	Enquire
6	761931	LH EXHAUST TAILPIPE TIP	761931 LH EXHAUST TAILPIPE TIP Version with sports tailpipes	-	1	Enquire
6	88168600	LH EXHAUST TAILPIPE TIP	88168600 LH EXHAUST TAILPIPE TIP	-	1	Enquire
7	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20	-	8	Enquire
8	87547900	WASHER	87547900 WASHER	-	8	Enquire
9	80874300	CLIP	80874300 CLIP	-	8	Enquire
10	87802400	RH LATERAL GRILLE	87802400 RH LATERAL GRILLE	-	1	Enquire
11	87802300	LH LATERAL GRILLE	87802300 LH LATERAL GRILLE	-	1	Enquire
12	87802600	RH LATERAL GRILLE DUCT	87802600 RH LATERAL GRILLE DUCT	-	1	Enquire
13	87802500	LH LATERAL GRILLE DUCT	87802500 LH LATERAL GRILLE DUCT	-	1	Enquire
14	14643293	RIVET	14643293 RIVET	-	12	Enquire
15	14497724	WASHER	14497724 WASHER	-	12	Enquire
16	87220700	RH HEAT VENT GRILLE	87220700 RH HEAT VENT GRILLE	-	1	Enquire
17	87220800	LH HEAT VENT GRILLE	87220800 LH HEAT VENT GRILLE	-	1	Enquire
18	14641593	Rivet fixing grill	14641593 Rivet fixing grill	-	8	Enquire
19	87803200	CENTRE GRILLE	87803200 CENTRE GRILLE	-	1	Enquire
20	14643293	RIVET	14643293 RIVET	-	12	Enquire
21	14497724	WASHER	14497724 WASHER	-	24	Enquire
22	87803400	LATERAL GRILLE ON RH DIFFUSER	87803400 LATERAL GRILLE ON RH DIFFUSER	-	1	Enquire
23	87803300	LATERAL GRILLE ON LH DIFFUSER	87803300 LATERAL GRILLE ON LH DIFFUSER	-	1	Enquire
24	87809400	RH FIN	87809400 RH FIN	-	1	Enquire
25	87809100	LH FIN	87809100 LH FIN	-	1	Enquire
26	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	8	Enquire
27	84806800	RH REFLECTOR	84806800 RH REFLECTOR	-	1	Enquire
28	84806900	LH REFLECTOR	84806900 LH REFLECTOR	-	1	Enquire
29	84784600	WASHER	84784600 WASHER	-	8	Enquire
30	80874900	SCREW M6 X 22MM	80874900 SCREW M6 X 22MM M6 X 22	-	3	Enquire
31	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	7	Enquire
32	87638400	CENTRE MOUNT FOR REAR BUMPER	87638400 CENTRE MOUNT FOR REAR BUMPER	-	1	Enquire
33	12648925	WASHER	12648925 WASHER	-	4	Enquire
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
35	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	14	Enquire
36	86864700	RH REAR LATERAL BUMPER MOUNT	86864700 RH REAR LATERAL BUMPER MOUNT	-	1	Enquire
37	86864600	LH REAR LATERAL BUMPER MOUNT	86864600 LH REAR LATERAL BUMPER MOUNT	-	1	Enquire
38	84029200	SEAL	84029200 SEAL	-	2	Enquire
39	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714-	-	2	Enquire
40	12643724	WASHER	12643724 WASHER	-	2	Enquire
41	860172	WASHER	860172 WASHER	-	8	Enquire
42	87398400	RH REAR BUMPER BRACKET UNDER TAILLIGHT	87398400 RH REAR BUMPER BRACKET UNDER TAILLIGHT	-	1	Enquire
43	87398600	LH REAR BUMPER BRACKET UNDER TAILLIGHT	87398600 LH REAR BUMPER BRACKET UNDER TAILLIGHT	-	1	Enquire
44	85629300	SCREW M6 X 20	85629300 SCREW M6 X 20	-	4	Enquire
45	80874300	CLIP	80874300 CLIP	-	4	Enquire
46	69850100	CLIP	69850100 CLIP	-	2	Enquire
47	798987	BATTERY CONDITIONER BRACKET	798987 BATTERY CONDITIONER BRACKET	-	1	Enquire
48	795930	SCREW	795930 SCREW M4 X 8	-	1	Enquire
49	87940800	NUT	87940800 NUT	-	2	Enquire
50	314630	MAGNETIC BATTERY CONDITIONER SEALED SOCKET	314630 MAGNETIC BATTERY CONDITIONER SEALED SOCKET	-	1	Enquire
51	326604	REAR PARKING CAMERA	326604 REAR PARKING CAMERA Applicable for front and rear digital cameras	-	1	Enquire
51	319478	REAR PARKING CAMERA	319478 REAR PARKING CAMERA	-	1	Enquire
52	87789200	PARKING CAMERA MOUNTING BRACKET	87789200 PARKING CAMERA MOUNTING BRACKET	-	1	Enquire
53	87940800	NUT	87940800 NUT	-	2	Enquire
54	82289300	REAR LICENSE PLATE MOUNTING	82289300 REAR LICENSE PLATE MOUNTING Applicable for J	-	1	Enquire
54	82287200	REAR LICENSE PLATE MOUNTING	82287200 REAR LICENSE PLATE MOUNTING Applicable for AUS, CINA	-	1	Enquire
54	82679900	NUMBER PLATE HOLDER	82679900 NUMBER PLATE HOLDER Not for UAE; Applicable for GOLFO	-	1	Enquire
54	82283100	REAR LICENSE PLATE HOLDER	82283100 REAR LICENSE PLATE HOLDER Applicable for UAE; Applicable for Korea; Applicable for EU GS, UK	-	1	Enquire
54	82283200	REAR LICENSE PLATE MOUNTING	82283200 REAR LICENSE PLATE MOUNTING Not applicable for Korea; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
55	900472	FASTENER BUTTON	900472 FASTENER BUTTON Applicable for USA, CDN, GOLFO	-	4	Enquire
55	900472	FASTENER BUTTON	900472 FASTENER BUTTON Applicable for UAE; Applicable for Korea; Applicable for EU GS, UK	-	4	Enquire
56	62766300	CLIP	62766300 CLIP	-	2	Enquire
57	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
58	85833700	SCREW	85833700 SCREW M5 X 14	-	2	Enquire
59	12643724	WASHER	12643724 WASHER	-	2	Enquire
60	84071400	CRASH-BOX CROSS MEMBER	84071400 CRASH-BOX CROSS MEMBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
61	89050000	REAR BUMPER IMPACT ABSORBER	89050000 REAR BUMPER IMPACT ABSORBER Applicable for CINA, USA, CDN, GOLFO, USA LIGHT	-	1	Enquire
62	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM Not applicable for Korea	-	4	Enquire
63	12648925	WASHER	12648925 WASHER	-	2	Enquire
