DOORS - SUBSTRUCTURE AND TRIM of Ferrari Ferrari GTC4Lusso T

View All

Ferrari GTC4Lusso T - DOORS - SUBSTRUCTURE AND TRIM

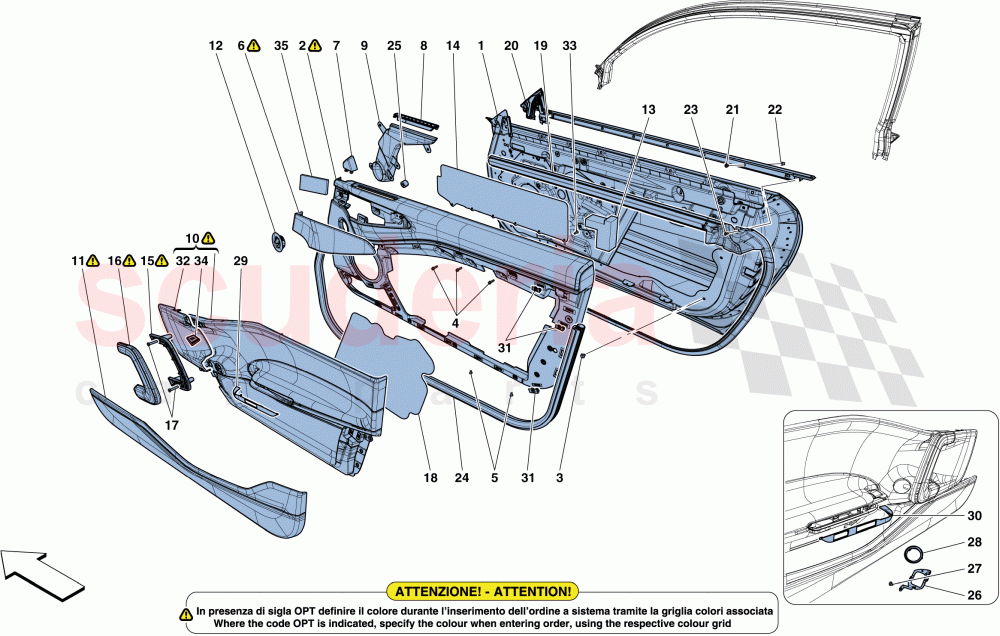

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	88007411	LH LATERAL DOOR	Enquire	To Order
	86655211	RH LATERAL DOOR	Enquire	To Order
	88008011	RH LATERAL DOOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88511000	RH INNER DOOR TRIM	Enquire	To Order
	88511112	LH INNER DOOR TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66092400	PLASTIC TRIM CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441234	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87884412	COMPL. RH UPPER COVER	Enquire	To Order
	87884300	COMPL. LH UPPER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87698300	LH DOOR INNER CORNER TRIANGLE TRIM	Enquire	To Order
	88159200	RH DOOR INNER CORNER TRIANGLE TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88065100	RH DOOR PANEL DEMISTER	Enquire	To Order
	87698100	LH DOOR PANEL DEMISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87501500	LH DOOR AIR DUCT	Enquire	To Order
	87549600	RH DOOR AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	785990	COMPL. INTERNAL LH DOOR TRIM INSERT	Enquire	To Order
	785982	COMPL. INTERNAL LH DOOR TRIM INSERT	Enquire	To Order
	785981	COMPL. INTERNAL LH DOOR TRIM INSERT	Enquire	To Order

...and 21 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	88425412	EXTERIOR OF COMPL. RH DOOR POCKET	Enquire	To Order
	88425800	EXTERIOR OF COMPL. LH DOOR POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87056800	DOOR SIDE AIR VENT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87727300	DOOR NODE PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89283400	FOIL FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87571512	COMPL. RH INTERNAL HANDLE SHELL	Enquire	To Order
	87382200	COMPL. LH INTERNAL HANDLE SHELL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88073300	COMPL. RH EXTERNAL HANDLE SHELL	Enquire	To Order
	87382600	COMPL. LH EXTERNAL HANDLE SHELL	Enquire	To Order
	88074600	COMPL. LH EXTERNAL HANDLE SHELL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13027828	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87293600	RH DOOR REAR WATERPROOF MEMBRANE	Enquire	To Order
	87293900	LH DOOR REAR WATERPROOF MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86871600	INTERNAL LH WINDOW SCRAPER SEAL	Enquire	To Order
	86871700	INTERNAL RH WINDOW SCRAPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82208000	RH EXT. WINDOW SCRAPER SEAL	Enquire	To Order
	82208100	LH EXT. WINDOW SCRAPER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689809	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115885	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83461800	LOWER DOOR PERIMETER SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83888400	DOOR ALIGNMENT FOAM PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87063500	LH MIRROR CONTROLS BRACKET	Enquire	To Order
	88103000	LH MIRROR CONTROLS BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87911900	WINDOW CONTROL JOYSTICK PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88913300	COMPL. LH SEAT BUTTON PANEL	Enquire	To Order
	88828600	COMPL. RH SEAT BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88828500	COMPL. LH SEAT BUTTON PANEL	Enquire	To Order
	88913200	COMPL. RH SEAT BUTTON PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700200	SNAP FASTENING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

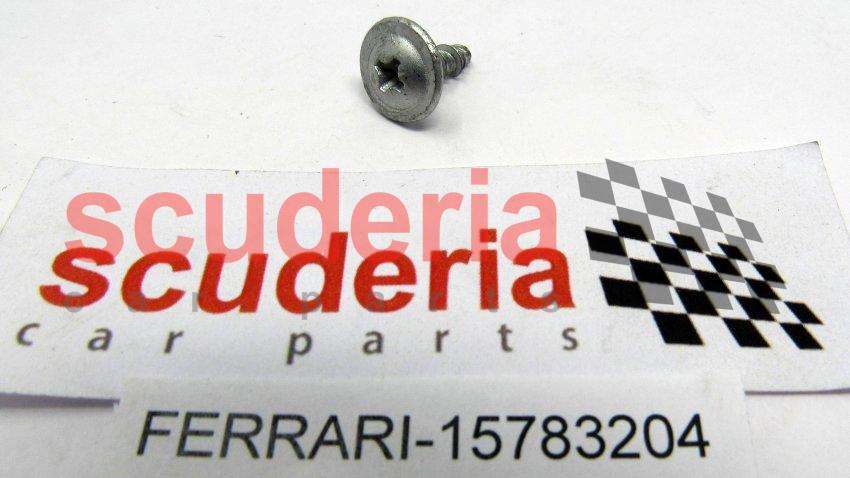

	15783204	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255515	BUSH	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	88007411	LH LATERAL DOOR	88007411 LH LATERAL DOOR Applicable for GD	-	1	Enquire
1	86655211	RH LATERAL DOOR	86655211 RH LATERAL DOOR Not for GD	-	1	Enquire
1	88008011	RH LATERAL DOOR	88008011 RH LATERAL DOOR Applicable for GD	-	1	Enquire
1	86510511	LH LATERAL DOOR	86510511 LH LATERAL DOOR Not for GD	-	1	Enquire
2	88511000	RH INNER DOOR TRIM	88511000 RH INNER DOOR TRIM INTP; Leather; STC1; STC2	-	1	Enquire
2	88511112	LH INNER DOOR TRIM	88511112 LH INNER DOOR TRIM INTP; Leather; STC1; STC2	-	1	Enquire
3	66092400	PLASTIC TRIM CLIP	66092400 PLASTIC TRIM CLIP	-	14	Enquire
4	231620	SCREW	231620 SCREW M6 X 25	-	12	Enquire
5	14441234	SCREW	14441234 SCREW M6 X 12	-	8	Enquire
6	87884412	COMPL. RH UPPER COVER	87884412 COMPL. RH UPPER COVER INTP; Leather; STC1; STC2	-	1	Enquire
6	87884300	COMPL. LH UPPER COVER	87884300 COMPL. LH UPPER COVER INTP; Leather; STC1; STC2	-	1	Enquire
7	87698300	LH DOOR INNER CORNER TRIANGLE TRIM	87698300 LH DOOR INNER CORNER TRIANGLE TRIM Matte black	-	1	Enquire
7	88159200	RH DOOR INNER CORNER TRIANGLE TRIM	88159200 RH DOOR INNER CORNER TRIANGLE TRIM Matte black	-	1	Enquire
8	88065100	RH DOOR PANEL DEMISTER	88065100 RH DOOR PANEL DEMISTER	-	1	Enquire
8	87698100	LH DOOR PANEL DEMISTER	87698100 LH DOOR PANEL DEMISTER	-	1	Enquire
9	87501500	LH DOOR AIR DUCT	87501500 LH DOOR AIR DUCT	-	1	Enquire
9	87549600	RH DOOR AIR DUCT	87549600 RH DOOR AIR DUCT	-	1	Enquire
10	785990	COMPL. INTERNAL LH DOOR TRIM INSERT	785990 COMPL. INTERNAL LH DOOR TRIM INSERT Semi-aniline leather; Premium Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
10	785982	COMPL. INTERNAL LH DOOR TRIM INSERT	785982 COMPL. INTERNAL LH DOOR TRIM INSERT Semi-aniline leather; Premium Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
10	785981	COMPL. INTERNAL LH DOOR TRIM INSERT	785981 COMPL. INTERNAL LH DOOR TRIM INSERT Semi-aniline leather; STC1; STC2; Not for GD	-	1	Enquire
10	785989	COMPL. INTERNAL LH DOOR TRIM INSERT	785989 COMPL. INTERNAL LH DOOR TRIM INSERT Semi-aniline leather; STC1; STC2; Applicable for GD	-	1	Enquire
10	88934700	COMPL. INTERNAL LH DOOR TRIM INSERT	88934700 COMPL. INTERNAL LH DOOR TRIM INSERT INTA; Alcantara; Premium Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
10	89036400	COMPL. INTERNAL LH DOOR TRIM INSERT	89036400 COMPL. INTERNAL LH DOOR TRIM INSERT INTA; Alcantara; Premium Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
10	88018000	COMPL. INTERNAL LH DOOR TRIM INSERT	88018000 COMPL. INTERNAL LH DOOR TRIM INSERT INTA; Alcantara; STC1; STC2; Not for GD	-	1	Enquire
10	88101700	COMPL. INTERNAL LH DOOR TRIM INSERT	88101700 COMPL. INTERNAL LH DOOR TRIM INSERT INTA; Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
10	88934600	COMPL. INTERNAL LH DOOR TRIM INSERT	88934600 COMPL. INTERNAL LH DOOR TRIM INSERT INTP; Leather; Premium Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
10	89036600	COMPL. INTERNAL LH DOOR TRIM INSERT	89036600 COMPL. INTERNAL LH DOOR TRIM INSERT INTP; Leather; Premium Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
10	88776912	COMPL. INTERNAL LH DOOR TRIM INSERT	88776912 COMPL. INTERNAL LH DOOR TRIM INSERT INTP; Leather; STC1; STC2; Not for GD	-	1	Enquire
10	88100700	COMPL. INTERNAL LH DOOR TRIM INSERT	88100700 COMPL. INTERNAL LH DOOR TRIM INSERT INTP; Leather; STC1; STC2; Applicable for GD	-	1	Enquire
10	785987	COMPL. INTERNAL RH DOOR TRIM INSERT	785987 COMPL. INTERNAL RH DOOR TRIM INSERT Semi-aniline leather; Premium Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
10	785996	COMPL. INTERNAL RH DOOR TRIM INSERT	785996 COMPL. INTERNAL RH DOOR TRIM INSERT Semi-aniline leather; Premium Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
10	89036000	COMPL. INTERNAL RH DOOR TRIM INSERT	89036000 COMPL. INTERNAL RH DOOR TRIM INSERT INTA; Alcantara; Premium Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
10	785985	COMPL. INTERNAL RH DOOR TRIM INSERT	785985 COMPL. INTERNAL RH DOOR TRIM INSERT Semi-aniline leather; STC1; STC2; Not for GD	-	1	Enquire
10	785993	COMPL. INTERNAL RH DOOR TRIM INSERT	785993 COMPL. INTERNAL RH DOOR TRIM INSERT Semi-aniline leather; STC1; STC2; Applicable for GD	-	1	Enquire
10	88101800	COMPL. INTERNAL RH DOOR TRIM INSERT	88101800 COMPL. INTERNAL RH DOOR TRIM INSERT INTA; Alcantara; STC1; STC2; Applicable for GD	-	1	Enquire
10	88934100	COMPL. INTERNAL RH DOOR TRIM INSERT	88934100 COMPL. INTERNAL RH DOOR TRIM INSERT INTA; Alcantara; Premium Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
10	89036200	COMPL. INTERNAL RH DOOR TRIM INSERT	89036200 COMPL. INTERNAL RH DOOR TRIM INSERT INTP; Leather; Premium Hi-Fi version; STC1; STC2; Applicable for GD	-	1	Enquire
10	88015600	COMPL. INTERNAL RH DOOR TRIM INSERT	88015600 COMPL. INTERNAL RH DOOR TRIM INSERT INTA; Alcantara; STC1; STC2; Not for GD	-	1	Enquire
10	88934000	COMPL. INTERNAL RH DOOR TRIM INSERT	88934000 COMPL. INTERNAL RH DOOR TRIM INSERT INTP; Leather; Premium Hi-Fi version; STC1; STC2; Not for GD	-	1	Enquire
10	88777400	COMPL. INTERNAL RH DOOR TRIM INSERT	88777400 COMPL. INTERNAL RH DOOR TRIM INSERT INTP; Leather; STC1; STC2; Not for GD	-	1	Enquire
10	88100800	COMPL. INTERNAL RH DOOR TRIM INSERT	88100800 COMPL. INTERNAL RH DOOR TRIM INSERT INTP; Leather; STC1; STC2; Applicable for GD	-	1	Enquire
11	88425412	EXTERIOR OF COMPL. RH DOOR POCKET	88425412 EXTERIOR OF COMPL. RH DOOR POCKET INTP; Leather; STC1; STC2	-	1	Enquire
11	88425800	EXTERIOR OF COMPL. LH DOOR POCKET	88425800 EXTERIOR OF COMPL. LH DOOR POCKET INTP; Leather; STC1; STC2	-	1	Enquire
12	87056800	DOOR SIDE AIR VENT SURROUND	87056800 DOOR SIDE AIR VENT SURROUND	-	2	Enquire
13	87727300	DOOR NODE PULER	87727300 DOOR NODE PULER	-	2	Enquire
14	89283400	FOIL FLAP	89283400 FOIL FLAP	-	2	Enquire
15	87571512	COMPL. RH INTERNAL HANDLE SHELL	87571512 COMPL. RH INTERNAL HANDLE SHELL INTP; Leather	-	1	Enquire
15	87382200	COMPL. LH INTERNAL HANDLE SHELL	87382200 COMPL. LH INTERNAL HANDLE SHELL INTP; Leather	-	1	Enquire
16	88073300	COMPL. RH EXTERNAL HANDLE SHELL	88073300 COMPL. RH EXTERNAL HANDLE SHELL Carbon version	-	1	Enquire
16	87382600	COMPL. LH EXTERNAL HANDLE SHELL	87382600 COMPL. LH EXTERNAL HANDLE SHELL INTP; Leather; STC1; STC2	-	1	Enquire
16	88074600	COMPL. LH EXTERNAL HANDLE SHELL	88074600 COMPL. LH EXTERNAL HANDLE SHELL Carbon version	-	1	Enquire
16	87571912	COMPL. RH EXTERNAL HANDLE SHELL	87571912 COMPL. RH EXTERNAL HANDLE SHELL INTP; Leather; STC1; STC2	-	1	Enquire
17	13027828	SCREW	13027828 SCREW M6 X 45	-	6	Enquire
18	87293600	RH DOOR REAR WATERPROOF MEMBRANE	87293600 RH DOOR REAR WATERPROOF MEMBRANE	-	1	Enquire
18	87293900	LH DOOR REAR WATERPROOF MEMBRANE	87293900 LH DOOR REAR WATERPROOF MEMBRANE	-	1	Enquire
19	86871600	INTERNAL LH WINDOW SCRAPER SEAL	86871600 INTERNAL LH WINDOW SCRAPER SEAL	-	1	Enquire
19	86871700	INTERNAL RH WINDOW SCRAPER SEAL	86871700 INTERNAL RH WINDOW SCRAPER SEAL	-	1	Enquire
20	82208000	RH EXT. WINDOW SCRAPER SEAL	82208000 RH EXT. WINDOW SCRAPER SEAL	-	1	Enquire
20	82208100	LH EXT. WINDOW SCRAPER SEAL	82208100 LH EXT. WINDOW SCRAPER SEAL	-	1	Enquire
21	15689809	SCREW	15689809 SCREW	-	14	Enquire
22	14115885	BLOCK	14115885 BLOCK	-	14	Enquire
23	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	2	Enquire
24	83461800	LOWER DOOR PERIMETER SEAL	83461800 LOWER DOOR PERIMETER SEAL	-	2	Enquire
25	83888400	DOOR ALIGNMENT FOAM PAD	83888400 DOOR ALIGNMENT FOAM PAD	-	4	Enquire
26	87063500	LH MIRROR CONTROLS BRACKET	87063500 LH MIRROR CONTROLS BRACKET Not for GD	-	1	Enquire
26	88103000	LH MIRROR CONTROLS BRACKET	88103000 LH MIRROR CONTROLS BRACKET Applicable for GD	-	1	Enquire
27	85833700	SCREW	85833700 SCREW M5 X 10	-	2	Enquire
28	87911900	WINDOW CONTROL JOYSTICK PANEL	87911900 WINDOW CONTROL JOYSTICK PANEL	-	1	Enquire
29	88913300	COMPL. LH SEAT BUTTON PANEL	88913300 COMPL. LH SEAT BUTTON PANEL Applicable for GD	-	1	Enquire
29	88828600	COMPL. RH SEAT BUTTON PANEL	88828600 COMPL. RH SEAT BUTTON PANEL Not for GD	-	1	Enquire
30	88828500	COMPL. LH SEAT BUTTON PANEL	88828500 COMPL. LH SEAT BUTTON PANEL Not for GD	-	1	Enquire
30	88913200	COMPL. RH SEAT BUTTON PANEL	88913200 COMPL. RH SEAT BUTTON PANEL Applicable for GD	-	1	Enquire
31	68700200	SNAP FASTENING CLIP	68700200 SNAP FASTENING CLIP	-	42	Enquire
32	87060900	COMPL. LH DOOR WOOFER GRILLE	87060900 COMPL. LH DOOR WOOFER GRILLE matte Grigio nart	-	1	Enquire
32	88674900	COMPL. LH DOOR WOOFER GRILLE	88674900 COMPL. LH DOOR WOOFER GRILLE Premium Hi-Fi version; matte Grigio nart	-	1	Enquire
32	87048900	COMPL. RH DOOR WOOFER GRILLE	87048900 COMPL. RH DOOR WOOFER GRILLE matte Grigio nart	-	1	Enquire
32	88674700	COMPL. RH DOOR WOOFER GRILLE	88674700 COMPL. RH DOOR WOOFER GRILLE Premium Hi-Fi version; matte Grigio nart	-	1	Enquire
33	15783204	Screw	15783204 Screw M4 X 12	-	12	Enquire
34	83198200	JBL LOGO	83198200 JBL LOGO Premium Hi-Fi version	-	2	Enquire
35	255515	BUSH	255515 BUSH 100 x 50 mm	-	2	Enquire
