GEARBOX OIL LUBRICATION AND COOLING SYSTEM of Ferrari Ferrari GTC4Lusso

View All

Ferrari GTC4Lusso - GEARBOX OIL LUBRICATION AND COOLING SYSTEM

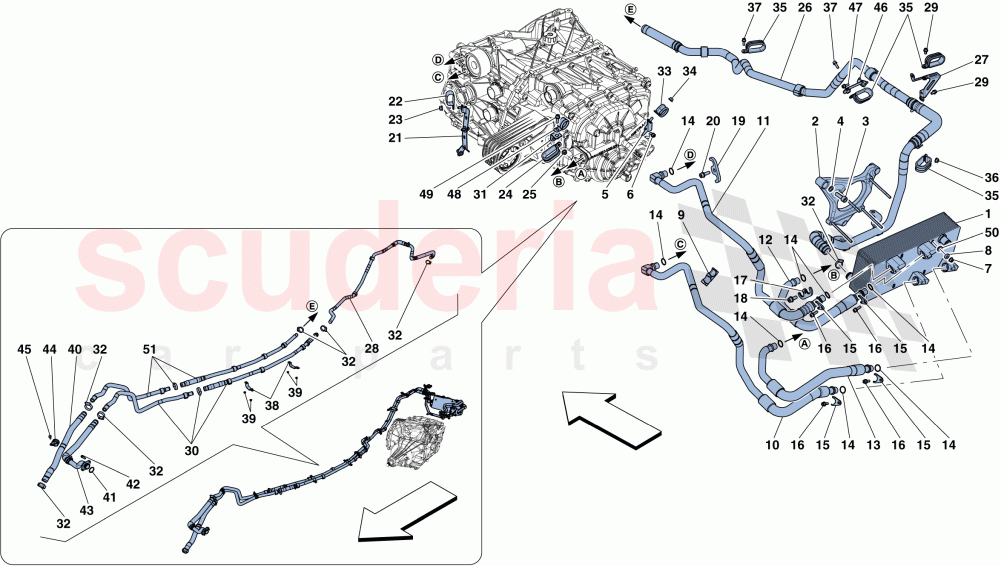

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	326420	OIL HEAT EXCHANGER	$1,758.62	To Order

Photo	Part No	Description	Price (each)	Stock
	318265	GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT	$118.72	To Order

Photo	Part No	Description	Price (each)	Stock
	14307534	SCREW	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	12648321	WASHER	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	313795	BRACKET	$21.48	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14058421	NUT	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	13604015	SPACER	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	264810	SHIM	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	334873	ATF FLUID DELIVERY PIPE	$449.27	To Order

Photo	Part No	Description	Price (each)	Stock
	262813	ATF FLUID RETURN PIPE	$481.36	To Order

Photo	Part No	Description	Price (each)	Stock
	334874	GL-5 OIL RETURN PIPE	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	334875	GL-5 OIL DELIVERY PIPE	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	254644	O-RING	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	262827	FORK	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	261824	FORK	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	248471	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	253463	FORK WITH CAPTIVE SCREW	$56.14	To Order

Photo	Part No	Description	Price (each)	Stock
	84317700	SCREW 8 X 30	$25.30	To Order

Photo	Part No	Description	Price (each)	Stock
	313202	BRACKET	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	265771	BRACKET	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	313182	REAR WATER DELIVERY PIPE	$817.05	To Order

Photo	Part No	Description	Price (each)	Stock
	322932	BRACKET	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	313181	REAR WATER RETURN PIPE	$544.69	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	281462	COMPL. WATER RETURN PIPE	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	142060	BRACKET	$6.95	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	248454	BRACKET WITH SHEATH	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	266783	BRACKET	$15.71	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	271546	FRONT WATER DELIVERY HOSE	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	250888	GASKET	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	270155	FRONT WATER RETURN HOSE	$113.23	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	273830	BRACKET	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	10442190	BRACKET WITH SHEATH	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	281461	COMPL. WATER DELIVERY PIPE	$304.86	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	326420	OIL HEAT EXCHANGER	326420 OIL HEAT EXCHANGER	$1,758.62	1
2	318265	GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT	318265 GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT	$118.72	1
3	14307534	SCREW	14307534 SCREW M10 X 1.25 X 30	$2.84	3
4	12648321	WASHER	12648321 WASHER	$0.78	3
5	313795	BRACKET	313795 BRACKET	$21.48	1
6	248334	SCREW	248334 SCREW	$0.68	1
7	14058421	NUT	14058421 NUT	$1.30	4
8	13604015	SPACER	13604015 SPACER	$0.83	4
9	264810	SHIM	264810 SHIM	$5.58	1
10	334873	ATF FLUID DELIVERY PIPE	334873 ATF FLUID DELIVERY PIPE	$449.27	1
11	262813	ATF FLUID RETURN PIPE	262813 ATF FLUID RETURN PIPE	$481.36	1
12	334874	GL-5 OIL RETURN PIPE	334874 GL-5 OIL RETURN PIPE	$258.00	1
13	334875	GL-5 OIL DELIVERY PIPE	334875 GL-5 OIL DELIVERY PIPE	$272.77	1
14	254644	O-RING	254644 O-RING	$0.39 MSRP: ~~0.50~~ (22% off)	8
15	262827	FORK	262827 FORK	$20.84	4
16	231619	SCREW	231619 SCREW M6 X 18	$0.31	4
17	261824	FORK	261824 FORK	$32.08	1
18	248471	SCREW	248471 SCREW M8 X 20	$1.07	1
19	253463	FORK WITH CAPTIVE SCREW	253463 FORK WITH CAPTIVE SCREW	$56.14	1
20	84317700	SCREW 8 X 30	84317700 SCREW 8 X 30 M8 X 25	$25.30	1
21	313202	BRACKET	313202 BRACKET	$37.25	1
22	265771	BRACKET	265771 BRACKET	$2.25	1
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
24	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	$1.77	1
25	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
26	313182	REAR WATER DELIVERY PIPE	313182 REAR WATER DELIVERY PIPE	$817.05	1
27	322932	BRACKET	322932 BRACKET	$40.10	1
28	313181	REAR WATER RETURN PIPE	313181 REAR WATER RETURN PIPE	$544.69	1
29	248334	SCREW	248334 SCREW	$0.68	2
30	281462	COMPL. WATER RETURN PIPE	281462 COMPL. WATER RETURN PIPE	$385.09	1
31	142060	BRACKET	142060 BRACKET	$6.95	1
32	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	7
33	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	1
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
35	248454	BRACKET WITH SHEATH	248454 BRACKET WITH SHEATH	$7.83	4
36	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
37	231619	SCREW	231619 SCREW M6 X 18	$0.31	2
38	266783	BRACKET	266783 BRACKET	$15.71	2
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
40	271546	FRONT WATER DELIVERY HOSE	271546 FRONT WATER DELIVERY HOSE	$401.34	1
41	250888	GASKET	250888 GASKET	$0.75	1
42	231619	SCREW	231619 SCREW M6 X 22	$0.31	2
43	270155	FRONT WATER RETURN HOSE	270155 FRONT WATER RETURN HOSE	$113.23	1
44	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	$5.12	1
45	86574700	SCREW	86574700 SCREW M6 X 16	$0.71	1
46	273830	BRACKET	273830 BRACKET	$42.98	1
47	231619	SCREW	231619 SCREW M6 X 18	$0.31	1
48	10442190	BRACKET WITH SHEATH	10442190 BRACKET WITH SHEATH	$0.78 MSRP: ~~2.25~~ (65.3% off)	1
49	248334	SCREW	248334 SCREW	$0.68	1
50	14498801	WASHER	14498801 WASHER	$0.11 MSRP: ~~0.20~~ (45% off)	4
51	281461	COMPL. WATER DELIVERY PIPE	281461 COMPL. WATER DELIVERY PIPE	$304.86	1
