Find Your Part

GEARBOX HOUSING of Ferrari Ferrari GTC4Lusso

View All

Ferrari GTC4Lusso - GEARBOX HOUSING

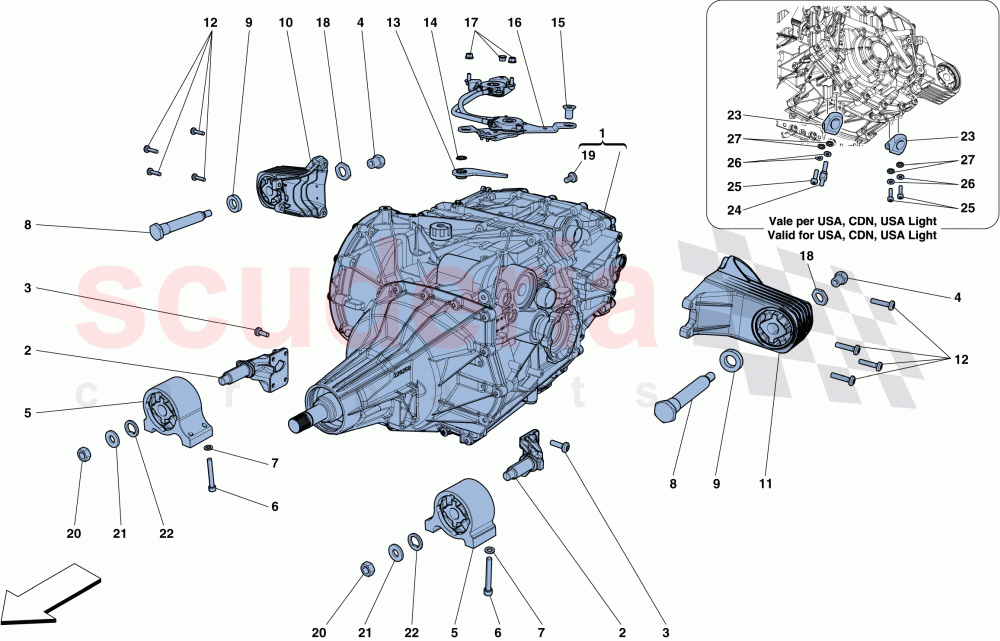

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	321441	COMPL. DCT GEARBOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	301073	LH FRONT DCT GEARBOX STRUT	Enquire	To Order
	301074	RH FRONT DCT GEARBOX STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247856	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287404	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319482	COMPL. LH BUSHING MOUNT	Enquire	To Order
	319484	COMPL. RH BUSHING MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14308924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243075	GEARBOX MOUNTING BUSH PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243122	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266362	COMPL. RH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266364	COMPL. LH REAR STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306634	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238370	COMPLETE RELEASE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066176	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	243151	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292667	COMPL. PARK LOCK RELEASE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	287405	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263679	FUEL LEVEL PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12164024	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644924	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300597	SPLIT WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322118	RETENTION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266645	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	321441	COMPL. DCT GEARBOX	321441 COMPL. DCT GEARBOX	-	1	Enquire
2	301073	LH FRONT DCT GEARBOX STRUT	301073 LH FRONT DCT GEARBOX STRUT	-	1	Enquire
2	301074	RH FRONT DCT GEARBOX STRUT	301074 RH FRONT DCT GEARBOX STRUT	-	1	Enquire
3	247856	SCREW	247856 SCREW M8 X 1.25 X 25	-	8	Enquire
4	287404	NUT	287404 NUT	-	2	Enquire
5	319482	COMPL. LH BUSHING MOUNT	319482 COMPL. LH BUSHING MOUNT	-	2	Enquire
5	319484	COMPL. RH BUSHING MOUNT	319484 COMPL. RH BUSHING MOUNT	-	2	Enquire
6	14308924	SCREW	14308924 SCREW M8 X 60	-	8	Enquire
7	986899	WASHER	986899 WASHER	-	8	Enquire
8	243075	GEARBOX MOUNTING BUSH PIN	243075 GEARBOX MOUNTING BUSH PIN	-	2	Enquire
9	243122	SPACER	243122 SPACER	-	2	Enquire
10	266362	COMPL. RH REAR STRUT	266362 COMPL. RH REAR STRUT	-	1	Enquire
11	266364	COMPL. LH REAR STRUT	266364 COMPL. LH REAR STRUT	-	1	Enquire
12	14306634	SCREW	14306634 SCREW M8 X 1.25 X 35	-	8	Enquire
13	238370	COMPLETE RELEASE LEVER	238370 COMPLETE RELEASE LEVER	-	1	Enquire
14	11066176	SEEGER RING	11066176 SEEGER RING	-	1	Enquire
15	243151	SCREW	243151 SCREW M12 X 1.25 X 20	-	2	Enquire
16	292667	COMPL. PARK LOCK RELEASE	292667 COMPL. PARK LOCK RELEASE	-	1	Enquire
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
18	287405	SPACER	287405 SPACER	-	2	Enquire
19	263679	FUEL LEVEL PLUG	263679 FUEL LEVEL PLUG	-	1	Enquire
20	12164024	NUT	12164024 NUT	-	2	Enquire
21	12644924	WASHER	12644924 WASHER	-	2	Enquire
22	300597	SPLIT WASHER	300597 SPLIT WASHER	-	2	Enquire
23	322118	RETENTION BRACKET	322118 RETENTION BRACKET Applicable for USA, CDN, USA LIGHT	-	2	Enquire
24	266645	STUD BOLT	266645 STUD BOLT Applicable for USA, CDN, USA LIGHT	-	1	Enquire
25	14306474	SCREW	14306474 SCREW M8 X 25; Applicable for USA, CDN, USA LIGHT	-	3	Enquire
26	12638524	WASHER	12638524 WASHER Applicable for USA, CDN, USA LIGHT	-	4	Enquire
27	12601374	WASHER	12601374 WASHER Applicable for USA, CDN, USA LIGHT	-	4	Enquire
