Ferrari GTC4Lusso - VEHICLE ECUs

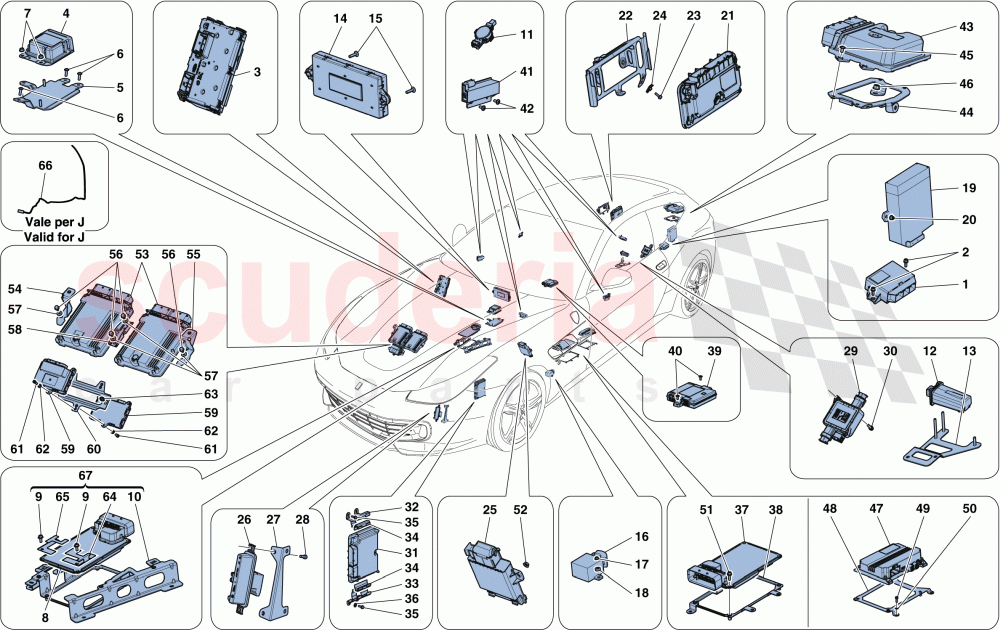

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	315391	PARKING SENSOR NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340216	AIRBAG ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325990	AIRBAG ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312262	MAGNERIDE SUSPENSION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303474	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	786808	RAIN AND TWILIGHT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314817	TPMS ECU/ANTENNA	Enquire	To Order
	314815	TPMS ECU/ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322469	TMPS ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343009	A/C CONTROLS BLACK BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272121	POWER STEERING CONTROL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65708600	SPACER BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315395	POWER LIFTGATE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315392	VEHICLE LIFT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270164	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264097	VOLTAGE STABILIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315386	ADAPTIVE HEADLIGHT NODE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277468	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294559	PWM COMMAND SIGNAL FOR FUEL PUMPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766005	4WD ECU	Enquire	To Order
	315385	4WD ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275483	UPPER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	275484	LOWER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191531	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	312311	SIDE CONTROL ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	326349	CNTR SUSP. CONTROL ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328098	PASSIVE START ECU	Enquire	To Order
	328097	PASSIVE START ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310778	PASSIVE START ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	330778	DCT GEARBOX ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313218	DCT ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336274	PARKING CAMERA ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311387	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	337737	IGNITION ECU	Enquire	To Order
	291539	IGNITION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328983	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	328984	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16296934	SCREW 6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257695	CENTRE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	313125	ION ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317658	ION ECU FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339749	PASSIVE START ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342888	MAGNERIDE ECU BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	315391	PARKING SENSOR NODE ECU	315391 PARKING SENSOR NODE ECU	-	1	Enquire
2	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	2	Enquire
4	340216	AIRBAG ECU	340216 AIRBAG ECU Applicable for Russia	-	1	Enquire
5	325990	AIRBAG ECU BRACKET	325990 AIRBAG ECU BRACKET	-	1	Enquire
6	81911600	SCREW	81911600 SCREW M6 X 1 X 18	-	4	Enquire
7	14059211	NUT	14059211 NUT	-	3	Enquire
8	312262	MAGNERIDE SUSPENSION ECU	312262 MAGNERIDE SUSPENSION ECU	-	1	Enquire
9	14303474	SCREW	14303474 SCREW M4 X 25; Applicable up to Ass. No. 143870	-	4	Enquire
10	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable up to Ass. No. 143870; Applicable until depletion	-	1	Enquire
11	786808	RAIN AND TWILIGHT SENSOR	786808 RAIN AND TWILIGHT SENSOR	-	1	Enquire
12	314817	TPMS ECU/ANTENNA	314817 TPMS ECU/ANTENNA Applicable for J	-	1	Enquire
12	314815	TPMS ECU/ANTENNA	314815 TPMS ECU/ANTENNA Not for J	-	1	Enquire
13	322469	TMPS ECU BRACKET	322469 TMPS ECU BRACKET	-	1	Enquire
14	343009	A/C CONTROLS BLACK BOX	343009 A/C CONTROLS BLACK BOX	-	1	Enquire
15	81591700	SCREW	81591700 SCREW M5 X 20	-	2	Enquire
16	272121	POWER STEERING CONTROL ECU	272121 POWER STEERING CONTROL ECU	-	1	Enquire
17	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
18	65708600	SPACER BUSHING	65708600 SPACER BUSHING	-	2	Enquire
19	315395	POWER LIFTGATE ECU	315395 POWER LIFTGATE ECU	-	1	Enquire
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
21	315392	VEHICLE LIFT ECU	315392 VEHICLE LIFT ECU Version with shock absorber with lifter	-	1	Enquire
22	270164	BRACKET	270164 BRACKET Version with shock absorber with lifter	-	1	Enquire
23	11568124	SCREW	11568124 SCREW M5 X 16; Version with shock absorber with lifter	-	1	Enquire
24	68700800	CLIP	68700800 CLIP Version with shock absorber with lifter	-	1	Enquire
25	264097	VOLTAGE STABILIZER	264097 VOLTAGE STABILIZER	-	1	Enquire
26	315386	ADAPTIVE HEADLIGHT NODE ECU	315386 ADAPTIVE HEADLIGHT NODE ECU Adaptive headlamps	-	1	Enquire
27	277468	BRACKET	277468 BRACKET Adaptive headlamps	-	1	Enquire
28	14304220	SCREW	14304220 SCREW M5 X 16; Adaptive headlamps	-	2	Enquire
29	294559	PWM COMMAND SIGNAL FOR FUEL PUMPS	294559 PWM COMMAND SIGNAL FOR FUEL PUMPS	-	1	Enquire
30	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 22	-	2	Enquire
31	766005	4WD ECU	766005 4WD ECU Applicable after depletion of 315385	-	1	Enquire
31	315385	4WD ECU	315385 4WD ECU Applicable until depletion	-	1	Enquire
32	275483	UPPER BRACKET	275483 UPPER BRACKET	-	1	Enquire
33	275484	LOWER BRACKET	275484 LOWER BRACKET	-	1	Enquire
34	191531	PLUG	191531 PLUG	-	2	Enquire
35	11568124	SCREW	11568124 SCREW M5 X 16	-	4	Enquire
36	12638124	WASHER	12638124 WASHER	-	2	Enquire
37	312311	SIDE CONTROL ECU	312311 SIDE CONTROL ECU	-	1	Enquire
38	326349	CNTR SUSP. CONTROL ECU BRACKET	326349 CNTR SUSP. CONTROL ECU BRACKET	-	1	Enquire
39	328098	PASSIVE START ECU	328098 PASSIVE START ECU Applicable for J	-	1	Enquire
39	328097	PASSIVE START ECU	328097 PASSIVE START ECU Not for J	-	1	Enquire
40	85833700	SCREW	85833700 SCREW M5 X 12	-	2	Enquire
41	310778	PASSIVE START ANTENNA	310778 PASSIVE START ANTENNA	-	4	Enquire
42	85833700	SCREW	85833700 SCREW M5 X 12	-	8	Enquire
43	330778	DCT GEARBOX ECU	330778 DCT GEARBOX ECU Unprogrammed	-	1	Enquire
44	313218	DCT ECU MOUNTING BRACKET	313218 DCT ECU MOUNTING BRACKET	-	1	Enquire
45	85833700	SCREW	85833700 SCREW M5 X 10	-	4	Enquire
46	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	3	Enquire
47	336274	PARKING CAMERA ECU	336274 PARKING CAMERA ECU Version with front camera with dual view	-	1	Enquire
48	311387	BRACKET	311387 BRACKET Version with front camera with dual view	-	1	Enquire
49	14303123	SCREW	14303123 SCREW M4 X 12; Version with front camera with dual view	-	4	Enquire
50	11181474	WASHER	11181474 WASHER Version with front camera with dual view	-	4	Enquire
51	85833700	SCREW	85833700 SCREW M5 X 16	-	4	Enquire
52	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
53	337737	IGNITION ECU	337737 IGNITION ECU Unprogrammed; Applicable from Ass. No. 140879	-	2	Enquire
53	291539	IGNITION ECU	291539 IGNITION ECU Unprogrammed; Applicable up to Ass. No. 140878	-	2	Enquire
54	328983	RH BRACKET	328983 RH BRACKET	-	1	Enquire
55	328984	LH BRACKET	328984 LH BRACKET	-	1	Enquire
56	16296934	SCREW 6 X 14MM	16296934 SCREW 6 X 14MM M6 X 14	-	4	Enquire
57	14498801	WASHER	14498801 WASHER	-	4	Enquire
58	257695	CENTRE BRACKET	257695 CENTRE BRACKET	-	1	Enquire
59	313125	ION ECU	313125 ION ECU Unprogrammed	-	2	Enquire
60	317658	ION ECU FASTENER BRACKET	317658 ION ECU FASTENER BRACKET	-	1	Enquire
61	14304124	SCREW	14304124 SCREW M5 X 16	-	6	Enquire
62	12637824	WASHER	12637824 WASHER	-	6	Enquire
63	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	2	Enquire
64	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable up to Ass. No. 143870; Applicable until depletion	-	1	Enquire
65	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable up to Ass. No. 143870; Applicable until depletion	-	1	Enquire
66	339749	PASSIVE START ANTENNA	339749 PASSIVE START ANTENNA Applicable for J	-	1	Enquire
67	342888	MAGNERIDE ECU BRACKET	342888 MAGNERIDE ECU BRACKET Applicable after depletion of: bracket 326348 pos.10, bracket 338212 pos. 64, bracket 338213 pos.65, screw 14303474 pos.9; Applicable from Ass. No. 143871	-	1	Enquire
