AUDIO SPEAKER SYSTEM of Ferrari Ferrari GTC4Lusso

View All

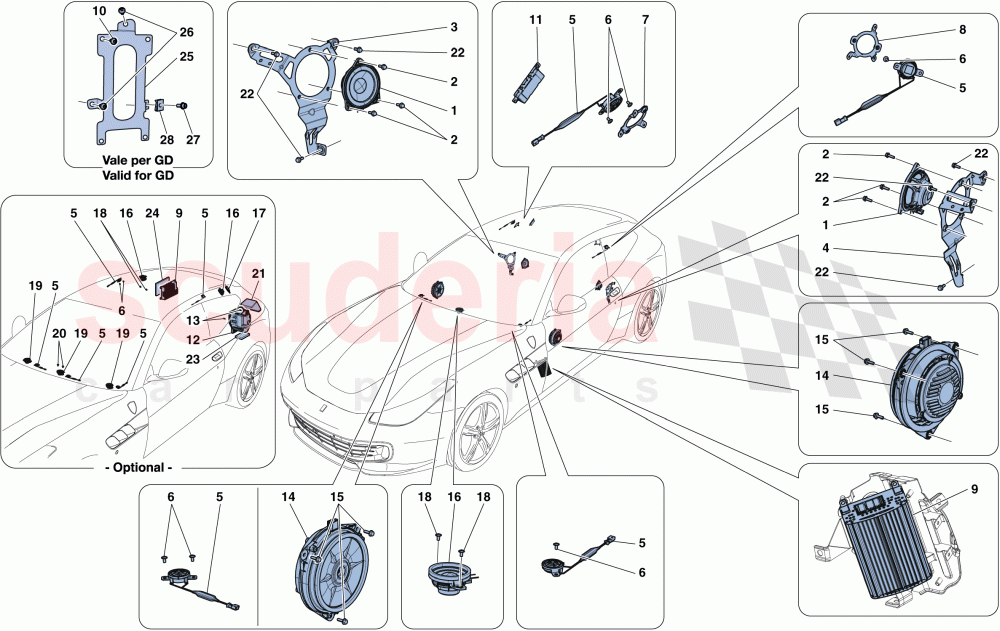

Ferrari GTC4Lusso - AUDIO SPEAKER SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	321880	TWIDDLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327866	COMPL. RH TWIDDLER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	327865	COMPL. LH TWIDDLER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321882	FRONT TWEETER	Enquire	To Order
	321882	FRONT TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87940900	COMPL. RH TWEETER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87941100	COMPL. LH TWEETER MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	334607	8-CHANNEL AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277243	AM/FM AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	318552	BASS BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14304220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321885	SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321889	SPEAKER	Enquire	To Order
	321889	SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	322203	COMPL. LH REAR SPEAKER FASTENER BRACKET	Enquire	To Order
	322213	COMPL. RH REAR SPEAKER FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324658	MIDRANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88782700	UPPER PULER	Enquire	To Order
	88782900	UPPER PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88782800	LOWER BASS BOX PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88783000	LOWER 12 CHANNEL PULER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340937	8-CHANNEL AMPLIFIER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	321880	TWIDDLER	321880 TWIDDLER	-	2	Enquire
2	11568124	SCREW	11568124 SCREW M5 X 16	-	6	Enquire
3	327866	COMPL. RH TWIDDLER MOUNTING BRACKET	327866 COMPL. RH TWIDDLER MOUNTING BRACKET	-	1	Enquire
4	327865	COMPL. LH TWIDDLER MOUNTING BRACKET	327865 COMPL. LH TWIDDLER MOUNTING BRACKET	-	1	Enquire
5	321882	FRONT TWEETER	321882 FRONT TWEETER	-	4	Enquire
5	321882	FRONT TWEETER	321882 FRONT TWEETER Premium Hi-Fi version	-	5	Enquire
6	85833700	SCREW	85833700 SCREW M5 X 10	-	8	Enquire
6	85833700	SCREW	85833700 SCREW M5 X 10; Premium Hi-Fi version	-	10	Enquire
7	87940900	COMPL. RH TWEETER MOUNTING BRACKET	87940900 COMPL. RH TWEETER MOUNTING BRACKET	-	1	Enquire
8	87941100	COMPL. LH TWEETER MOUNTING BRACKET	87941100 COMPL. LH TWEETER MOUNTING BRACKET	-	1	Enquire
9	334607	8-CHANNEL AMPLIFIER	334607 8-CHANNEL AMPLIFIER	-	1	Enquire
10	85833700	SCREW	85833700 SCREW M5 X 14; Applicable for GD	-	4	Enquire
11	277243	AM/FM AMPLIFIER	277243 AM/FM AMPLIFIER	-	1	Enquire
12	318552	BASS BOX	318552 BASS BOX Premium Hi-Fi version	-	1	Enquire
13	14304220	SCREW	14304220 SCREW M5 X 16; Premium Hi-Fi version	-	3	Enquire
14	321885	SPEAKER	321885 SPEAKER	-	2	Enquire
15	11568124	SCREW	11568124 SCREW M5 X 16	-	6	Enquire
16	321889	SPEAKER	321889 SPEAKER	-	1	Enquire
16	321889	SPEAKER	321889 SPEAKER Premium Hi-Fi version	-	2	Enquire
17	322203	COMPL. LH REAR SPEAKER FASTENER BRACKET	322203 COMPL. LH REAR SPEAKER FASTENER BRACKET Premium Hi-Fi version	-	1	Enquire
17	322213	COMPL. RH REAR SPEAKER FASTENER BRACKET	322213 COMPL. RH REAR SPEAKER FASTENER BRACKET Premium Hi-Fi version	-	1	Enquire
18	85833700	SCREW	85833700 SCREW M5 X 10	-	2	Enquire
18	85833700	SCREW	85833700 SCREW M5 X 10; Premium Hi-Fi version	-	4	Enquire
19	324658	MIDRANGE	324658 MIDRANGE Premium Hi-Fi version	-	3	Enquire
20	85833700	SCREW	85833700 SCREW M5 X 10; Premium Hi-Fi version	-	6	Enquire
21	88782700	UPPER PULER	88782700 UPPER PULER Premium Hi-Fi version	-	1	Enquire
21	88782900	UPPER PULER	88782900 UPPER PULER Premium Hi-Fi version; No longer supplied	-	1	Enquire
22	16284934	FLANGED SCREW	16284934 FLANGED SCREW M5 X 10	-	6	Enquire
23	88782800	LOWER BASS BOX PULER	88782800 LOWER BASS BOX PULER Premium Hi-Fi version	-	1	Enquire
24	88783000	LOWER 12 CHANNEL PULER	88783000 LOWER 12 CHANNEL PULER Premium Hi-Fi version	-	1	Enquire
25	340937	8-CHANNEL AMPLIFIER BRACKET	340937 8-CHANNEL AMPLIFIER BRACKET Applicable for GD	-	1	Enquire
26	85833700	SCREW	85833700 SCREW M5 X 14; Applicable for GD	-	2	Enquire
27	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM M6 X 14; Applicable for GD	-	1	Enquire
28	62766300	CLIP	62766300 CLIP Applicable for GD	-	1	Enquire
