REAR BUMPER

Find Your Part

Ferrari GTC4Lusso - REAR BUMPER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
89047210 REAR BUMPER $5,757.28 To Order
89294210 REAR BUMPER $5,757.28 To Order
Photo Part No Description Price (each) Stock
295361 PARKING SENSOR $77.86 To Order
Photo Part No Description Price (each) Stock
770452 SILICONE RING $9.09 To Order
Photo Part No Description Price (each) Stock
87879200 PARKING SENSOR HEAT SHIELD $81.69 To Order
Photo Part No Description Price (each) Stock
87787100 RH EXHAUST TAILPIPE TIP $461.96 To Order
87787300 RH EXHAUST TAILPIPE TIP $741.57 To Order
Photo Part No Description Price (each) Stock
87787000 LH EXHAUST TAILPIPE TIP $486.27 To Order
87787200 LH EXHAUST TAILPIPE TIP $741.57 To Order
Photo Part No Description Price (each) Stock
85629300 SCREW M6 X 20 $0.62 To Order
Photo Part No Description Price (each) Stock
87547900 WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
80874300 CLIP $1.10 To Order
Photo Part No Description Price (each) Stock
87802400 RH LATERAL GRILLE $278.15 To Order
Photo Part No Description Price (each) Stock
87802300 LH LATERAL GRILLE $278.15 To Order
Photo Part No Description Price (each) Stock
87802600 RH LATERAL GRILLE DUCT $126.75 To Order
Photo Part No Description Price (each) Stock
87802500 LH LATERAL GRILLE DUCT $126.75 To Order
Photo Part No Description Price (each) Stock
14643293 RIVET $8.14 To Order
Photo Part No Description Price (each) Stock
14497724 WASHER $1.31 To Order
Photo Part No Description Price (each) Stock
87220700 RH HEAT VENT GRILLE $185.42 To Order
Photo Part No Description Price (each) Stock
87220800 LH HEAT VENT GRILLE $185.42 To Order
Photo Part No Description Price (each) Stock
14641593 Rivet fixing grill $0.21 To Order
Photo Part No Description Price (each) Stock
87803200 CENTRE GRILLE $317.87 To Order
Photo Part No Description Price (each) Stock
14643293 RIVET $8.14 To Order
Photo Part No Description Price (each) Stock
14497724 WASHER $1.31 To Order
Photo Part No Description Price (each) Stock
87803400 LATERAL GRILLE ON RH DIFFUSER $301.97 To Order
Photo Part No Description Price (each) Stock
87803300 LATERAL GRILLE ON LH DIFFUSER $278.15 To Order
Photo Part No Description Price (each) Stock
87809400 RH FIN $481.36 To Order
Photo Part No Description Price (each) Stock
87809100 LH FIN $481.36 To Order
Photo Part No Description Price (each) Stock
88822200 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
84806800 RH REFLECTOR $17.57 To Order
Photo Part No Description Price (each) Stock
84806900 LH REFLECTOR $17.57 To Order
Photo Part No Description Price (each) Stock
84784600 WASHER $22.51 To Order
Photo Part No Description Price (each) Stock
80874900 SCREW M6 X 22MM $1.22 To Order
Photo Part No Description Price (each) Stock
880041 Allen Head Bolt M6 X 26 $6.18 To Order
Photo Part No Description Price (each) Stock
87638400 CENTRE MOUNT FOR REAR BUMPER $45.85 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER $0.39 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
86864700 RH REAR LATERAL BUMPER MOUNT $22.45 To Order
Photo Part No Description Price (each) Stock
86864600 LH REAR LATERAL BUMPER MOUNT $22.45 To Order
Photo Part No Description Price (each) Stock
84029200 SEAL $5.36 To Order
Photo Part No Description Price (each) Stock
82118300 SCREW -No longer supplied- -Replaced by 11625714- $0.57 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
87398400 RH REAR BUMPER BRACKET UNDER TAILLIGHT $114.66 To Order
Photo Part No Description Price (each) Stock
87398600 LH REAR BUMPER BRACKET UNDER TAILLIGHT $108.92 To Order
Photo Part No Description Price (each) Stock
85629300 SCREW M6 X 20 $0.62 To Order
Photo Part No Description Price (each) Stock
80874300 CLIP $1.10 To Order
Photo Part No Description Price (each) Stock
69850100 CLIP $0.96 To Order
Photo Part No Description Price (each) Stock
798987 BATTERY CONDITIONER BRACKET $301.00 To Order
Photo Part No Description Price (each) Stock
795930 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
87940800 NUT $3.16 To Order
Photo Part No Description Price (each) Stock
314630 MAGNETIC BATTERY CONDITIONER SEALED SOCKET $449.27 To Order
Photo Part No Description Price (each) Stock
319478 REAR PARKING CAMERA $1,642.72 To Order
326604 REAR PARKING CAMERA $1,700.86 To Order
Photo Part No Description Price (each) Stock
87789200 PARKING CAMERA MOUNTING BRACKET $126.75 To Order
Photo Part No Description Price (each) Stock
87940800 NUT $3.16 To Order
Photo Part No Description Price (each) Stock
82679900 NUMBER PLATE HOLDER $224.63 To Order
82283200 REAR LICENSE PLATE MOUNTING $192.54 To Order
82287200 REAR LICENSE PLATE MOUNTING $272.77 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
88822200 SCREW $0.70 To Order
Photo Part No Description Price (each) Stock
62766300 SCRE CLIP M6 $0.76 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
84071400 CRASH-BOX CROSS MEMBER $1,347.85 To Order
Photo Part No Description Price (each) Stock
89050000 REAR BUMPER IMPACT ABSORBER $258.00 To Order
Photo Part No Description Price (each) Stock
900472 FASTENER BUTTON $0.52 To Order
900472 FASTENER BUTTON $0.52 To Order
Photo Part No Description Price (each) Stock
85833900 SCREW $0.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
12648925 WASHER $0.39 To Order
View All

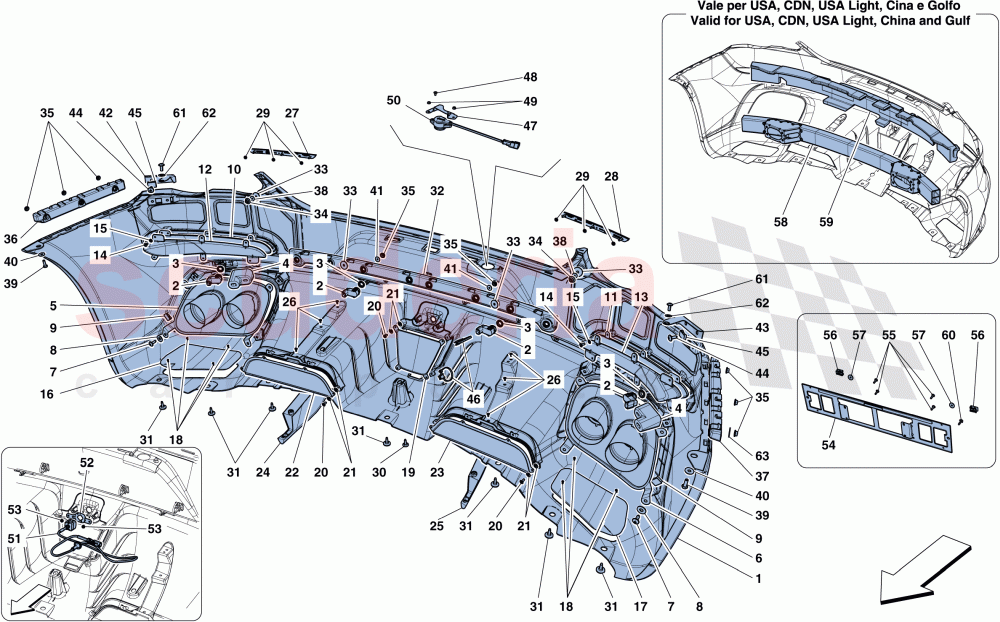

REAR BUMPER of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 89047210
REAR BUMPER
Sensors ordered separately; Applicable for Korea and Brazil; Not for USA, CDN, USA LIGHT 		$5,757.28 1
1 89294210
REAR BUMPER
Sensors ordered separately; Not for Korea and Brazil; Applicable for USA, CDN, USA LIGHT 		$5,757.28 1
2 295361
PARKING SENSOR 		$77.86 4
3 770452
SILICONE RING 		$9.09 4
4 87879200
PARKING SENSOR HEAT SHIELD 		$81.69 2
5 87787100
RH EXHAUST TAILPIPE TIP 		$461.96 1
5 87787300
RH EXHAUST TAILPIPE TIP
Version with sports tailpipes 		$741.57 1
6 87787000
LH EXHAUST TAILPIPE TIP 		$486.27 1
6 87787200
LH EXHAUST TAILPIPE TIP
Version with sports tailpipes 		$741.57 1
7 85629300
SCREW M6 X 20 		$0.62 8
8 87547900
WASHER 		$1.07 8
9 80874300
CLIP 		$1.10 (11.3% off) 8
10 87802400
RH LATERAL GRILLE 		$278.15 1
11 87802300
LH LATERAL GRILLE 		$278.15 1
12 87802600
RH LATERAL GRILLE DUCT 		$126.75 1
13 87802500
LH LATERAL GRILLE DUCT 		$126.75 1
14 14643293
RIVET 		$8.14 12
15 14497724
WASHER 		$1.31 12
16 87220700
RH HEAT VENT GRILLE 		$185.42 1
17 87220800
LH HEAT VENT GRILLE 		$185.42 1
18 14641593
Rivet fixing grill 		$0.21 8
19 87803200
CENTRE GRILLE 		$317.87 1
20 14643293
RIVET 		$8.14 12
21 14497724
WASHER 		$1.31 24
22 87803400
LATERAL GRILLE ON RH DIFFUSER 		$301.97 1
23 87803300
LATERAL GRILLE ON LH DIFFUSER 		$278.15 1
24 87809400
RH FIN 		$481.36 1
25 87809100
LH FIN 		$481.36 1
26 88822200
SCREW
M4 X 10 		$0.70 8
27 84806800
RH REFLECTOR 		$17.57 (5.6% off) 1
28 84806900
LH REFLECTOR 		$17.57 (5.6% off) 1
29 84784600
WASHER 		$22.51 8
30 80874900
SCREW M6 X 22MM
M6 X 22 		$1.22 3
31 880041
Allen Head Bolt M6 X 26
M6 X 22 		$6.18 7
32 87638400
CENTRE MOUNT FOR REAR BUMPER 		$45.85 1
33 12648925
WASHER 		$0.39 4
34 14059290
FLANGED NUT M6 		$1.51 2
35 14059290
FLANGED NUT M6 		$1.51 14
36 86864700
RH REAR LATERAL BUMPER MOUNT 		$22.45 1
37 86864600
LH REAR LATERAL BUMPER MOUNT 		$22.45 1
38 84029200
SEAL 		$5.36 2
39 82118300
SCREW -No longer supplied- -Replaced by 11625714- 		$0.57 2
40 12643724
WASHER 		$0.06 (88% off) 2
41 860172
WASHER 		- 8 Enquire
42 87398400
RH REAR BUMPER BRACKET UNDER TAILLIGHT 		$114.66 1
43 87398600
LH REAR BUMPER BRACKET UNDER TAILLIGHT 		$108.92 1
44 85629300
SCREW M6 X 20 		$0.62 4
45 80874300
CLIP 		$1.10 (11.3% off) 4
46 69850100
CLIP 		$0.96 2
47 798987
BATTERY CONDITIONER BRACKET 		$301.00 1
48 795930
SCREW
M4 X 8 		- 1 Enquire
49 87940800
NUT 		$3.16 2
50 314630
MAGNETIC BATTERY CONDITIONER SEALED SOCKET 		$449.27 1
51 319478
REAR PARKING CAMERA 		$1,642.72 1
51 326604
REAR PARKING CAMERA
Applicable for front and rear digital cameras 		$1,700.86 1
52 87789200
PARKING CAMERA MOUNTING BRACKET 		$126.75 1
53 87940800
NUT 		$3.16 2
54 82679900
NUMBER PLATE HOLDER
Not for UAE; Applicable for GOLFO 		$224.63 1
54 82283200
REAR LICENSE PLATE MOUNTING
Not applicable for Korea; Applicable for USA, CDN, USA LIGHT 		$192.54 (18.5% off) 1
54 82287200
REAR LICENSE PLATE MOUNTING
Applicable for AUS, CINA 		$272.77 1
54 82289300
REAR LICENSE PLATE MOUNTING
Applicable for J 		$272.77 1
54 82283100
REAR LICENSE PLATE HOLDER
Applicable for UAE; Applicable for Korea; Applicable for EU GS, UK 		$71.66 1
55 88822200
SCREW
Not applicable for Korea 		$0.70 4
56 62766300
SCRE CLIP M6 		$0.76 2
57 11197774
WASHER 		$0.06 (80% off) 2
58 84071400
CRASH-BOX CROSS MEMBER
Applicable for CINA, USA, CDN, GOLFO, USA LIGHT 		$1,347.85 1
59 89050000
REAR BUMPER IMPACT ABSORBER
Applicable for CINA, USA, CDN, GOLFO, USA LIGHT 		$258.00 1
60 900472
FASTENER BUTTON
Applicable for Korea; Applicable for EU GS, UK 		$0.52 4
60 900472
FASTENER BUTTON
Applicable for USA, CDN, GOLFO 		$0.52 4
61 85833900
SCREW
M5 X 14
ARRIVING SOON 		$0.36 2
62 12643724
WASHER 		$0.06 (88% off) 2
63 12648925
WASHER 		$0.39 2
