Name: FUEL FILLER FLAP AND CONTROLS
Rating: 4.4 (1 reviews)

View All

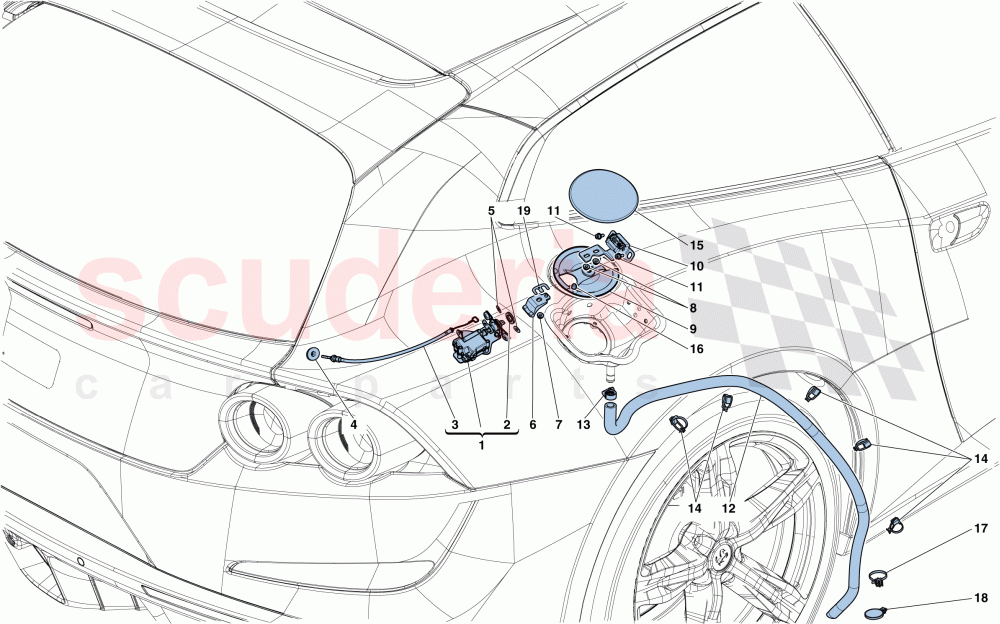

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	86009000	COMPL. FUEL FILLER FLAP ACTUATOR	$131.56	To Order

Photo	Part No	Description	Price (each)	Stock
	67067600	GASKET	$3.95	To Order

Photo	Part No	Description	Price (each)	Stock
	85111100	COMPL. ACTUATOR CORD	$114.66	To Order

Photo	Part No	Description	Price (each)	Stock
	10396180	CABLE GROMMET	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	83993500	STRIKER FOR ACTUATOR	$62.56	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	820881	INNER COVER FOR FUEL FILLER FLAP	$18.62	To Order

Photo	Part No	Description	Price (each)	Stock
	83993700	COMPL. HINGE	$106.07	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	$1.31	To Order

Photo	Part No	Description	Price (each)	Stock
	88983100	DRAIN PIPE	$22.92	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	87214611	FUEL FILLER FLAP	$258.00	To Order

Photo	Part No	Description	Price (each)	Stock
	81802300	RUBBER PAD	$1.15	To Order

Photo	Part No	Description	Price (each)	Stock
	279762	CLAMP	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	84046900	SHIM PLATE	$9.61	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	86009000	COMPL. FUEL FILLER FLAP ACTUATOR	86009000 COMPL. FUEL FILLER FLAP ACTUATOR	$131.56 MSRP: ~~169.92~~ (22.6% off)	1
2	67067600	GASKET	67067600 GASKET	$3.95	1
3	85111100	COMPL. ACTUATOR CORD	85111100 COMPL. ACTUATOR CORD	$114.66	1
4	10396180	CABLE GROMMET	10396180 CABLE GROMMET	$2.84	1
5	12638124	WASHER	12638124 WASHER	$0.05 MSRP: ~~0.70~~ (92.9% off)	4
6	83993500	STRIKER FOR ACTUATOR	83993500 STRIKER FOR ACTUATOR	$62.56	1
7	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
9	820881	INNER COVER FOR FUEL FILLER FLAP	820881 INNER COVER FOR FUEL FILLER FLAP	$18.62	1
10	83993700	COMPL. HINGE	83993700 COMPL. HINGE	$106.07	1
11	11566227	SCREW	11566227 SCREW M5 X 14	$1.31	2
12	88983100	DRAIN PIPE	88983100 DRAIN PIPE	$22.92	1
13	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	1
13	13433570	HOSE COLLAR	13433570 HOSE COLLAR No longer supplied; Replaced by 13000190	$0.75	1
14	177553	CLAMP	177553 CLAMP	$0.45 MSRP: ~~1.25~~ (64% off)	5
15	87214611	FUEL FILLER FLAP	87214611 FUEL FILLER FLAP	$258.00	1
16	81802300	RUBBER PAD	81802300 RUBBER PAD	$1.15	2
17	279762	CLAMP	279762 CLAMP	$0.50	1
18	303385	CLIP	303385 CLIP	$0.31	1
19	84046900	SHIM PLATE	84046900 SHIM PLATE	$9.61	1
