WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari GTC4Lusso

View All

Ferrari GTC4Lusso - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

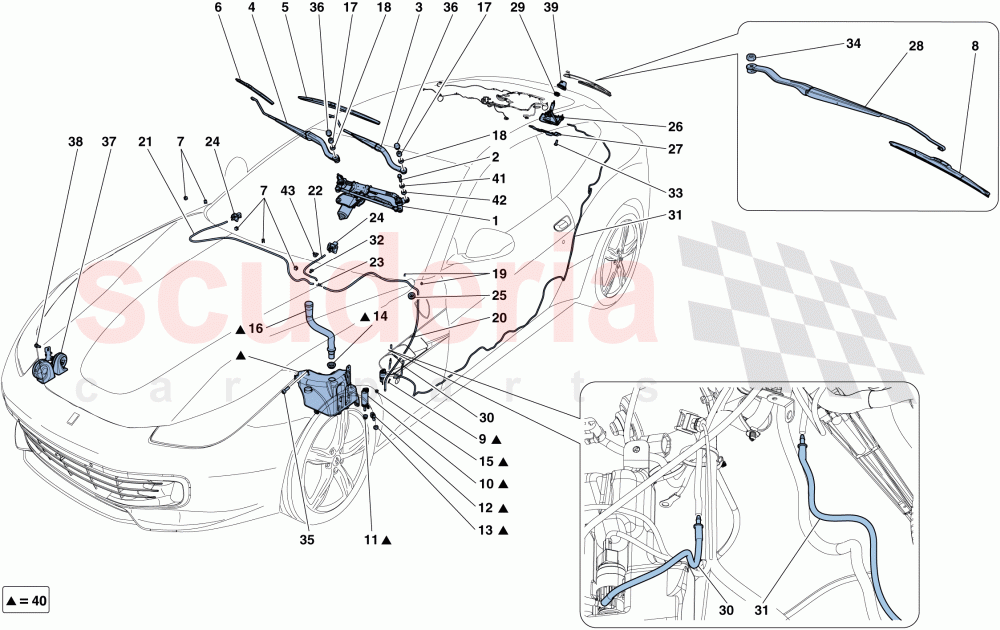

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84108900	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	Enquire	To Order
	84198200	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10903034	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84142200	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	83994400	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82196200	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	83994500	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82196700	DRIVER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order
	83994700	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82196500	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order
	83994600	DRIVER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14501087	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80843800	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81632900	WINDSCREEN WASHER PUMP	Enquire	To Order
	84028600	DUAL OUTLET SCREEN WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81633000	HEADLIGHT WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65511700	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81633100	FLUID LEVEL SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	81633200	LEVEL SENSOR SEAL	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	82198600	FILLER PIPE SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82198700	FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order
	303385	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82199600	PIPE FROM ELECTRIC PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82199700	PIPE FROM VALVE TO RH NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82199800	PIPE FROM VALVE TO LH NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84019400	SPRAY NOZZLE	Enquire	To Order
	84019400	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308092	NITTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82751800	REAR SCREEN WIPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87341400	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84191500	REAR SCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82322600	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84176500	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84176600	COMPL. PASSENGER COMPARTMENT REAR SCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81097300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046112	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	325590	HORN COMPLETE WITH BRACKET	Enquire	To Order
	339757	HORN COMPLETE WITH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84307100	SPRAY NOZZLE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82197100	Complete Windscreen/Headlight Washer Resevoir	Enquire	To Order
	84028500	COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84108900	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	84108900 WINDSCREEN WIPER WITH MOTOR AND LINKAGES Not for GD	-	1	Enquire
1	84198200	WINDSCREEN WIPER WITH MOTOR AND LINKAGES	84198200 WINDSCREEN WIPER WITH MOTOR AND LINKAGES Applicable for GD	-	1	Enquire
2	10903034	SCREW	10903034 SCREW M6 X 35	-	3	Enquire
3	84142200	DRIVER SIDE WINDSCREEN WIPER ARM	84142200 DRIVER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
3	83994400	DRIVER SIDE WINDSCREEN WIPER ARM	83994400 DRIVER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
4	82196200	PASSENGER SIDE WINDSCREEN WIPER ARM	82196200 PASSENGER SIDE WINDSCREEN WIPER ARM Not for GD	-	1	Enquire
4	83994500	PASSENGER SIDE WINDSCREEN WIPER ARM	83994500 PASSENGER SIDE WINDSCREEN WIPER ARM Applicable for GD	-	1	Enquire
5	82196700	DRIVER SIDE WINDSCREEN WIPER BLADE	82196700 DRIVER SIDE WINDSCREEN WIPER BLADE Not for GD	-	1	Enquire
5	83994700	PASSENGER SIDE WINDSCREEN WIPER BLADE	83994700 PASSENGER SIDE WINDSCREEN WIPER BLADE Applicable for GD	-	1	Enquire
6	82196500	PASSENGER SIDE WINDSCREEN WIPER BLADE	82196500 PASSENGER SIDE WINDSCREEN WIPER BLADE Not for GD	-	1	Enquire
6	83994600	DRIVER SIDE WINDSCREEN WIPER BLADE	83994600 DRIVER SIDE WINDSCREEN WIPER BLADE Applicable for GD	-	1	Enquire
7	14501087	CLIP	14501087 CLIP	-	5	Enquire
8	80843800	PASSENGER SIDE WINDSCREEN WIPER BLADE	80843800 PASSENGER SIDE WINDSCREEN WIPER BLADE Version with rear windscreen wiper	-	1	Enquire
9	81632900	WINDSCREEN WASHER PUMP	81632900 WINDSCREEN WASHER PUMP	-	1	Enquire
9	84028600	DUAL OUTLET SCREEN WASHER PUMP	84028600 DUAL OUTLET SCREEN WASHER PUMP Version with rear windscreen wiper	-	1	Enquire
10	81633000	HEADLIGHT WASHER PUMP	81633000 HEADLIGHT WASHER PUMP	-	1	Enquire
11	65511700	GASKET	65511700 GASKET	-	1	Enquire
12	81633100	FLUID LEVEL SENSOR ARRIVING SOON	81633100 FLUID LEVEL SENSOR ARRIVING SOON	-	1	Enquire
13	81633200	LEVEL SENSOR SEAL ARRIVING SOON	81633200 LEVEL SENSOR SEAL For sensor ARRIVING SOON	-	1	Enquire
14	82198600	FILLER PIPE SEAL	82198600 FILLER PIPE SEAL	-	1	Enquire
15	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	-	1	Enquire
16	82198700	FILLER PIPE	82198700 FILLER PIPE	-	1	Enquire
17	10791011	NUT	10791011 NUT	-	2	Enquire
18	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
19	248061	CLIP	248061 CLIP	-	1	Enquire
19	303385	CLIP	303385 CLIP	-	1	Enquire
20	82199600	PIPE FROM ELECTRIC PUMP	82199600 PIPE FROM ELECTRIC PUMP	-	1	Enquire
21	82199700	PIPE FROM VALVE TO RH NOZZLE	82199700 PIPE FROM VALVE TO RH NOZZLE	-	1	Enquire
22	82199800	PIPE FROM VALVE TO LH NOZZLE	82199800 PIPE FROM VALVE TO LH NOZZLE	-	1	Enquire
23	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
24	84019400	SPRAY NOZZLE	84019400 SPRAY NOZZLE	-	2	Enquire
24	84019400	SPRAY NOZZLE	84019400 SPRAY NOZZLE Heated nozzles	-	2	Enquire
25	308092	NITTO	308092 NITTO	-	1	Enquire
26	82751800	REAR SCREEN WIPER	82751800 REAR SCREEN WIPER Version with rear windscreen wiper	-	1	Enquire
27	87341400	BRACKET	87341400 BRACKET Version with rear windscreen wiper	-	1	Enquire
28	84191500	REAR SCREEN WIPER ARM	84191500 REAR SCREEN WIPER ARM Version with rear windscreen wiper	-	1	Enquire
29	82322600	GASKET	82322600 GASKET Version with rear windscreen wiper	-	1	Enquire
30	84176500	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	84176500 PIPE FROM RESERVOIR TO DISCONNECTOR UNION Version with rear windscreen wiper	-	1	Enquire
31	84176600	COMPL. PASSENGER COMPARTMENT REAR SCREEN WASHER PIPE	84176600 COMPL. PASSENGER COMPARTMENT REAR SCREEN WASHER PIPE Version with rear windscreen wiper	-	1	Enquire
32	81097300	CLIP	81097300 CLIP	-	1	Enquire
33	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 16	-	3	Enquire
34	13046112	NUT	13046112 NUT Version with rear windscreen wiper	-	1	Enquire
35	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20 X 22; Fastening tank to chassis	-	3	Enquire
36	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP	-	2	Enquire
37	325590	HORN COMPLETE WITH BRACKET	325590 HORN COMPLETE WITH BRACKET Not for USA, CDN, USA LIGHT	-	1	Enquire
37	339757	HORN COMPLETE WITH BRACKET	339757 HORN COMPLETE WITH BRACKET Applicable for USA, CDN, USA LIGHT	-	1	Enquire
38	13839224	SCREW	13839224 SCREW M8 X 25	-	1	Enquire
39	84307100	SPRAY NOZZLE COVER	84307100 SPRAY NOZZLE COVER	-	1	Enquire
40	82197100	Complete Windscreen/Headlight Washer Resevoir	82197100 Complete Windscreen/Headlight Washer Resevoir	-	1	Enquire
40	84028500	COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR	84028500 COMPL. WINDSCREEN /HEADLIGHT WASHER RESERVOIR Version with rear windscreen wiper	-	1	Enquire
41	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	3	Enquire
42	12648925	WASHER	12648925 WASHER	-	3	Enquire
43	250318	SNAP CLIP	250318 SNAP CLIP	-	1	Enquire
