Ferrari GTC4Lusso - AC SYSTEM - WATER AND FREON

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67635900 RH TGK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
67444900 LH TGK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
14059211 NUT Enquire To Order
Photo Part No Description Price (each) Stock
84066200 TGK VALVE MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
67933600 TGK VALVE FASTENER ROD Enquire To Order
Photo Part No Description Price (each) Stock
748925 RUBBER CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
266390 PIPE FROM HEATER TO UPPER TGK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
266391 PIPE FROM HEATER TO LOWER TGK VALVE Enquire To Order
Photo Part No Description Price (each) Stock
292150 CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
292151 PIPE FROM TGK TO ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
273206 CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
272548 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
252473 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
291283 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
81970900 AC WATER PIPE SEAL Enquire To Order
Photo Part No Description Price (each) Stock
81895900 AC WATER PIPE SEAL Enquire To Order
Photo Part No Description Price (each) Stock
296778 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
13433370 Screw Collar Enquire To Order
Photo Part No Description Price (each) Stock
86574700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
231625 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
320011 COMPL. IHX GAS PIPE Enquire To Order
Photo Part No Description Price (each) Stock
231620 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
149707 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
298580 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
320013 GAS PIPE FROM DISCONNECTOR UNION TO IHX Enquire To Order
Photo Part No Description Price (each) Stock
86574700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
16044024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14066017 NUT Enquire To Order
Photo Part No Description Price (each) Stock
14040614 NUT Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13097190 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10441390 P clip Bracket With Sheath D.12 Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
320012 GAS PIPE FROM IHX TO COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
271752 METAL PIPE TO PUMP Enquire To Order
Photo Part No Description Price (each) Stock
276915 PIPE FROM PUMP TO AC UNIT Enquire To Order
Photo Part No Description Price (each) Stock
325555 PIPE FROM CONDENSER TO DISCONNECTOR UNION Enquire To Order
Photo Part No Description Price (each) Stock
325554 PIPE FROM DISCONNECTOR UNION TO CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
267538 CONNECTOR PIPE Enquire To Order
Photo Part No Description Price (each) Stock
260083 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
326221 IDLE SPEED PUMP MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
291349 WATER RECIRCULATION PUMP Enquire To Order
Photo Part No Description Price (each) Stock
82268600 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
268487 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
259508 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
267177 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
14066017 NUT Enquire To Order
Photo Part No Description Price (each) Stock
14450484 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10318884 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
13442484 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
14450684 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
10319184 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
11342584 GASKET Enquire To Order
View All

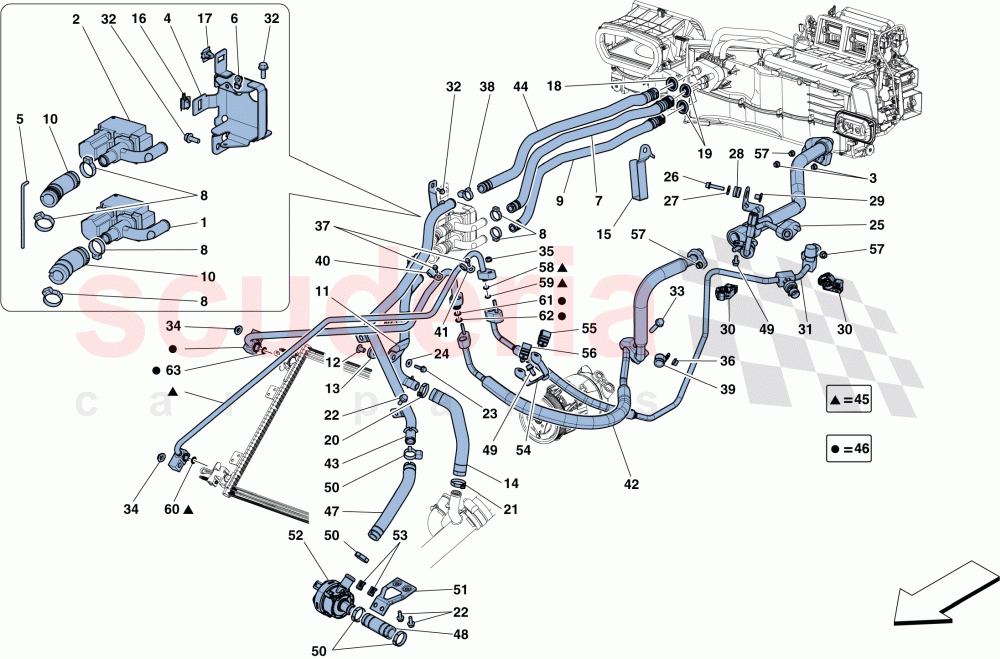

AC SYSTEM - WATER AND FREON of Ferrari Ferrari GTC4Lusso Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67635900
RH TGK VALVE 		- 1 Enquire
2 67444900
LH TGK VALVE 		- 1 Enquire
3 14059211
NUT 		- 2 Enquire
4 84066200
TGK VALVE MOUNTING BRACKET 		- 1 Enquire
5 67933600
TGK VALVE FASTENER ROD 		- 1 Enquire
6 748925
RUBBER CABLE GROMMET 		- 1 Enquire
7 266390
PIPE FROM HEATER TO UPPER TGK VALVE 		- 1 Enquire
8 262111
JUBILEE CLAMP 		- 6 Enquire
9 266391
PIPE FROM HEATER TO LOWER TGK VALVE 		- 1 Enquire
10 292150
CONNECTOR PIPE 		- 2 Enquire
11 292151
PIPE FROM TGK TO ENGINE 		- 1 Enquire
12 149707
SPACER 		- 2 Enquire
13 812273
CABLE GROMMET 		- 2 Enquire
14 273206
CONNECTOR PIPE 		- 1 Enquire
15 272548
BRACKET 		- 1 Enquire
16 252473
CLIP 		- 1 Enquire
17 291283
CLIP 		- 1 Enquire
18 81970900
AC WATER PIPE SEAL 		- 1 Enquire
19 81895900
AC WATER PIPE SEAL 		- 2 Enquire
20 296778
SCREW COLLAR 		- 1 Enquire
21 13433370
Screw Collar 		- 1 Enquire
22 86574700
SCREW
M6 X 16 		- 4 Enquire
23 231625
SCREW
M6 X 25 		- 2 Enquire
24 12643724
WASHER 		- 2 Enquire
25 320011
COMPL. IHX GAS PIPE 		- 1 Enquire
26 231620
SCREW 		- 1 Enquire
27 12643724
WASHER 		- 1 Enquire
28 812273
CABLE GROMMET 		- 1 Enquire
29 149707
SPACER 		- 1 Enquire
30 298580
CLIP 		- 2 Enquire
31 320013
GAS PIPE FROM DISCONNECTOR UNION TO IHX 		- 1 Enquire
32 86574700
SCREW
M6 X 16 		- 6 Enquire
33 16044024
SCREW
M8 X 40 		- 1 Enquire
34 14066017
NUT 		- 2 Enquire
35 14040614
NUT 		- 2 Enquire
36 14059290
FLANGED NUT M6 		- 1 Enquire
37 11568124
SCREW
M5 X 16 		- 2 Enquire
38 13097190
COLLAR 		- 1 Enquire
39 10441290
BRACKET WITH SHEATH 		- 1 Enquire
40 10441390
P clip Bracket With Sheath D.12
D. 12 		- 1 Enquire
41 10441290
BRACKET WITH SHEATH
D. 10 		- 1 Enquire
42 320012
GAS PIPE FROM IHX TO COMPRESSOR 		- 1 Enquire
43 271752
METAL PIPE TO PUMP 		- 1 Enquire
44 276915
PIPE FROM PUMP TO AC UNIT 		- 1 Enquire
45 325555
PIPE FROM CONDENSER TO DISCONNECTOR UNION 		- 1 Enquire
46 325554
PIPE FROM DISCONNECTOR UNION TO CONDENSER 		- 1 Enquire
47 267538
CONNECTOR PIPE 		- 1 Enquire
48 260083
HOSE 		- 1 Enquire
49 248334
SCREW M6 X 14MM
M6 X 14 		- 2 Enquire
50 262111
JUBILEE CLAMP 		- 4 Enquire
51 326221
IDLE SPEED PUMP MOUNTING BRACKET 		- 1 Enquire
52 291349
WATER RECIRCULATION PUMP 		- 1 Enquire
53 82268600
CLIP 		- 2 Enquire
54 268487
BRACKET
Fastening AC pipes to diagonal brace 		- 1 Enquire
55 259508
CLIP 		- 1 Enquire
56 267177
CLIP 		- 1 Enquire
57 14066017
NUT 		- 3 Enquire
58 14450484
GASKET 		- 1 Enquire
59 10318884
GASKET 		- 1 Enquire
60 13442484
GASKET 		- 1 Enquire
61 14450684
GASKET 		- 1 Enquire
62 10319184
GASKET 		- 1 Enquire
63 11342584
GASKET 		- 1 Enquire
