FLAT UNDERTRAY AND WHEELHOUSES of Ferrari Ferrari FF

View All

Ferrari FF - FLAT UNDERTRAY AND WHEELHOUSES

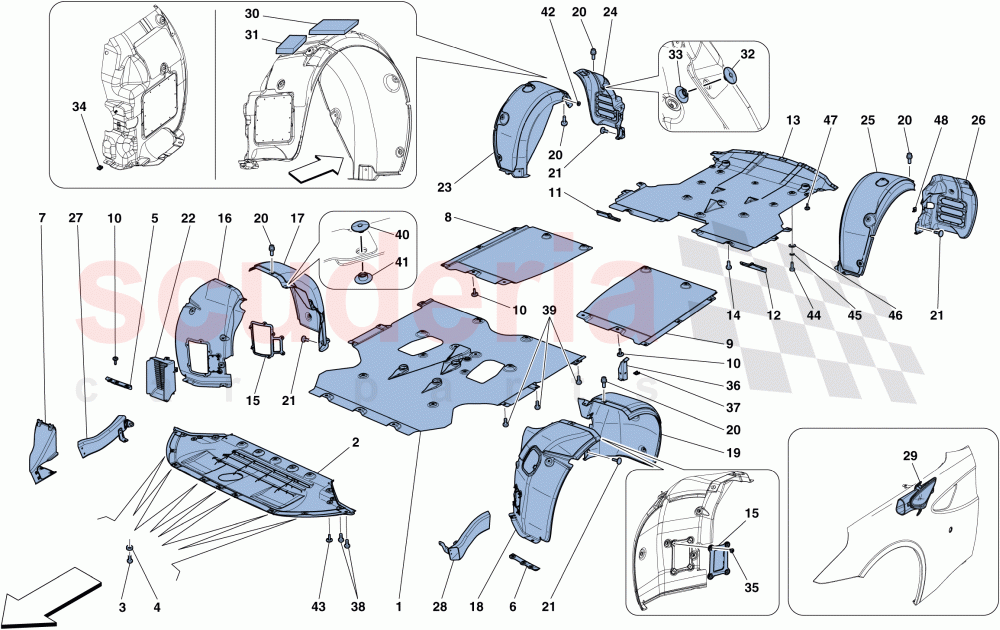

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	84056800	FRONT FLAT UNDERTRAY SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89378100	COMPL. FRONT FLAT UNDERTRAY SECTION-BUMPER CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105864	SPACER WASHER D.6.5-24X1.5	Enquire	To Order
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83719100	RH FRONT DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83719200	LH FRONT DAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84092900	RH AIR DUCT, FIXED PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82602000	RH CENTRE FLAT UNDERTRAY SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82602100	LH CENTRE FLAT UNDERTRAY SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84057000	REAR FLAT UNDERTRAY SECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83584900	RH SWITCH SURROUND	Enquire	To Order
	83585000	LH SWITCH SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83296700	COMPL. SHIELD FOR FRONT PART OF FRONT RH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83296900	SHIELD FOR REAR PART OF FRONT RH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83296800	COMPL. SHIELD FOR FRONT PART OF FRONT LH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83297000	SHIELD FOR REAR PART OF FRONT LH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874900	SCREW M6 X 22MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14591687	FASTENER BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84093000	AIR OUTLET DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86391800	SHIELD FOR FRONT PART OF REAR RH WHEEL BAY	Enquire	To Order
	84055400	SHIELD FOR FRONT PART OF REAR RH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84055200	SHIELD FOR REAR PART OF REAR RH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84055700	SHIELD FOR FRONT PART OF REAR LH WHEEL BAY	Enquire	To Order
	86392300	SHIELD FOR FRONT PART OF REAR LH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84055600	SHIELD FOR REAR PART OF REAR LH WHEEL BAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83565300	RH BRAKE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83565400	LH BRAKE AIR DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86015000	FRONT RH FENDER AIR OUTLET DUCT	Enquire	To Order
	86015100	FRONT LH FENDER AIR OUTLET DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84058800	INSULATION FOR WHEELHOUSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84059100	INSULATION FOR FUEL FILLER NECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84247300	MALE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84247400	FEMALE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85824800	SCREW M5 X 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84920600	LH MOUNT BRACKET	Enquire	To Order
	84151800	RH MOUNT BRACKET	Enquire	To Order
	84920500	RH MOUNT BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68700800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84247300	MALE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84247400	FEMALE CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	880041	Allen Head Bolt M6 X 26	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12648925	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82115900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81182200	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	84056800	FRONT FLAT UNDERTRAY SECTION	84056800 FRONT FLAT UNDERTRAY SECTION	-	1	Enquire
2	89378100	COMPL. FRONT FLAT UNDERTRAY SECTION-BUMPER CONNECTOR	89378100 COMPL. FRONT FLAT UNDERTRAY SECTION-BUMPER CONNECTOR	-	1	Enquire
3	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	7	Enquire
4	105864	SPACER WASHER D.6.5-24X1.5	105864 SPACER WASHER D.6.5-24X1.5 D. 6.5-24 X 1.5; Installed if necessary	-	7	Enquire
4	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2 D. 10.5-21 X 2; Installed if necessary	-	7	Enquire
5	83719100	RH FRONT DAM	83719100 RH FRONT DAM	-	1	Enquire
6	83719200	LH FRONT DAM	83719200 LH FRONT DAM	-	1	Enquire
7	84092900	RH AIR DUCT, FIXED PART	84092900 RH AIR DUCT, FIXED PART	-	1	Enquire
8	82602000	RH CENTRE FLAT UNDERTRAY SECTION	82602000 RH CENTRE FLAT UNDERTRAY SECTION	-	1	Enquire
9	82602100	LH CENTRE FLAT UNDERTRAY SECTION	82602100 LH CENTRE FLAT UNDERTRAY SECTION	-	1	Enquire
10	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20 X 22	-	6	Enquire
10	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 No longer supplied; Replaced by 81290900	-	4	Enquire
13	84057000	REAR FLAT UNDERTRAY SECTION	84057000 REAR FLAT UNDERTRAY SECTION	-	1	Enquire
14	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 No longer supplied; Replaced by 81290900	-	2	Enquire
14	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 20 X 22	-	9	Enquire
15	83584900	RH SWITCH SURROUND	83584900 RH SWITCH SURROUND	-	1	Enquire
15	83585000	LH SWITCH SURROUND	83585000 LH SWITCH SURROUND	-	1	Enquire
16	83296700	COMPL. SHIELD FOR FRONT PART OF FRONT RH WHEEL BAY	83296700 COMPL. SHIELD FOR FRONT PART OF FRONT RH WHEEL BAY Also order 83296900 ref. 17, 83296800 ref. 18, 83297000 ref. 19	-	1	Enquire
17	83296900	SHIELD FOR REAR PART OF FRONT RH WHEEL BAY	83296900 SHIELD FOR REAR PART OF FRONT RH WHEEL BAY Also order 83296700 ref. 16, 83296800 ref. 18, 83297000 ref. 19	-	1	Enquire
18	83296800	COMPL. SHIELD FOR FRONT PART OF FRONT LH WHEEL BAY	83296800 COMPL. SHIELD FOR FRONT PART OF FRONT LH WHEEL BAY Also order 83296700 ref. 16, 83296900 ref. 17, 83297000 ref. 19	-	1	Enquire
19	83297000	SHIELD FOR REAR PART OF FRONT LH WHEEL BAY	83297000 SHIELD FOR REAR PART OF FRONT LH WHEEL BAY Also order 83296700 ref. 16, 83296900 ref. 17, 83296800 ref. 18	-	1	Enquire
20	80874900	SCREW M6 X 22MM	80874900 SCREW M6 X 22MM	-	30	Enquire
21	14591687	FASTENER BUTTON	14591687 FASTENER BUTTON	-	12	Enquire
22	84093000	AIR OUTLET DUCT	84093000 AIR OUTLET DUCT	-	1	Enquire
23	86391800	SHIELD FOR FRONT PART OF REAR RH WHEEL BAY	86391800 SHIELD FOR FRONT PART OF REAR RH WHEEL BAY Applicable for Geneva version; Also order 86392300 ref. 25	-	1	Enquire
23	84055400	SHIELD FOR FRONT PART OF REAR RH WHEEL BAY	84055400 SHIELD FOR FRONT PART OF REAR RH WHEEL BAY Not for Geneva version; Also order 84055700 ref. 25	-	1	Enquire
24	84055200	SHIELD FOR REAR PART OF REAR RH WHEEL BAY	84055200 SHIELD FOR REAR PART OF REAR RH WHEEL BAY Also order 84055600 ref. 26	-	1	Enquire
25	84055700	SHIELD FOR FRONT PART OF REAR LH WHEEL BAY	84055700 SHIELD FOR FRONT PART OF REAR LH WHEEL BAY Not for Geneva version; Also order 84055400 ref. 23	-	1	Enquire
25	86392300	SHIELD FOR FRONT PART OF REAR LH WHEEL BAY	86392300 SHIELD FOR FRONT PART OF REAR LH WHEEL BAY Applicable for Geneva version; Also order 86391800 ref. 23	-	1	Enquire
26	84055600	SHIELD FOR REAR PART OF REAR LH WHEEL BAY	84055600 SHIELD FOR REAR PART OF REAR LH WHEEL BAY Also order 84055200 ref. 24	-	1	Enquire
27	83565300	RH BRAKE AIR DUCT	83565300 RH BRAKE AIR DUCT	-	1	Enquire
28	83565400	LH BRAKE AIR DUCT	83565400 LH BRAKE AIR DUCT	-	1	Enquire
29	86015000	FRONT RH FENDER AIR OUTLET DUCT	86015000 FRONT RH FENDER AIR OUTLET DUCT	-	1	Enquire
29	86015100	FRONT LH FENDER AIR OUTLET DUCT	86015100 FRONT LH FENDER AIR OUTLET DUCT	-	1	Enquire
30	84058800	INSULATION FOR WHEELHOUSE	84058800 INSULATION FOR WHEELHOUSE Applicable until depletion	-	1	Enquire
31	84059100	INSULATION FOR FUEL FILLER NECK	84059100 INSULATION FOR FUEL FILLER NECK	-	1	Enquire
32	84247300	MALE CLIP	84247300 MALE CLIP	-	4	Enquire
33	84247400	FEMALE CLIP	84247400 FEMALE CLIP	-	4	Enquire
34	80874300	CLIP	80874300 CLIP	-	7	Enquire
35	85824800	SCREW M5 X 16	85824800 SCREW M5 X 16	-	4	Enquire
36	84920600	LH MOUNT BRACKET	84920600 LH MOUNT BRACKET Applicable from Ass. No. 107348	-	1	Enquire
36	84151800	RH MOUNT BRACKET	84151800 RH MOUNT BRACKET Applicable up to Ass. No. 107347	-	1	Enquire
36	84920500	RH MOUNT BRACKET	84920500 RH MOUNT BRACKET Applicable from Ass. No. 107348	-	1	Enquire
36	84486400	LH MOUNT BRACKET	84486400 LH MOUNT BRACKET Applicable up to Ass. No. 107347	-	1	Enquire
37	68700800	CLIP	68700800 CLIP	-	2	Enquire
38	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	6	Enquire
39	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	6	Enquire
40	84247300	MALE CLIP	84247300 MALE CLIP	-	6	Enquire
41	84247400	FEMALE CLIP	84247400 FEMALE CLIP	-	6	Enquire
42	12643724	WASHER	12643724 WASHER	-	1	Enquire
43	880041	Allen Head Bolt M6 X 26	880041 Allen Head Bolt M6 X 26 M6 X 22	-	2	Enquire
44	231620	SCREW	231620 SCREW M6 X 30	-	4	Enquire
45	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
46	12648925	WASHER	12648925 WASHER	-	4	Enquire
47	82115900	SCREW	82115900 SCREW M6 X 14	-	2	Enquire
48	81182200	CLIP	81182200 CLIP	-	2	Enquire
