DOORS - OPENING MECHANISM AND HINGES of Ferrari Ferrari FF

View All

Ferrari FF - DOORS - OPENING MECHANISM AND HINGES

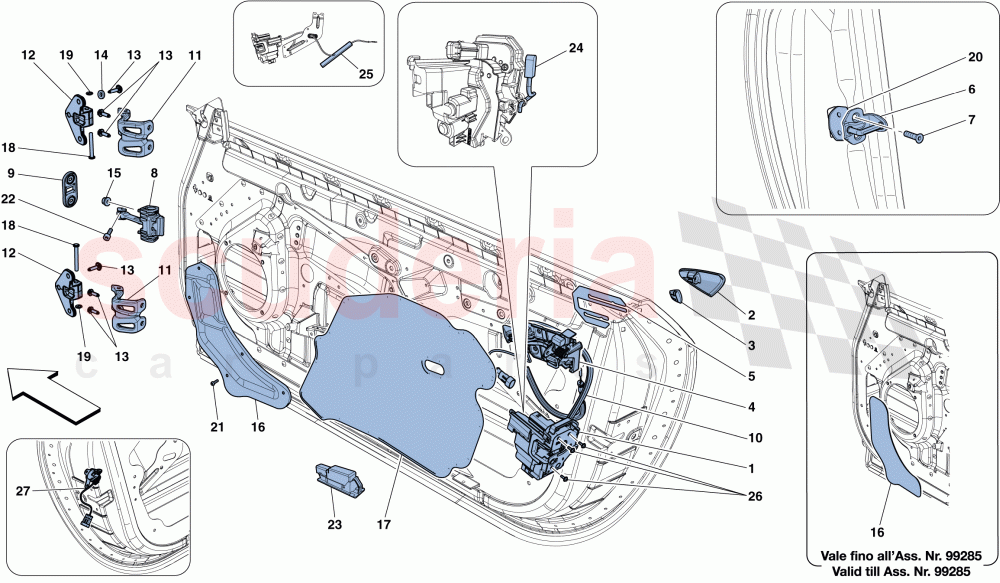

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	85011100	LH DOOR LOCK	Enquire	To Order
	85011300	LH DOOR LOCK	Enquire	To Order
	85011200	RH DOOR LOCK	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	69979100	LH EXTERNAL DOOR HANDLE	Enquire	To Order
	69978900	RH EXTERNAL DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81328000	RH GASKET	Enquire	To Order
	81327900	LH GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87290700	RH OUTER DOOR HANDLE MODULE	Enquire	To Order
	80821800	LH OUTER DOOR HANDLE MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80821900	EXTERNAL DOOR HANDLE SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69756900	DOOR LOCK STRIKER PLATE	Enquire	To Order
	85052500	DOOR LOCK STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85052700	SCREW	Enquire	To Order
	14442434	SCREW	Enquire	To Order
	84919600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83897000	DOOR CHECK STRAP SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69877100	BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83208000	DOOR HINGE, MOBILE PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84095000	DOOR HINGE, COMPL. FIXED PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	263276	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82288900	LH FRONT MEMBRANE	Enquire	To Order
	84383000	LH DOOR WATERPROOFING BRACKET	Enquire	To Order
	82288800	FRONT RH MEMBRANE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	82208700	RH REAR MEMBRANE	Enquire	To Order
	82208800	LH REAR MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83292400	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087974	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80763800	DOOR STRIKER PLATE SHIM	Enquire	To Order
	85052600	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14442134	SCREW	Enquire	To Order
	84872900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188250	DOME LAMP UNIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	82280100	COMPL. LH DOOR LATCH LEVER	Enquire	To Order
	83999500	COMPL. RH DOOR LATCH LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	82936500	PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80874100	SCREW	Enquire	To Order
	46401657	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89180700	LATCH HOLDER	Enquire	To Order
	89180800	LATCH HOLDER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	85011100	LH DOOR LOCK	85011100 LH DOOR LOCK Not for GD	-	1	Enquire
1	85011300	LH DOOR LOCK	85011300 LH DOOR LOCK Applicable for GD	-	1	Enquire
1	85011200	RH DOOR LOCK	85011200 RH DOOR LOCK Not for GD	-	1	Enquire
1	85011400	RH DOOR LOCK	85011400 RH DOOR LOCK Applicable for GD	-	1	Enquire
2	69979100	LH EXTERNAL DOOR HANDLE	69979100 LH EXTERNAL DOOR HANDLE	-	1	Enquire
2	69978900	RH EXTERNAL DOOR HANDLE	69978900 RH EXTERNAL DOOR HANDLE	-	1	Enquire
3	81328000	RH GASKET	81328000 RH GASKET	-	1	Enquire
3	81327900	LH GASKET	81327900 LH GASKET	-	1	Enquire
4	87290700	RH OUTER DOOR HANDLE MODULE	87290700 RH OUTER DOOR HANDLE MODULE	-	1	Enquire
4	80821800	LH OUTER DOOR HANDLE MODULE	80821800 LH OUTER DOOR HANDLE MODULE	-	1	Enquire
5	80821900	EXTERNAL DOOR HANDLE SPACER	80821900 EXTERNAL DOOR HANDLE SPACER	-	4	Enquire
6	69756900	DOOR LOCK STRIKER PLATE	69756900 DOOR LOCK STRIKER PLATE Applicable up to Ass. No. 114689	-	2	Enquire
6	85052500	DOOR LOCK STRIKER PLATE	85052500 DOOR LOCK STRIKER PLATE Grey; Applicable from Ass. No. 114690	-	2	Enquire
7	85052700	SCREW	85052700 SCREW M8 X 45; Grey; Applicable from Ass. No. 114690	-	4	Enquire
7	14442434	SCREW	14442434 SCREW M8 X 40; No longer supplied; Replaced by 84919600	-	4	Enquire
7	84919600	SCREW	84919600 SCREW M8 X 45; Applicable up to Ass. No. 114689	-	4	Enquire
9	83897000	DOOR CHECK STRAP SEAL	83897000 DOOR CHECK STRAP SEAL	-	2	Enquire
10	69877100	BOWDEN CABLE	69877100 BOWDEN CABLE	-	2	Enquire
11	83208000	DOOR HINGE, MOBILE PART	83208000 DOOR HINGE, MOBILE PART	-	4	Enquire
12	84095000	DOOR HINGE, COMPL. FIXED PART	84095000 DOOR HINGE, COMPL. FIXED PART	-	4	Enquire
13	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30 M8 X 30	-	20	Enquire
14	263276	WASHER	263276 WASHER	-	20	Enquire
15	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
16	82288900	LH FRONT MEMBRANE	82288900 LH FRONT MEMBRANE Applicable up to Ass. No. 99285	-	1	Enquire
16	84383000	LH DOOR WATERPROOFING BRACKET	84383000 LH DOOR WATERPROOFING BRACKET Applicable from Ass. No. 99286	-	1	Enquire
16	82288800	FRONT RH MEMBRANE	82288800 FRONT RH MEMBRANE Applicable up to Ass. No. 99285	-	1	Enquire
16	84382900	RH DOOR WATERPROOFING BRACKET	84382900 RH DOOR WATERPROOFING BRACKET Applicable from Ass. No. 99286	-	1	Enquire
17	82208700	RH REAR MEMBRANE	82208700 RH REAR MEMBRANE	-	1	Enquire
17	82208800	LH REAR MEMBRANE	82208800 LH REAR MEMBRANE	-	1	Enquire
18	83292400	PIN	83292400 PIN	-	4	Enquire
19	11087974	SNAP RING	11087974 SNAP RING	-	4	Enquire
20	80763800	DOOR STRIKER PLATE SHIM	80763800 DOOR STRIKER PLATE SHIM Applicable up to Ass. No. 114689	-	2	Enquire
20	85052600	SHIM	85052600 SHIM Grey; Applicable from Ass. No. 114690	-	2	Enquire
21	85833700	SCREW	85833700 SCREW M5 X 12	-	10	Enquire
22	14442134	SCREW	14442134 SCREW M8 X 25; Applicable up to Ass. No. 106597	-	2	Enquire
22	84872900	SCREW	84872900 SCREW M8 X 25; Black; Applicable from Ass. No. 106598	-	2	Enquire
23	188250	DOME LAMP UNIT ARRIVING SOON	188250 DOME LAMP UNIT ARRIVING SOON	-	2	Enquire
24	82280100	COMPL. LH DOOR LATCH LEVER	82280100 COMPL. LH DOOR LATCH LEVER Not for GD	-	1	Enquire
24	83999500	COMPL. RH DOOR LATCH LEVER	83999500 COMPL. RH DOOR LATCH LEVER Applicable for GD	-	1	Enquire
25	82936500	PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE	82936500 PROTECTIVE SHEATH FOR INTERNAL HANDLE BOWDEN CABLE	-	2	Enquire
26	80874100	SCREW	80874100 SCREW M6 X 12; Applicable from Ass. No. 106598	-	6	Enquire
26	46401657	SCREW	46401657 SCREW Applicable up to Ass. No. 106597	-	6	Enquire
27	89180700	LATCH HOLDER	89180700 LATCH HOLDER Not for GD	-	1	Enquire
27	89180800	LATCH HOLDER	89180800 LATCH HOLDER Applicable for GD	-	1	Enquire
