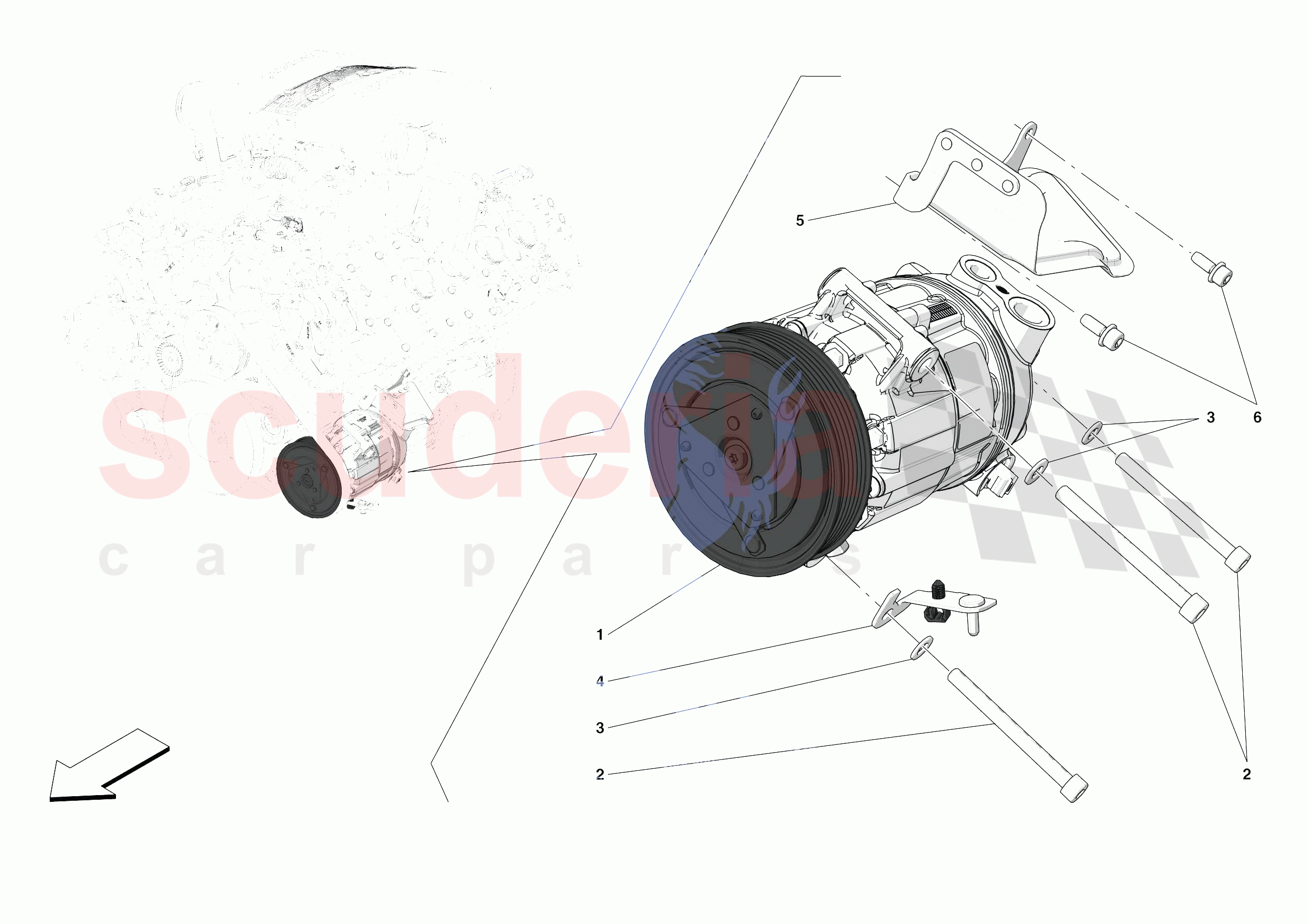

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	14307224	SCREW	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	315403	BRACKET COMPL. WITH CABLE FASTENER CLIP	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	312441	AC COMPRESSOR HEAT SHIELD	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	802715	AC SYSTEM COMPRESSOR IN STOCK	802715 AC SYSTEM COMPRESSOR Applicable after depletion of 333331 IN STOCK	$1,156.69	1
0001	802715	AC SYSTEM COMPRESSOR IN STOCK	802715 AC SYSTEM COMPRESSOR IN STOCK	$1,156.69	1
0002	14307224	SCREW IN STOCK	14307224 SCREW M8 X 85 IN STOCK	$0.63	3
0003	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	3
0004	315403	BRACKET COMPL. WITH CABLE FASTENER CLIP	315403 BRACKET COMPL. WITH CABLE FASTENER CLIP	$27.26	1
0005	312441	AC COMPRESSOR HEAT SHIELD	312441 AC COMPRESSOR HEAT SHIELD	$107.49	1
0006	248334	SCREW	248334 SCREW M6 X 16	$0.68	2
