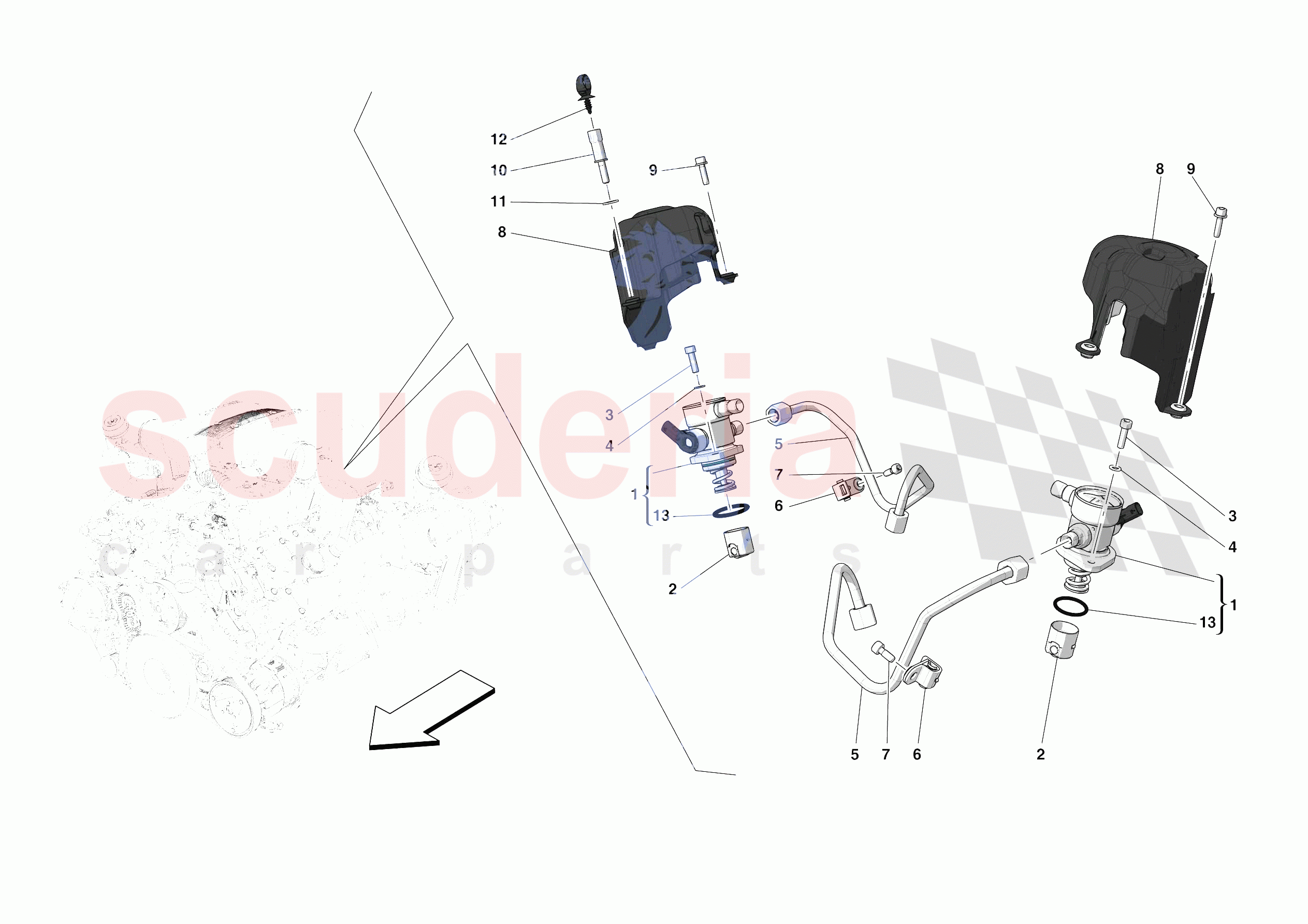

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	768410	FUEL PUMP	$580.62	To Order

Photo	Part No	Description	Price (each)	Stock
	270601	HIG PRESSURE PUMP BUCKET	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	321485	FUEL PIPE	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	836236	BRACKET	$44.43	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	297021	GDI PUMP SOUNDPROOFING COVER	$115.51	To Order
	793242	GDI PUMP SOUNDPROOFING COVER	$97.86	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	198462	STUD BOLT	$12.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	786671	CLIP	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	769201	O-RING	$6.35	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	768410	FUEL PUMP	768410 FUEL PUMP Also order ref. 5 fuel pipe and ref. 7 M6 x 14 screw	$580.62	2
0002	270601	HIG PRESSURE PUMP BUCKET	270601 HIG PRESSURE PUMP BUCKET	$65.77	2
0003	14305334	SCREW	14305334 SCREW M6 X 20	$0.21 MSRP: ~~0.45~~ (53.3% off)	4
0004	12639724	WASHER	12639724 WASHER	$0.05 MSRP: ~~0.50~~ (90% off)	4
0005	321485	FUEL PIPE	321485 FUEL PIPE	$107.49	2
0006	836236	BRACKET	836236 BRACKET	$44.43	2
0007	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
0008	297021	GDI PUMP SOUNDPROOFING COVER	297021 GDI PUMP SOUNDPROOFING COVER Applies until depletion	$115.51	2
0008	793242	GDI PUMP SOUNDPROOFING COVER	793242 GDI PUMP SOUNDPROOFING COVER Applicable after depletion of 297021	$97.86	2
0009	231619	SCREW	231619 SCREW M6 X 22	$0.31	4
0010	198462	STUD BOLT	198462 STUD BOLT	$12.03	2
0011	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
0012	786671	CLIP	786671 CLIP	$1.26	2
0013	769201	O-RING	769201 O-RING	$6.35	2
