FRONT SUSPENSION - SHOCK ABSORBER AND STABILIZER BAR of Ferrari Ferrari F50

View All

Ferrari F50 - FRONT SUSPENSION - SHOCK ABSORBER AND STABILIZER BAR

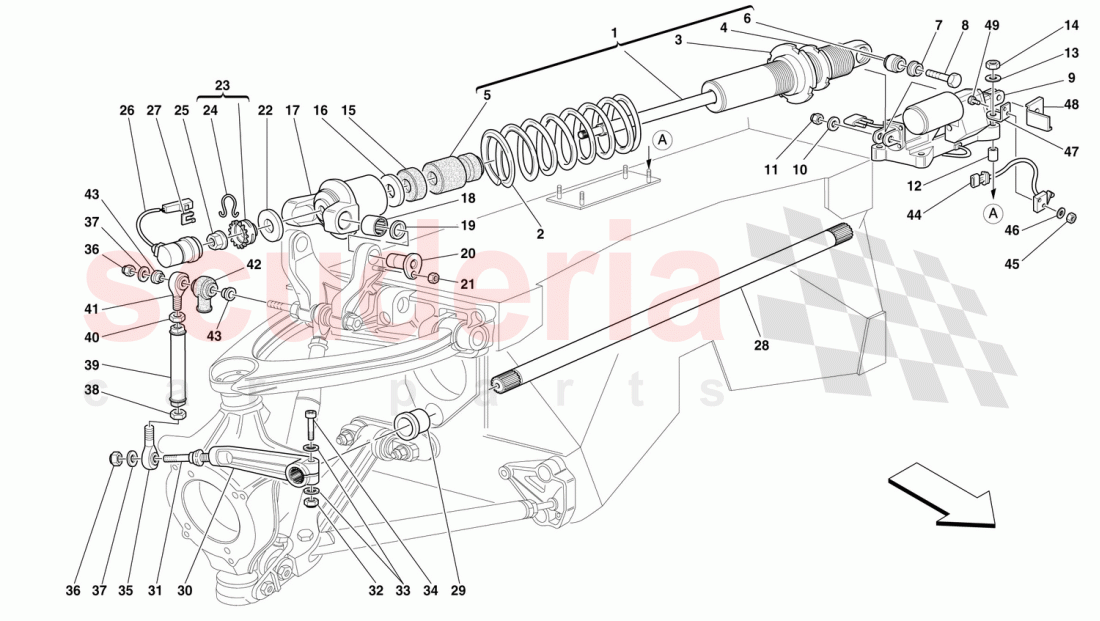

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	165846	FRONT SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165619	SUSPENSION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150432	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	141860	RING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165991	SHOCK ABSORBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149354	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	197135	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153320	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171104	HOISTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133216	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150961	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154695	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150613	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147004	HYPERBLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150160	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150115	WASHER -Th. mm. 2,5-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150114	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150612	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137824	ACTUATOR SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142079	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137826	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	158732	SHOCK ABSORBER ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168442	ANTI ROLL BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151642	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151662	ARM FOR STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	151663	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149939	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129393	LOWER BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT M8 FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102914	L.H. THREADED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152877	SHACKLE FOR STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129382	Ball joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124622	BALL JOINT PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129383	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154762	MICRO SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61002200	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496178	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169335	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169336	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271014	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	169309	BUSHING	169309 BUSHING Valid from car N¡ 103879	-	4	Enquire
-	148772	BALL JOINT PROTECTION	148772 BALL JOINT PROTECTION Valid from car N¡ 103879	-	4	Enquire
-	169310	BALL JOINT	169310 BALL JOINT Valid from car N¡ 103879	-	2	Enquire
-	169305	SHACKLE FOR STABILISER BAR	169305 SHACKLE FOR STABILISER BAR Valid from car N¡ 103879 /	-	2	Enquire
-	10788711	Nut, R.H. thread	10788711 Nut, R.H. thread Valid from car N¡ 103879	-	2	Enquire
-	11690911	L.H. THREADED NUT	11690911 L.H. THREADED NUT Valid from car N¡ 103879	-	2	Enquire
-	169311	LOWER BALL JOINT	169311 LOWER BALL JOINT Valid from car N¡ 103879	-	2	Enquire
-	147985	NUT	147985 NUT	-	2	Enquire
-	168442	ANTI ROLL BAR	168442 ANTI ROLL BAR	-	1	Enquire
-	150171	WASHER -Th. mm. 2,8-	150171 WASHER -Th. mm. 2,8- As an alternative	-	4	Enquire
-	150168	WASHER -Th. mm. 2,2-	150168 WASHER -Th. mm. 2,2- As an alternative	-	4	Enquire
-	150169	WASHER -Th. mm. 2,6-	150169 WASHER -Th. mm. 2,6- As an alternative	-	4	Enquire
-	150170	WASHER -Th. mm. 2,7-	150170 WASHER -Th. mm. 2,7- As an alternative	-	4	Enquire
-	150166	WASHER -Th. mm. 2,4-	150166 WASHER -Th. mm. 2,4- As an alternative	-	4	Enquire
-	150167	WASHER -Th. mm. 2,3-	150167 WASHER -Th. mm. 2,3- As an alternative	-	4	Enquire
-	147985	NUT	147985 NUT	-	4	Enquire
-	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
-	171104	HOISTER	171104 HOISTER Replaces 164102	-	1	Enquire
1	165846	FRONT SHOCK ABSORBER	165846 FRONT SHOCK ABSORBER	-	2	Enquire
2	165619	SUSPENSION SPRING	165619 SUSPENSION SPRING	-	2	Enquire
3	150432	SPACER	150432 SPACER	-	2	Enquire
4	141860	RING NUT	141860 RING NUT	-	2	Enquire
5	165991	SHOCK ABSORBER PAD	165991 SHOCK ABSORBER PAD	-	2	Enquire
6	149354	BALL JOINT	149354 BALL JOINT	-	2	Enquire
7	197135	BUSHING	197135 BUSHING	-	4	Enquire
8	153320	PIN	153320 PIN	-	2	Enquire
9	171104	HOISTER	171104 HOISTER Not as spare part now / Replaced by 171104	-	1	Enquire
10	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
11	133216	NUT	133216 NUT	-	2	Enquire
12	150961	CENTERING DOWEL	150961 CENTERING DOWEL	-	2	Enquire
13	12638524	WASHER	12638524 WASHER	-	4	Enquire
14	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
15	154695	SPACER	154695 SPACER	-	2	Enquire
16	150613	WASHER	150613 WASHER	-	2	Enquire
17	147004	HYPERBLOCK	147004 HYPERBLOCK	-	2	Enquire
18	150160	BEARING	150160 BEARING	-	4	Enquire
19	150115	WASHER -Th. mm. 2,5-	150115 WASHER -Th. mm. 2,5-	-	4	Enquire
20	150114	PIN	150114 PIN	-	4	Enquire
21	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	4	Enquire
22	150612	WASHER	150612 WASHER	-	2	Enquire
23	137824	ACTUATOR SUPPORT	137824 ACTUATOR SUPPORT	-	2	Enquire
24	142079	CLIP	142079 CLIP	-	2	Enquire
25	137826	NUT	137826 NUT	-	2	Enquire
26	158732	SHOCK ABSORBER ACTUATOR	158732 SHOCK ABSORBER ACTUATOR	-	2	Enquire
27	155751	CLIP	155751 CLIP	-	2	Enquire
28	168442	ANTI ROLL BAR	168442 ANTI ROLL BAR Not as spare part now / Replaced by 168442	-	1	Enquire
29	151642	BUSHING	151642 BUSHING	-	2	Enquire
30	151662	ARM FOR STABILIZER BAR	151662 ARM FOR STABILIZER BAR	-	2	Enquire
31	151663	PIN	151663 PIN	-	2	Enquire
32	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	2	Enquire
33	12638524	WASHER	12638524 WASHER	-	4	Enquire
34	149939	SCREW	149939 SCREW	-	2	Enquire
35	129393	LOWER BALL JOINT	129393 LOWER BALL JOINT Valid till car N¡ 103878	-	2	Enquire
36	14040711	NUT M8 FLANGED	14040711 NUT M8 FLANGED	-	4	Enquire
37	12638524	WASHER	12638524 WASHER	-	4	Enquire
38	16102914	L.H. THREADED NUT	16102914 L.H. THREADED NUT Valid till car N¡ 103878	-	2	Enquire
39	152877	SHACKLE FOR STABILISER BAR	152877 SHACKLE FOR STABILISER BAR Valid till car N¡ 103878 /	-	2	Enquire
40	16102314	NUT	16102314 NUT Valid till car N¡ 103878	-	2	Enquire
41	129382	Ball joint	129382 Ball joint Valid till car N¡ 103878	-	2	Enquire
42	124622	BALL JOINT PROTECTION	124622 BALL JOINT PROTECTION Valid till car N¡ 103878	-	4	Enquire
43	129383	SPACER	129383 SPACER Valid till car N¡ 103878	-	4	Enquire
44	154762	MICRO SWITCH	154762 MICRO SWITCH	-	1	Enquire
45	61002200	NUT	61002200 NUT	-	2	Enquire
46	14496178	WASHER	14496178 WASHER	-	2	Enquire
47	169335	SMALL PLATE	169335 SMALL PLATE	-	1	Enquire
48	169336	BRACKET	169336 BRACKET	-	1	Enquire
49	13271014	SCREW	13271014 SCREW	-	2	Enquire
