Name: HAND-BRAKE CONTROL AND CALIPER
Rating: 4.1 (1 reviews)

HAND-BRAKE CONTROL AND CALIPER of Ferrari Ferrari F50

View All

Ferrari F50 - HAND-BRAKE CONTROL AND CALIPER

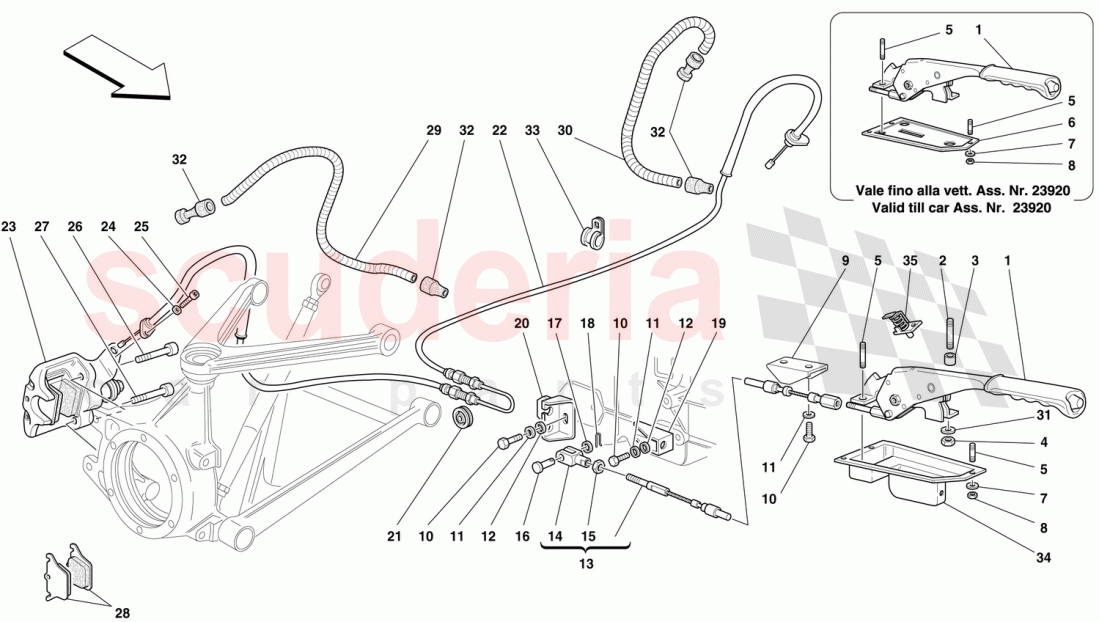

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	167900	COMPLETE HAND BRAKE LEVER	$325.73	To Order

Photo	Part No	Description	Price (each)	Stock
	13517224	STUD BOLT	$0.76	To Order

Photo	Part No	Description	Price (each)	Stock
	136670	Spacer	$4.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	13516624	STUD BOLT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	167406	GASKET	$110.70	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	$770.19	To Order

Photo	Part No	Description	Price (each)	Stock
	154615	SUPPORT FOR HAND BRAKE CABLE	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	16043534	SCREW M8 X 22	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12647021	WASHER	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	154380	HAND BRAKE CONTROL FRONT CABLE	$65.77	To Order

Photo	Part No	Description	Price (each)	Stock
	105424	END	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059311	FLANGED NUT M8 X 1.25	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	13550301	WASHER	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	151805	BRACKET FOR FRONT CABLE	$38.49	To Order

Photo	Part No	Description	Price (each)	Stock
	151821	BRACKET FOR REAR CABLE	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	122091	PULLEY	$9.45	To Order

Photo	Part No	Description	Price (each)	Stock
	162809	HAND BRAKE CONTROL REAR CABLE	$474.88	To Order

Photo	Part No	Description	Price (each)	Stock
	162650	R.H. CALIPER FOR HAND BRAKE	$764.89	To Order

Photo	Part No	Description	Price (each)	Stock
	127493	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10977824	SCREW	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	14308924	SCREW	$4.39	To Order

Photo	Part No	Description	Price (each)	Stock
	14308424	SCREW	$3.32	To Order

Photo	Part No	Description	Price (each)	Stock
	169549	KIT OF PADS FOR HAND BRAKE CALIPERS	$180.69	To Order

Photo	Part No	Description	Price (each)	Stock
	169529	R.H. HEAT PROTECTION SHEATH	$26.11	To Order

Photo	Part No	Description	Price (each)	Stock
	169612	L.H. HEAT PROTECTION SHEATH	$30.16	To Order

Photo	Part No	Description	Price (each)	Stock
	14499421	WASHER	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	65090800	SHEATH	$10.71	To Order

Photo	Part No	Description	Price (each)	Stock
	10450190	BRACKET WITH SHEATH	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	173481	GASKET	$123.54	To Order

Photo	Part No	Description	Price (each)	Stock
	122043	SWITCH FOR BRAKE	$92.30	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	162653	L.H. CALIPER FOR HAND BRAKE	162653 L.H. CALIPER FOR HAND BRAKE	$764.89	1
1	167900	COMPLETE HAND BRAKE LEVER	167900 COMPLETE HAND BRAKE LEVER	$325.73	1
2	13517224	STUD BOLT	13517224 STUD BOLT	$0.76 MSRP: ~~1.00~~ (24% off)	1
3	136670	Spacer	136670 Spacer	$4.75	1
4	14040711	NUT	14040711 NUT	$0.41	2
5	13516624	STUD BOLT	13516624 STUD BOLT	$0.32	1
6	167406	GASKET	167406 GASKET Valid till car Ass. Nr. 23920	$110.70	1
7	14496324	WASHER	14496324 WASHER	$3.23	3
8	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	$770.19	3
9	154615	SUPPORT FOR HAND BRAKE CABLE	154615 SUPPORT FOR HAND BRAKE CABLE	$77.00	1
10	16043534	SCREW M8 X 22	16043534 SCREW M8 X 22	$0.37	4
11	127496	WASHER	127496 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	4
12	12647021	WASHER	12647021 WASHER	$0.32	2
13	154380	HAND BRAKE CONTROL FRONT CABLE	154380 HAND BRAKE CONTROL FRONT CABLE	$65.77	1
14	105424	END	105424 END	-	1	Enquire
15	14059311	FLANGED NUT M8 X 1.25	14059311 FLANGED NUT M8 X 1.25	$0.28 MSRP: ~~0.50~~ (44% off)	1
16	10050814	PIN	10050814 PIN	$2.61 MSRP: ~~6.25~~ (58.2% off)	1
17	13550301	WASHER	13550301 WASHER	$0.10	1
18	10734208	SPLIT PIN	10734208 SPLIT PIN	$0.02	1
19	151805	BRACKET FOR FRONT CABLE	151805 BRACKET FOR FRONT CABLE	$38.49	1
20	151821	BRACKET FOR REAR CABLE	151821 BRACKET FOR REAR CABLE	$91.45	1
21	122091	PULLEY	122091 PULLEY	$9.45	1
22	162809	HAND BRAKE CONTROL REAR CABLE	162809 HAND BRAKE CONTROL REAR CABLE	$474.88	1
23	162650	R.H. CALIPER FOR HAND BRAKE	162650 R.H. CALIPER FOR HAND BRAKE	$764.89	1
24	127493	WASHER	127493 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
25	10977824	SCREW	10977824 SCREW	$1.94	2
26	14308924	SCREW	14308924 SCREW	$4.39 MSRP: ~~6.25~~ (29.8% off)	2
27	14308424	SCREW	14308424 SCREW	$3.32 MSRP: ~~12.00~~ (72.3% off)	2
28	169549	KIT OF PADS FOR HAND BRAKE CALIPERS	169549 KIT OF PADS FOR HAND BRAKE CALIPERS CALIPERS	$180.69	1
29	169529	R.H. HEAT PROTECTION SHEATH	169529 R.H. HEAT PROTECTION SHEATH	$26.11	1
30	169612	L.H. HEAT PROTECTION SHEATH	169612 L.H. HEAT PROTECTION SHEATH	$30.16	1
31	14499421	WASHER	14499421 WASHER	$0.21	4
32	65090800	SHEATH	65090800 SHEATH	$10.71	4
33	10450190	BRACKET WITH SHEATH	10450190 BRACKET WITH SHEATH	$0.52	1
34	173481	GASKET	173481 GASKET Valid from car Ass. Nr. 23921	$123.54	1
35	122043	SWITCH FOR BRAKE	122043 SWITCH FOR BRAKE INDICATOR LAMP	$92.30	1
