Ferrari F50 - AIR CONDITIONING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
63665600 A.C. CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
64161100 SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
64161700 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
64644500 AIR CONVEYOR Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
153431 COMPLETE ELECTROFAN Enquire To Order
Photo Part No Description Price (each) Stock
154223 Fan -Valid for CH- Enquire To Order
Photo Part No Description Price (each) Stock
154224 AIR CONVEYOR Enquire To Order
Photo Part No Description Price (each) Stock
154225 Motor -Valid for CH- Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
64761900 PIPE FROM COMPRESSOR TO CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
63665800 PIPE FROM CONDENSER TO TUNNEL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
63665900 PIPE FROM CONDENSER TO FILTER Enquire To Order
Photo Part No Description Price (each) Stock
10441390 P clip Bracket With Sheath D.12 Enquire To Order
Photo Part No Description Price (each) Stock
63666400 PIPE FROM TUNNEL TO COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
63666300 PIPE FROM EVAPORATOR TO COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
10441690 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
10977624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11181574 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
10977624 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11181574 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
64774400 UNDERTUNNEL HEATING PIPE Enquire To Order
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
64290100 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
10903024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11181874 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
63666200 PIPE FROM EVAPORATOR TO TUNNEL PIPE Enquire To Order
Photo Part No Description Price (each) Stock
63666500 HEATING PIPE FROM UNDER TUNNEL TO HEATER Enquire To Order
Photo Part No Description Price (each) Stock
64628400 PIPE FOR CONDENSATE VENT Enquire To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar Enquire To Order
Photo Part No Description Price (each) Stock
63666000 PIPE FROM TUNNEL PIPE TO DEHYDRATOR Enquire To Order
Photo Part No Description Price (each) Stock
63934300 DEHYDRATOR FILTER WITH PRESSURE SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
64278900 PRESSOSTAT Enquire To Order
Photo Part No Description Price (each) Stock
63666100 PIPE FROM DEHYDRATOR TO EVAPORATOR Enquire To Order
Photo Part No Description Price (each) Stock
63666600 PIPE FROM HEATER TO TAP Enquire To Order
Photo Part No Description Price (each) Stock
61079000 ELECTRO-MAGNETIC VALVE Enquire To Order
Photo Part No Description Price (each) Stock
103550 Spacer bush -Only for Enquire To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET Enquire To Order
Photo Part No Description Price (each) Stock
64892900 PIPE FROM VALVE TO RETURN Enquire To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
62165800 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
64690200 PROTECTION NET A.C. CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
64990400 TUNNEL R.H. LATERAL INSULATION Enquire To Order
Photo Part No Description Price (each) Stock
63665500 PIPE FROM COMPRESSOR TO A.C. CONDENSER PIPE Enquire To Order
Photo Part No Description Price (each) Stock
172702 O.R. GASKET Enquire To Order
View All

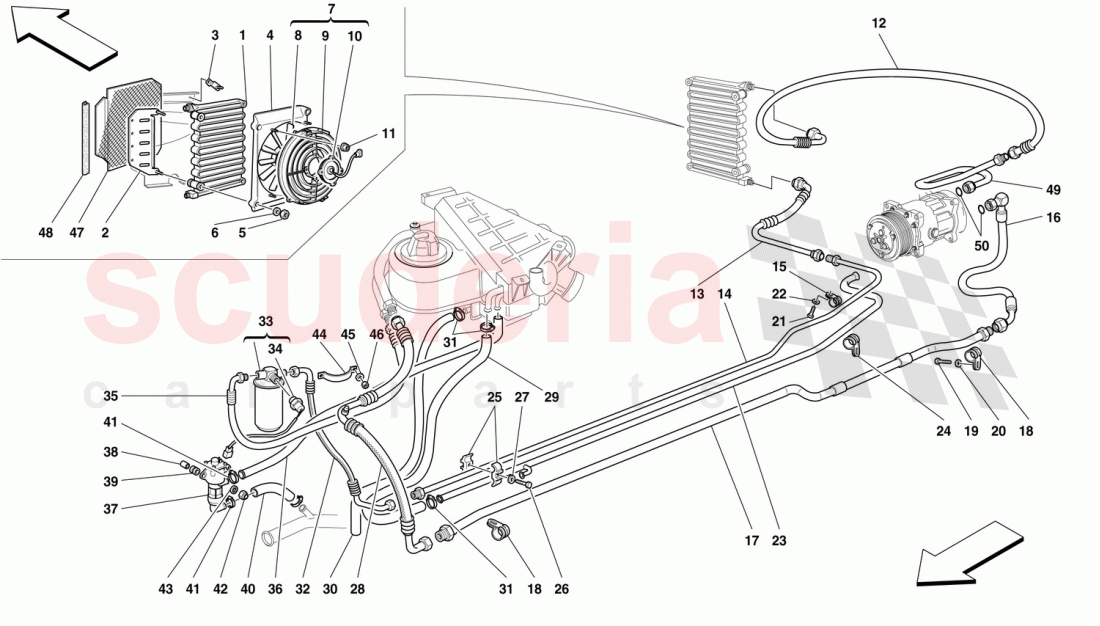

AIR CONDITIONING SYSTEM of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 64892900
PIPE FROM VALVE TO RETURN 		- 1 Enquire
1 63665600
A.C. CONDENSER 		- 1 Enquire
2 64161100
SHIELD 		- 1 Enquire
3 64161700
BRACKET 		- 2 Enquire
4 64644500
AIR CONVEYOR 		- 1 Enquire
5 14059290
FLANGED NUT M6 		- 4 Enquire
6 12643724
WASHER 		- 4 Enquire
7 153431
COMPLETE ELECTROFAN 		- 1 Enquire
8 154223
Fan -Valid for CH- 		- 1 Enquire
9 154224
AIR CONVEYOR 		- 1 Enquire
10 154225
Motor -Valid for CH- 		- 1 Enquire
11 14059290
FLANGED NUT M6 		- 4 Enquire
12 64761900
PIPE FROM COMPRESSOR TO CONDENSER
CONDENSER 		- 1 Enquire
13 63665800
PIPE FROM CONDENSER TO TUNNEL PIPE
TUNNEL PIPE 		- 1 Enquire
14 63665900
PIPE FROM CONDENSER TO FILTER
FILTER 		- 1 Enquire
15 10441390
P clip Bracket With Sheath D.12 		- 1 Enquire
16 63666400
PIPE FROM TUNNEL TO COMPRESSOR 		- 1 Enquire
17 63666300
PIPE FROM EVAPORATOR TO COMPRESSOR
TO COMPRESSOR 		- 1 Enquire
18 10441690
BRACKET WITH SHEATH 		- 3 Enquire
19 10977624
SCREW 		- 1 Enquire
20 11181574
WASHER 		- 1 Enquire
21 10977624
SCREW 		- 1 Enquire
22 11181574
WASHER 		- 1 Enquire
23 64774400
UNDERTUNNEL HEATING PIPE 		- 1 Enquire
24 10441290
BRACKET WITH SHEATH 		- 3 Enquire
25 64290100
CLIP 		- 4 Enquire
26 10903024
SCREW 		- 2 Enquire
27 11181874
WASHER 		- 2 Enquire
28 63666200
PIPE FROM EVAPORATOR TO TUNNEL PIPE
TUNNEL PIPE 		- 1 Enquire
29 63666500
HEATING PIPE FROM UNDER TUNNEL TO HEATER
TO HEATER 		- 1 Enquire
30 64628400
PIPE FOR CONDENSATE VENT 		- 1 Enquire
31 13000490
Screw Collar 		- 4 Enquire
32 63666000
PIPE FROM TUNNEL PIPE TO DEHYDRATOR
TO DEHYDRATOR 		- 1 Enquire
33 63934300
DEHYDRATOR FILTER WITH PRESSURE SWITCH
PRESSURE SWITCH 		- 1 Enquire
34 64278900
PRESSOSTAT 		- 1 Enquire
35 63666100
PIPE FROM DEHYDRATOR TO EVAPORATOR
TO EVAPORATOR 		- 1 Enquire
36 63666600
PIPE FROM HEATER TO TAP 		- 1 Enquire
37 61079000
ELECTRO-MAGNETIC VALVE 		- 1 Enquire
38 103550
Spacer bush -Only for 		- 2 Enquire
39 812273
CABLE GROMMET 		- 2 Enquire
40 64892900
PIPE FROM VALVE TO RETURN
Not as spare part now / Replaced by 64892900 		- 1 Enquire
41 13000490
Screw Collar 		- 6 Enquire
42 14059290
FLANGED NUT M6 		- 2 Enquire
43 12643724
WASHER 		- 2 Enquire
44 62165800
BRACKET 		- 1 Enquire
45 12643724
WASHER 		- 2 Enquire
46 14059290
FLANGED NUT M6 		- 2 Enquire
47 64690200
PROTECTION NET A.C. CONDENSER
CONDENSER 		- 1 Enquire
48 64990400
TUNNEL R.H. LATERAL INSULATION 		- 4 Enquire
49 63665500
PIPE FROM COMPRESSOR TO A.C. CONDENSER PIPE
A.C. CONDENSER PIPE 		- 1 Enquire
50 172702
O.R. GASKET 		- 2 Enquire
