Name: AIR CONDITIONING COMPRESSOR
Rating: 4.5 (1 reviews)

AIR CONDITIONING COMPRESSOR of Ferrari Ferrari F50

View All

Ferrari F50 - AIR CONDITIONING COMPRESSOR

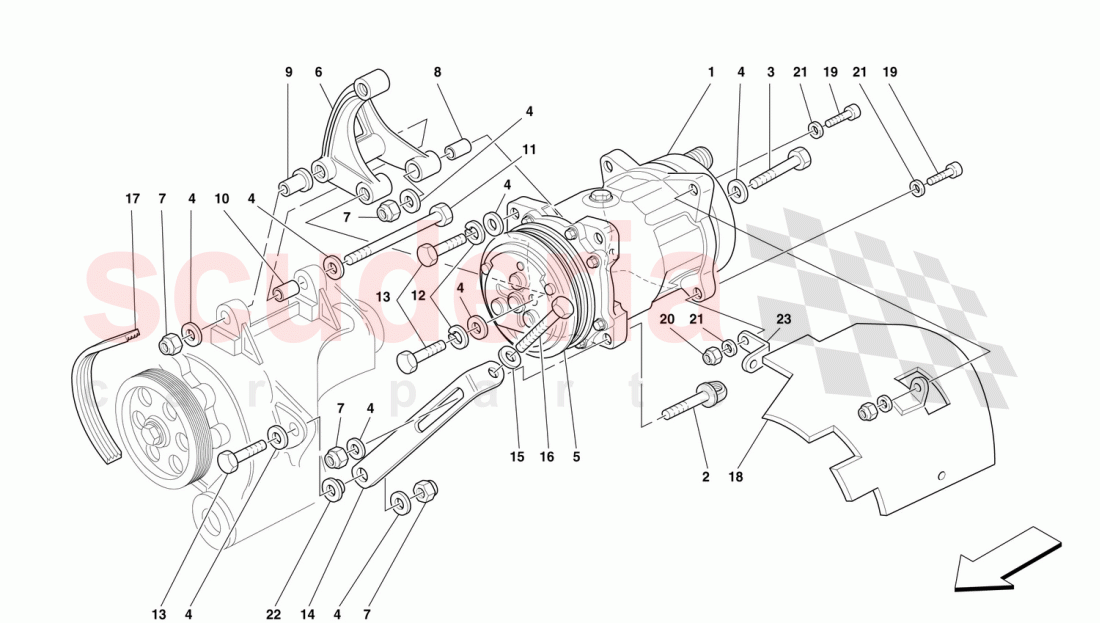

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	154169	AIR CONDITIONING COMPRESSOR	$2,581.64	To Order

Photo	Part No	Description	Price (each)	Stock
	160947	THREADED PIN	$117.12	To Order

Photo	Part No	Description	Price (each)	Stock
	11288021	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	154444	ELECTRO MAGNETIC JOINT	$1,141.97	To Order

Photo	Part No	Description	Price (each)	Stock
	160688	COMPRESSOR SUPPORT BRACKET	$529.50	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	123180	Dowel	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	145358	BUSHING	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	151809	BUSHING	$2.37	To Order

Photo	Part No	Description	Price (each)	Stock
	15972224	SCREW	$2.37	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11307024	BOLT M10 X 1.25 X40	$4.23	To Order

Photo	Part No	Description	Price (each)	Stock
	160945	BELT TENSION ADJUSTING BRACKET	$57.75	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	125668	SCREW	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	175956	COMPRESSOR CONTROL BELT	$162.57	To Order

Photo	Part No	Description	Price (each)	Stock
	150658	SHIELD FOR COMPRESSOR PROTECTION	$412.72	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.41	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.91	To Order

Photo	Part No	Description	Price (each)	Stock
	167524	BUSHING	$9.89	To Order

Photo	Part No	Description	Price (each)	Stock
	142060	BRACKET	$6.95	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	154169	AIR CONDITIONING COMPRESSOR	154169 AIR CONDITIONING COMPRESSOR COMPRESSOR	$2,581.64	1
2	160947	THREADED PIN	160947 THREADED PIN	$117.12	1
3	11288021	SCREW	11288021 SCREW	$0.52 MSRP: ~~2.25~~ (76.9% off)	1
4	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	10
5	154444	ELECTRO MAGNETIC JOINT	154444 ELECTRO MAGNETIC JOINT	$1,141.97	1
6	160688	COMPRESSOR SUPPORT BRACKET	160688 COMPRESSOR SUPPORT BRACKET	$529.50	1
7	12574521	Nyloc Nut	12574521 Nyloc Nut	$0.92 MSRP: ~~2.00~~ (54% off)	4
8	123180	Dowel	123180 Dowel	$2.61	1
9	145358	BUSHING	145358 BUSHING	$24.05	1
10	151809	BUSHING	151809 BUSHING	$2.37	2
11	15972224	SCREW	15972224 SCREW	$2.37	1
12	127497	WASHER	127497 WASHER	$0.06 MSRP: ~~0.75~~ (92% off)	2
13	11307024	BOLT M10 X 1.25 X40	11307024 BOLT M10 X 1.25 X40	$4.23	3
14	160945	BELT TENSION ADJUSTING BRACKET	160945 BELT TENSION ADJUSTING BRACKET BRACKET	$57.75	1
15	14496524	WASHER	14496524 WASHER	$0.11 MSRP: ~~1.50~~ (92.7% off)	1
16	125668	SCREW	125668 SCREW	$1.07 MSRP: ~~2.31~~ (53.7% off)	1
17	175956	COMPRESSOR CONTROL BELT	175956 COMPRESSOR CONTROL BELT	$162.57	1
18	150658	SHIELD FOR COMPRESSOR PROTECTION	150658 SHIELD FOR COMPRESSOR PROTECTION PROTECTION	$412.72	1
19	231629	SCREW	231629 SCREW	$0.65 MSRP: ~~0.95~~ (31.6% off)	2
20	14040711	NUT	14040711 NUT	$0.41	2
21	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	$1.91	4
22	167524	BUSHING	167524 BUSHING	$9.89	1
23	142060	BRACKET	142060 BRACKET	$6.95	1
